spool holder anti tangle 3D Print Model

Description

when i'm using a new spool of filament, it always tangled outside the roll.
because of the bow shape the filament follows, there's a big chance that the
filament falls off the roll and gets entangled.

so i designed my own filament spool holder!

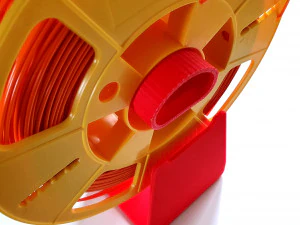

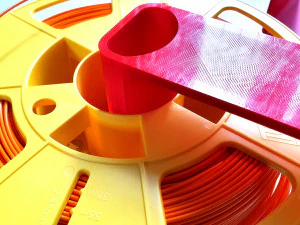

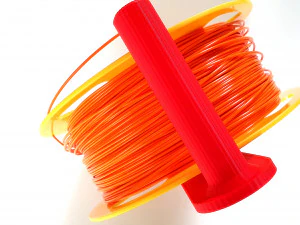

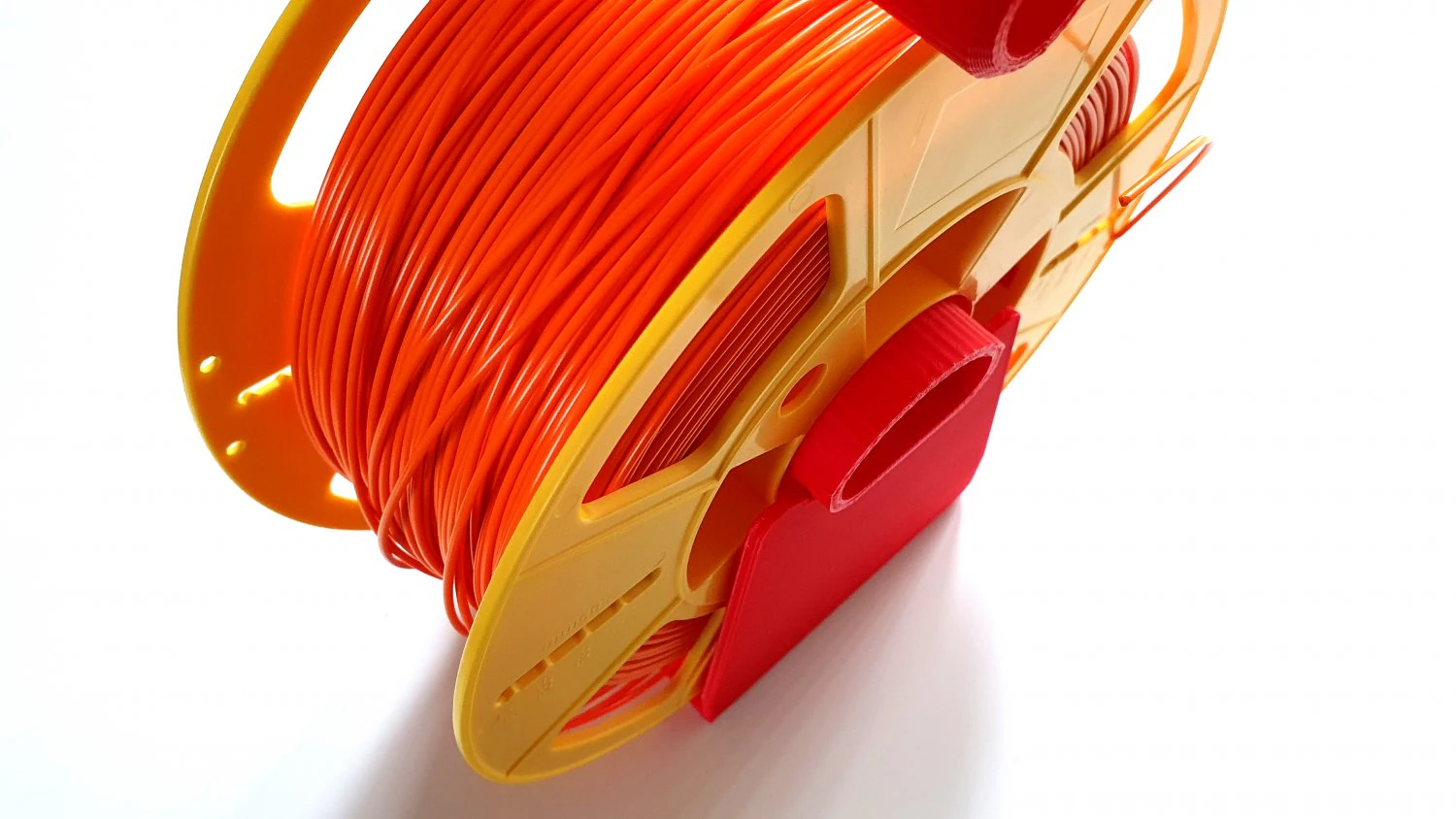

you can slide the spool with filament on the holder. then put the holder with spool

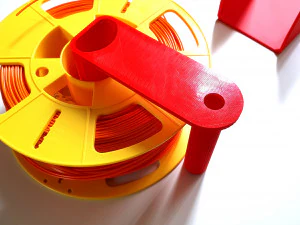

on the stand. you can carry the spool together with holder, because of the handle on the top.

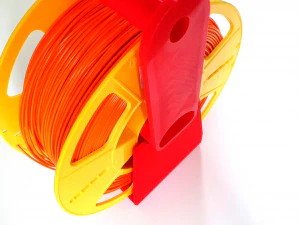

there are two grooves in the holder which put it on a fixed position on the stand.

watch this video for a quick demonstration:
https://youtu.be/nvngiuvhnvi

disclaimer: usage of any models from 3dparts4u will be at your own risk.

important: suitable for spools with an outer diameter of ø200mm.
the inside diameter must be ø54mm and the width of a roll can have a maximum size of 78mm.

my simplify3d print settings:

- pla
- 3600mm/minute (60mm/second)
- hotend 185°c | bed 55°c
- 250 micron | infill 60%
- 3 top layers | 3 bottom layers | 3 outline layers
- brass nozzle 0.35mm
- extrusion width 0.44mm
- retraction 1.00mm
- extrusion multiplier 0.95
- coasting 0.30mm
- wipe distance off
- fan 100%
- no support needed

i also added the freecad file(s), so you can alter the model. you have to download freecad, it's free.
