3DP2BLROD10A-3D Printable Iris mechanism Free 3D Models

$ 0.00 USD
  • Available formats:
  • Item ID:
    414942
  • Date: 2022-09-20
  • Collection:
    No
  • Print Ready:
    No
  • 3D Scan:
    No
  • Adult content:
    No
  • PBR:
    No
  • Views:
    3640
Report This Item

Description

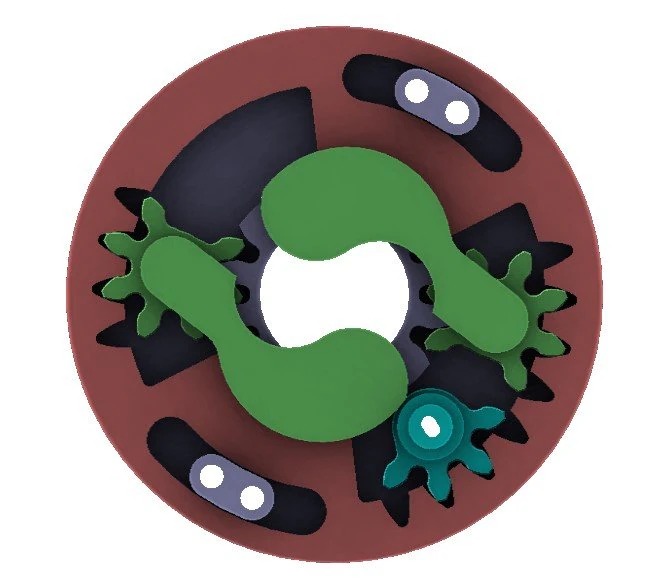

Iris mechanism or taiji mechanism designed for 3d print. There are 2 leaves. Then you rotate the "Drive Part"or the middle plate, the center hole can open or close gradually. The center hole is diameter 10mm, the outer size is diameter 36mm and thickness is 8.2mm. To assemble the parts togther,some M2 screws are needed. STL and step format files are included.
Parts are designed for 3d printing. It is best to use resin material when 3d printing. And you may need to sand some parts due to the 3d printing quality.
Parts should be printed separately and then assembled together.
Print Ready: No

Usage Information

Can I commercially use free models? Yes, If the model is under Royalty Free license , you can use it as long as it is incorporated into the product and as long as the 3rd party cannot retrieve it on its own in both digital and physical form.
