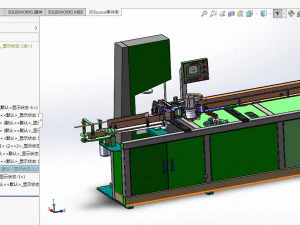

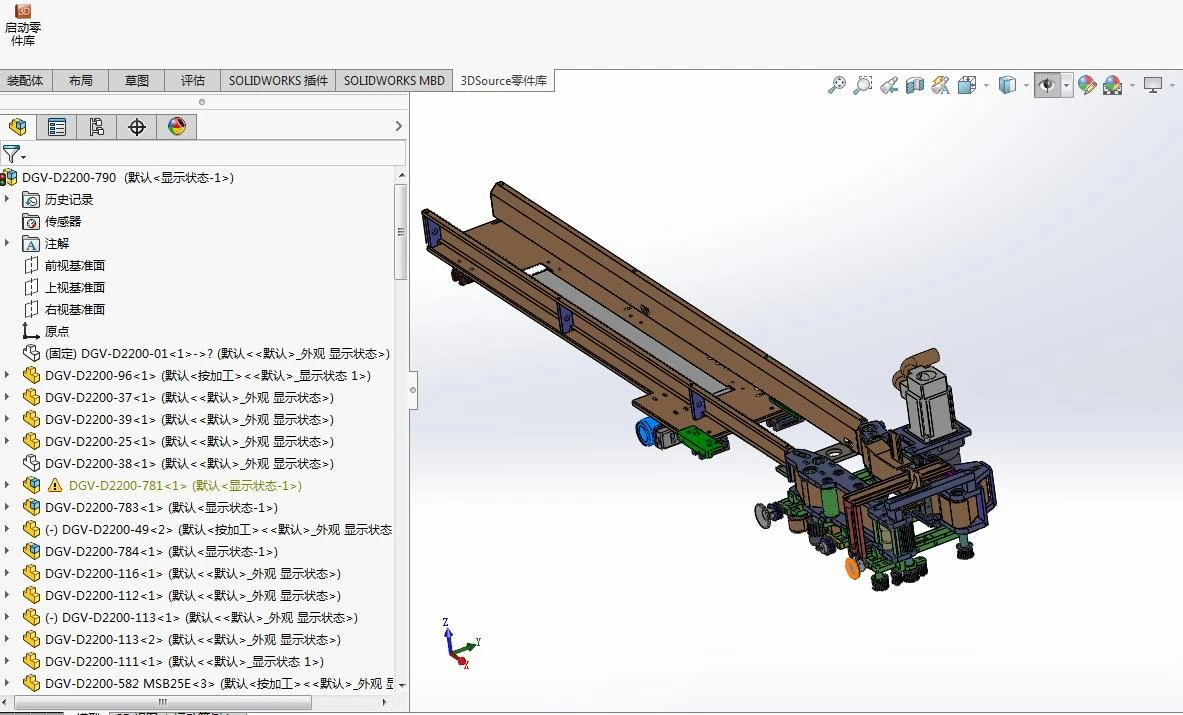

automatic paper cutting machine with cutter 3D Model

Description

automatic paper cutting machine with cutter
automatic paper cutting machine with cutter

1. description of main technical advantages of the product

(1) the equipment has the advantages of simple operation, low noise, stable operation and high production efficiency

(2) the whole machine adopts plc program control, frequency control and touch screen operation (siemens brand)

(3) servo motor drive

(4) servo motor controls feeding to provide correct cutting length

(5) single channel conveyor belt

(6) equipped with advanced photoelectric detection system

(7) automatic stop device without material

(8) automatic edge cleaning device

(9) low knife consumption, low power consumption

(10) the cutting speed and length can be set by touch screen, which makes pushing and cutting more smooth and continuous

(11) smooth incision, high accuracy (12) automatic grinding feed system, cutting oblique man-machine control.

2. technical parameters of equipment

dimensions l3750mm * w2200mm * h1850mm, l4560mm * w2200mm * h1850mm

total weight 1200kg 1300kg

channel specification l2200 mm ф 65-125mm h1900mm l4560mm ф 65-125mm h1900mm

the air source pressure is 0.5mpa ～ 0.8mpa

power supply, 3-phase, 4-wire, 380v, 50hz, 4.5kw (other voltages can be customized)

production speed 75-105 t / min

the cutting length is 90mm ~ 180mm, and the error is ± 1mm

with knife size 3880mm × 52mm × 0.6mm

feeding control plc, servo motor control

grinding control, automatic grinding feed, grinding angle control of human-machine interface Print Ready: No
