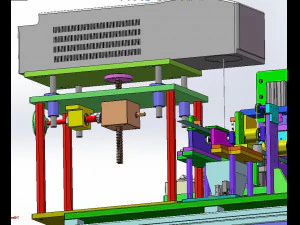

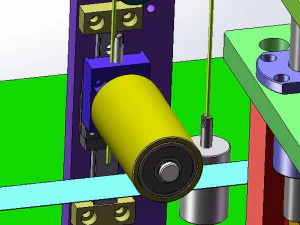

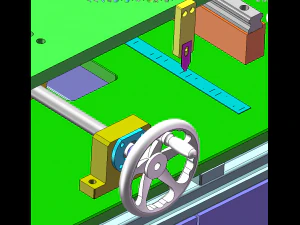

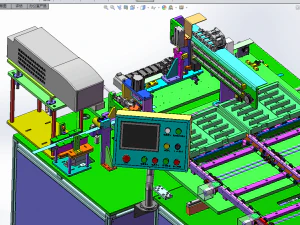

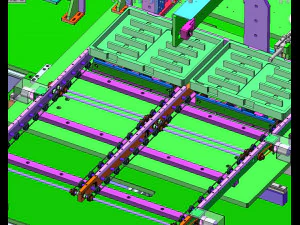

wire laser cutting peeling cutting machine ffc cutting machine 3D Model

wire laser cutting peeling cutting machine ffc cutting machine 3D Model step, sldprt, from tzd

wire laser cutting peeling cutting machine ffc cutting machine

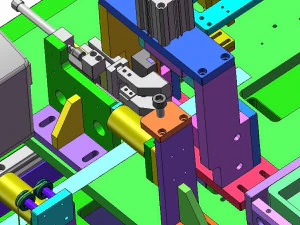

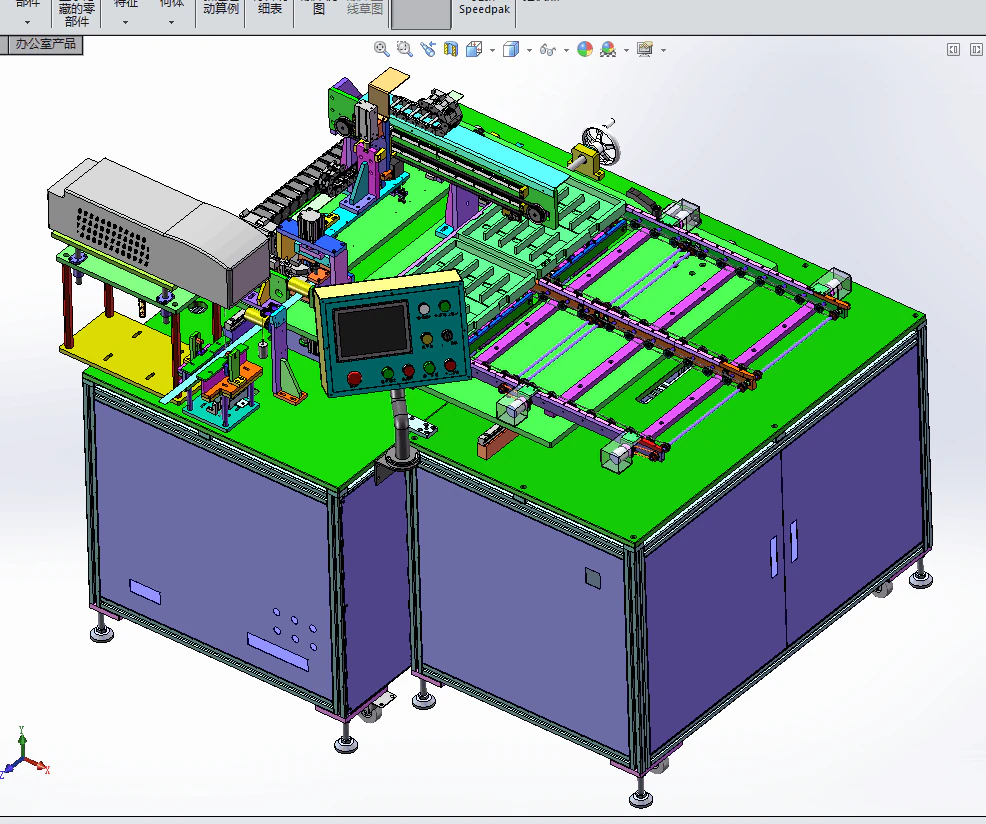

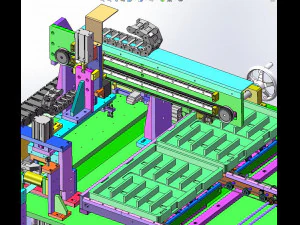

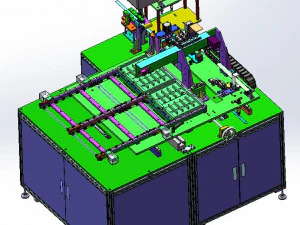

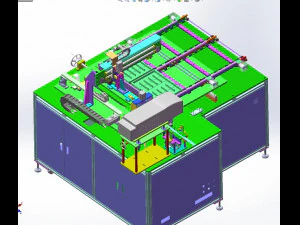

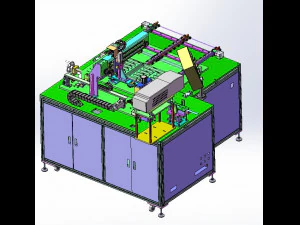

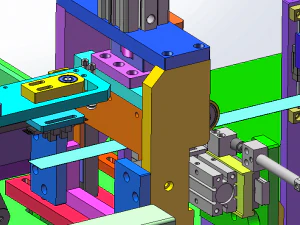

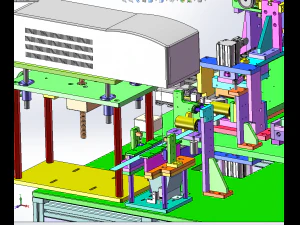

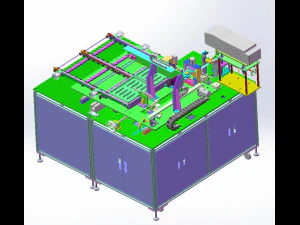

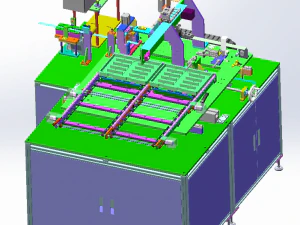

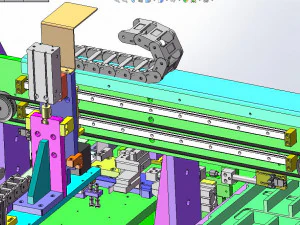

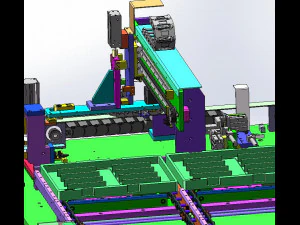

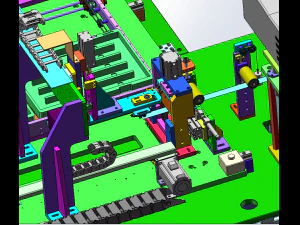

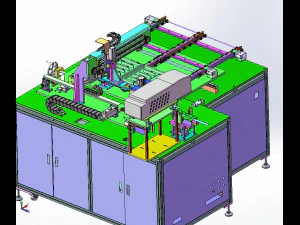

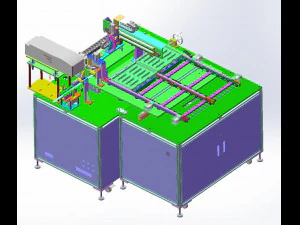

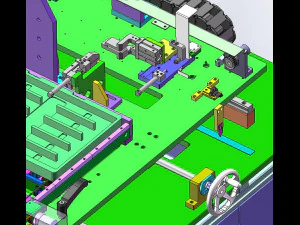

wire laser cutting and peeling cutting machine flexible wire cutting machine 1. equipment description the equipment is suitable for cutting and peeling products: fpc coaxial line, ffc wire, laser cutting and peeling of various wire rods, etc. the equipment mainly uses a laser machine for cutting and peeling. the laser machine cuts into automatic cutting operation, and the conveying manipulator completes the receiving action at the same time. the receiving plate is transported by the return line. the left conveyor belt first sends the empty tray in, and then the right conveyor belt sends out the filled suction tray. the main structure of the equipment is laser cutting and cutting machine cutting the equipment has been used on the customer's site, and the complete structure of the drawing can be used for reference. the copper axis is exposed after laser cutting, which is convenient for subsequent processing, cutting and peeling. the laser cutting machine is only one of the equipment in the line. if there is a need for more ffc flexible wire processing equipment and other automatic production lines the device can be found on the home page. the above is the function and principle of this equipment, this is a very good set of laser cutting soft flat wire cutting and receiving machine, with the structure of this drawing, you don't need to draw by yourself, welcome to collect, thank you. Print Ready: No
