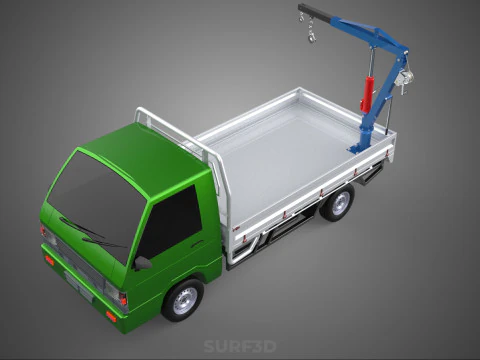

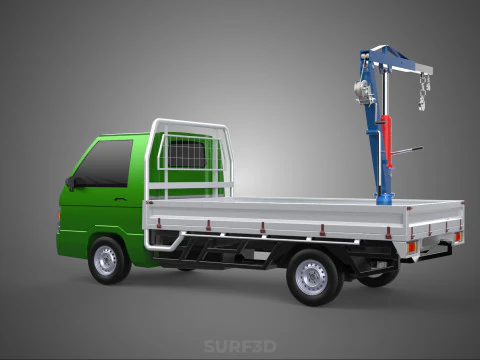

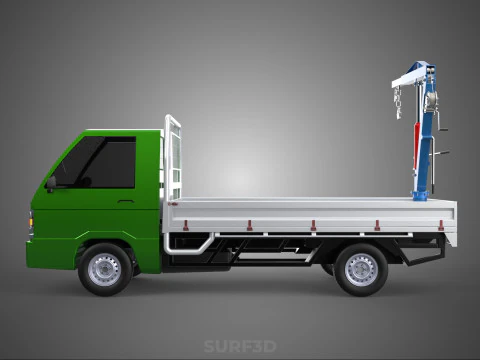

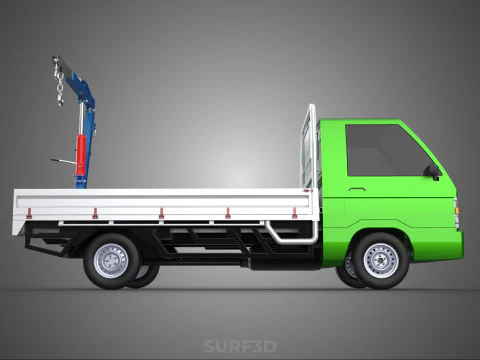

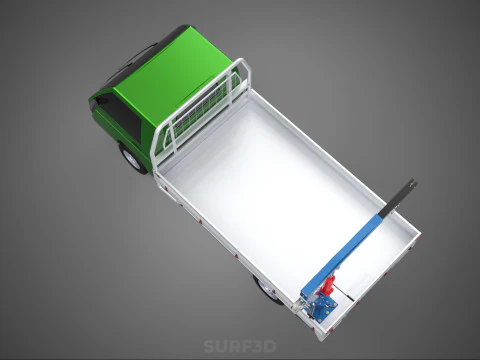

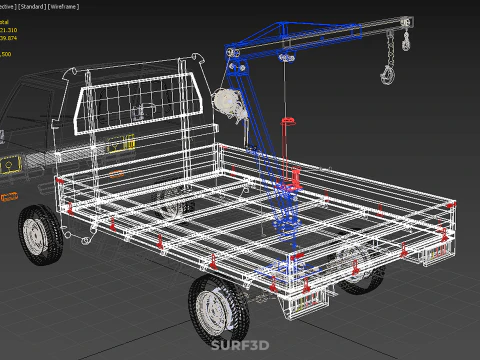

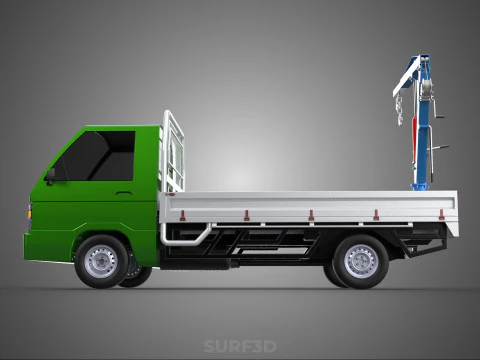

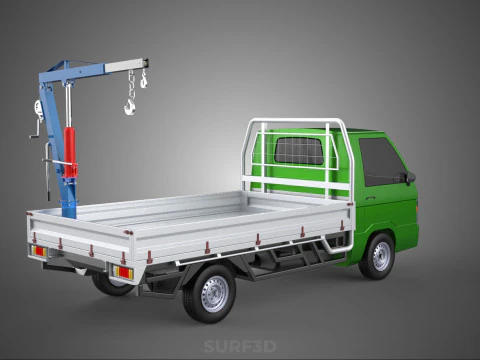

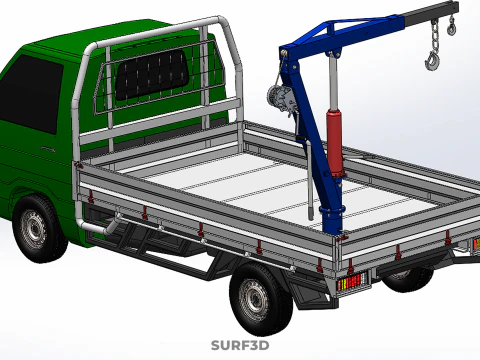

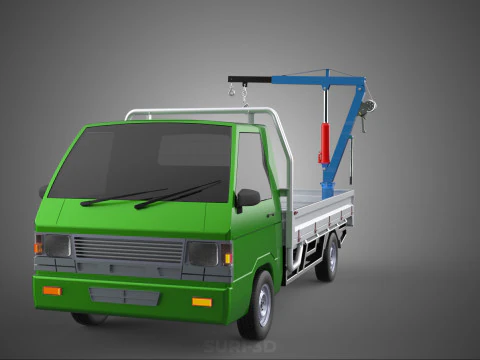

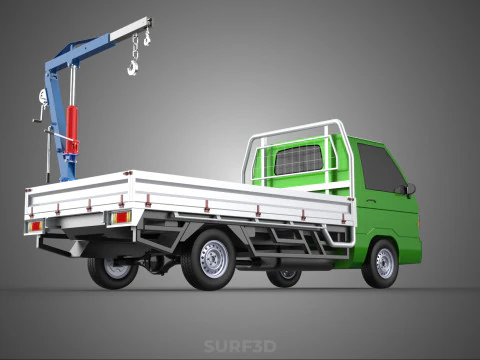

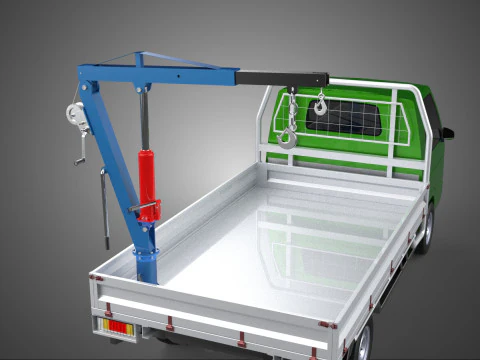

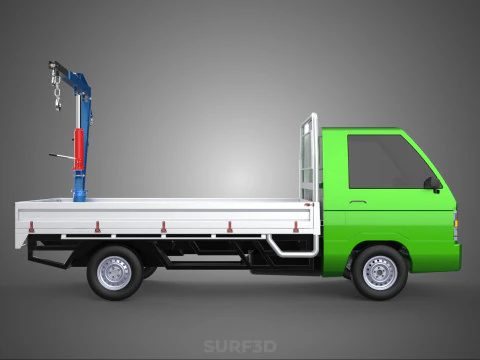

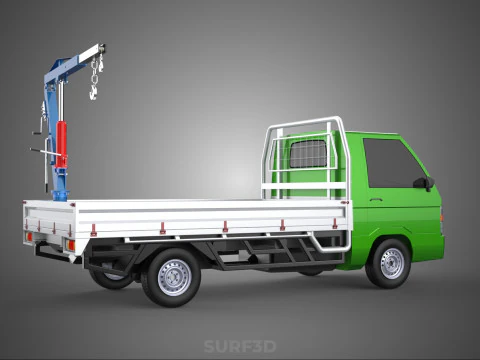

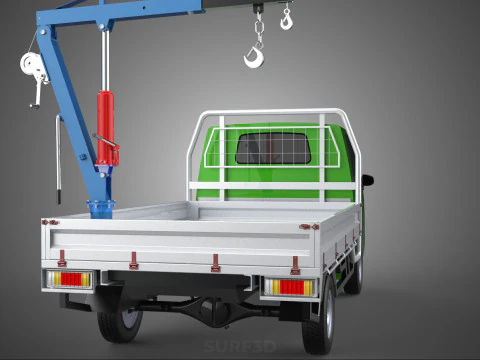

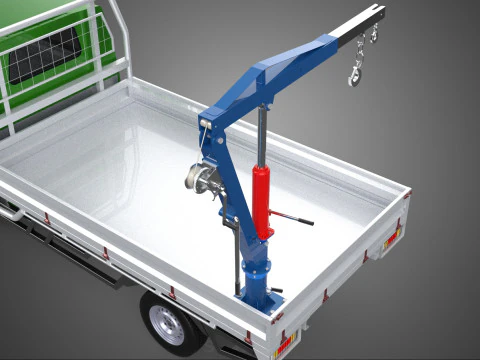

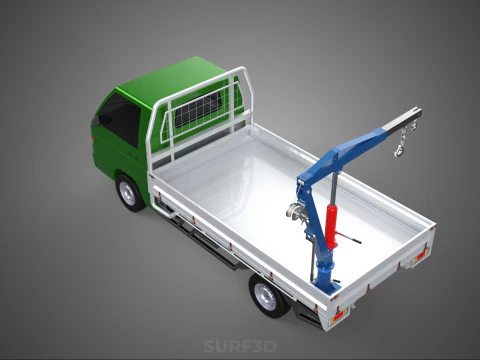

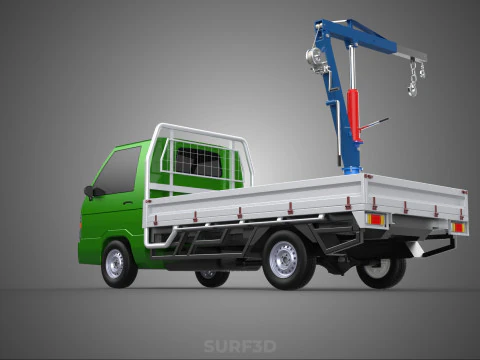

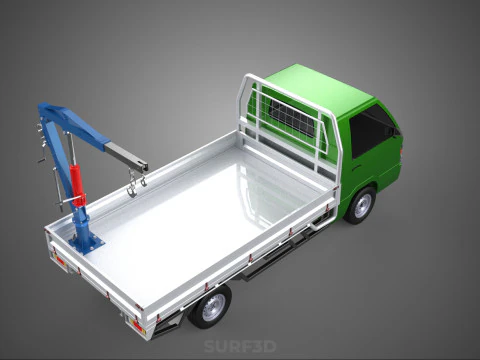

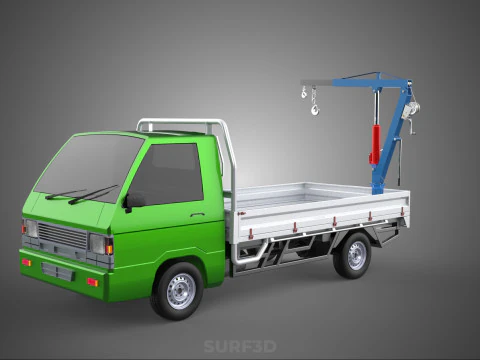

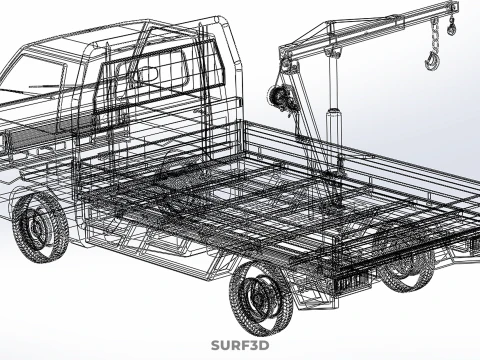

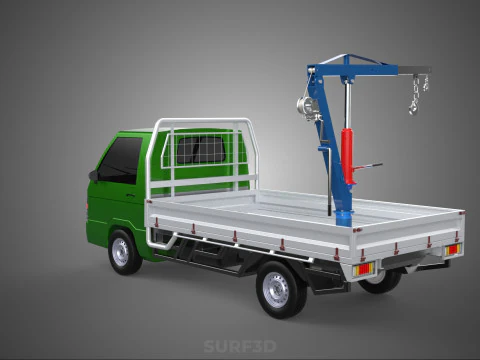

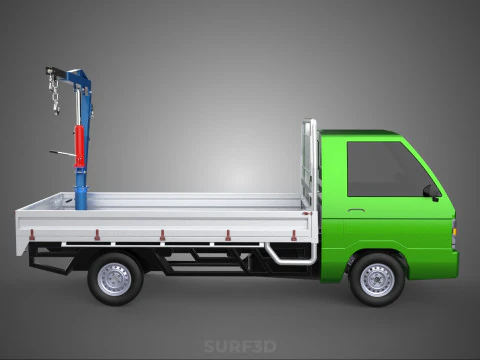

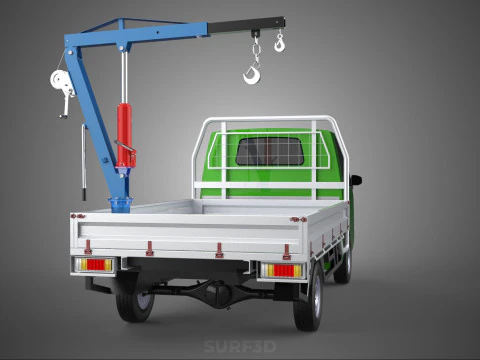

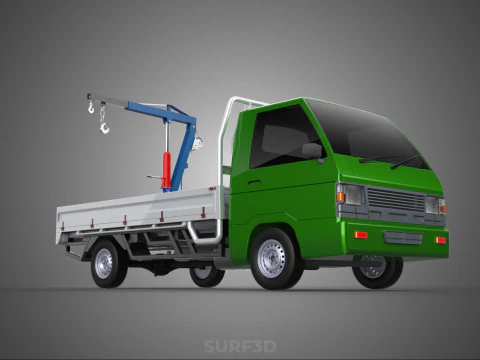

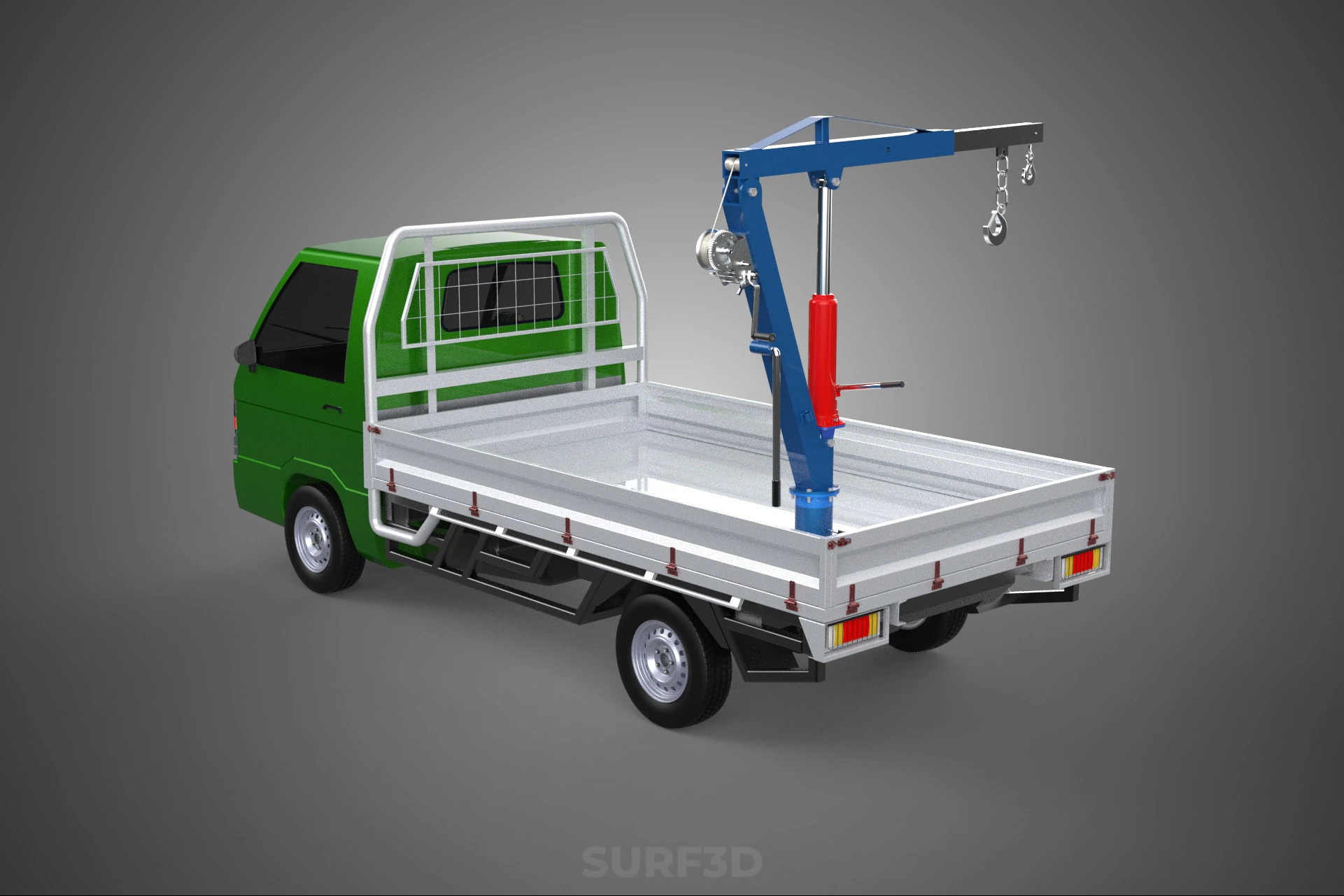

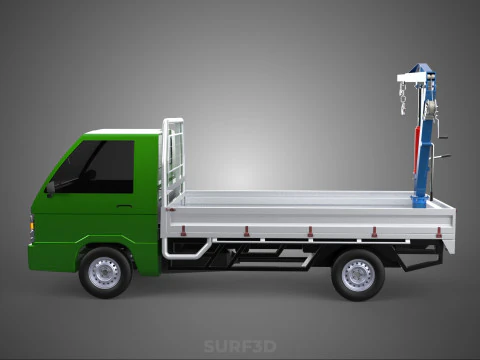

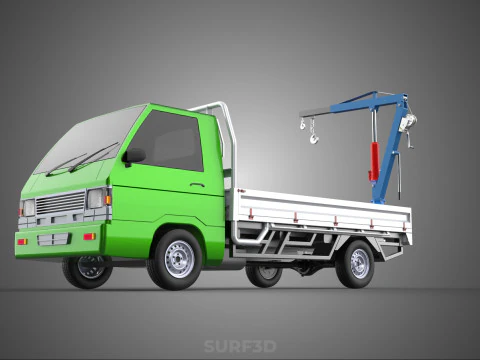

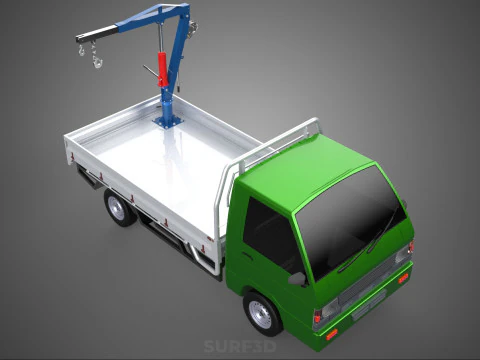

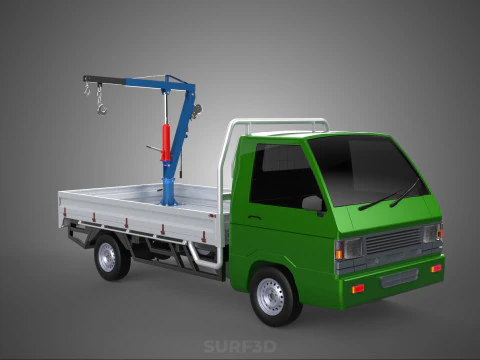

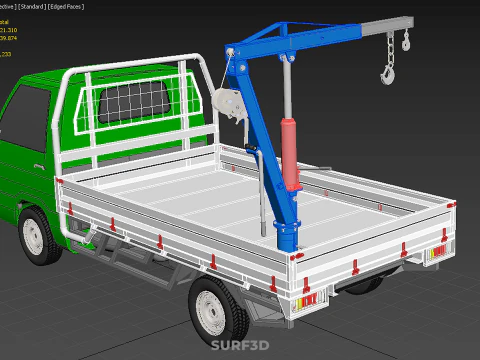

COMPACT SMALL MINI PICKUP TRUCK WINCH HOIST HYDRAULIC CRANE JIB 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A compact small mini pickup truck equipped with a winch hoist and an attached hydraulic crane jib represents a highly specialized utility vehicle designed for versatile material handling and lifting operations in environments where larger machinery is impractical, inaccessible, or economically unfeasible. This configuration transforms a standard light-duty pickup into a mobile lifting and transport solution, offering enhanced functionality for various commercial, industrial, and personal applications.

The base vehicle, typically characterized as a 'compact,' 'small,' or 'mini' pickup truck, refers to a class of light-duty trucks with a reduced footprint and lower gross vehicle weight rating (GVWR) compared to full-size pickups. These vehicles are often selected for their superior maneuverability in congested urban areas, narrow pathways, or confined job sites, as well as for their fuel efficiency and lower acquisition costs. Examples range from Japanese Kei trucks to smaller global utility vehicles or unibody compact trucks, all providing a relatively stable chassis platform suitable for custom equipment integration, though specific reinforcement may be required for crane installation.

The integrated lifting apparatus comprises a hydraulic crane jib and a complementary winch hoist system:

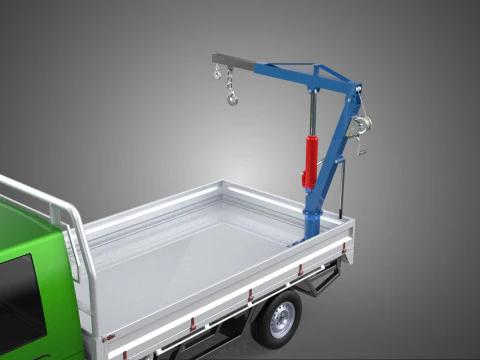

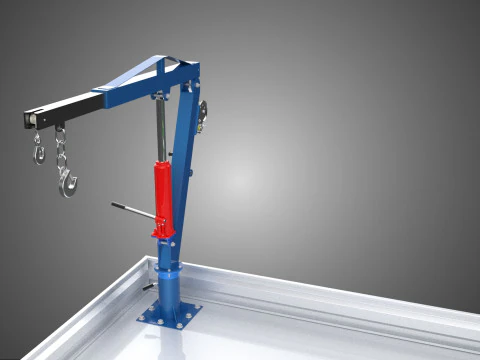

* **Hydraulic Crane Jib:** This is the primary component for mechanical advantage and reach. It operates via a hydraulic system, typically powered by the truck's engine through a power take-off (PTO) unit or an independent hydraulic pump. The jib itself is an articulating or telescoping boom, commonly mounted at the rear corner of the truck bed or directly behind the cab. It is engineered to slew (rotate horizontally) and extend, allowing precise positioning and lifting of loads from various angles. Its hydraulic nature ensures smooth, controlled, and stable movements crucial for safe operation.
* **Winch Hoist:** Integrated with the crane, the winch hoist provides the direct lifting and pulling capability. A winch is a mechanical device that spools a steel cable or synthetic rope, enabling the hoist to lift, lower, or pull heavy objects. The term 'hoist' specifically denotes its function in vertical movement of loads. In this combined system, the winch line extends through the crane's jib, allowing the operator to lift and place objects that may be beyond the manual lifting capacity or direct reach of the crane arm alone.

The synergy between the compact truck platform and the lifting system creates a highly adaptable machine. This combination facilitates:
* **Loading and Unloading:** Efficient transfer of materials, tools, or equipment onto and off the truck bed.
* **Material Placement:** Precise positioning of objects in construction sites, workshops, or during deliveries.
* **Light Construction and Maintenance:** Supporting tasks such as setting fence posts, handling small structural components, maintaining streetlights, or servicing utilities.
* **Utility Work:** Assisting in telecommunications, electrical, or plumbing installations where light lifting is required.
* **Specialized Transport:** Enabling self-sufficient transport and deployment of bulky items without external lifting equipment.

**Advantages** of this specialized vehicle include:
* **Maneuverability:** Ability to access and operate in tight spaces inaccessible to larger cranes.
* **Cost-Effectiveness:** Generally lower acquisition, operational, and maintenance costs compared to dedicated mobile cranes.
* **Versatility:** Combines both transport and lifting capabilities in a single, compact unit.
* **Self-Sufficiency:** Can enable single-operator tasks for certain applications, reducing reliance on additional equipment or personnel.

**Limitations** include:
* **Limited Lifting Capacity:** Inherently restricted by the truck's chassis strength, stability, and GVWR, typically handling loads from a few hundred pounds to several thousand pounds, significantly less than full-sized crane trucks.
* **Reduced Payload:** The weight of the crane system consumes a portion of the truck's available payload capacity.
* **Stability Requirements:** Proper operation often necessitates the deployment of outriggers or stabilizers to prevent rollovers, especially when lifting loads at maximum reach or capacity.
* **Operator Training:** Requires specialized training for safe and efficient use of the hydraulic crane and winch.

Common applications include landscape and tree service, utility maintenance (e.g., street lighting, traffic signals), light construction and renovation, general delivery and logistics for bulky items, sign installation, agricultural support, and mobile workshop services requiring material handling.

Operation of such specialized vehicles mandates strict adherence to safety protocols and regulatory standards. This encompasses proper load assessment, consistent use of outriggers, regular maintenance and inspection of the lifting apparatus, and certified operator training to mitigate risks associated with overturning, overloading, or equipment failure. Configurations can vary significantly, including different jib lengths, lifting capacities, and mounting positions (e.g., rear-mounted, side-mounted), along with optional features like auxiliary power outlets or integrated tool storage.
