DIY Drawings for Hyd Lift for Motorcycle 3D Model

DIY Drawings for Hyd Lift for Motorcycle 3D Model pdf, from luisarias3dcad

DRAWINGS FOR THE MANUFACTURE OF HYDRAULIC LIFT FOR MOTORCYCLES.

Description

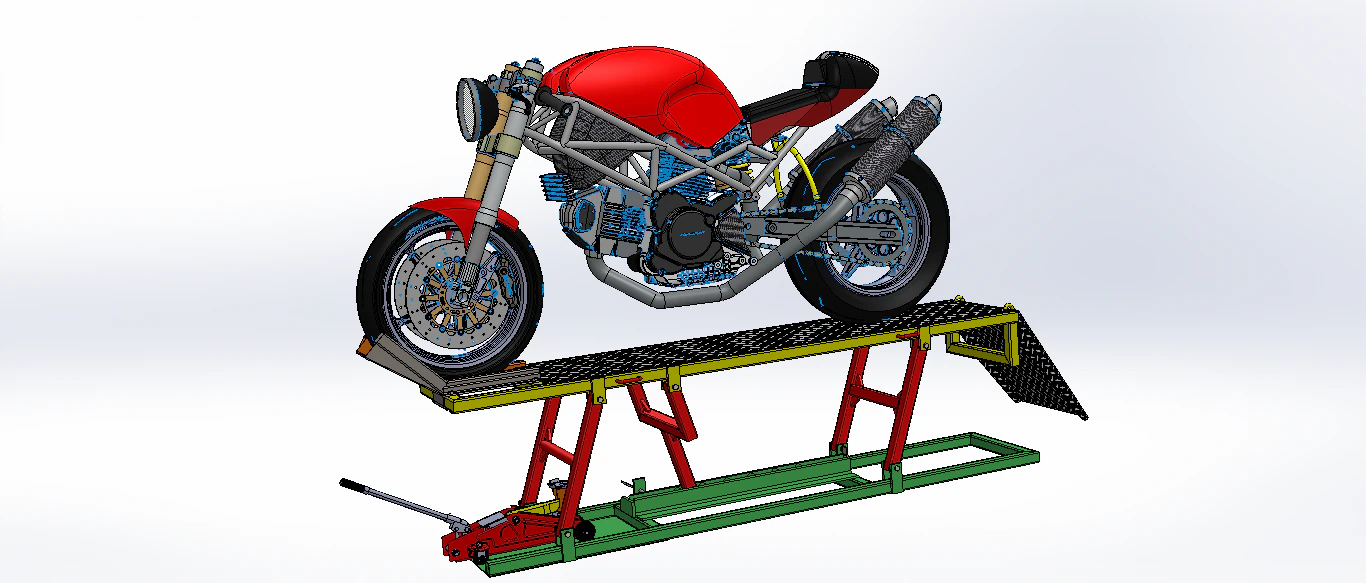

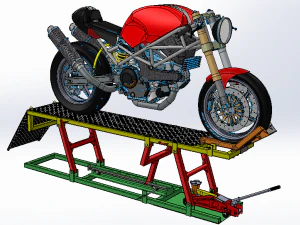

Hydraulic lift for motorcycles. Capacity for 450 Kg. Ideal for workshops that wish to technify their operation with an economical, high performance lift. It has a removable access ramp for easy handling and transport, it also has a front wheel locking mechanism and a safety mechanism that can be used to avoid sudden descents due to hydraulic jack failure or to release the load to the hydraulic jack. It can be anchored to the floor or placed anywhere in the workshop, as its construction is quite light.
With this lift you will be able to raise the motorcycle to the desired height for repair. This type of platform is perfect for use both in professional workshops and in your home garage.
The hydraulic lift is designed to fit in your home garage or small workshop, with all the essential features to help you efficiently and accurately perform those weekend maintenance jobs on your bike.

Its design is quite simple and very easy to build, as you can do it with minimal tools and recycled materials that do not require expensive machining.

With the purchase of this product I will give you printable digital plans in high quality PDF format with all the views, perspectives, details and measurements necessary for its construction.
It includes:
- General view drawing.

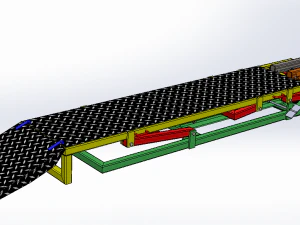

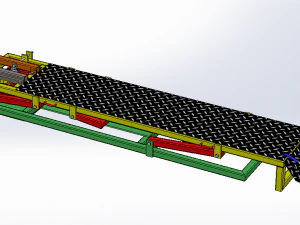

- 3D views and features drawing.
- Assembly drawing with bill of materials.
- Structure drawing and bill of materials.

MEASUREMENTS:
40 cm wide x 22 cm long x 50 cm high.

CHARACTERISTICS:
- Load Capacity: 450Kg
- Elevation Height: 500mm
- Minimum Height: 200mm
- Total Lift Length: 2,200mm
- Total Elevator Width: 400mm
- Operation: Hydraulic with alligator jack
- Weight: 100Kg
- Civil Work Required: NO Print Ready: No
