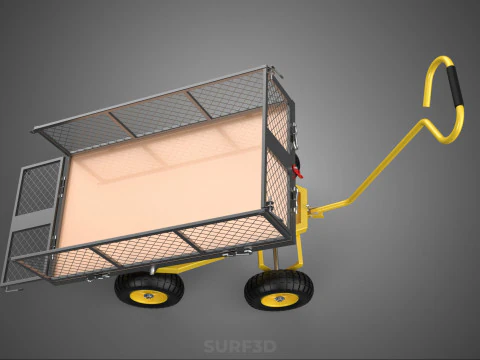

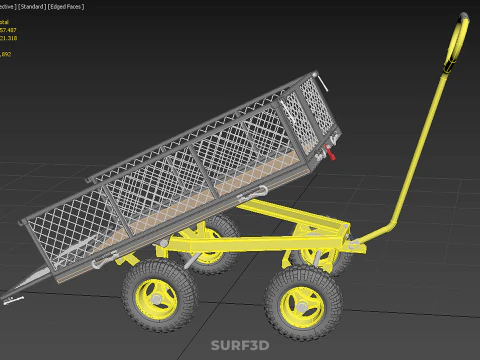

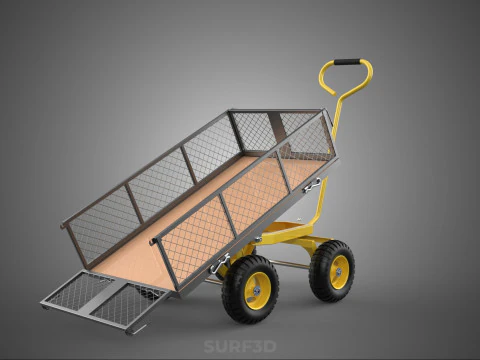

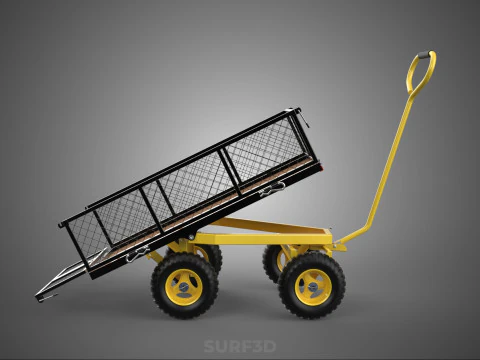

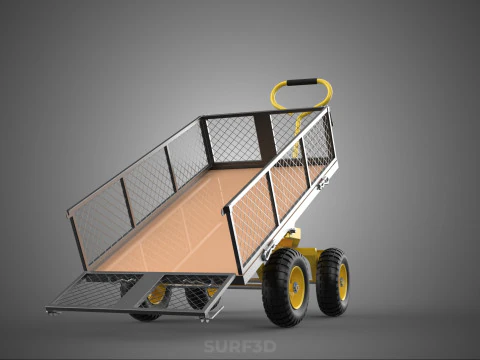

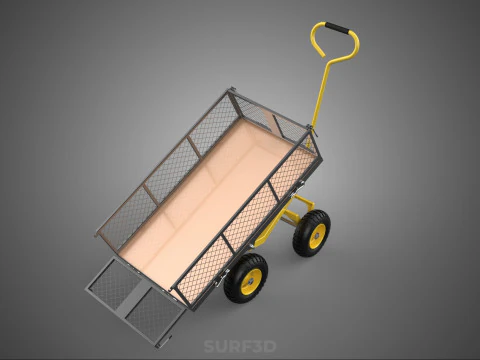

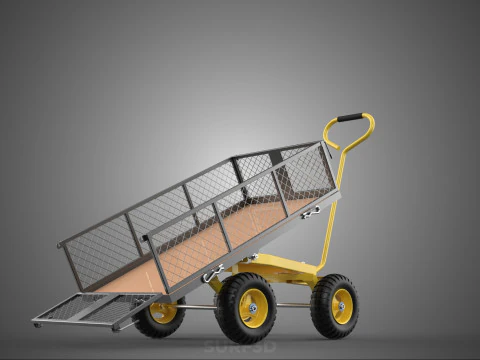

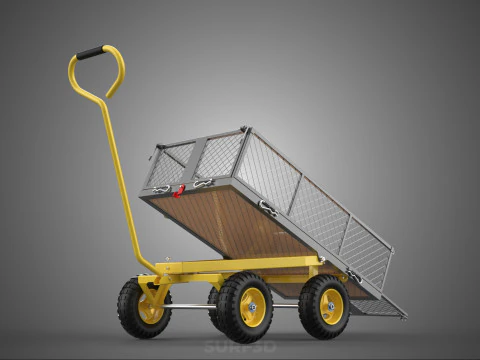

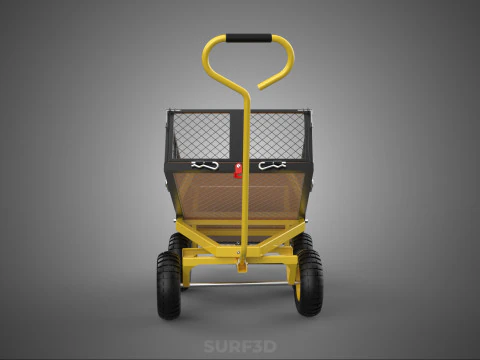

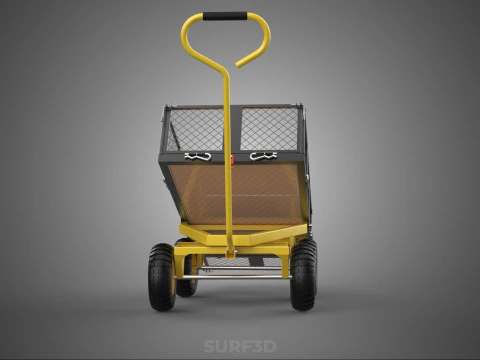

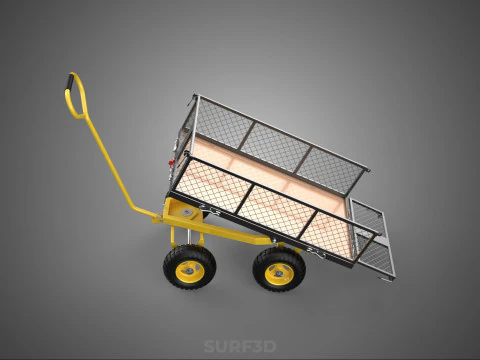

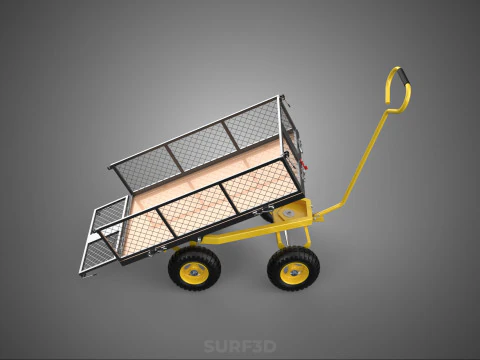

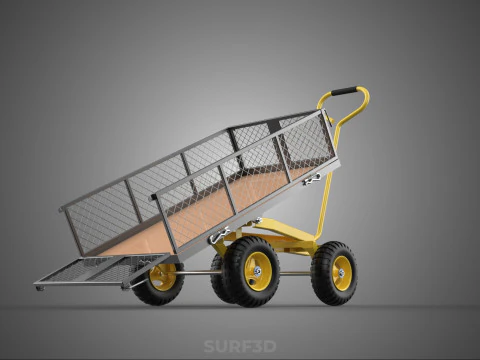

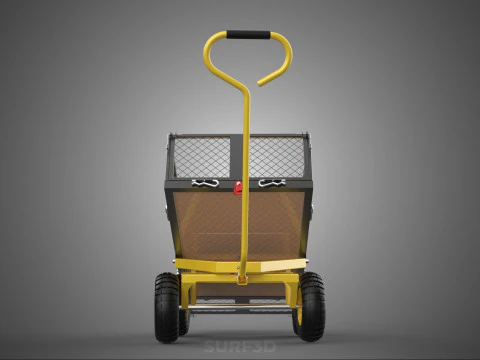

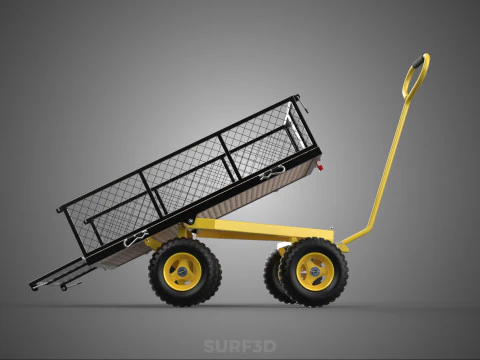

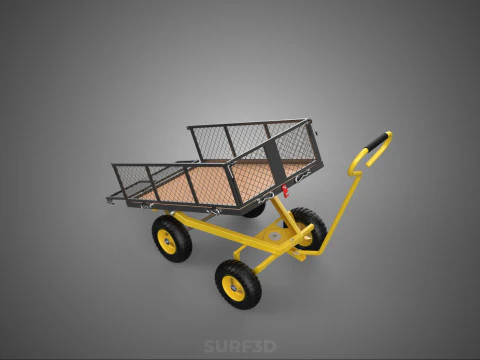

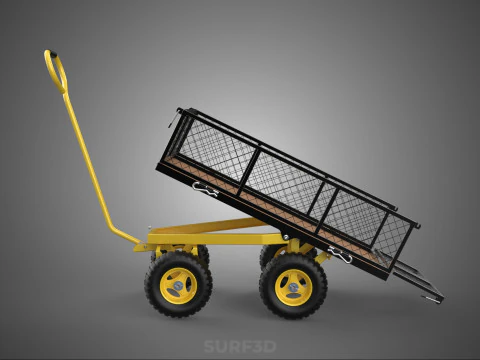

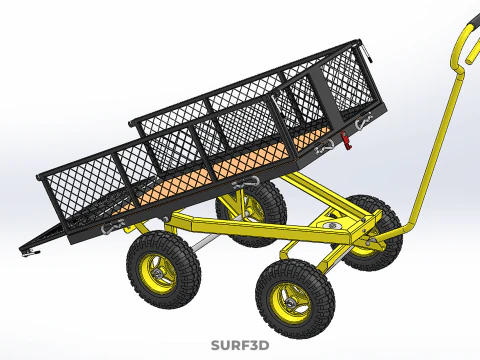

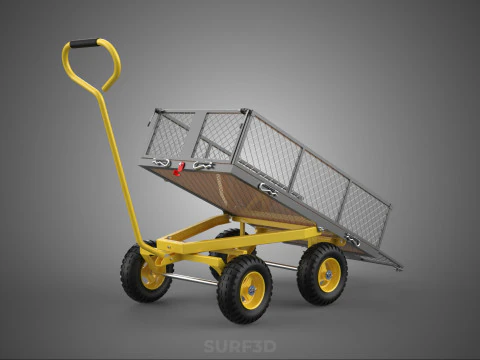

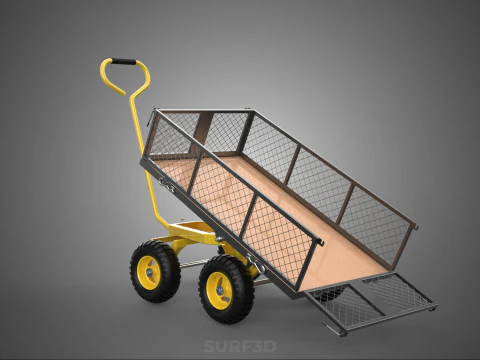

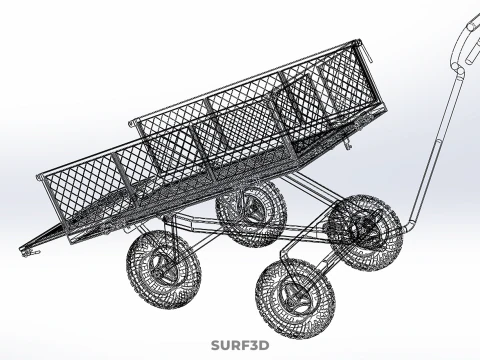

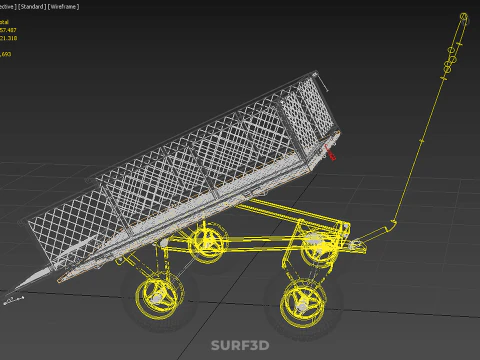

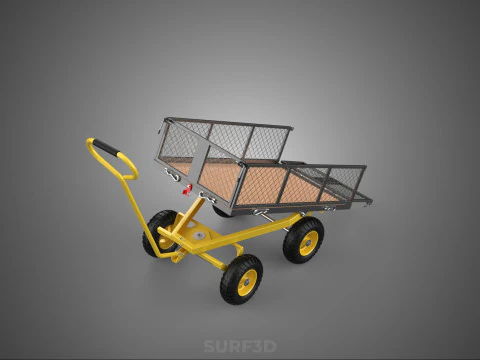

TILTING LIFT MESH BED DUMP GARDEN WAGON FOUR CARGO CAGE CART 4W 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The Tilting Lift Mesh Bed Dump Garden Wagon (Four Cargo Cage Cart, 4W) is a specialized, human-powered or towed utility vehicle designed for the efficient transport and discharge of bulk materials, typically employed in horticultural, agricultural, and light industrial environments. Classified as an All-Terrain Utility Cart (ATUC), its design emphasizes high load capacity, maneuverability across uneven terrain, and facilitated unloading.

### Design and Construction

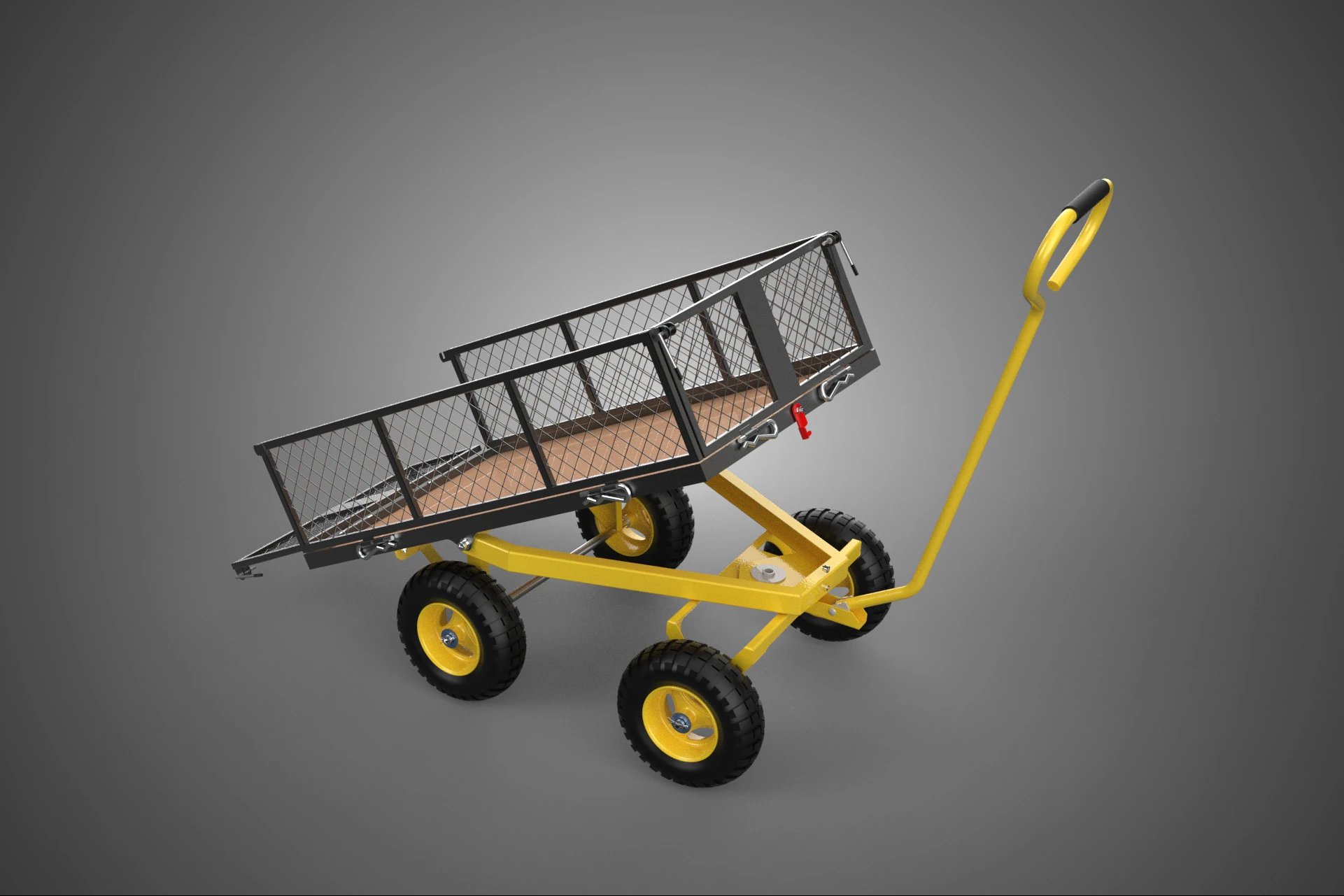

**Chassis and Mobility (4W):** The cart utilizes a robust steel frame structure, often coated with a durable powder finish for resistance against corrosion and weather exposure. It is supported by a four-wheel (4W) configuration, typically featuring pneumatic tires of substantial diameter. This pneumatic infrastructure provides superior shock absorption, enhancing stability and traction on soft soil, gravel, or turf, distinguishing it from solid-wheeled industrial dollies. Steering is commonly achieved through a pivoting front axle system connected to an articulating handle (T-handle or D-handle) for ergonomic operation.

**Cargo Bed (Mesh Bed, Four Cargo Cage):** The primary cargo containment area, or bed, is constructed from heavy-gauge, reinforced steel mesh. This material choice offers several operational advantages:
1. **Weight Reduction:** It significantly decreases the apparatus's empty weight, increasing the usable payload ratio.
2. **Drainage and Visibility:** The open mesh structure prevents water accumulation and allows fine particulate matter (e.g., soil, sand) to filter through, minimizing residual buildup and easing cleaning procedures.
3. **Containment Structure:** The "Four Cargo Cage" refers to the integral perimetral containment system. This system comprises four removable or hinged side panels/walls, forming a protective enclosure. These panels usually feature quick-release locking mechanisms, allowing them to be dropped down for easy side-loading of lengthy or oversized items (such as lumber or fence posts) or entirely removed, converting the unit into a flatbed trailer.

### Operational Mechanism

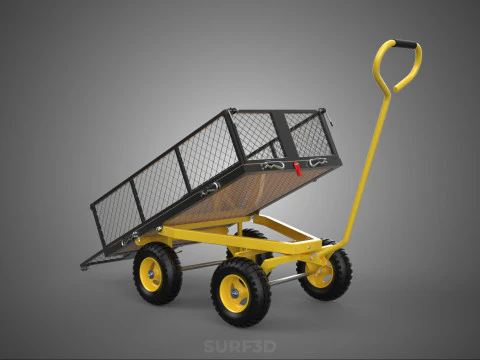

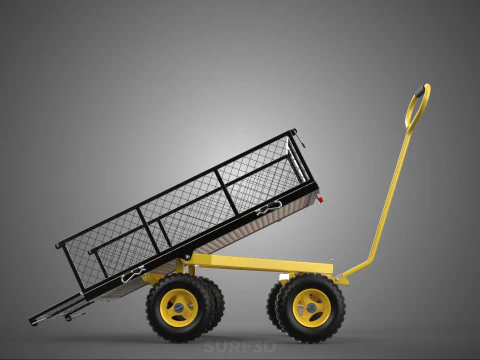

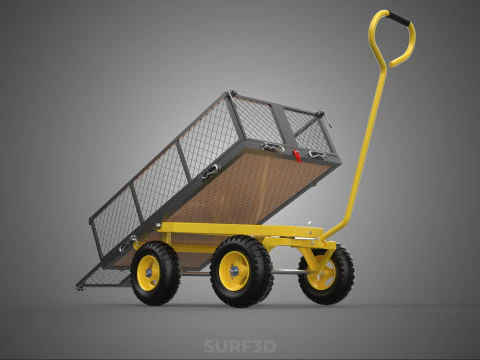

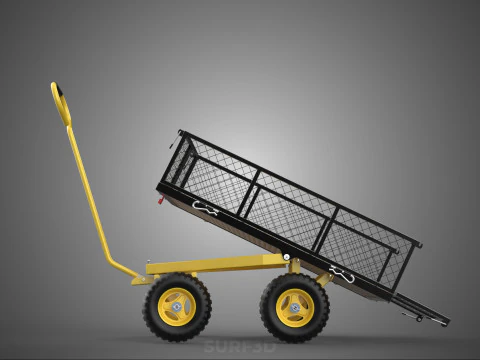

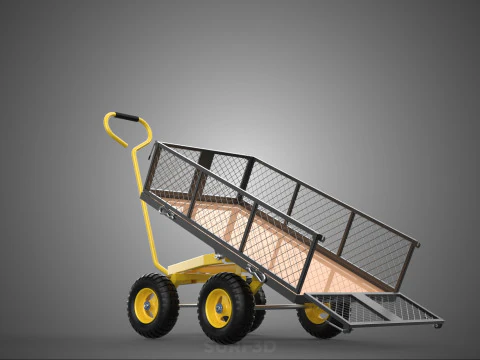

**Tilting Lift and Dump Function:** The most salient mechanical feature is the gravity-assisted discharge mechanism. The mesh bed is mounted on a primary chassis pivot point, typically positioned toward the rear wheels. A quick-release locking mechanism (pin or lever) situated beneath the bed allows the operator to disengage the lock and pivot the entire cargo box upwards and forwards. This action initiates the "Tilting Lift." The resulting acute angle facilitates the "Dump" function, wherein loose materials (e.g., debris, mulch, gravel, manure) are efficiently discharged without requiring manual shoveling. Some models incorporate a spring-assisted or lever-assisted system to aid in the initial lifting of heavy loads.

### Applications

The Tilting Lift Mesh Bed Dump Garden Wagon is primarily utilized for landscape maintenance, property management, and small-scale construction or renovation projects. Specific applications include transporting aggregates, gardening tools, potted plants, yard waste (clippings, leaves), firewood, and construction materials. Its maneuverability and high payload capacity make it an essential item for tasks requiring movement of materials across extensive or complex terrain.
