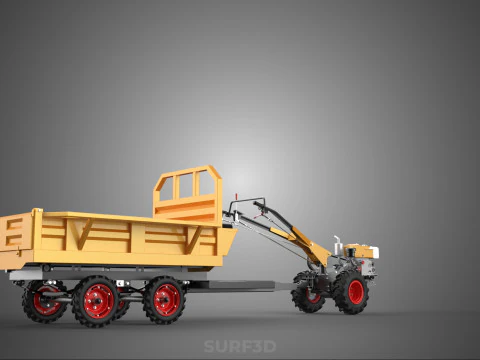

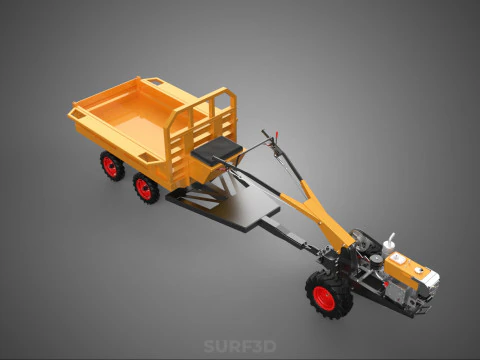

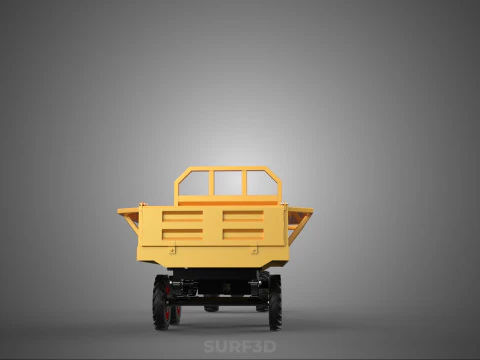

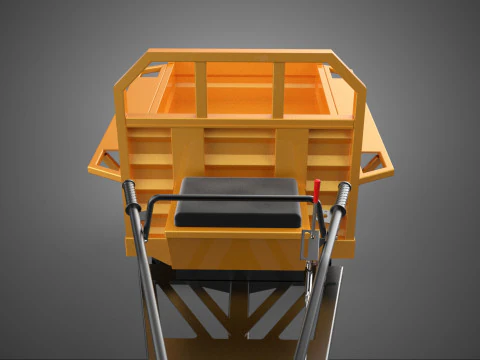

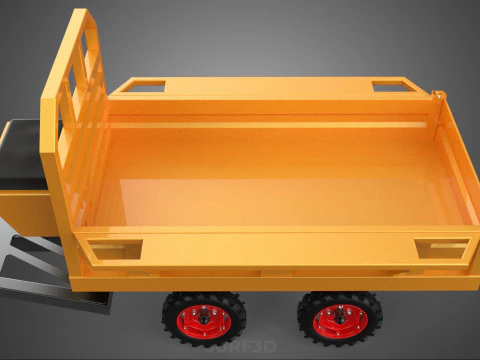

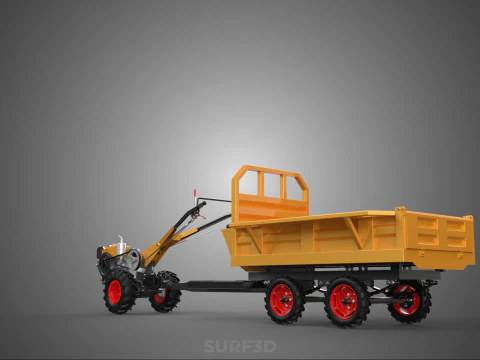

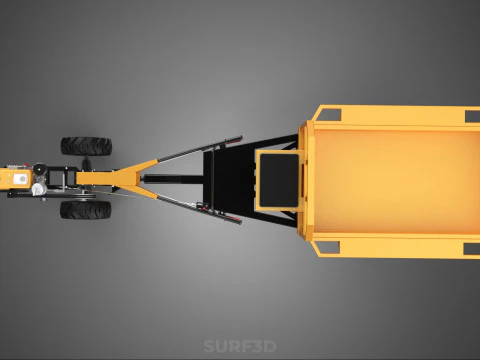

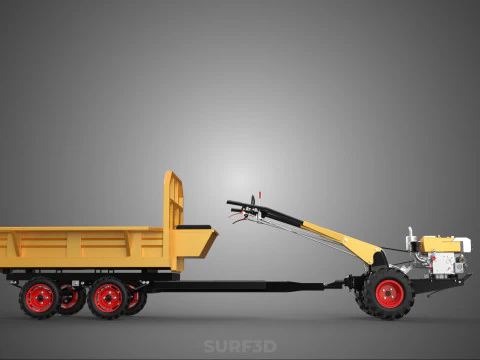

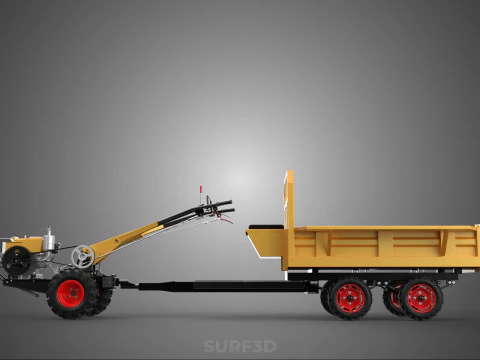

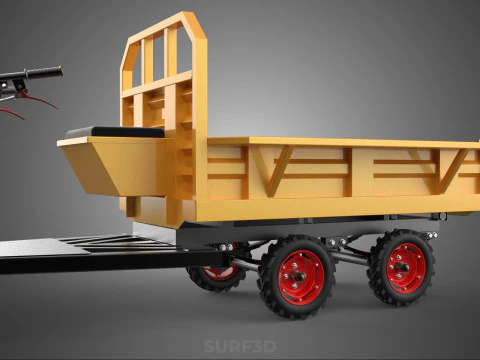

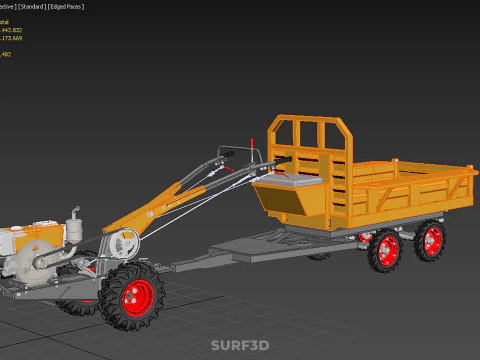

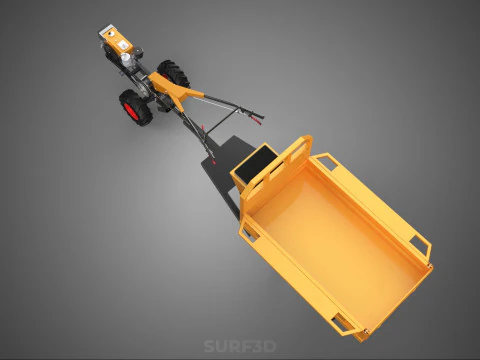

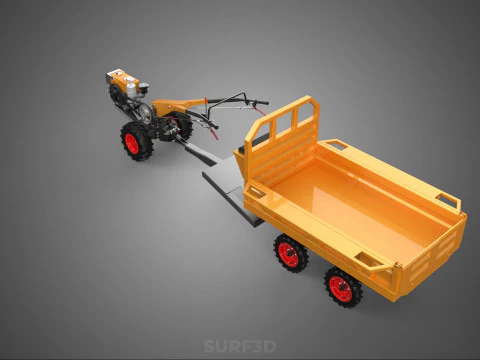

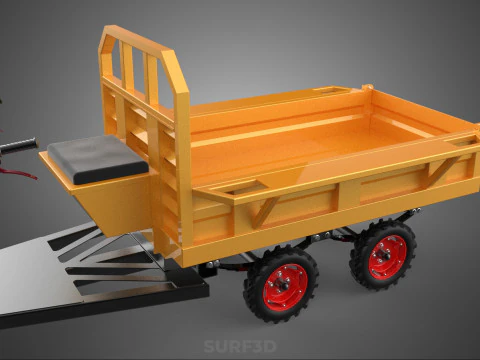

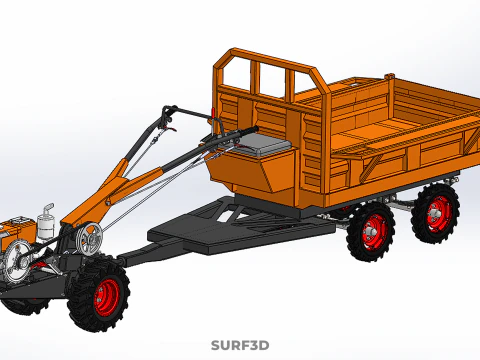

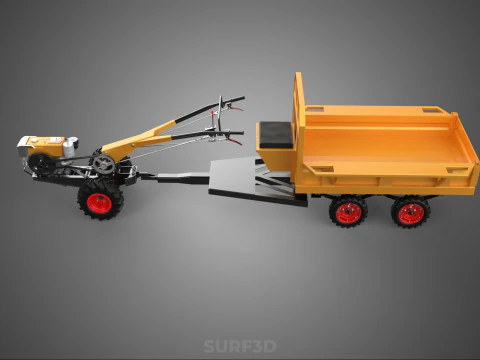

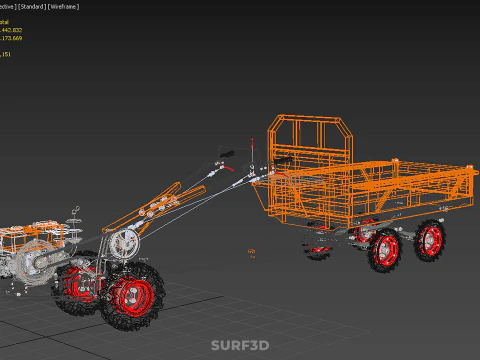

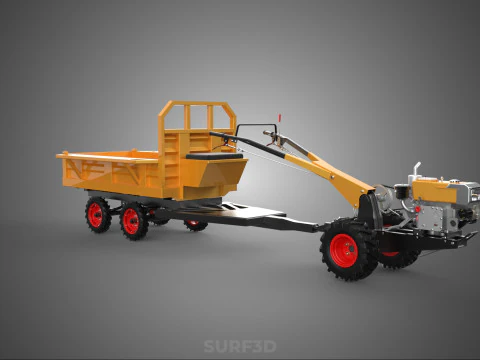

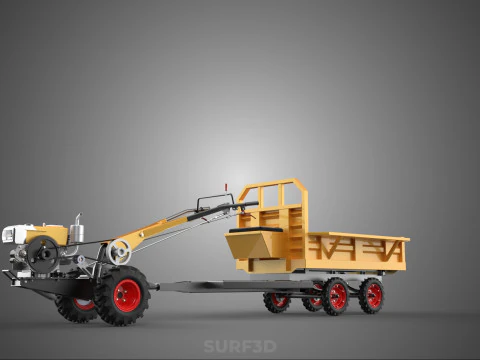

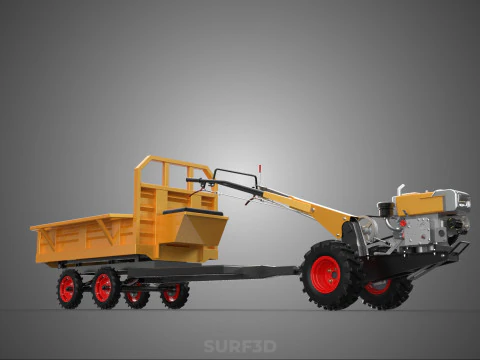

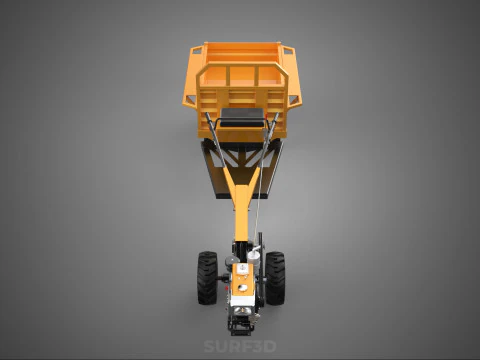

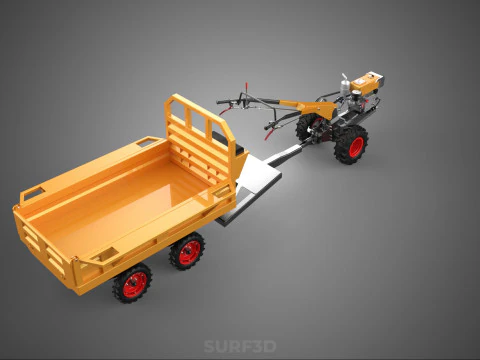

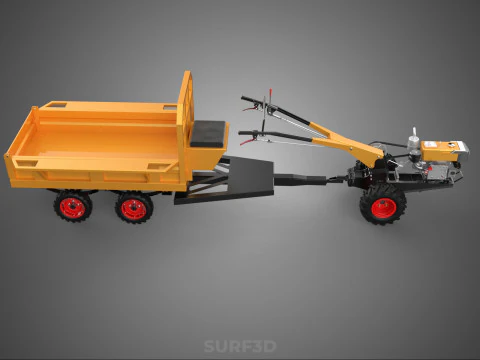

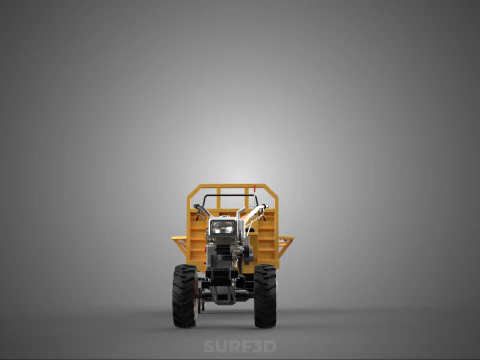

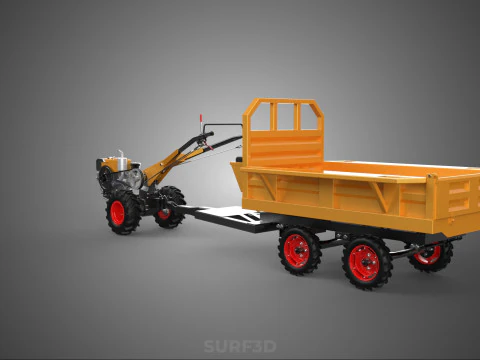

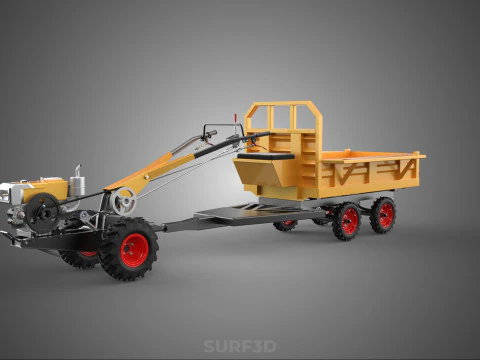

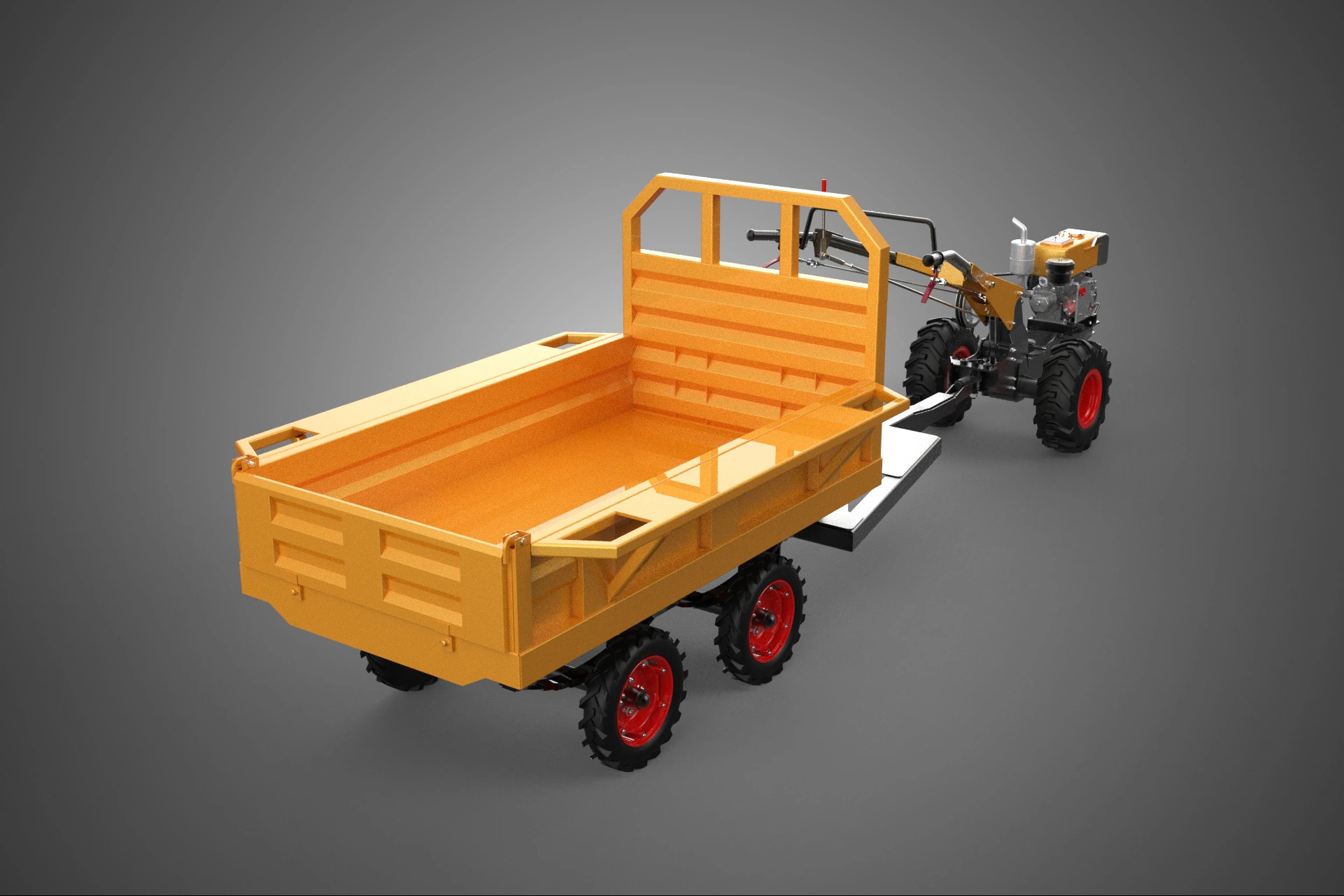

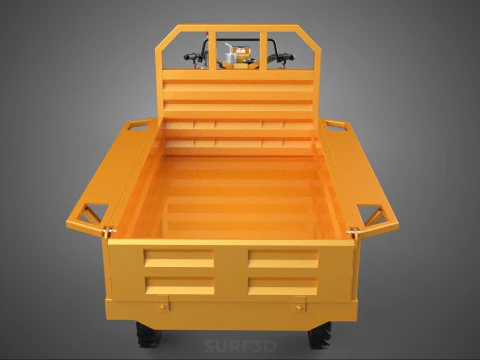

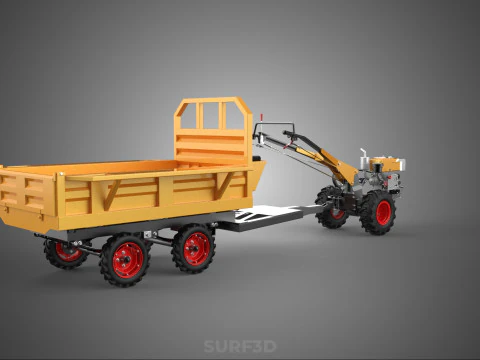

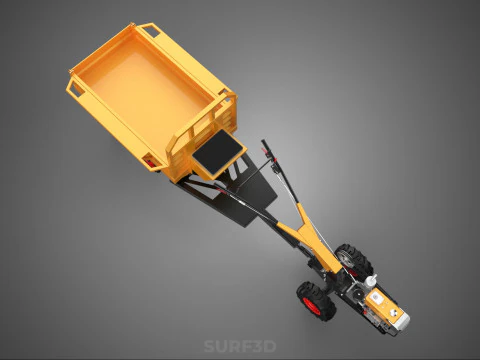

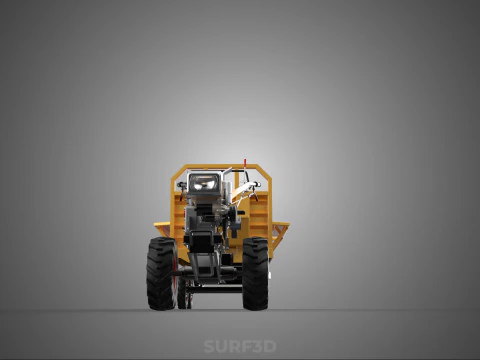

TANDEM AXLE TRAILER TRACTOR CART CARGO LOAD BED TROLLEY CAR DUMP 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The apparatus described by the composite title "TANDEM AXLE TRAILER TRACTOR CART CARGO LOAD BED TROLLEY CAR DUMP" refers to a category of heavy-duty, articulated, bulk material transport systems characterized by enhanced load capacity and a mechanized self-unloading capability. This classification encompasses various vehicular types, primarily semi-trailers, full trailers, and specialized industrial or agricultural carts, all requiring a motive power unit (tractor or prime mover) for propulsion.

### Nomenclature and Configuration

This machinery functions as an integrated transport unit, comprising two principal sections:

1. **The Tractor Unit (Prime Mover):** The motorized component responsible for generating traction, steering, and typically providing power (hydraulic or pneumatic) to the towed unit.
2. **The Towed Unit (Trailer, Cart, or Load Bed):** The element designed to carry the payload. It is defined by its tandem axle configuration and dumping mechanism.

The term **Tandem Axle** specifies the utilization of two closely spaced axles on the towed unit, often employing a shared suspension system. This configuration is engineered to achieve critical objectives: distributing the gross vehicle weight (GVW) over eight tires (in a standard dual-wheel setup), increasing the legal payload capacity under road weight regulations, and enhancing vehicle stability and braking efficiency, particularly when traversing uneven terrain or managing large volumes of dense material (e.g., aggregate, ore, waste).

### The Cargo Load Bed and Dumping Mechanism

The **Cargo Load Bed**, frequently constructed from high-tensile steel or heavy-duty aluminum alloy for structural integrity and resistance to abrasive materials, is the containment vessel for the transported load. Its design varies widely based on application—from squared "bathtub" designs optimized for aggregates to cylindrical shapes used for liquids or finely powdered materials.

The core functional distinction is the **Dump** capability. This mechanism facilitates rapid, controlled offloading of bulk material by tilting the load bed relative to the chassis. This is almost universally achieved through a powerful hydraulic system utilizing one or more high-pressure telescopic cylinders.

* **Mechanism of Action:** The hydraulic cylinder(s), typically powered by a power take-off (PTO) unit on the tractor, extend to raise the front section of the bed while the rear remains secured by pivot hinges. This process raises the center of gravity and utilizes gravity to discharge the cargo. The maximum achievable dump angle (angle of repose) must be sufficient to ensure complete evacuation of sticky or cohesive materials.
* **Tipper Types:** Configurations include the traditional **Rear Dump** (discharging material over the rear tailgate) and specialized **Side Dumps** (discharging laterally), utilized in contexts where overhead obstructions or limited rear maneuvering space dictate operational constraints.

### Operational Context and Typology

The system's broad descriptive title covers several critical applications:

| Application Sector | Common Terminology | Coupling Method | Primary Function |
| :--- | :--- | :--- | :--- |
| **Highway/Construction** | Dump Semi-Trailer, Tipper Truck | Fifth Wheel Coupling | High-speed haulage of sand, gravel, and asphalt. |
| **Agriculture/Mining** | Dump Cart, Farm Trailer | Drawbar or Pintle Hitch | Transporting harvested crops, manure, or excavated earth within private properties or fields. |
| **Industrial/Quarry** | Articulated Dump Truck (ADT) | Permanent or Semi-Permanent Articulation | Extremely heavy-duty, off-road movement of large aggregate or overburden. |

The integration of the tandem axle ensures compliance with federal and state regulations governing axle load limits, while the robust dumping functionality drastically reduces turnaround time in logistics and construction projects by eliminating the need for external unloading equipment.

KEYWORDS: Tandem Axle, Articulated Vehicle, Dump Trailer, Semi-Trailer, Haulage, Bulk Transport, Hydraulic System, Offloading Mechanism, Prime Mover, Tractor Unit, GVWR, Payload Capacity, Construction Equipment, Agricultural Implement, Load Distribution, Suspension System, Tipper Lorry, Dolly, Fifth Wheel Coupling, Telescopic Cylinder, Aggregate, Earthmoving, Industrial Cart, Chassis, Air Brakes, Pavement Stress, Commercial Vehicle, Material Handling, Vehicle Dynamics, Cargo Bed.
