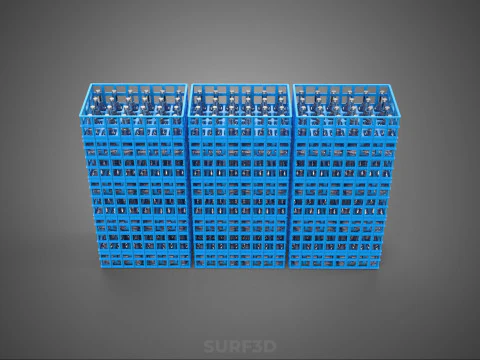

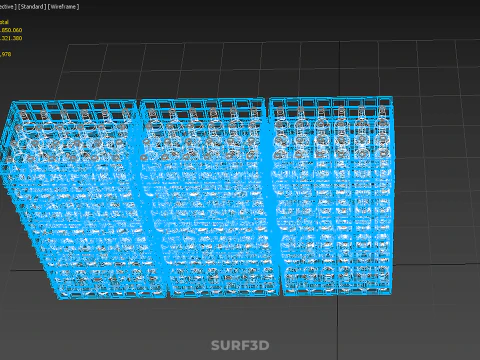

PACKED BLUE PLASTIC BOTTLE CRATES STACKED VERTICAL RACK TRAY BOX 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The described configuration represents a highly standardized, modular logistics and inventory management system prevalent in bottling, beverage distribution, and general warehousing industries. This infrastructure utilizes robust, reusable plastic containers specifically designed for the secure transport and vertical high-density storage of bottled goods.

### Nomenclature and Definition

The system combines three primary elements: the packed contents (bottles), the primary packaging unit (the crate/box/tray), and the secondary storage fixture (the vertical rack). The terms "crate," "tray," and "box" are often used interchangeably in logistics vernacular, referring to standardized, often stackable, plastic receptacles engineered to hold a specific number and size of bottles (e.g., 12, 20, or 24 units).

### Components and Material Specifications

#### Plastic Crates (Boxes/Trays)
These units are predominantly manufactured from high-density polyethylene (HDPE) or polypropylene (PP) due to the necessity for durability, chemical resistance, ease of sanitation, and high load-bearing capacity when stacked. The specified **blue plastic** coloration is frequently utilized in global supply chains to denote specific product types, ownership (often proprietary brewery or beverage company assets), or compliance with certain hygiene standards (e.g., non-recycled or food-grade applications).

The crates are **packed**, meaning they contain the maximum intended inventory of product-filled bottles. They are engineered with structural features such as interlocking rims or specialized feet to ensure mechanical stability when **stacked vertically** during transit or in storage. Interior compartmentalization often exists within the crate structure to prevent bottle contact and damage.

#### Vertical Rack System
The **vertical rack** is the foundational steel structure designed for static, multi-level storage. These systems typically employ selective or drive-in/drive-through racking formats. Constructed from heavy-duty, galvanized or powder-coated steel alloys, the rack’s dimensions are optimized to accommodate the standardized footprint of the plastic bottle crates, maximizing the utilization of cubic space within the facility.

The structural integrity of the vertical rack must be sufficient to support the cumulative static load of the full, stacked crates, which often exceed several tons per bay. Access to the stacked units is facilitated through aisles compatible with standard material handling equipment such as forklifts or pallet jacks.

### Function and Application

The synergistic deployment of packed plastic bottle crates within a vertical racking system serves multiple critical functions:

1. **Space Optimization:** Vertical stacking within engineered racks converts floor space into high-density storage capacity, which is essential for managing large volumes of rapidly moving consumer packaged goods (CPG).
2. **Product Protection:** The durable plastic crates shield glass or plastic bottles from physical damage, temperature fluctuation, and contamination during warehousing and transportation cycles.
3. **Inventory Management:** The standardized configuration allows for systematic, FIFO (First-In, First-Out) or LIFO (Last-In, First-Out) inventory retrieval. The uniform blue color aids in visual identification and asset tracking.
4. **Material Handling Efficiency:** The standardized dimensions of the crates are compatible with automated or semi-automated warehousing equipment, allowing for rapid loading, unloading, and deployment within the supply chain.

This setup is indispensable in bottling plants, wholesale beverage distribution centers, logistics hubs, and large-scale retail back-of-house storage areas where bulk quantities of bottled commodities must be stored safely and accessed efficiently.
