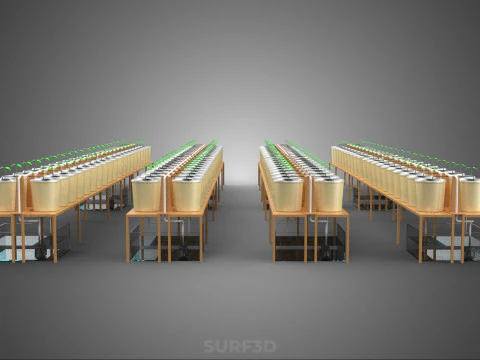

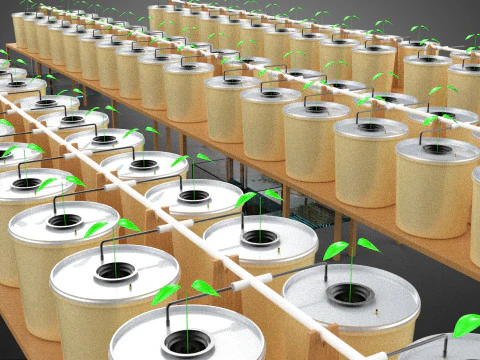

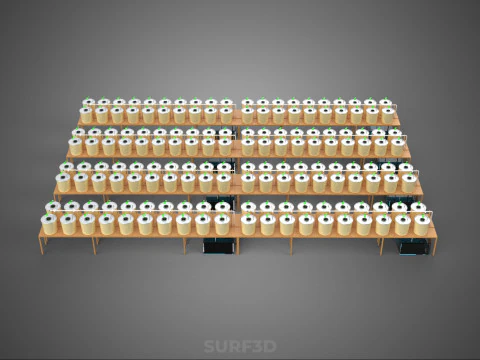

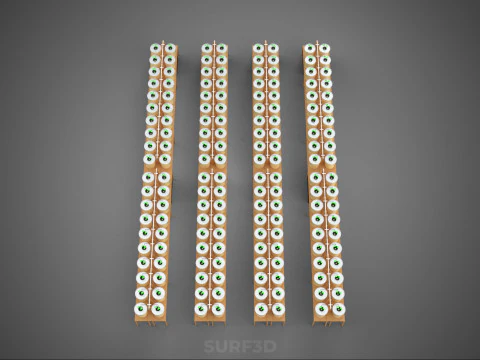

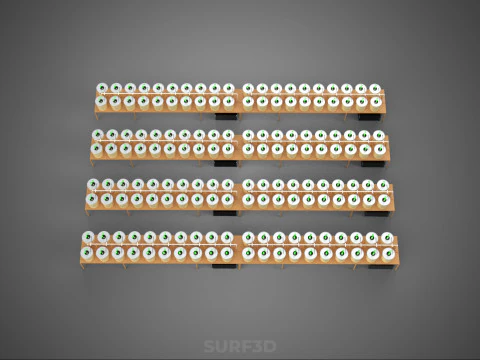

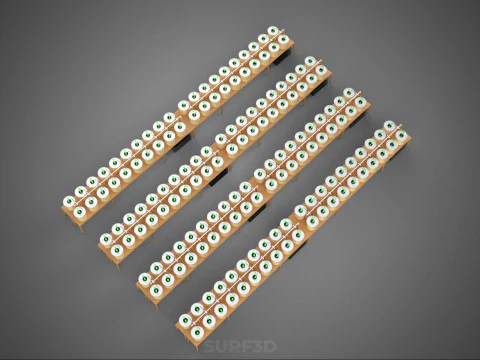

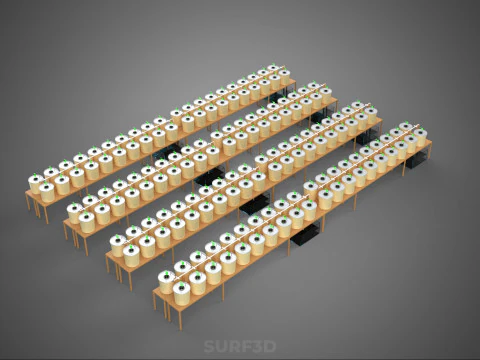

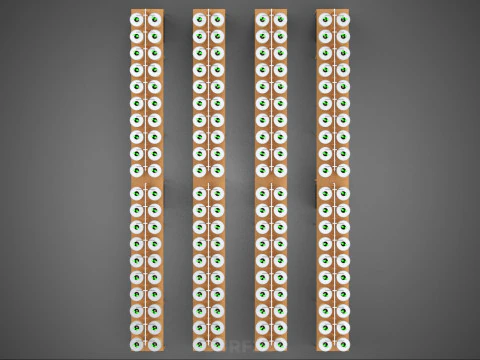

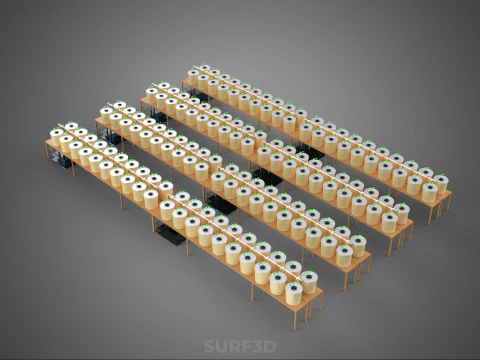

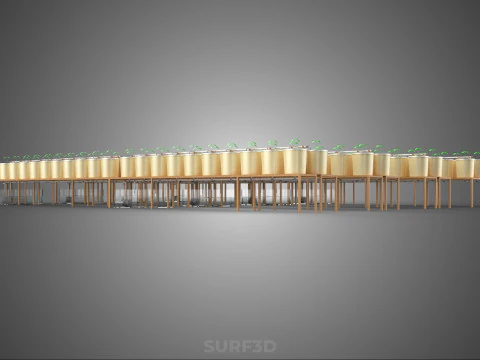

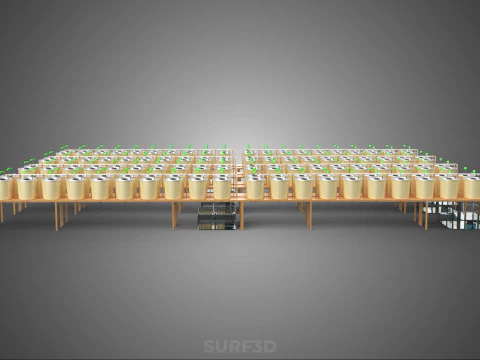

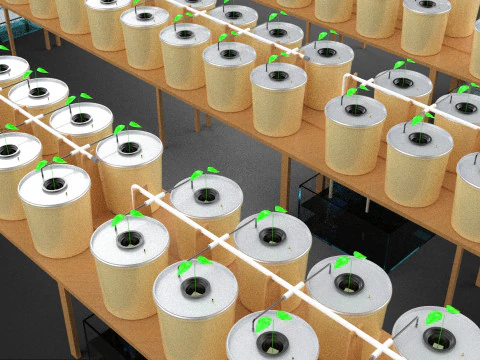

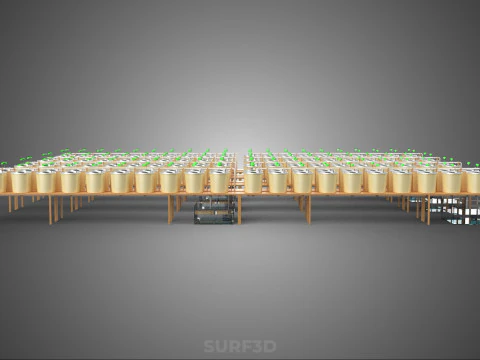

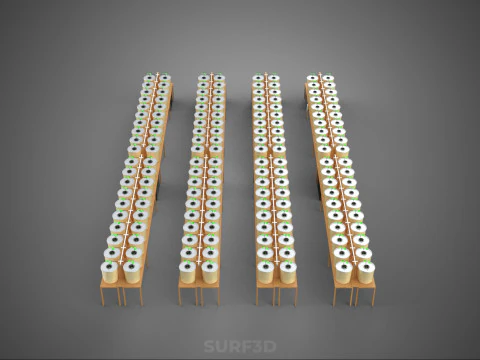

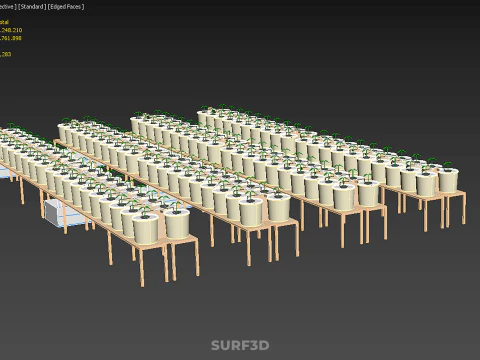

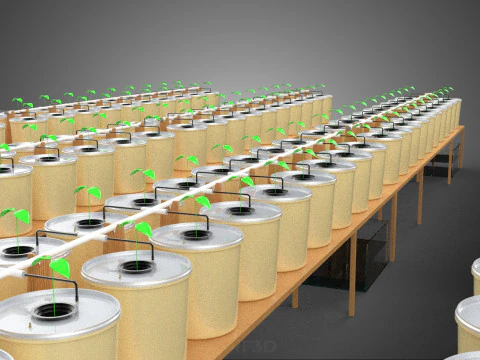

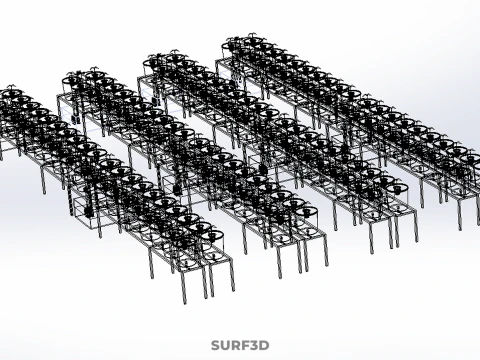

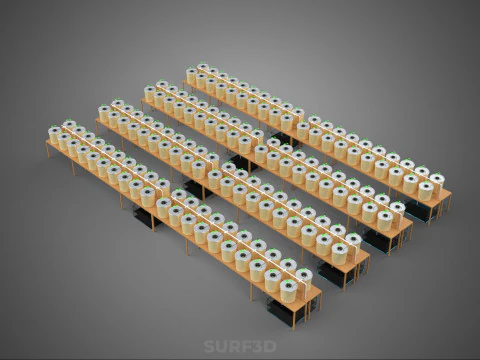

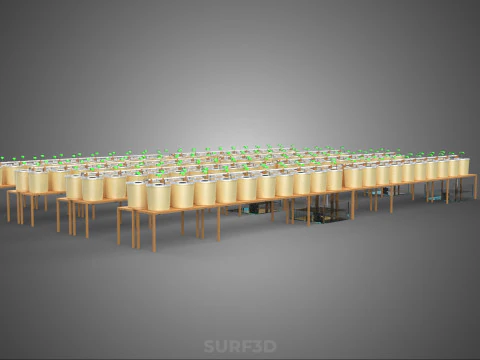

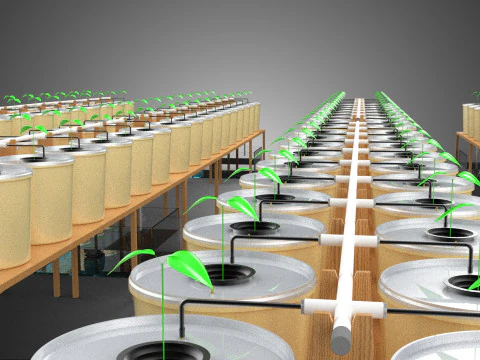

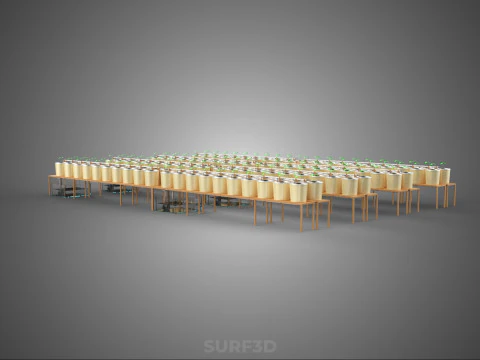

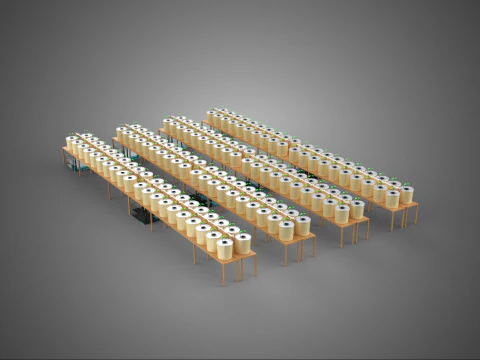

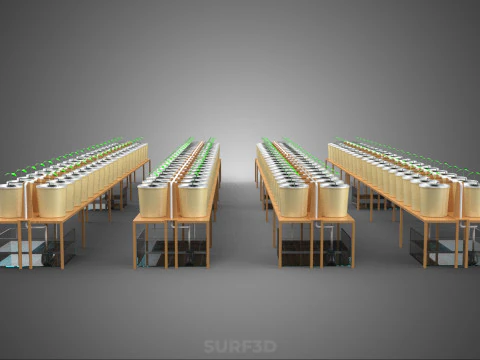

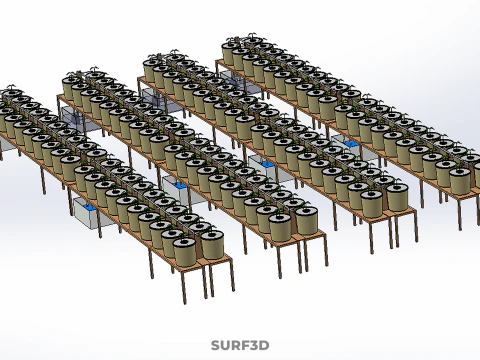

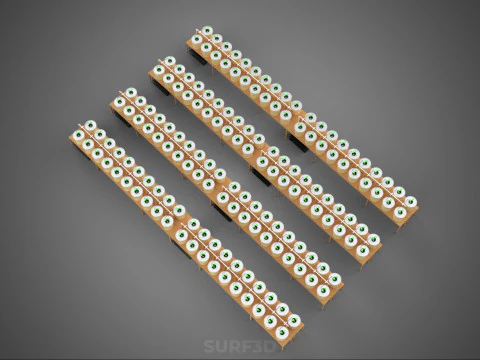

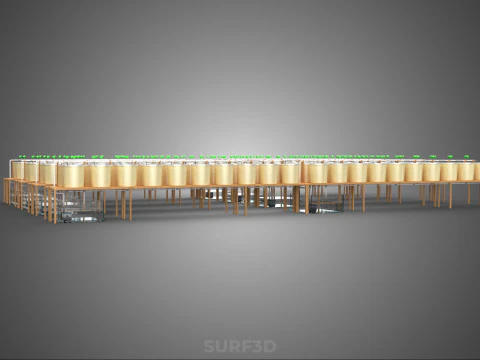

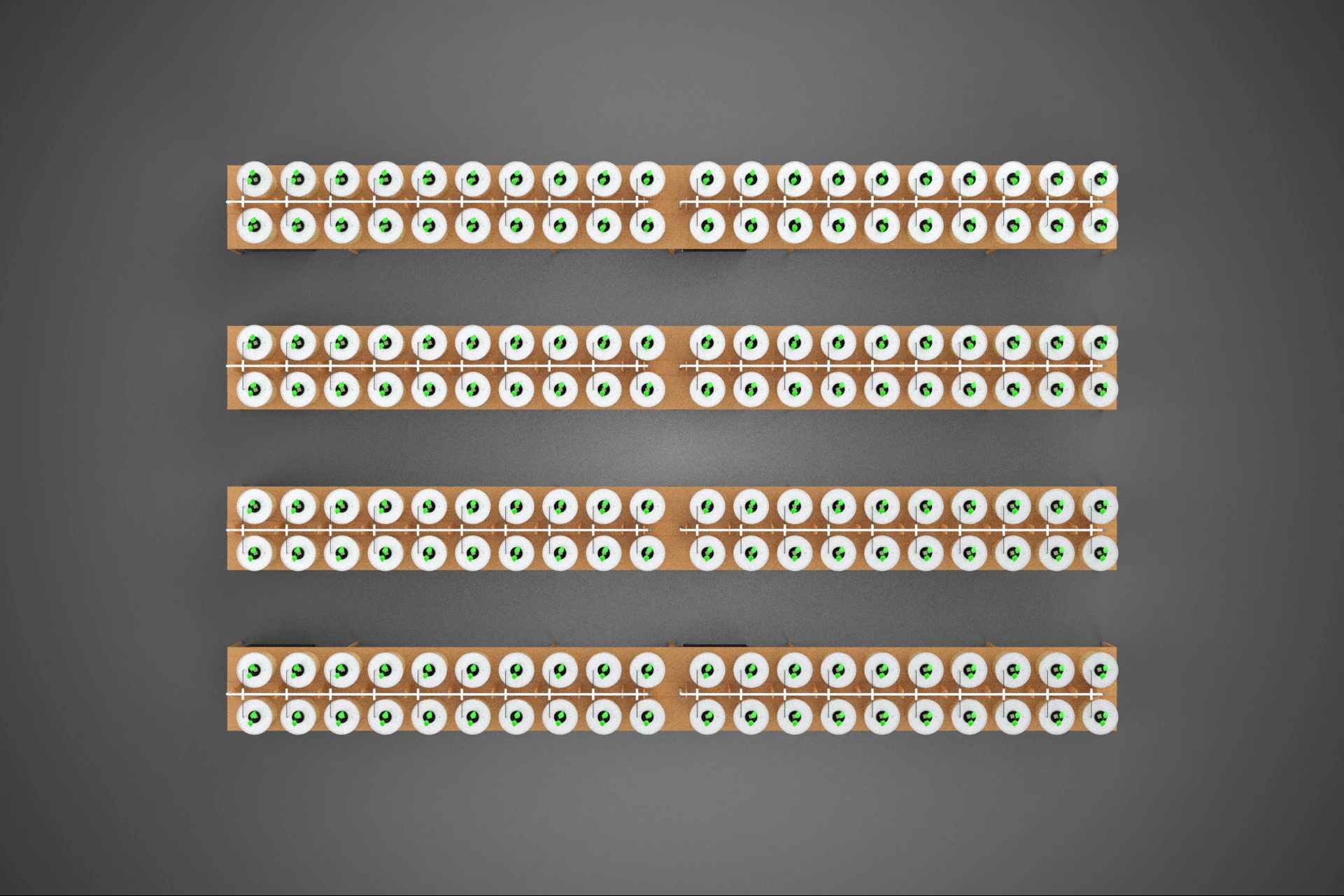

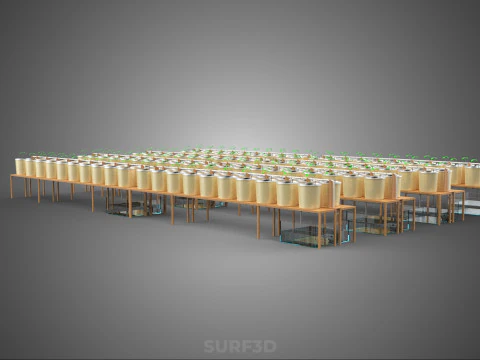

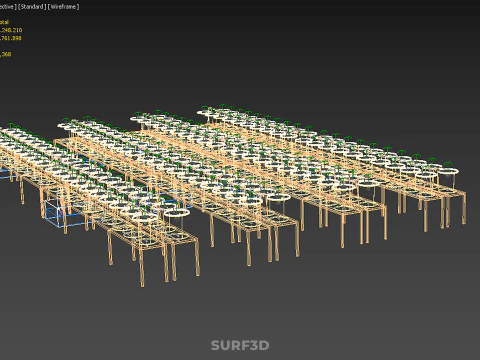

ILLUSTRATION VISUALIZATION DUTCH BUCKET HYDROPONIC SYSTEM TRAY 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The **Illustration Visualization Dutch Bucket Hydroponic System Tray** refers to the schematic or diagrammatic representation of the drainage and support component integral to a Dutch Bucket (or Bato Bucket) hydroponic cultivation setup. This system employs a recirculating nutrient delivery method and is primarily utilized for growing large, long-term fruiting crops such as tomatoes, cucumbers, peppers, and various vine vegetables.

### System Overview (Dutch Bucket Hydroponics)

The Dutch Bucket system operates on a closed-loop principle where individual cultivation containers (the buckets), typically ranging from 10 to 20 liters, are filled with an inert, non-soil substrate (e.g., perlite, coco coir, rockwool cubes). Nutrient solution is delivered via low-flow drip emitters directly to the substrate multiple times per day. The critical operational feature is that the solution is allowed to drain freely out of the bottom of the bucket, preventing saturation and ensuring adequate root zone oxygenation.

### The Function of the System Tray (Trough/Gutter)

The component referred to as the "tray" in this visualization context is more accurately described as a collection trough or gutter. Its design is fundamental to the system’s recirculating nature and efficient nutrient management.

1. **Effluent Collection and Recirculation:** The primary function of the tray is to collect the drainage (effluent) from the individual buckets. Each bucket contains a weep hole or an overflow elbow that maintains a shallow reservoir of nutrient solution at the bottom (preventing the media from completely drying out) while allowing the excess solution to exit and drop into the underlying tray. This captured solution is then directed, via gravity, back to a central nutrient reservoir. This process minimizes water and fertilizer waste, defining the system as recirculating hydroponics.
2. **Structural Support and Stability:** The trays are typically long, linear channels made of UV-resistant, food-grade plastic (often PVC or polyethylene). They are designed to support the weight and arrangement of multiple filled cultivation buckets in a uniform row, ensuring stability throughout the growing cycle.
3. **Pathogen Isolation:** By confining the nutrient drainage to a specific gutter, the tray helps prevent the lateral spread of waterborne pathogens or root diseases between different growing rows or adjacent buckets.

### Visualization and Schematic Depiction

In instructional illustrations and system schematics, the visualization of the tray emphasizes its role in flow dynamics:

* **Geometry:** The tray is depicted as a horizontal, elongated, shallow channel, often with slightly raised edges or a shallow V-shape cross-section to facilitate gravitational flow toward the return line.
* **Placement:** It is positioned directly beneath or immediately adjacent to the base of the Dutch Buckets.
* **Flow Emphasis:** Arrows or dotted lines are frequently used in the illustration to trace the path of the nutrient solution: from the reservoir, up to the drip emitters, down through the substrate, out the bucket drain hole, into the tray, and finally, traveling along the tray's gentle slope back to the reservoir inlet.

The integrity of the "Illustration Visualization Dutch Bucket Hydroponic System Tray" is essential for understanding the infrastructure of the system, particularly its efficient use of resources and management of root zone moisture.
