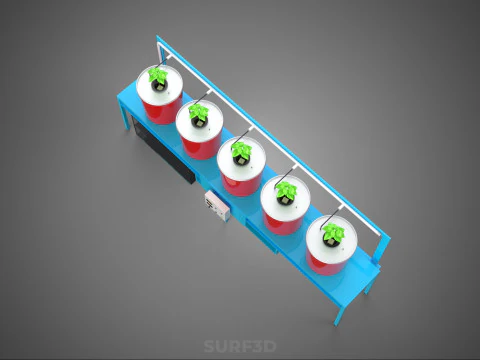

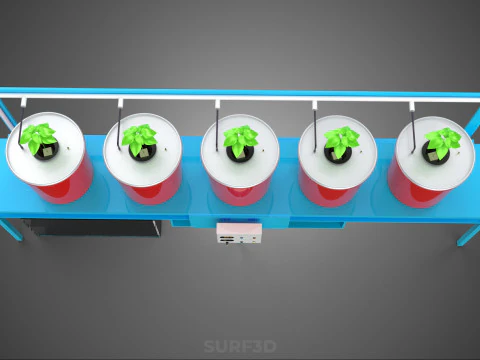

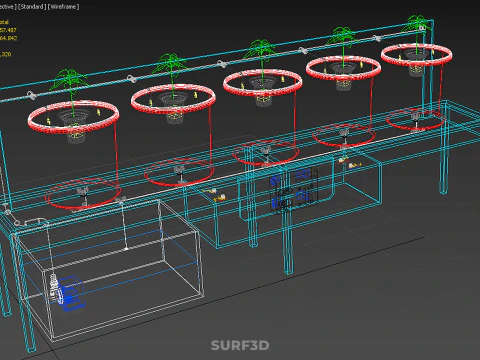

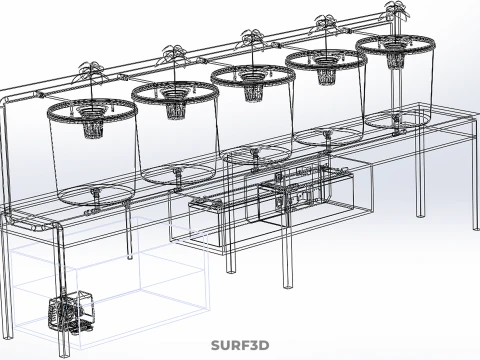

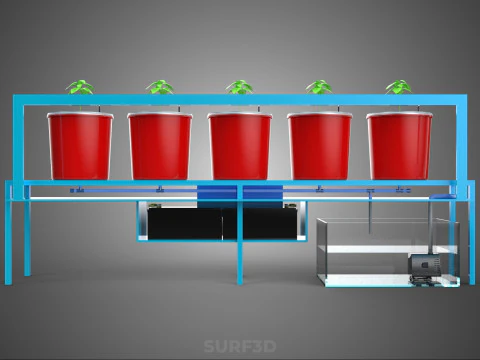

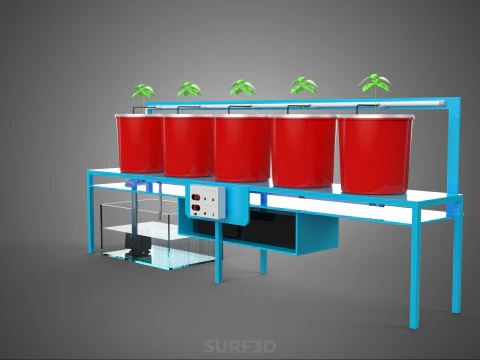

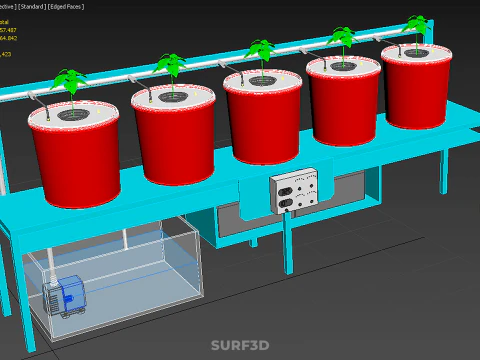

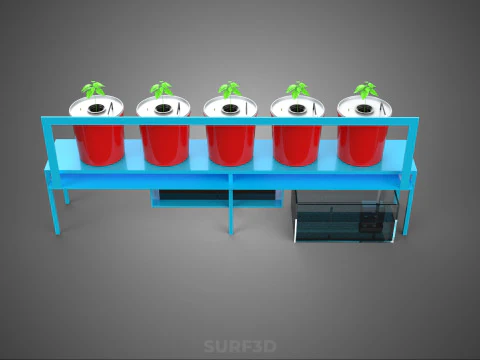

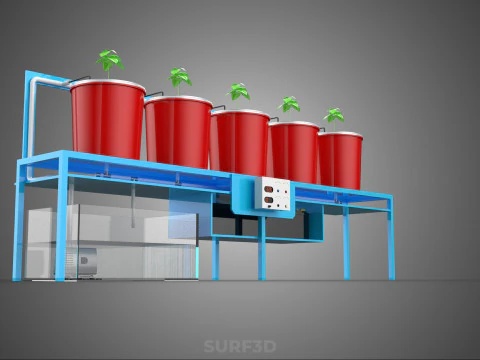

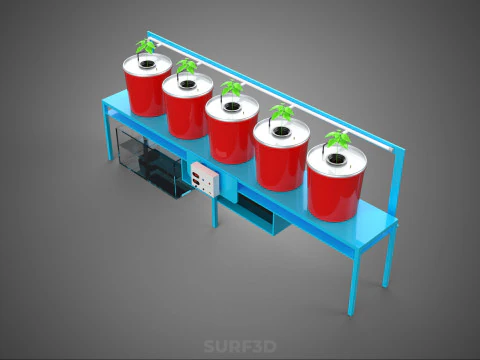

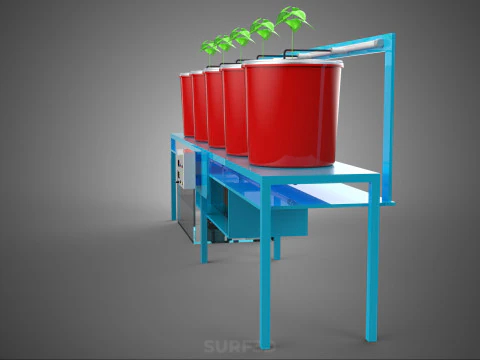

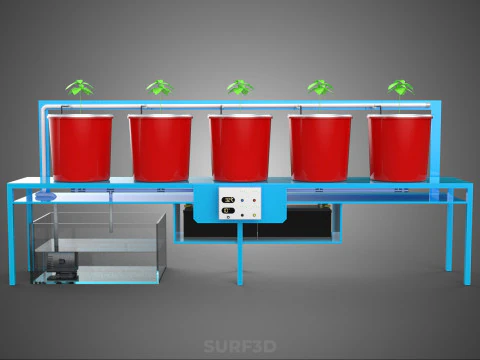

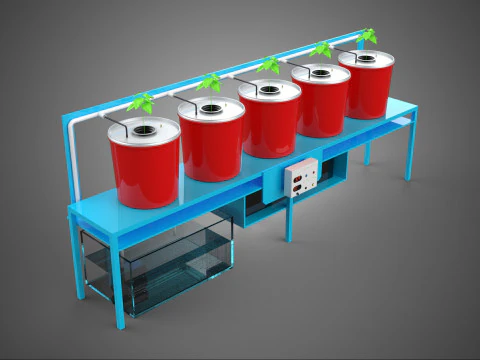

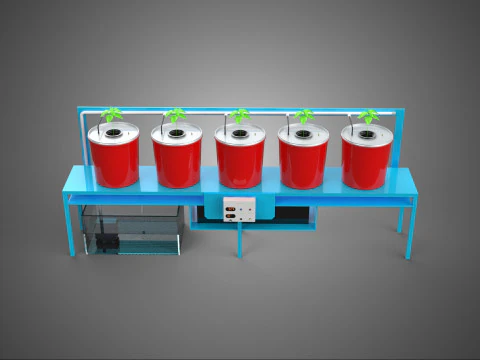

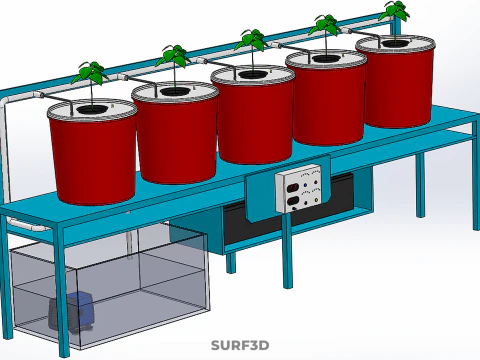

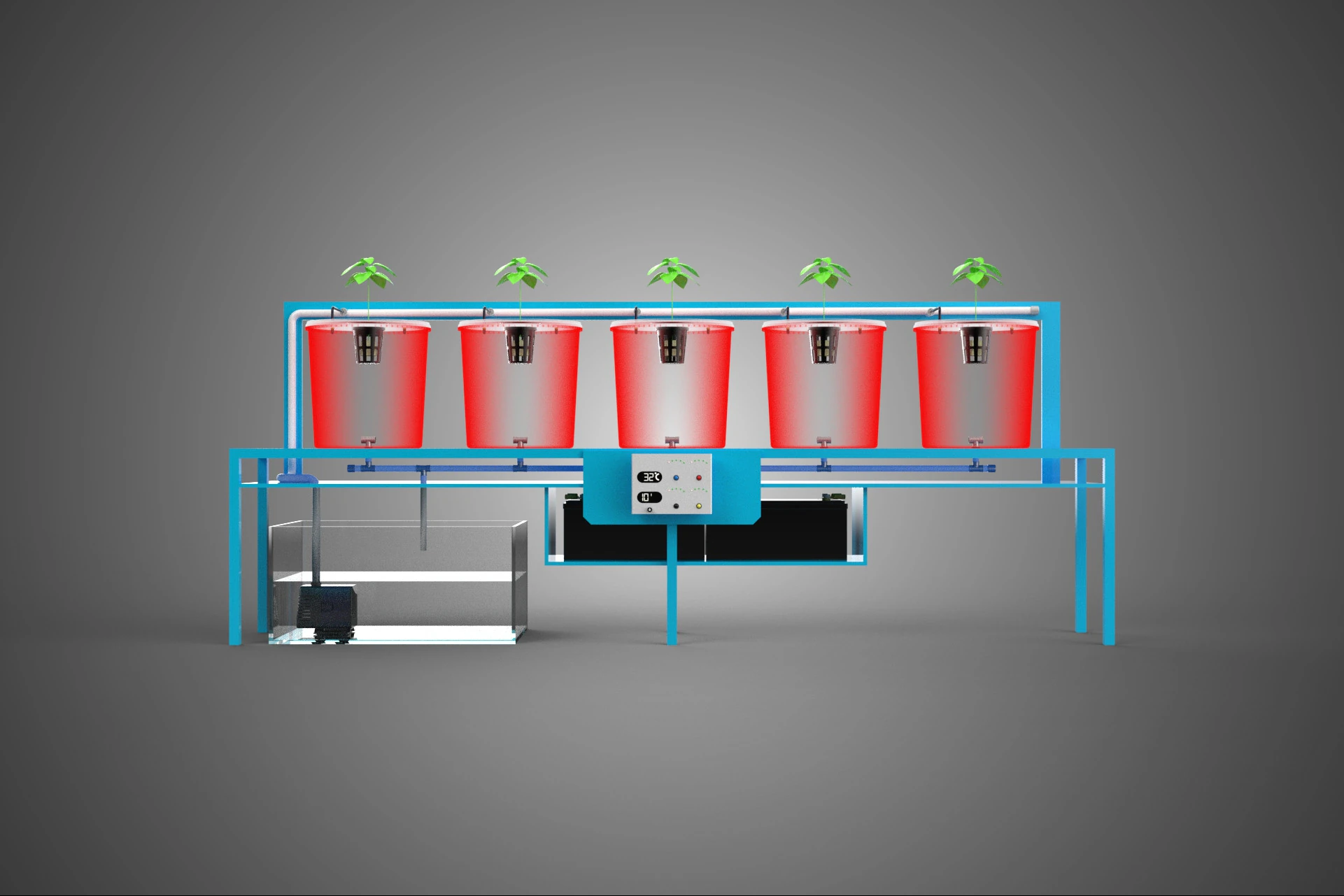

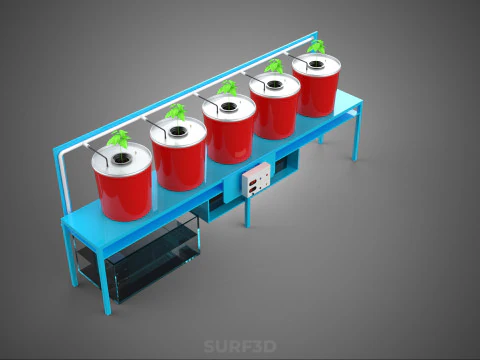

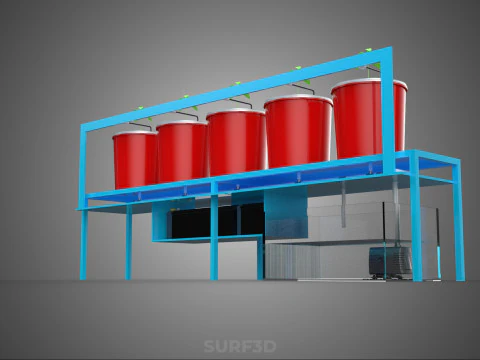

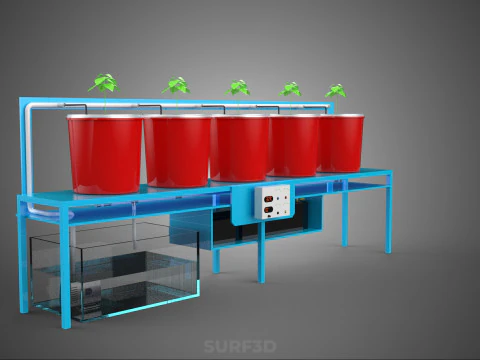

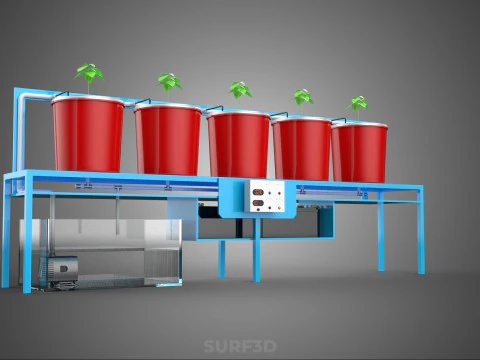

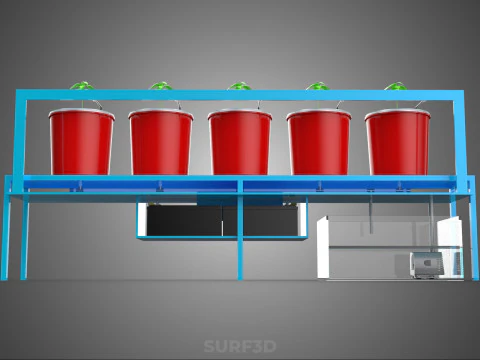

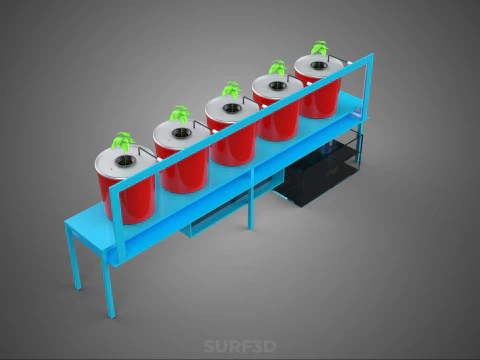

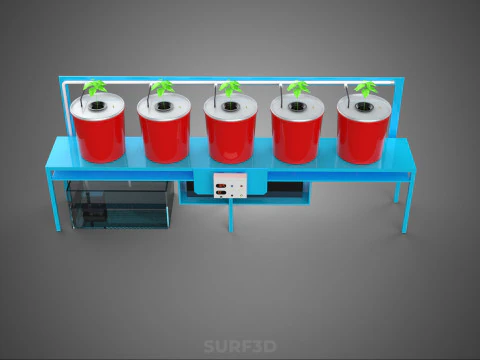

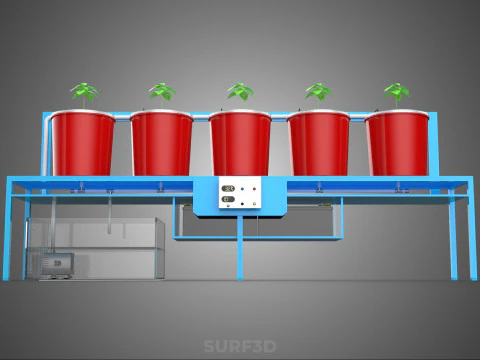

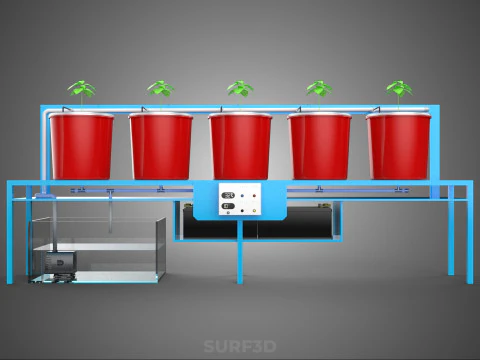

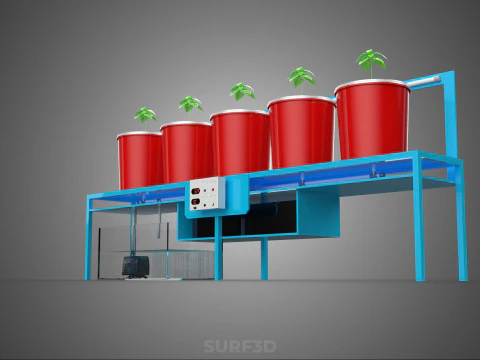

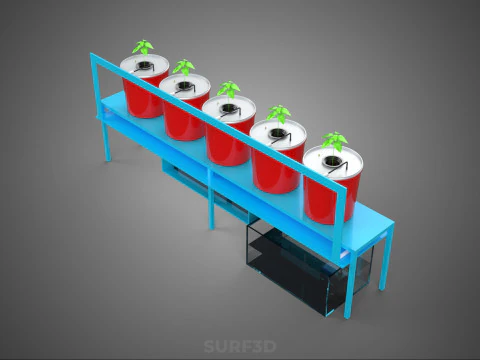

IOT CONTROLLED HYDROPONIC WATER NUTRIENT DELIVERY DUTCH BUCKET 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The IOT (Internet of Things) Controlled Hydroponic Water Nutrient Delivery Dutch Bucket system represents an advanced application of precision agriculture, integrating sophisticated cyber-physical technology with the established methodology of soilless culture. This integrated system automates the precise management of nutrient solution delivery to plants housed within Bato (Dutch) buckets, optimizing growth conditions while minimizing resource consumption and manual labor.

## System Definition and Architecture

The system is fundamentally a recirculating hydroponic configuration utilizing the Dutch Bucket method, wherein individual containers are connected by a common nutrient return line. The defining characteristic is the implementation of an IoT layer that provides real-time environmental monitoring, algorithmic decision-making, and remote control over critical processes, primarily fertigation.

### The Dutch Bucket Component (Bato System)

The Dutch Bucket system, selected for its suitability for large, long-term fruiting crops such as tomatoes, peppers, and cucumbers, operates by providing a measured volume of nutrient solution to the root zone via a drip emitter. Each bucket typically contains an inert substrate (e.g., perlite, coco coir, rockwool) for structural support. Excess nutrient solution that drains through the bottom of the bucket is collected by a sloped return channel and channeled back to a centralized main reservoir. This recirculating design maximizes water and nutrient efficiency.

## IOT Control and Automation Layer

The integration of IoT technology transforms the manual operation into a high-precision, closed-loop control system. This layer encompasses three primary components: sensing, processing, and actuation.

### 1. Sensing and Monitoring

A suite of digital and analog sensors continuously monitors the environmental and chemical parameters crucial for plant health. Key measurements include:
* **Electrical Conductivity (EC) / Total Dissolved Solids (TDS):** Measures the concentration of dissolved mineral salts (nutrients) in the reservoir solution.
* **pH Level:** Monitors the acidity or alkalinity of the solution, critical for nutrient bioavailability and root uptake.
* **Water Temperature:** Ensures the solution remains within the optimal range (typically 18°C to 24°C) to prevent root stress and pathogen proliferation.
* **Reservoir Level:** Tracks solution volume to prevent pump dry-run conditions and trigger automated replenishment.

These sensor readings are digitized and transmitted via a microcontroller (e.g., Arduino, Raspberry Pi, ESP32) equipped with wireless connectivity (Wi-Fi, LoRa, or MQTT) to a cloud-based platform or local server.

### 2. Processing and Algorithm Control

The centralized platform receives the telemetry data, processes it, and compares the real-time readings against user-defined or crop-specific optimal setpoints (recipes). The system employs intelligent algorithms for predictive adjustment and corrective action. If, for instance, the measured EC falls below the setpoint, the algorithm determines the precise volume of concentrated stock nutrients required to rectify the deficiency.

### 3. Actuation and Delivery Mechanism

Actuators translate the processing commands into physical action, ensuring accurate nutrient delivery.
* **Peristaltic or Diaphragm Pumps:** These precision pumps are utilized to inject highly concentrated nutrient stock solutions (typically N-P-K components and micronutrients, stored in separate vessels) directly into the main reservoir. These pumps allow for highly granular control over dosing volumes.
* **Solenoid Valves:** Used for controlling the flow of water (for topping up the reservoir) and for directing the mixed nutrient solution to the distribution lines leading to the Dutch buckets.
* **pH Adjustment Pumps:** Dedicated dosing pumps inject acid (e.g., phosphoric acid) or base solutions to maintain the pH within the optimal range (typically 5.5 to 6.5).
* **Main Circulation Pump:** Responsible for periodically or continuously mixing the main reservoir solution and pumping it through the drip lines to the plants.

## Operational Advantages

The IOT-controlled Dutch Bucket system offers significant advantages over traditional hydroponic methods:
1. **Precision and Consistency:** Continuous monitoring and automated dosing eliminate the manual variability inherent in traditional systems, ensuring nutrient levels and pH remain consistently within the narrow optimal window 24/7.
2. **Resource Efficiency:** Recirculation combined with sensor-driven dosing reduces water waste and nutrient runoff, optimizing the economic and environmental sustainability of the operation.
3. **Scalability and Remote Management:** The system can be scaled efficiently across large agricultural operations, with operators able to monitor system health, adjust setpoints, and troubleshoot issues remotely via a web interface or mobile application.
4. **Data Logging and Analysis:** All operational data is logged, enabling historical analysis of crop performance relative to nutrient input, thereby facilitating continuous optimization of growing recipes and protocols.

KEYWORDS: Hydroponics, IoT, Automation, Dutch Bucket, Bato Bucket, Nutrient Delivery, Precision Agriculture, EC Sensor, pH Sensor, Peristaltic Pump, Recirculating System, Soilless Culture, Drip Irrigation, Telemetry, Remote Monitoring, Smart Farming, Environmental Control, Water Efficiency, Crop Management, Actuator, Microcontroller, Sensor Fusion, Data Logging, Closed-loop System, Reservoir Management, Fertigation, Solenoid Valve, Controlled Environment Agriculture, Substrate Hydroponics, Scalability
