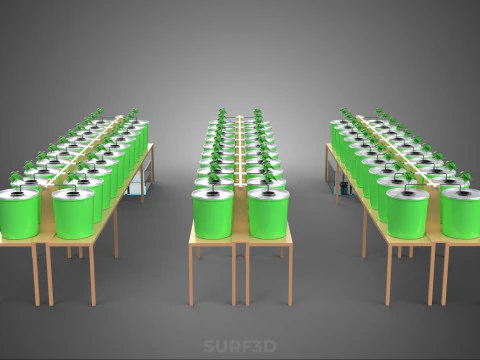

DUTCH BUCKET HYDROPONIC CROP PLANT FACTORY GREENHOUSE PRODUCTION 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The Dutch Bucket Hydroponic System, frequently integrated into advanced Controlled Environment Agriculture (CEA) structures such as specialized greenhouses or hybrid plant factories, represents a highly efficient method for the intensive production of high-value cash crops. Often referred to as the Bato Bucket system, this method is characterized by individual growing containers operating within a recirculating drip irrigation framework, optimized primarily for large, vine-bearing fruiting plants that possess extensive root structures and long life cycles.

### System Mechanics and Components

The core infrastructure consists of robust, often cubic or cylindrical, buckets typically constructed from food-grade plastic, which are elevated above a central drainage trough or return line. Unlike Deep Water Culture (DWC) or Nutrient Film Technique (NFT), Dutch Buckets rely on inert growing media—such as perlite, vermiculite, rockwool, or coconut coir—to provide structural anchorage for the plants. This media is chemically neutral and offers excellent aeration but negligible nutritional contribution, demanding precise delivery of complete nutrient solutions.

The system utilizes a closed-loop recirculation design. A central reservoir holds the nutrient solution, which is constantly monitored for Electrical Conductivity (EC) to gauge nutrient concentration and pH for optimal uptake. A submersible pump drives the solution through mainline tubing, distributing it via small feeder lines equipped with pressure-compensated drip emitters (or spaghetti tubing) into the top of each individual bucket.

Crucially, each Dutch Bucket features a drain elbow or siphon mechanism positioned a few inches above the bottom of the container. This design maintains a shallow reservoir of nutrient solution within the bottom of the bucket, preventing the growing medium from fully drying out while simultaneously ensuring sufficient drainage and air exchange in the upper root zone. Excess nutrient solution that drains from the bottom of the bucket is channeled into a common return line, flowing back to the main reservoir for replenishment, filtration, and subsequent reuse. This recirculation minimizes water waste and maximizes nutrient utilization efficiency.

### Integration in Greenhouse and Plant Factory Environments

The implementation of Dutch Bucket systems within a "Plant Factory Greenhouse Production" context signifies the use of sophisticated environmental controls to maximize yield density and crop quality. While not strictly equivalent to a vertical farm (a true Plant Factory), the specialized greenhouse utilizes technologies that afford high degrees of control over the atmospheric and nutritional inputs.

Key environmental controls include:

1. **Climate Control:** Sophisticated Heating, Ventilation, and Air Conditioning (HVAC) systems and dehumidifiers maintain optimal temperature and relative humidity (RH) tailored to the specific crop’s photosynthetic needs, mitigating the high humidity often associated with dense, high-transpiration crops like tomatoes.
2. **Lighting:** Greenhouses leverage natural sunlight, but supplemental lighting (HPS or high-efficiency LED fixtures) is employed during periods of low irradiance or extended photoperiod requirements, ensuring consistent growth and flower set.
3. **Automation:** Nutrient Dosing Systems (NDS) automatically adjust and inject stock solutions to maintain precise EC and pH levels. Irrigation cycles are timed and monitored based on plant stage and environmental conditions (e.g., solar radiation levels).

### Target Crops and Advantages

The Dutch Bucket system is particularly well-suited for high-density, high-yield production of indeterminate, large-root crops that require significant physical support. Primary commercial applications include tomatoes (especially vine-ripened varieties), cucumbers, bell peppers, eggplants, and various long-stemmed flowers.

Advantages of the Dutch Bucket technique include:

* **Disease Isolation:** Although the nutrient solution is shared, the physical separation of plants into individual buckets limits the rapid spread of soil-borne pathogens compared to continuous channel systems.
* **Root Zone Management:** The partial drainage ensures a consistent nutrient delivery while providing a well-aerated root environment, reducing the risk of root rot.
* **Yield Stability:** The closed-loop nature allows for absolute precision in nutrient delivery throughout the plant’s lengthy fruiting phase, leading to predictable and maximized yields.
* **Water Efficiency:** Water consumption is significantly reduced compared to conventional field agriculture due to the complete capture and reuse of drainage water.

KEYWORDS: Hydroponics, Dutch Bucket, Bato Bucket, Controlled Environment Agriculture, CEA, Recirculating Hydroponics, Greenhouse Production, Plant Factory, Fruiting Crops, Tomatoes, Cucumbers, Peppers, Eggplant, Nutrient Solution, EC Monitoring, pH Control, Drip Irrigation, Inert Media, Perlite, Coconut Coir, Closed-Loop System, Water Efficiency, Automation, Crop Management, High-Density Farming, Soilless Cultivation, Root Zone, Drainage, Supplemental Lighting, Commercial Hydroponics, Sustainable Agriculture, Yield Maximization.
