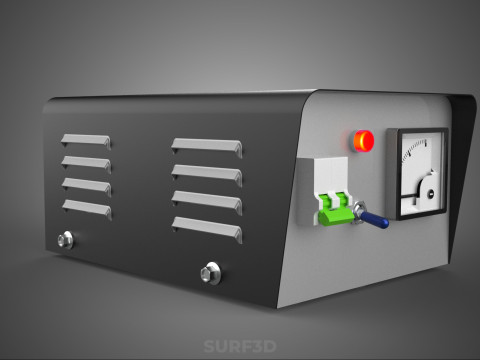

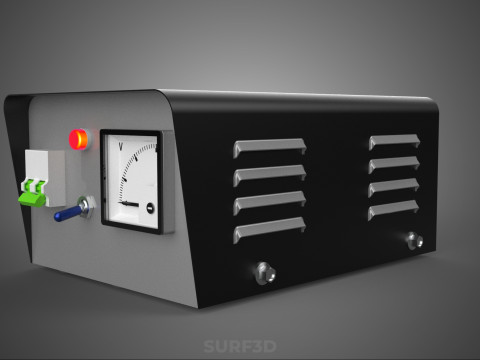

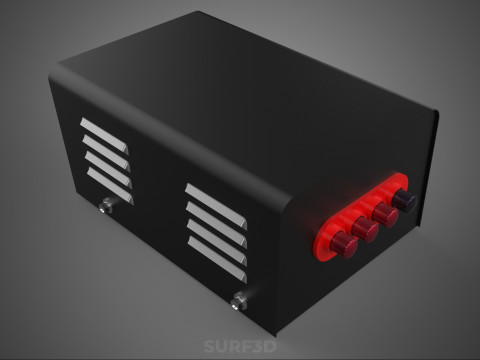

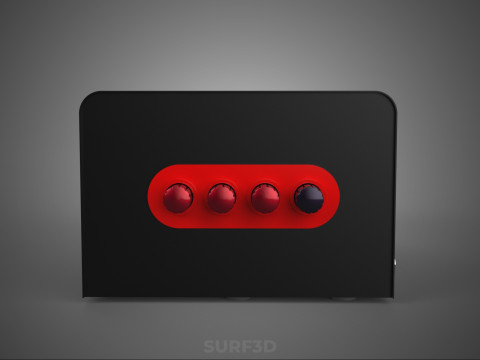

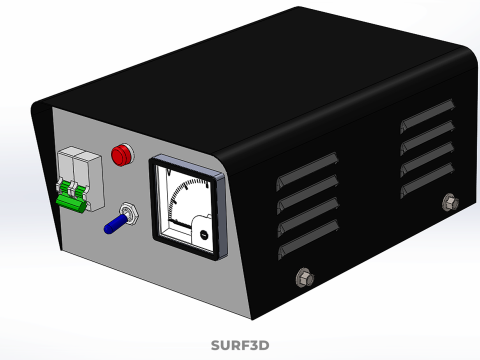

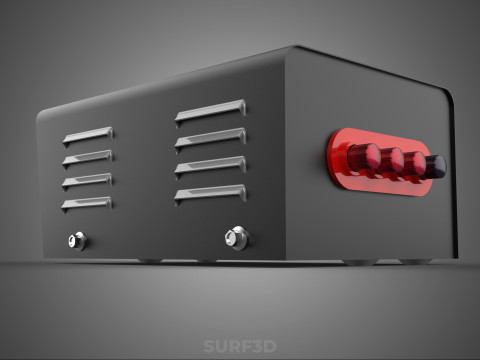

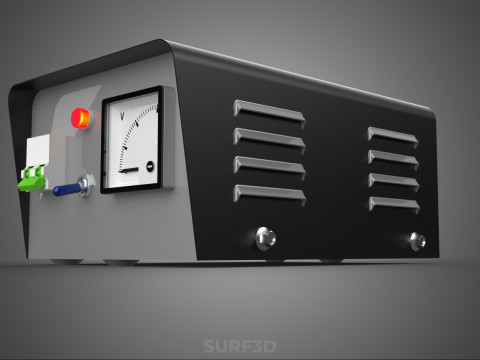

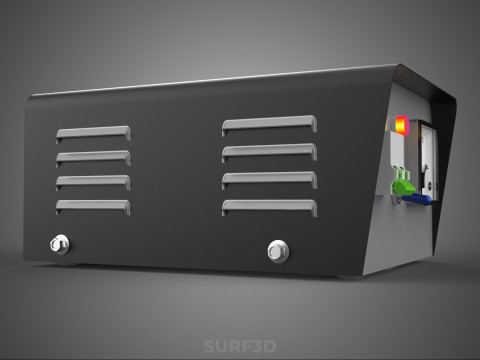

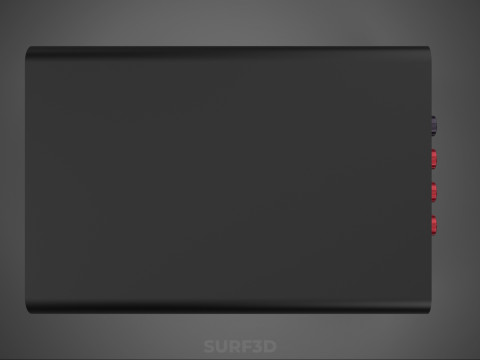

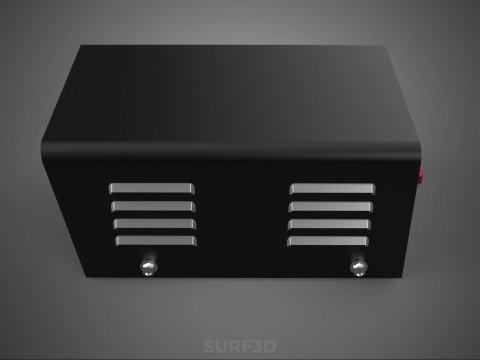

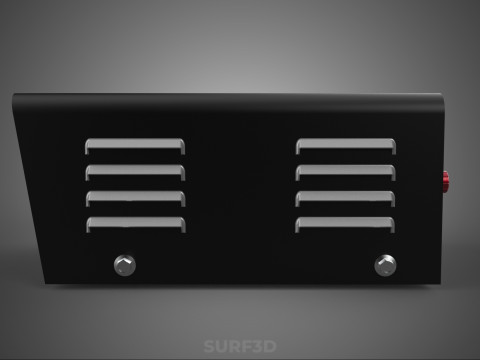

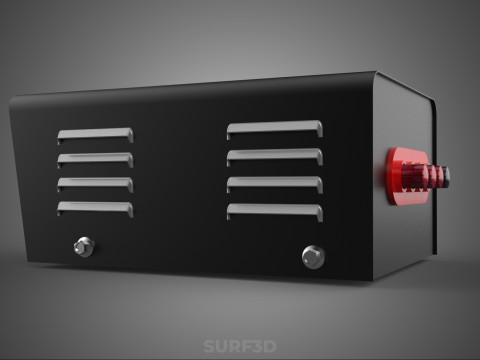

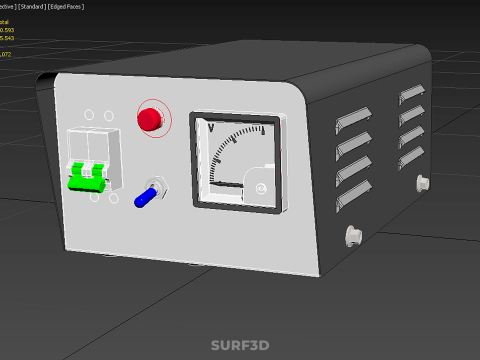

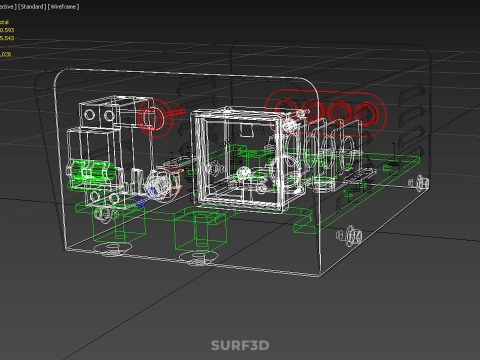

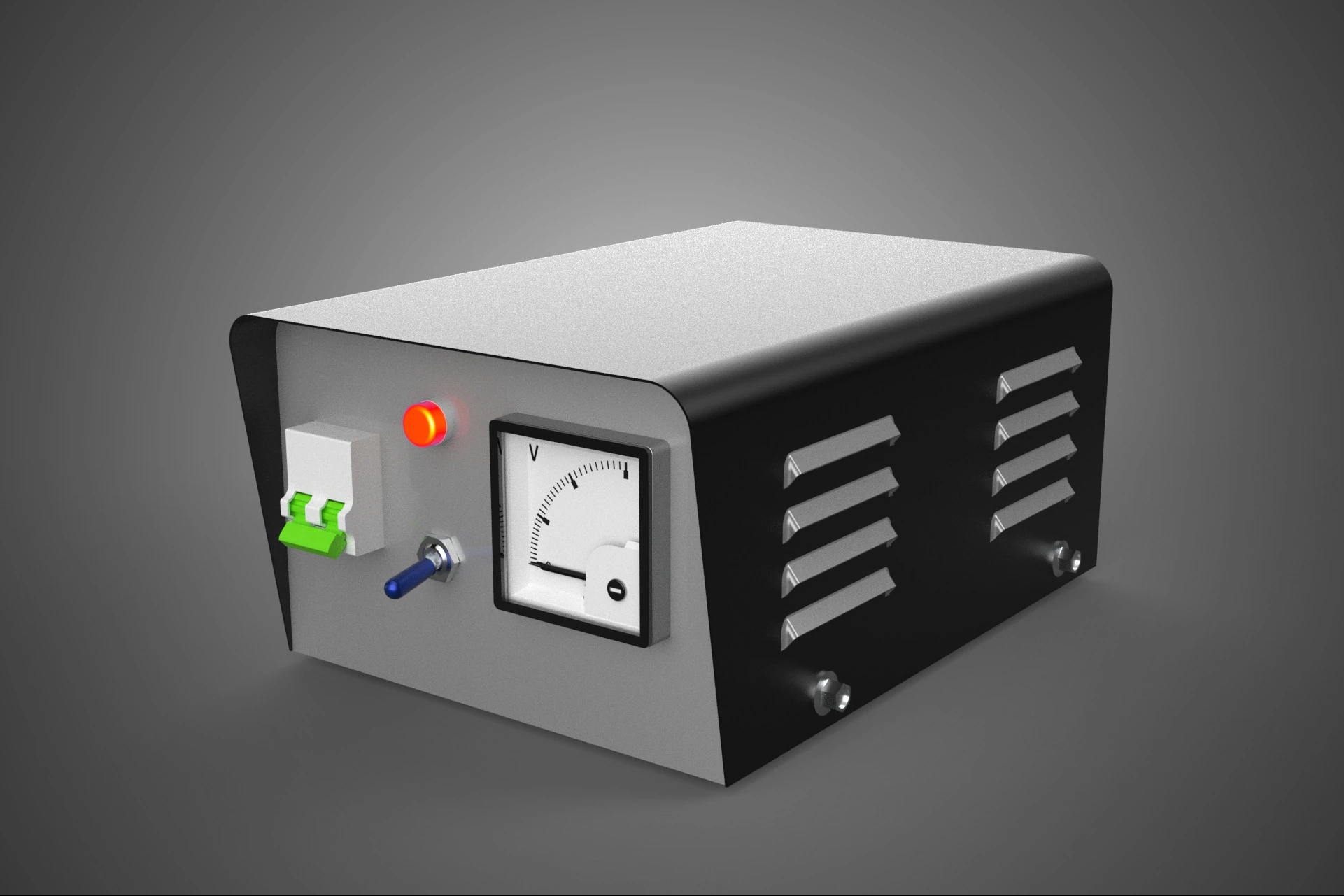

ELECTRIC CONTROL BOX VOLTMETER REGULATOR CONTROLLER PANEL DYNAMO 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The ELECTRIC CONTROL BOX VOLTMETER REGULATOR CONTROLLER PANEL DYNAMO constitutes an integrated power management and instrumentation system designed specifically for the operation, monitoring, and stabilization of a Direct Current (DC) generator, historically known as a dynamo. This apparatus is essential for maintaining electrical stability, ensuring system protection, and providing real-time feedback regarding the generator’s output parameters.

### Functional Overview and Nomenclature

The composite unit, often housed within a protective enclosure (the Control Box), integrates several critical electrical engineering functions:
1. **Generation:** Sourcing power from the dynamo (DC generator).
2. **Measurement:** Utilizing the Voltmeter for potential monitoring.
3. **Regulation:** Employing the Regulator to stabilize output characteristics.
4. **Interface:** Providing the Controller Panel for monitoring and system control.

The primary objective of this integration is to ensure that the variable electrical output produced by the dynamo—which fluctuates based on mechanical shaft speed (e.g., engine RPM) and load demands—is converted into a stable, usable voltage suitable for charging batteries or powering sensitive loads.

### Core Components and Mechanisms

#### I. The Electric Control Box and Controller Panel

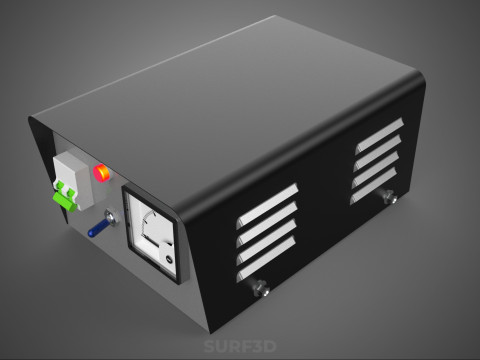

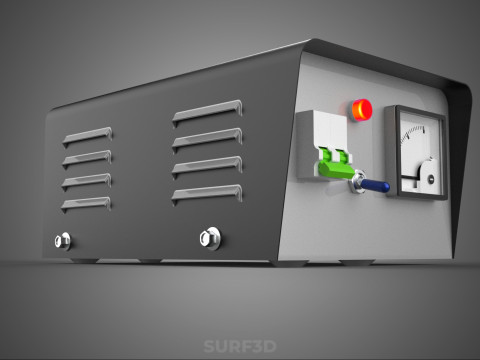

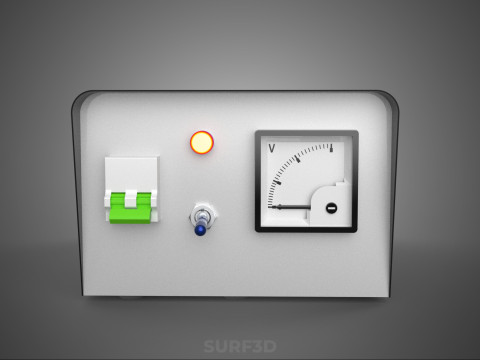

The **Electric Control Box** is the robust physical enclosure, typically constructed of metallic alloys or high-impact polymers, serving as a housing for the sensitive electrical components (regulator, relays, fuses). Its function is environmental protection (against dust, moisture, vibration, and accidental contact) and organization. The **Controller Panel** is the visible front face of the control box, providing the interface for operational diagnostics and manual intervention. This panel typically mounts the voltmeter, indicator lights, switches (e.g., circuit isolation, field excitation), and access points for protection devices (fuses or miniature circuit breakers).

#### II. The Dynamo (DC Generator)

The **Dynamo** is the source component, converting mechanical energy into DC electrical energy via electromagnetic induction and the use of a commutator. Dynamos operate effectively only above a minimum rotational speed (cut-in speed). If the rotational speed is too low, or if the load exceeds the dynamo’s capacity, the voltage output can collapse, posing a risk to the associated battery or electrical system.

#### III. The Voltmeter

The **Voltmeter** is the essential measuring instrument integrated into the panel. It provides an immediate, visual indication of the system voltage, allowing operators to verify that the regulator is functioning correctly and that the dynamo is producing power within safe and specified operating parameters (e.g., typically 13.8–14.5 VDC for a 12-volt system). Voltmeters used in control panels are usually robust, often moving-coil (d'Arsonval) type meters calibrated specifically for the system's nominal voltage range.

#### IV. The Regulator

The **Regulator** is the most complex component, responsible for active power management. In older systems, the regulator was electromechanical, utilizing vibrating or static contacts and resistive elements (rheostats) to modulate the magnetic field strength of the dynamo’s field winding. Modern regulators are predominantly solid-state, employing semiconductors (like transistors or MOSFETs) to achieve highly precise, rapid, and wear-free modulation using techniques such as Pulse Width Modulation (PWM).

The regulator performs two critical functions:

1. **Voltage Stabilization:** It monitors the system voltage and dynamically adjusts the current supplied to the dynamo's field coils. If voltage rises above the setpoint, the regulator introduces resistance or reduces the duty cycle of the field current, thereby reducing the generated electromotive force (EMF). If the voltage drops, the regulator increases field excitation.
2. **Reverse Current Protection (Cutout Relay):** Essential in battery-charging applications, the regulator incorporates a cutout relay. This relay automatically disconnects the dynamo from the battery/load circuit when the dynamo’s output voltage falls below the battery’s terminal voltage. If this separation did not occur, the battery would discharge current back into the dynamo, causing it to motor and potentially damaging the generator or draining the power source.

### Operational Context and Applications

These integrated control systems were historically standard equipment in early automotive, marine, and light industrial DC power applications prior to the widespread adoption of the AC alternator (which uses an internal rectifier to produce DC and generally requires only a voltage regulator, not a separate cutout relay).

The integration of all management functions into a single panelized control box simplifies installation, facilitates troubleshooting, and ensures that the critical parameters of the power source (dynamo) are maintained, providing reliable DC power throughout the operating range of the prime mover.

KEYWORDS: Dynamo, Regulator, Voltmeter, Control Panel, DC Generator, Power Management, Voltage Stabilization, Cutout Relay, Reverse Current Protection, Electrical Enclosure, Field Coil, Armature, Electrical System, Instrumentation, System Protection, Battery Charging, Load Management, Electrical Engineering, Shunt Winding, Electromechanical Regulator, Solid-State Regulator, Circuit Breaker, Metering, Power Supply, Control Unit, Junction Box, Power Generation, Feedback Control, Terminal Box, DC Power.
