EN 1092-1 Type 05B Blind Flange Pack - DN10 to DN450 PN16 3D Model NEW
- Request product support by the author
- Available formats:
- Item ID:675139
- Date: 2026-10-11
- Animated:No
- Textured:No
- Rigged:No
- Materials:Yes
- Low-poly:No
- Collection:No
- UVW mapping:No
- Plugins Used:No
- Print Ready:No
- 3D Scan:No
- Adult content:No
- PBR:No
- AI Training:No
- AI Generated:No
- Geometry:Polygonal
- Unwrapped UVs:Unknown
- Views:90
Description
Complete 3D model set of Blind Flanges conforming to EN 1092-1 Standard, Type 05 with Raised Face (Type B). This professional-grade pack includes 18 nominal diameters from DN10 up to DN450, all rated for PN16 pressure class.
Perfect for industrial piping design, oil & gas plant rendering, mechanical engineering, and digital twin layouts.
Technical Specifications:
- Standard: EN 1092-1 Type 05B (Blind Flange, Raised Face)
- Pressure Rating: PN16

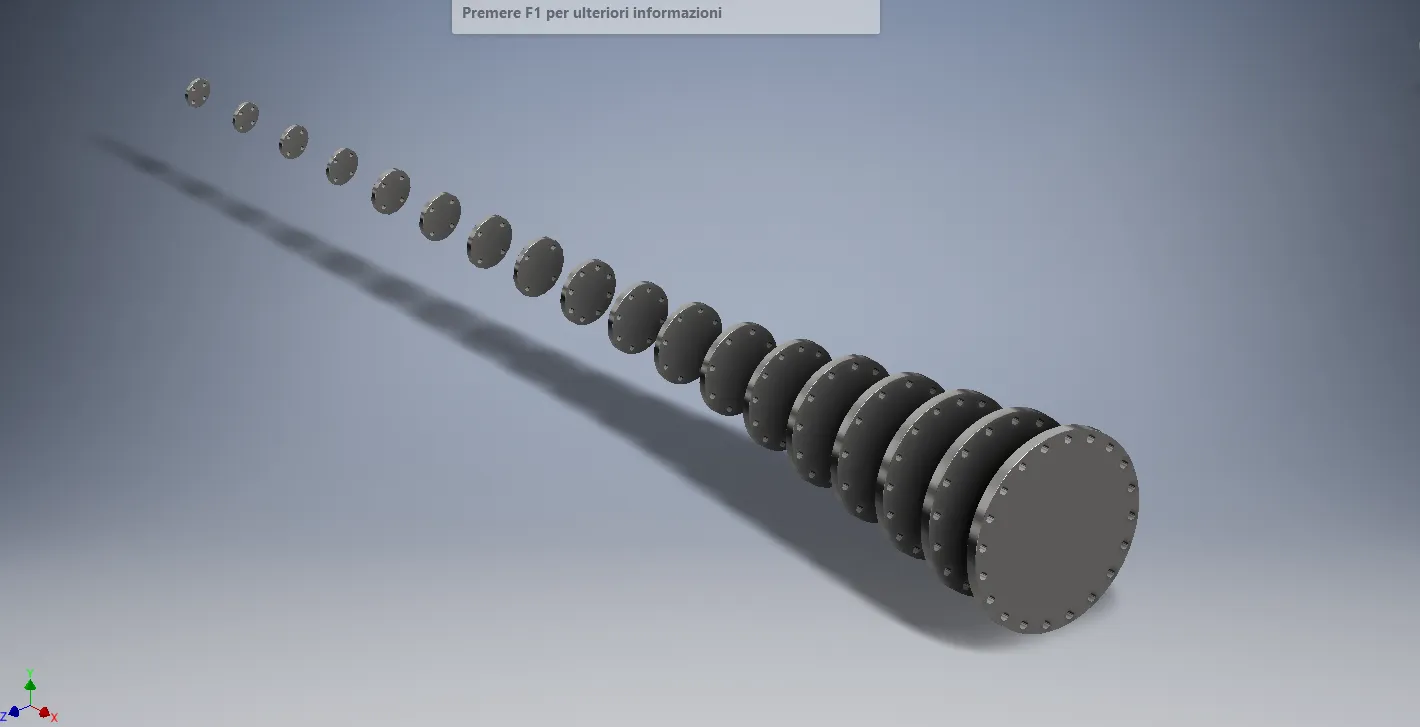

- Included Sizes (18 Models): DN10, DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450.

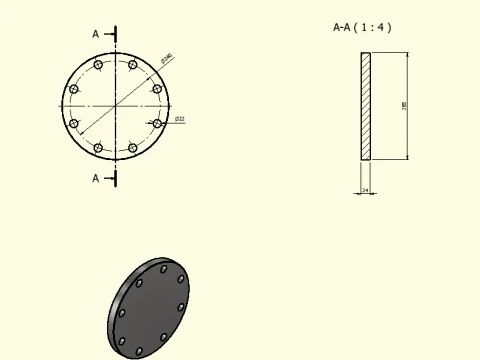

- Geometry: Accurate dimensions according to European standards (Thickness, Outside Diameter, Bolt Circle Diameter, Number of Holes, and Bolt Hole Diameter).
Features:
- Clean topology and neat file organization.
- Each size is clearly named and grouped.
- Ready to be integrated into large-scale piping systems and BIM projects.
Need more formats?
If you need a different format, please send us a Conversion Request. We can convert 3D models to: .stl, .c4d, .obj, .fbx, .ma/.mb, .3ds, .3dm, .dxf/.dwg, .max. .blend, .skp, .glb. Free Format ConversionWe do not convert 3d scenes and solid formats such as .step, .iges, .stp, .sldprt etc!
