FOLDING MOUNTED BED CRANE HOIST LIFT ELECTRIC WINCH PICKUP TRUCK 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely *******ed formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software *******
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

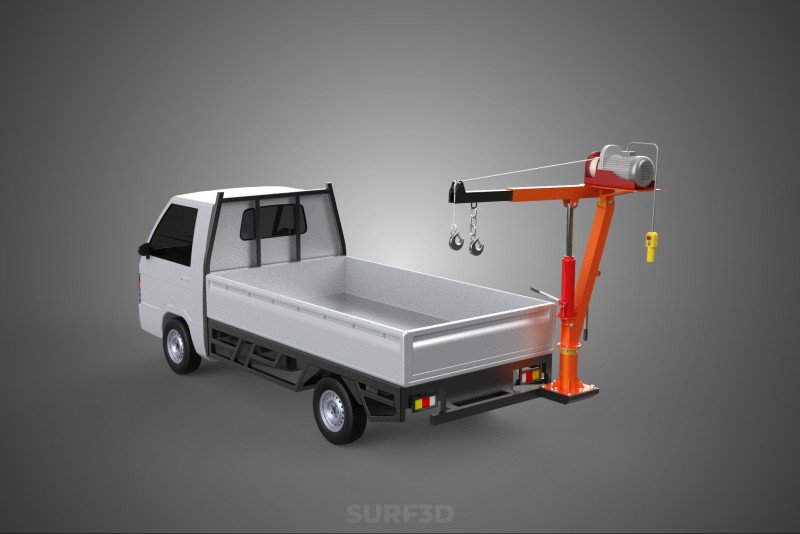

A **folding mounted bed crane hoist lift with electric winch attached on a pickup truck** is a specialized piece of vehicle-mounted material handling equipment designed for the portable lifting and maneuvering of heavy objects. This system integrates a compact, articulated or telescopic boom crane with an electrically powered winch, permanently or semi-permanently installed onto the cargo bed of a pickup truck. Its primary function is to provide on-demand lifting capabilities in various field, construction, agricultural, and utility environments, thereby reducing manual labor, enhancing efficiency, and improving safety during loading, unloading, and positioning tasks.

**Nomenclature and Components:**
The system is fundamentally composed of several interconnected elements:
1. **Mounting Base:** A robust steel plate or frame securely bolted to the pickup truck's chassis, typically through the bed, providing the stable foundation for the crane's operations.
2. **Vertical Mast/Column:** A sturdy upright post extending from the mounting base, which *******s the boom assembly and often houses the rotation mechanism.
3. **Folding Boom/Jib Arm:** The principal lifting arm, designed to fold or collapse for compact storage when not in use. It can be a single rigid arm, a telescopic arm for extended reach, or an articulated arm for greater maneuverability. Its folding characteristic distinguishes it from fixed-boom truck cranes, allowing the truck bed to remain largely clear for cargo transport.
4. **Electric Winch:** The core lifting mechanism, consisting of an electric motor, a gear reduction system, a winding drum, and a steel wire rope or synthetic cable. Powered by the truck's 12-volt DC electrical system, the winch precisely controls the vertical movement of loads.
5. **Hook Assembly:** A robust hook, typically with a safety latch, attached to the end of the winch cable for securing loads.
6. **Rotation Mechanism:** Allows the boom to pivot horizontally, enabling loads to be swung into or out of the truck bed, or positioned precisely. This can be manual (requiring physical effort) or powered (via hydraulics or an electric motor).
7. **Control System:** Typically a wired or wireless remote control unit, providing ergonomic operation of the winch (up/down) and sometimes the rotation or boom extension.
8. **Outriggers (Optional/Dependent on Capacity):** For higher capacity units, manual or hydraulic outriggers may be deployed from the truck frame to provide additional stability and prevent vehicle tilt during heavy lifts.

**Mechanism and Operation:**
When required for operation, the folding boom is manually or hydraulically unfolded and extended into its working position. The electric winch cable is then deployed, and the hook is attached to the item to be lifted. Via the control unit, the electric winch activates, drawing the cable and lifting the load vertically. Once the load is clear of its resting surface, the boom can be rotated to swing the load horizontally, either into the truck bed for transport or to another location adjacent to the truck. After the task is completed, the boom is folded back into its compact, stowed position, usually resting along the side or front of the truck bed, minimizing its footprint and allowing normal truck use.

**Key Features and Applications:**
The defining characteristic of this equipment is its combination of robust lifting capability with exceptional portability and storage efficiency. The electric winch offers precise, quiet, and reliable lifting powered by the vehicle's own battery. Capacities vary widely, typically ranging from 500 pounds (227 kg) to 2,000 pounds (907 kg), though heavier duty models exist.

Common applications include:
* **Construction:** Lifting tools, generators, small engines, concrete forms, and building materials.
* **Agriculture:** Handling feed sacks, small implements, irrigation components, or livestock.
* **Landscaping:** Moving rocks, tree stumps, bags of soil, or heavy planters.
* **Utility Services:** Assisting with the deployment and retrieval of service equipment, transformers, or tools.
* **Fleet Management:** Facilitating the loading and unloading of heavy packages, specialized equipment, or machinery for delivery services.
* **Recreational Use:** Aiding in the loading of ATVs, motorcycles, large coolers, or hunting game.

**Advantages:**
* **Enhanced Safety:** Reduces the risk of musculoskeletal injuries associated with manual lifting.
* **Increased Efficiency:** Streamlines loading and unloading processes, saving time and labor costs.
* **Versatility:** Capable of operating in diverse locations, including remote sites without access to traditional lifting equipment.
* **Cost-Effectiveness:** A more economical solution compared to dedicated crane trucks or larger material handling equipment.
* **Space Optimization:** The folding design allows the truck bed to be largely clear for other cargo when the crane is not in use.

**Disadvantages and Considerations:**
* **Load Limitations:** The lifting capacity is restricted by the crane's design and, crucially, by the pickup truck's payload capacity, suspension, and frame integrity. Exceeding these limits can compromise vehicle stability and safety.
* **Stability Requirements:** For heavier lifts, proper load distribution and, if available, the deployment of outriggers are essential to prevent vehicle tipping.
* **Installation:** Requires professional or skilled installation to ensure secure mounting to the truck's frame, often involving drilling and reinforcement.
* **Clearance:** Operators must be mindful of overhead and lateral clearances during operation.
* **Maintenance:** Regular inspection of the winch, cable, boom structure, and mounting hardware is critical for safe and reliable operation.

**Safety Protocols:**
Safe operation necessitates strict adherence to manufacturer specifications regarding load limits, proper rigging techniques, and maintaining a clear operational zone.
