Full-size frame model of bouncer buggy 3D Model

$40.00 -10%
$36.00
License:
Full-size frame model of bouncer buggy 3D Model
$40.00 -10%
$ 36.00
Remove Bookmark Bookmark This Item
  • Available formats:
    Free Format Conversion
    Portable Document (.pdf) 20.34 MB
    Parasolid (.x_t) 2.70 MB
    AutoCAD (.dwg) 2.65 MB
    ArchiCAD (.dxf) 2.32 MB
    Image Textures (.jpg) 2.14 MB
    IGES (.iges) 7.11 MB
    Wavefront OBJ (.obj) 34.89 MB
    ACIS(.sat) 15.76 MB
    STEP (.step) 12.22 MB
    Stereolithography (.stl) 48.91 MB
    DirectX (.x) 2.89 MB
    DirectX (.x) 3.33 MB
    Portable Document (.pdf) 41.58 MB
    IGES (.iges) 18.65 MB
    Wavefront OBJ (.obj) 74.60 MB
    ACIS(.sat) 57.63 MB
    STEP (.step) 33.64 MB
    DirectX (.x) 13.29 MB
    DirectX (.x) 14.90 MB
  • Animated:
    No
  • Textured:
    No
  • Rigged:
    No
  • Materials:
    No
  • Low-poly:
    No
  • Collection:
    No
  • UVW mapping:
    No
  • Plugins Used:
    No
  • Print Ready:
    No
  • 3D Scan:
    No
  • Adult content:
    No
  • PBR:
    No
  • Geometry:
    Other
  • Unwrapped UVs:
    No
  • Views:
    7425
  • Date: 2020-05-15
  • Item ID:
    293378
Report This Item

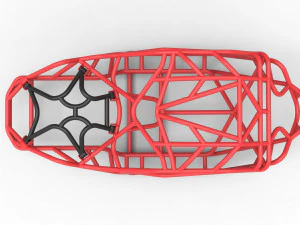

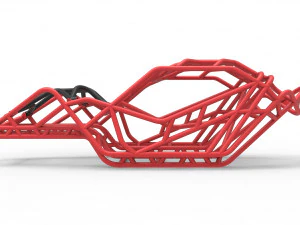

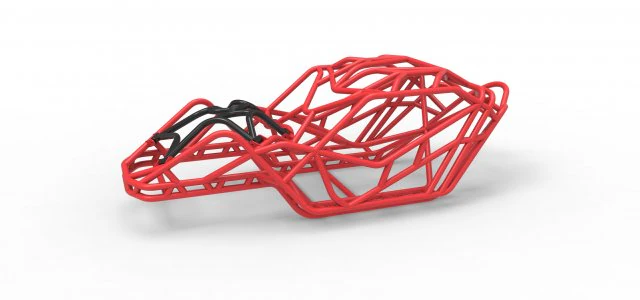

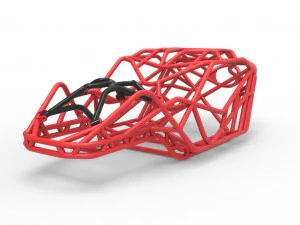

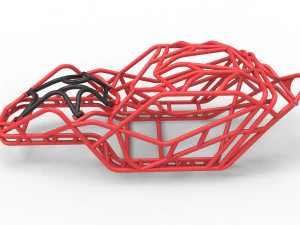

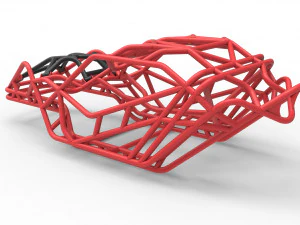

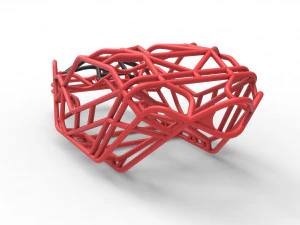

It consists of pipes with diameter 50 mm and wall thickness 3.5 mm. Overall estimated weight is 294 kg (excluding welds). There are 154 parts for welding. Estimated wheelbase – 2946 mm. Estimated wheel diameter – 1092 mm.

Frame dimensions:

length – 3365 mm
height – 1065 mm
width – 1450 mm
Frame model was made as one detail file, which consist from 154 separated bodies. There are no mountings for transmission, steering wheel, seats.

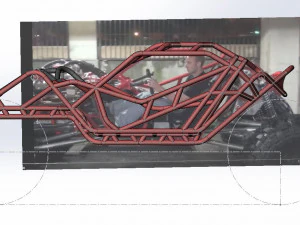

Frame model can be used for 3D designing and measurements for your own buggy with your transmission elements and it will look like well known ShowTime buggy.

Attached files to the project:

Frame model in STEP, IGES, SAT, STL, BIP, OBJ, Parasolid, Parasolid Binary, 3D PDF;
Frame dimensions in formats JPEG, DWG, DXF, CDW (Kompas 3D V14);

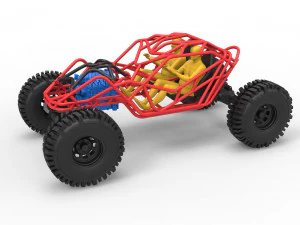

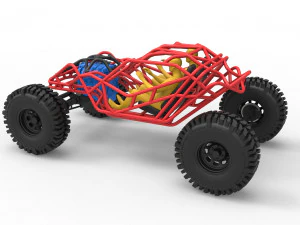

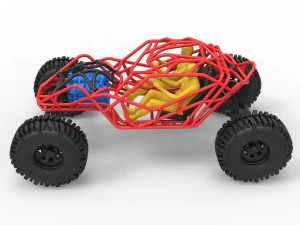

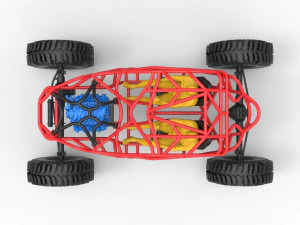

Frame composition with wheels, axles, engine, seats, driver in STEP, IGES, SAT, BIP, OBJ, Parasolid, Parasolid Binary, 3D PDF. Print Ready: No
Need more formats?
If you need a different format, please send us a Conversion Request. We can convert 3D models to: .stl, .c4d, .obj, .fbx, .ma/.mb, .3ds, .3dm, .dxf/.dwg, .max. .blend, .skp, .glb. We do not convert 3d scenes and solid formats such as .step, .iges, .stp, .sldprt etc!

Download Full-size frame model of bouncer buggy 3D Model pdf x_t dwg dxf jpg iges obj sat step stl x x pdf iges obj sat step x x from TechItemsRock

buggy frame buggyframe buggybuilding buggydesign rockcrawler rockcrawlerframe bouncer bouncerbuggy offroadframe fullsizeframe crawler offroad allterrain awd 4x4 extreme sport
