ilogic - structural base plate Free 3D Model

$
0.00
- Available formats:
Autodesk Inventor IPT (.ipt) 271.79 kb
- Animated:No
- Textured:No
- Rigged:No
- Materials:
- Low-poly:No
- Collection:No
- UVW mapping:No
- Plugins Used:No
- Print Ready:No
- 3D Scan:No
- Adult content:No
- PBR:No
- Geometry:Polygonal
- Unwrapped UVs:Unknown
- Views:3111
- Date: 2019-02-08
- Item ID:228297

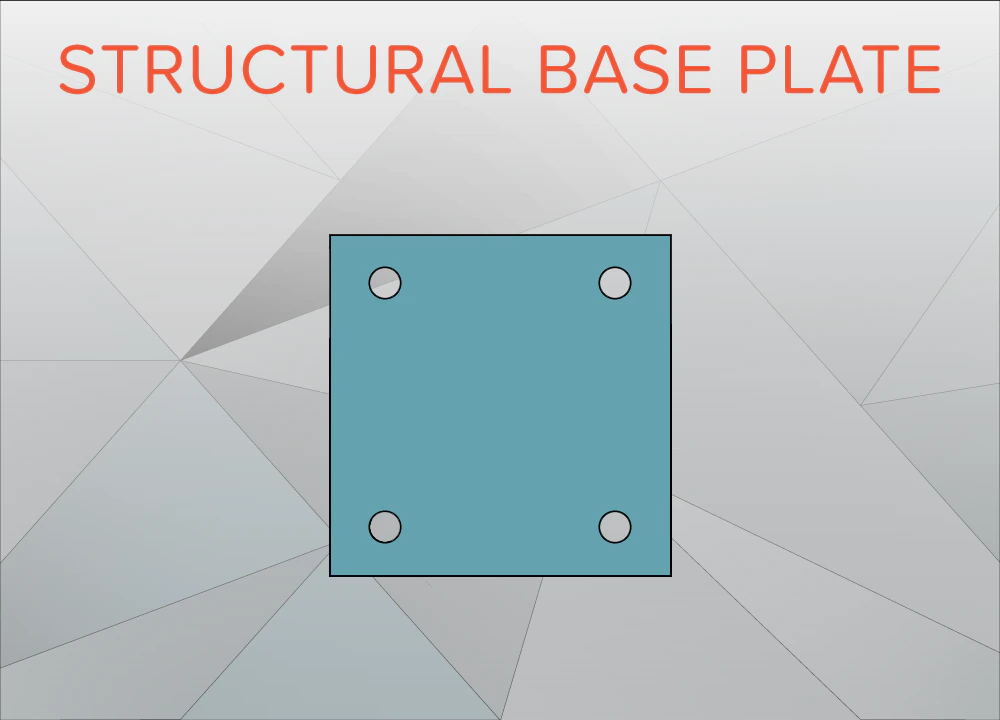

this is a standard base plate used for mounting columns or end plates for beams. the holes automatically correct when the hole centers are too big for the plate. all parameters are driven from the included forms. Print Ready: No
