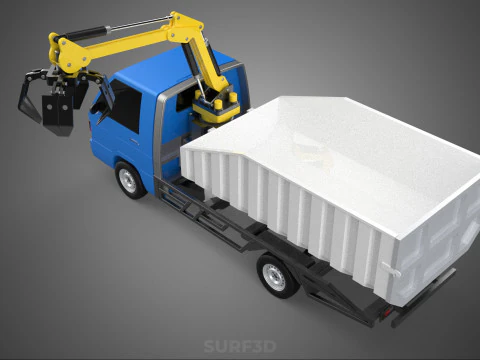

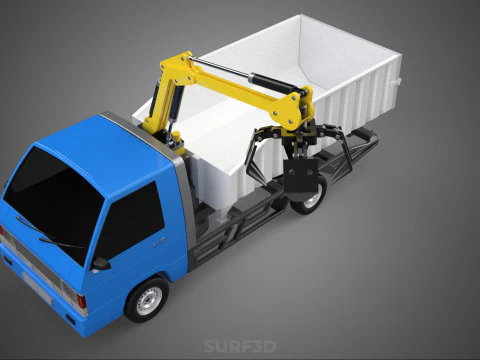

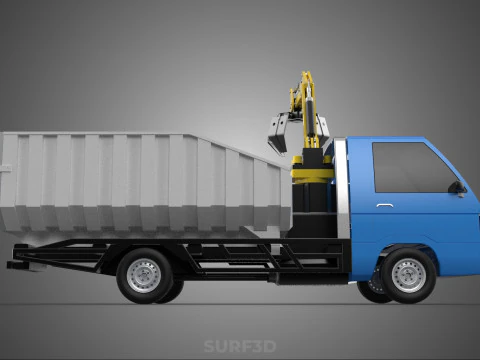

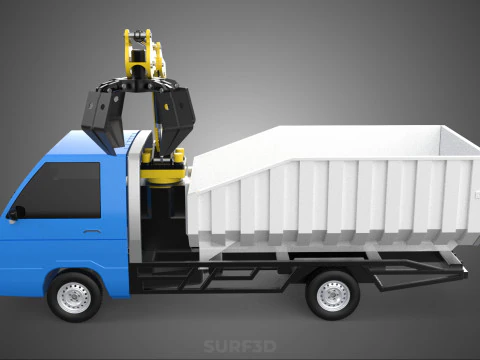

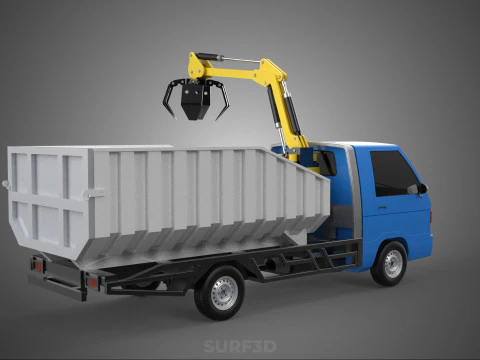

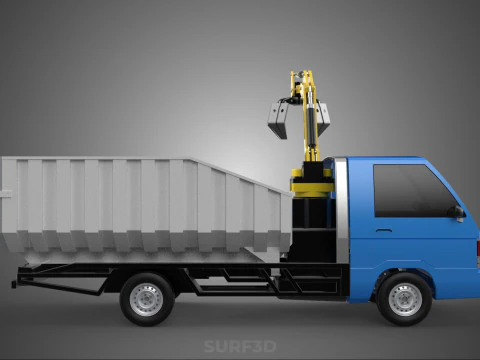

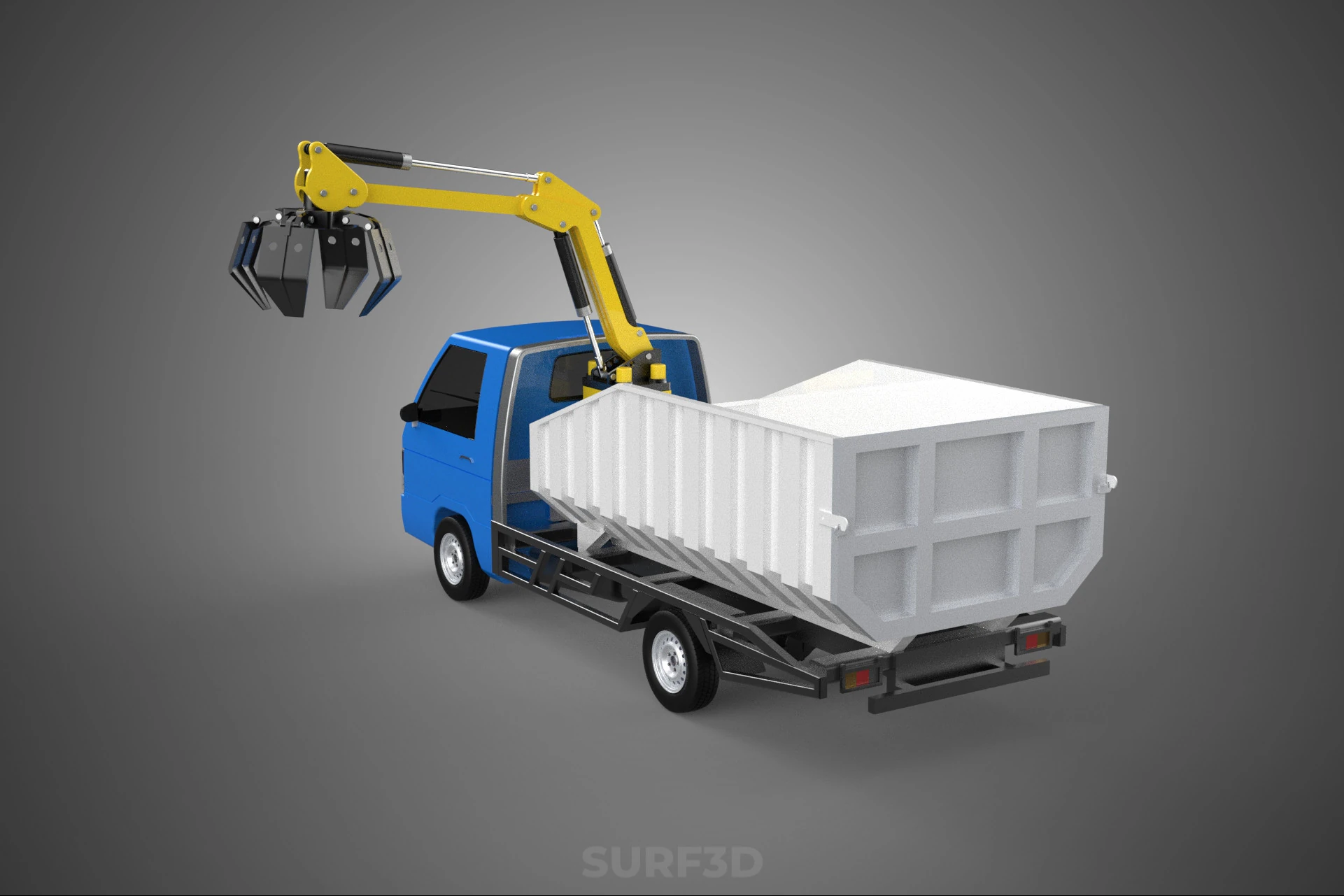

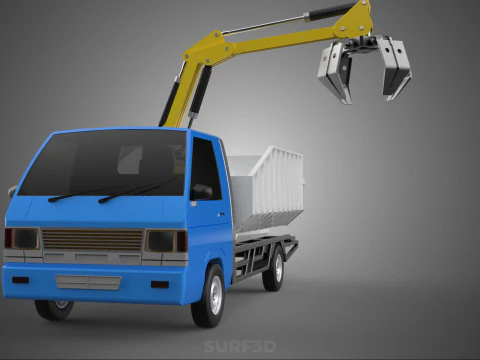

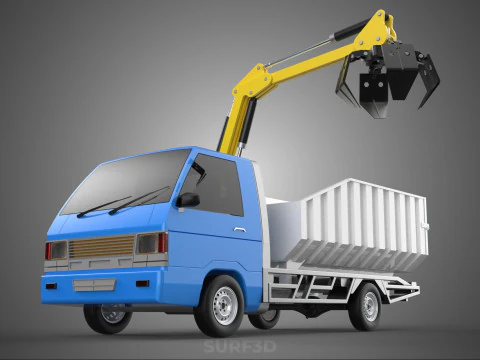

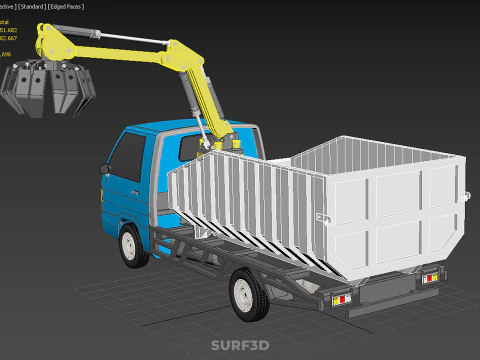

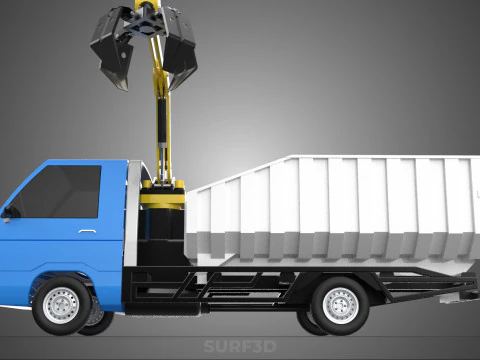

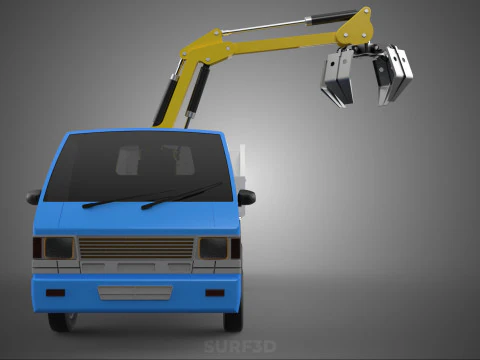

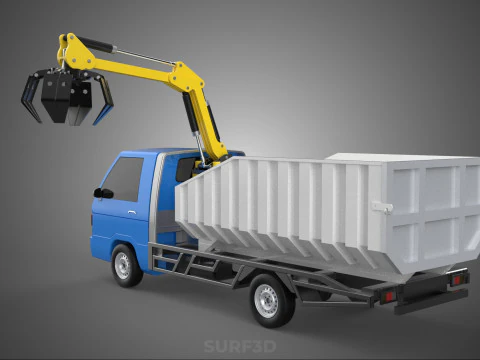

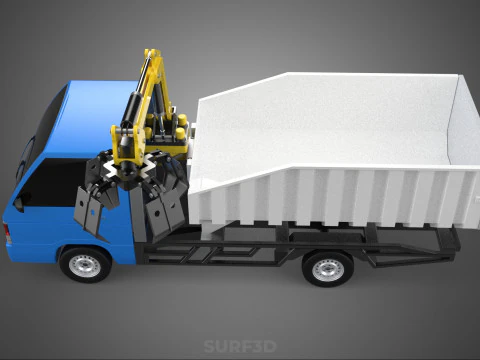

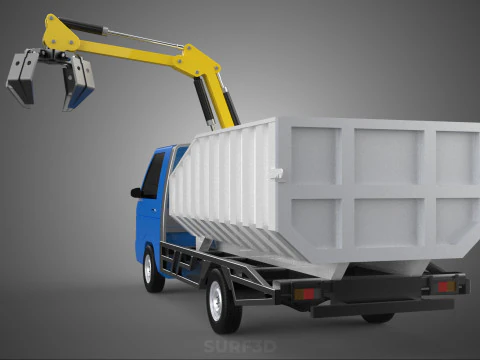

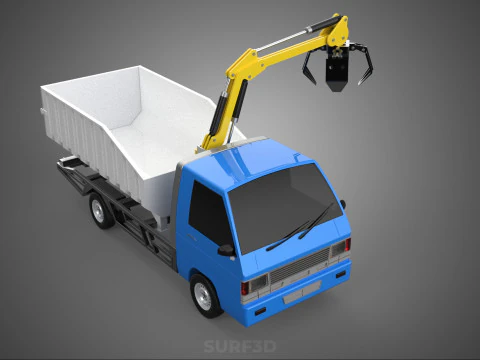

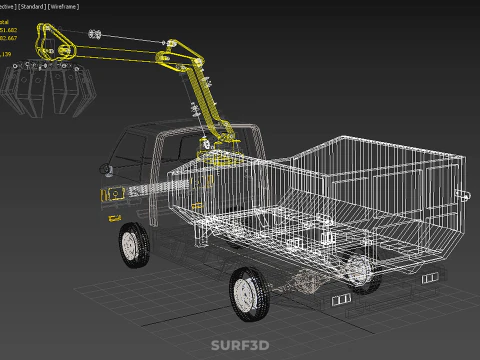

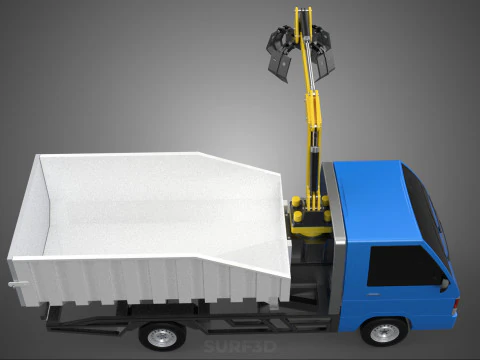

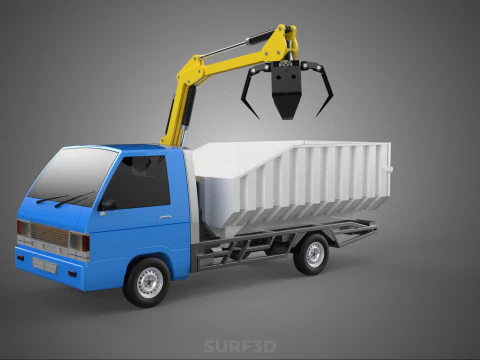

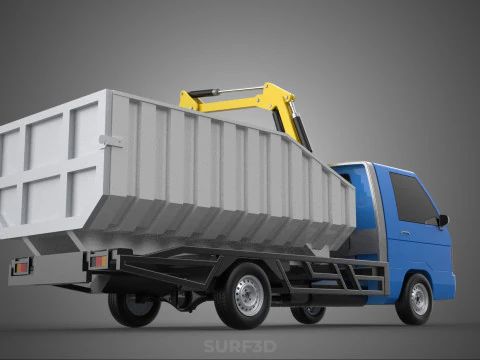

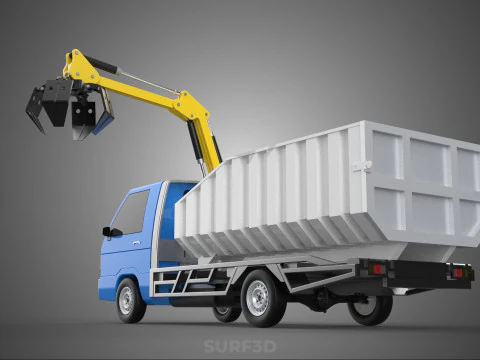

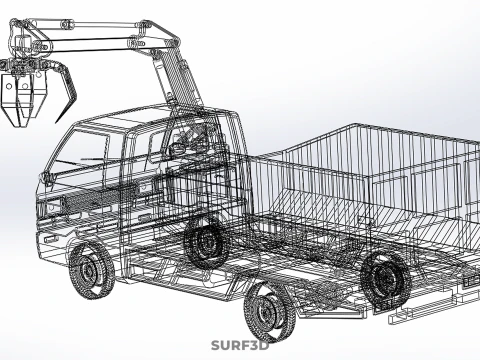

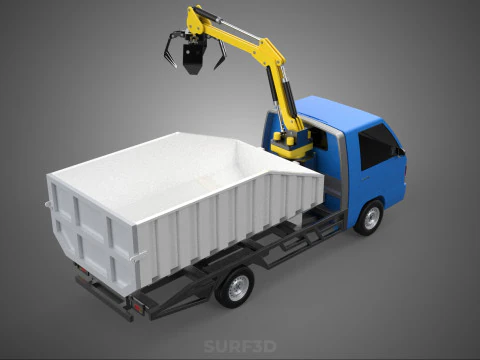

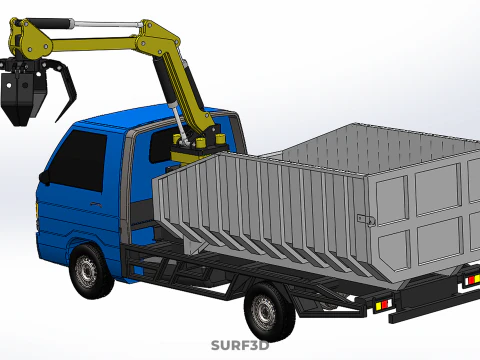

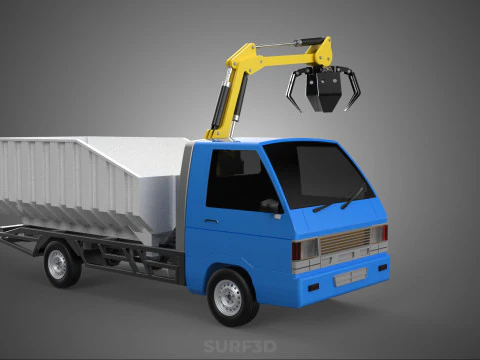

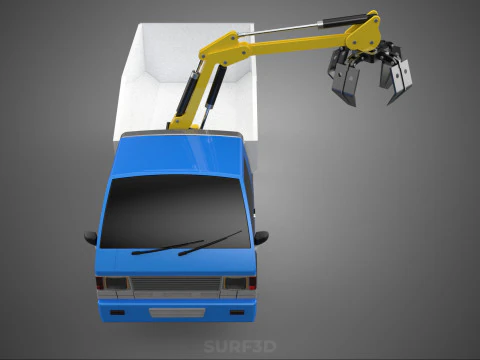

MINI TRUCK HYDRAULIC CRANE GRAPPLE ARM SKIP BIN WASTE RECYCLING 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
•    - FBX (.fbx) – Standard format for most 3D software and pipelines
•    - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
•    - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
•    - STEP (.step, .stp) – CAD format using NURBS surfaces
•    - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
•    - SAT (.sat) – ACIS solid model format (NURBS)
•    - DAE (.dae) – Collada format for 3D applications and animations
•    - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
•    - 3DS (.3ds) – Legacy format with broad software support
•    - 3ds Max (.max) – Provided for 3ds Max users
•    - Blender (.blend) – Provided for Blender users
•    - SketchUp (.skp) – Compatible with all SketchUp versions
•    - AutoCAD (.dwg) – Suitable for technical and architectural workflows
•    - Rhino (.3dm) – Provided for Rhino users

Model Info
•    - All files are checked and tested for integrity and correct content
•    - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
•    •    - Scene setup and mesh structure may vary depending on model complexity
•    - Rendered using Luxion KeyShot
•    - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
## Mini Truck Hydraulic Crane Grapple Arm Skip Bin Waste Recycling System

A **Mini Truck Hydraulic Crane Grapple Arm Skip Bin Waste Recycling System** refers to a specialized configuration of a light commercial vehicle (LCV) or mini truck chassis equipped with a hydraulically powered crane that utilizes a grapple attachment. This system is specifically designed for tasks related to waste management and recycling operations, often involving the collection, manipulation, and transport of waste materials and, in some contexts, the handling of skip bins or the loading of material into them.

This system represents a versatile mobile platform capable of operating in environments where larger trucks may have difficulty accessing, such as narrow urban streets, residential areas, or confined industrial sites. Its principal function is to provide self-loading and material handling capabilities for various waste streams destined for recycling or disposal.

**Components:**

1.  **Mini Truck Chassis:** The foundation of the system is a compact truck chassis. These vehicles typically have a lower Gross Vehicle Weight (GVW) compared to standard waste collection trucks, ranging from approximately 3.5 to 7.5 tonnes. Their smaller size facilitates enhanced maneuverability and access to restricted locations. The truck provides the motive power, hydraulic power source (via a power take-off - PTO), and the platform for mounting the crane and carrying the payload, which may include one or more skip bins or the collected waste material itself.

2.  **Hydraulic Crane:** An articulated or knu*kle boom crane is mounted onto the truck chassis, usually behind the cabin. This crane is powered by the truck's hydraulic system and consists of multiple sections or booms that can be folded and extended. The hydraulic operation allows for precise control over lifting, lowering, and positioning the attached grapple, providing reach and flexibility to access waste materials from various positions. The crane's lifting capacity is matched to the typical loads handled in this application.

3.  **Grapple Arm:** Attached to the end of the hydraulic crane's boom is the grapple. This is a specialized end effector designed for grasping, holding, and manipulating bulk materials. Grapples used in waste and recycling applications come in various forms, such as multi-tine grapples (often called "orange peel" grapples) for loose or irregular waste, sorting grapples with opposable jaws for selective handling, or clamshell buckets for granular material. In the context of "Skip Bin Waste Recycling," the grapple is primarily used to collect loose waste, debris, or specific recyclable materials and load them *into* a skip bin, which may be carried on the truck or located nearby. While some large grapples can potentially manipulate smaller bins, dedicated skip loader mechanisms are more common for handling standard skip bins.

4.  **Skip Bin:** An open-top waste container used for temporary storage and transport of waste materials. In this system, the skip bin (or bins) may be transported empty on the truck to a collection point, loaded with waste material using the crane and grapple, and then transported when full to a transfer station, recycling facility, or disposal site. The system's design may allow for carrying one or more bins depending on the truck's size and configuration.

**Operational Principle:**

The system operates by the truck driving to a location requiring waste collection. The hydraulic crane is deployed, and the grapple is manipulated by the operator (either from the cab or via remote control) to grasp waste materials on the ground or in piles. The grapple then lifts and deposits the material into the skip bin located on the truck bed. Once the skip bin is full or the collection task is complete, the crane is stowed, and the truck transports the loaded bin to its destination. Alternatively, the truck may already have an empty skip bin on board, or collect a pre-filled bin using other means (like chains and the crane, though less common than grapple-based material loading into a bin) and use the grapple to sort or rearrange material. The primary emphasis of the "Grapple Arm" in this context is the handling of the *material* rather than the *bin* itself, distinguishing it from dedicated hook loader or skip loader trucks.

**Applications:**

This system is particularly useful in:
*   Urban and suburban waste collection where access for larger vehicles is limited.
*   Collection of specific waste streams for recycling (e.g., green waste, scrap metal, bulky items, construction debris).
*   Servicing public spaces like parks or markets.
*   Small-scale material handling at recycling centers or transfer stations.
*   Emergency clean-up operations.

**Advantages:**

*   **Maneuverability:** Allows access to confined spaces.
*   **Self-Sufficiency:** Capable of loading materials without external machinery.
*   **Versatility:** The grapple can handle a wide variety of waste types and forms (loose, bulky, irregular).
*   **Targeted Collection:** Facilitates collection from dispersed points.

**Limitations:**

*   **Payload:** Limited carrying capacity compared to larger trucks.
*   **Loading Speed:** May be slower than dedicated compactor trucks for general waste or hook loaders for rapid bin exchange.
*   **Crane Reach/Capacity:** Limited by the size of the mini truck and crane.

In essence, the Mini Truck Hydraulic Crane Grapple Arm Skip Bin Waste Recycling system is a flexible, compact, and self-sufficient mobile solution tailored for specific waste management and recycling tasks, particularly those requiring access to restricted areas and the handling of diverse bulk materials.
