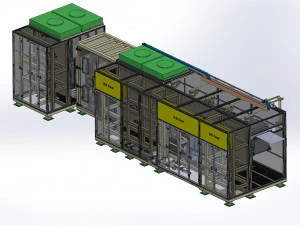

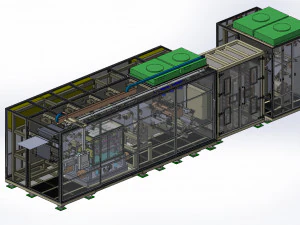

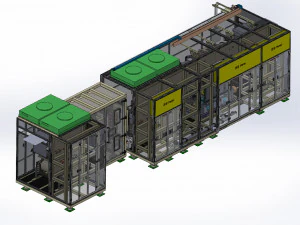

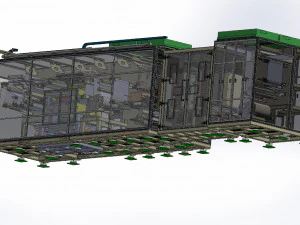

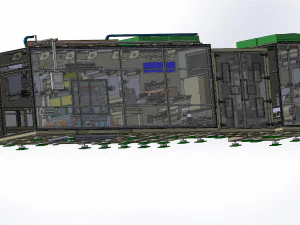

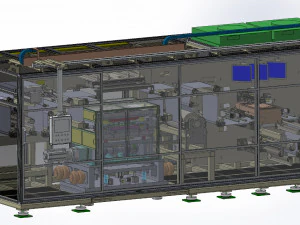

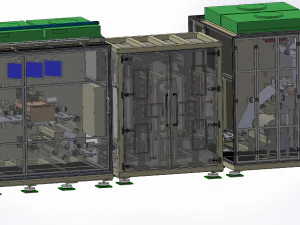

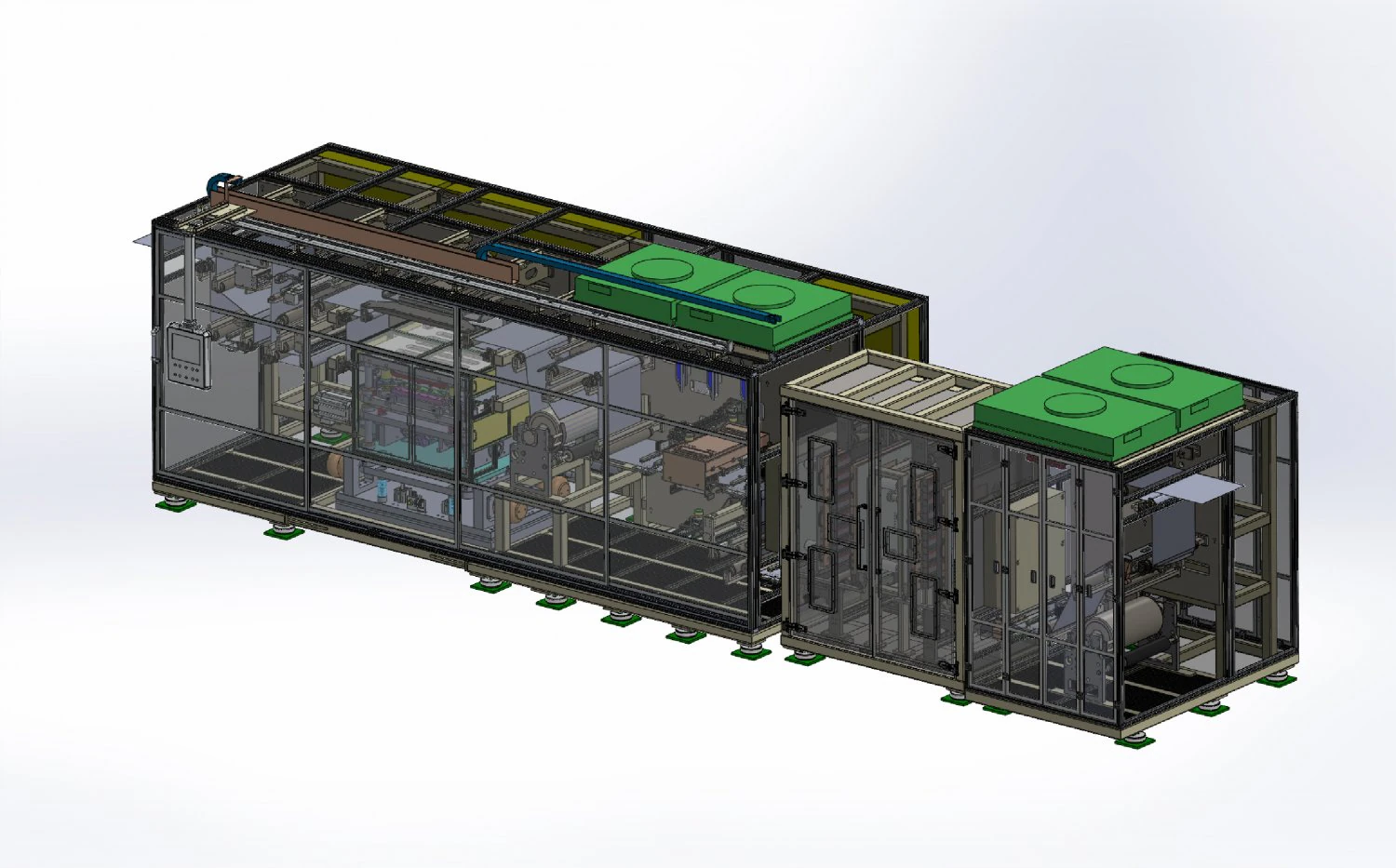

Polymer Battery Long cell Notching Dry Machine 3D Model

$300.00
License:
No AI Training
Polymer Battery Long cell Notching Dry Machine 3D Model
$ 300.00
Remove Bookmark Bookmark This Item
  • Animated:
    No
  • Textured:
    No
  • Rigged:
    No
  • Materials:
    Yes
  • Low-poly:
    No
  • Collection:
    No
  • UVW mapping:
    No
  • Plugins Used:
    No
  • Print Ready:
    No
  • 3D Scan:
    No
  • Adult content:
    No
  • PBR:
    No
  • AI Training:
    No
  • Geometry:
    Other
  • Unwrapped UVs:
    Unknown
  • Views:
    2334
  • Date: 2023-03-07
  • Item ID:
    436561
Report This Item
Product descriptions
An automation facility that rewinds an anode/cathode wound in a roll form after notching certain shapes to the tab and bottom with a punch press.

Product Features
Apply Mold Mechanical Notching
Anti-wandering and automatic adjustment of tension of electrodes
Ultra-precision feeding system application
Inspect Notched Electrode Dimension Vision
Remove scraps and foreign substances

This file is working with Solidworks 2020 Print Ready: No
Need more formats?
If you need a different format, please send us a Conversion Request. We can convert 3D models to: .stl, .c4d, .obj, .fbx, .ma/.mb, .3ds, .3dm, .dxf/.dwg, .max. .blend, .skp, .glb. We do not convert 3d scenes and solid formats such as .step, .iges, .stp, .sldprt etc!

Download Polymer Battery Long cell Notching Dry Machine 3D Model sldprt from laurentius72

polymer battery long cell notching dry machine
