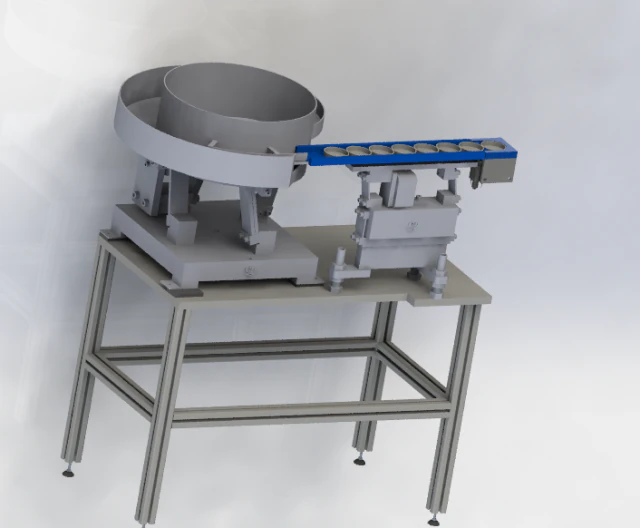

vibration plate feeding mechanism 3D Model

vibration plate feeding mechanism, which includes the vibration plate body, demonstrates support reasonable layout, how to eliminate the vibration impact, front end points system precision by jaw cylinder material, separate the two materials by means of mechanical constraint, the top of the cylinder material. whole body is exquisite, is a classic use vibration plate points institution in the way
mechanism include:
1. vibration disc mechanism
2. material distribution cylinder structure
**************************************
files format contains
-solidworks 2017
-step
-iges
-stl
-obj
-3ds
-fbx
-3dmax
- and other formats
**************************************
if you like,you can buy for you to get this models or if you have any questions also you can email to me.
if you have any questions about the details and design of the model, you can email me at any time, and i will give you all the answers as soon as possible.this is especially true after the purchase.
designed with solidworks 2017, render with photoview 360
************************************** Print Ready: No
