WG 0002 - Complete range of 45 inter-row cultivators 3D Model

Description

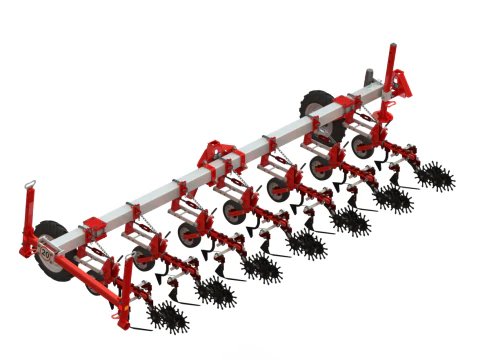

The WG 0002 Row crop cultivator is built on a rigid frame with a versatile section adaptable for various crops, including sunflower, maize, soybean, and sugar beet. Its durable tines ensure efficient inter-row soil cultivation, controlling weeds and improving aeration. Designed for medium-sized tractors, it allows precise and uniform soil preparation without damaging the crop. A reliable tool for farmers seeking flexibility and high performance in row-crop cultivation

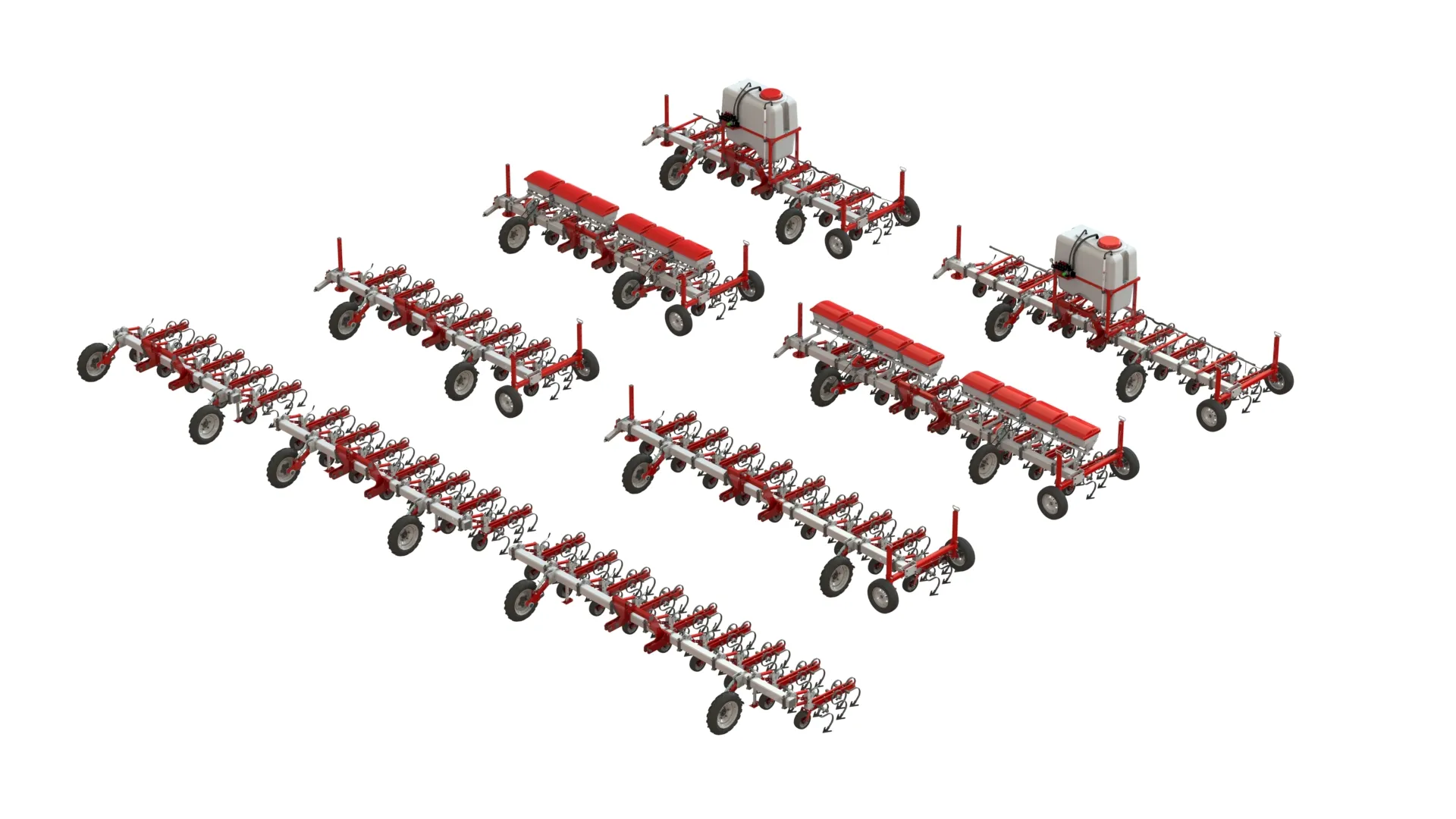

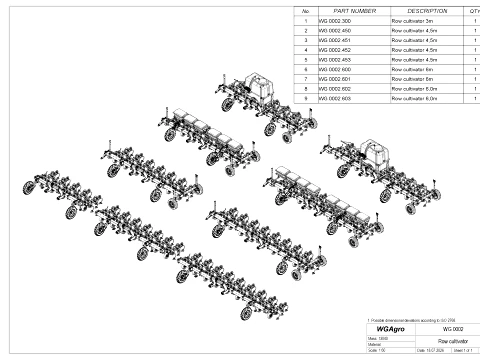

The documentation package includes the following equipment:

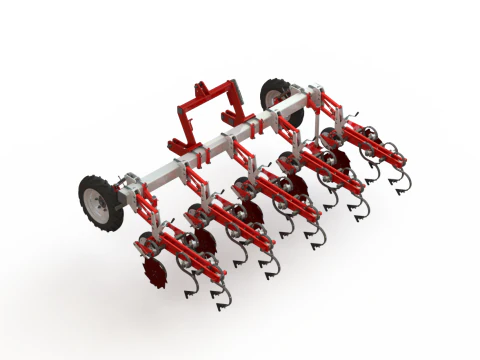

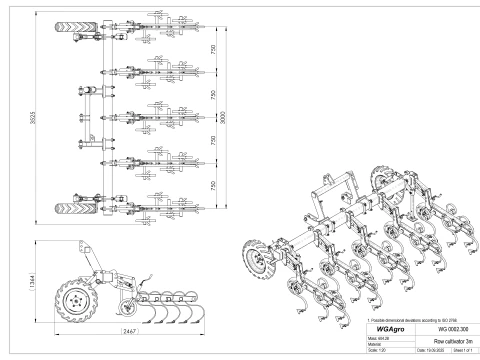

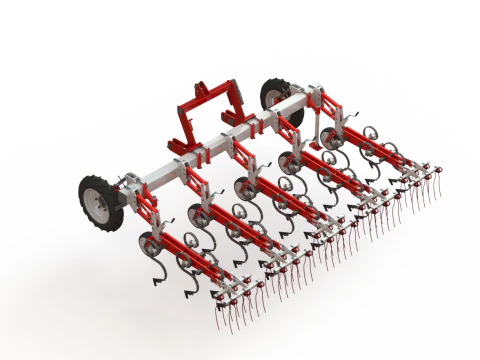

1. WG0002.300 – inter-row cultivator with a fixed frame, 3.0 m working width
2. WG0002.420 – inter-row cultivator with a frame and transport device, 4.2 m working width

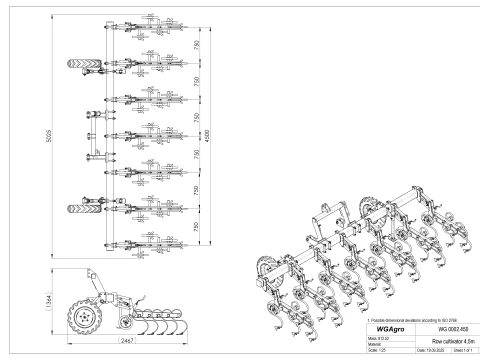

3. WG0002.450 – inter-row cultivator with a fixed frame, 4.5 m working width

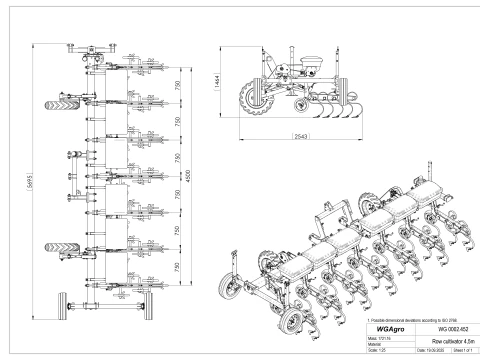

4. WG0002.452 – inter-row cultivator with a frame and transport device, 4.5 m working width + dry fertilizer application system

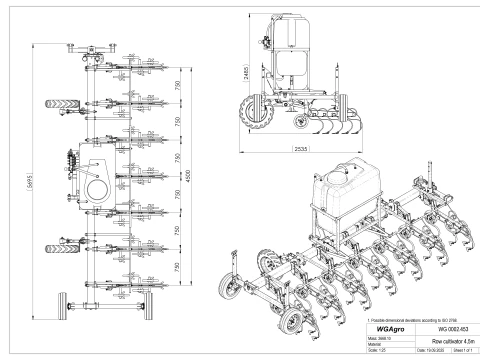

5. WG0002.453 – inter-row cultivator with a frame and transport device, 4.5 m working width + liquid fertilizer application system
6. WG0002.560 – inter-row cultivator with a frame and transport device, 5.6 m working width

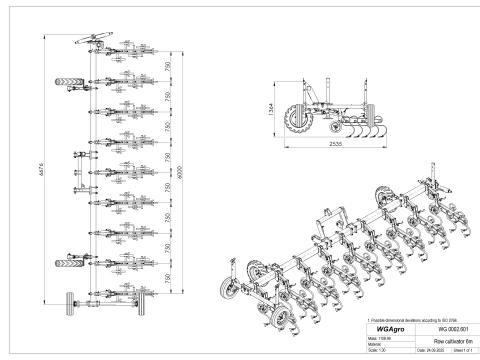

7. WG0002.601 – inter-row cultivator with a frame and transport device, 6.0 m working width

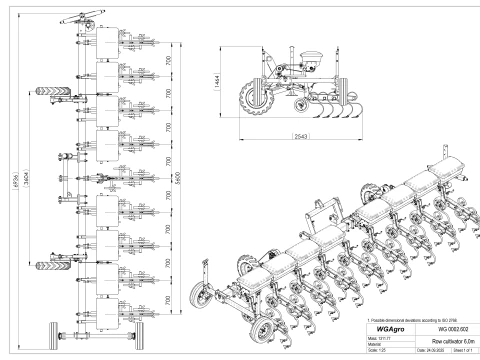

8. WG0002.602 – inter-row cultivator with a frame and transport device, 6.0 m working width + dry fertilizer application system

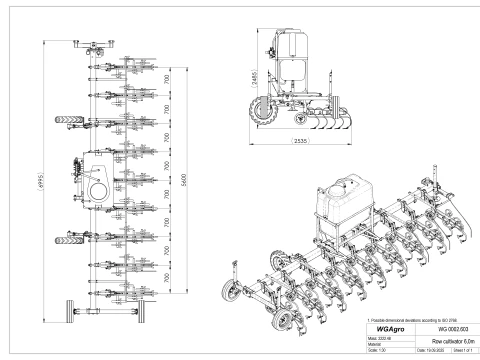

9. WG0002.603 – inter-row cultivator with a frame and transport device, 6.0 m working width + liquid fertilizer application system
   Each version can be equipped with five types of working sections:

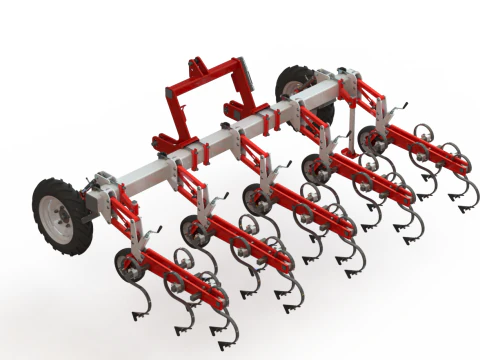

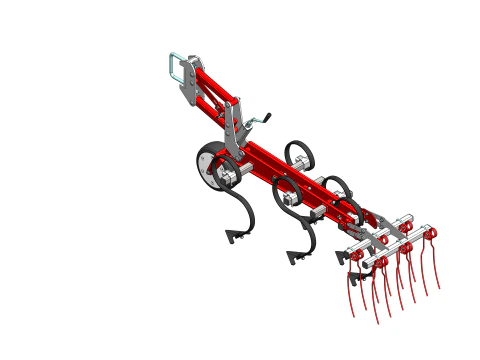

Universal section with 5 rows of working elements

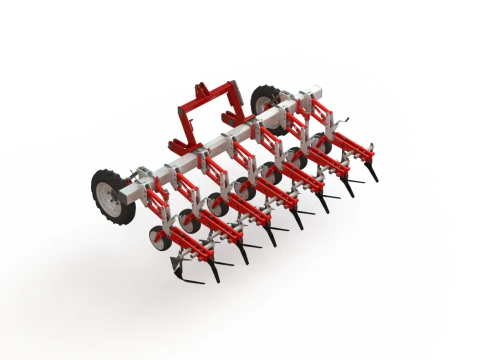

1. Classic section with 3 rows of working elements
2. Special section for sunflower cultivation (recommended row spacing – 70 cm)
3. Special section for corn cultivation (recommended row spacing – 75 cm)
4. Special section for sugar beet cultivation (recommended row spacing – 45 cm)

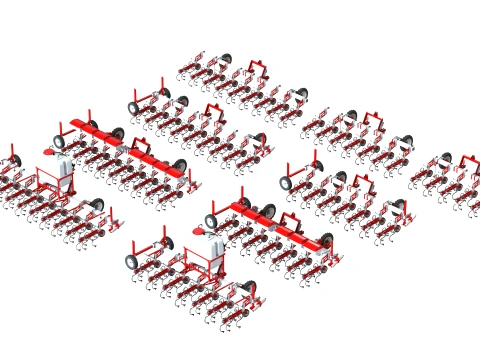

Thus, the documentation package includes over 45 different cultivator configurations, capable of meeting any customer’s requirements.

Full SolidWorks 3D assembly and manufacturing documentation (SLDASM + SLDPRT + STEP).Ready for modification, prototyping, or production use.

This is a high-quality, engineering-grade 3D model. Designed with precision, the model includes a complete assembly along with fully detailed 2D technical drawings of each component.It is ideal for: Product design and prototyping. Educational and demonstration purposes 3D visualizations or animations CNC manufacturing preparation 3D printing (STL included)

Contents of the package: Full 3D assembly. Separated parts.Detailed dimensions.Material indications.Assembly drawing with exploded view.High-quality STEP (.step), IGES (.iges), STL (.stl) files.

Technical Highlights:

Modeled in SolidWorks.
All parts are real-world scaled (millimeters).
Accurate real-world dimensions
High-detail components
Ready for fabrication or simulation
Designed for CNC manufacturing, prototyping, or educational use
Clean parametric structure
Compatible with major CAD software.
Designed with manufacturing feasibility in mind.
Recommended Use:

Technical planning
Custom fabrication
Educational material
Suitable for engineers, farmers, and DIY enthusiasts.
