automatic brazing process assembly equipment for heating disk 3D Model

automatic brazing process assembly equipment for heating disk

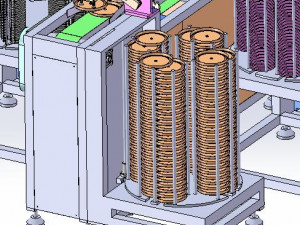

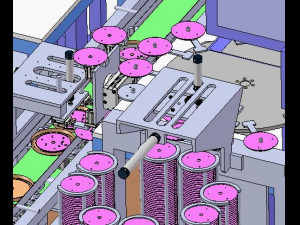

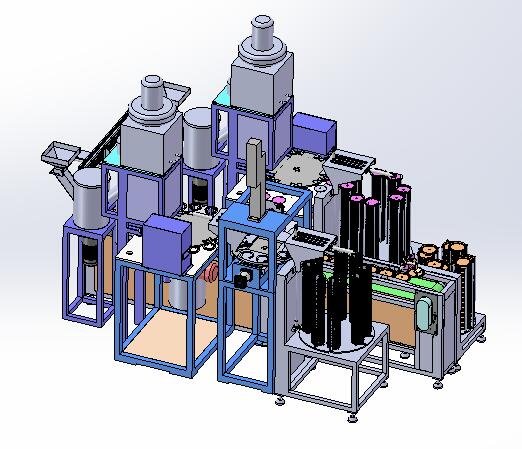

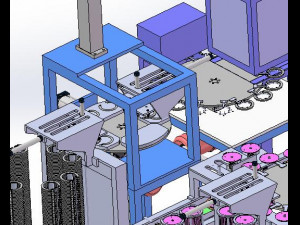

automatic brazing assembly line for heating plate, which integrates mature brazing technology, loading and unloading conveying line positioning mechanism, automatic assembly, dust removal system, including: 1 bottom plate loading mechanism and swing arm taking and placing mechanism 2 product transportation line and positioning mechanism 3 aluminum disk flux brazing machine 4 flux brazing machine on heating pipe 5 displacement manipulator, which greatly saves labor and labor intensity, and the line body contains detailed information the drawings of the parts and components can be edited, and the general format is included. Print Ready: No
