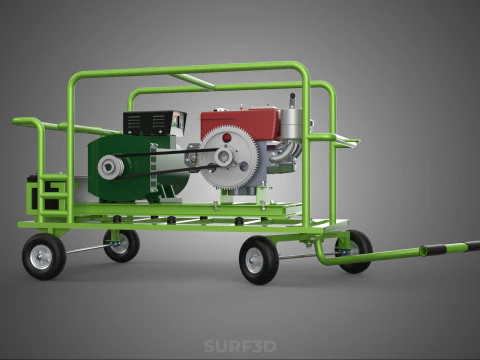

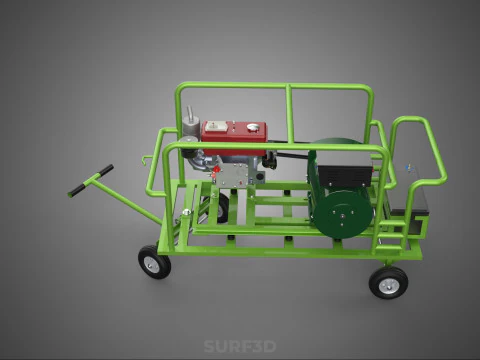

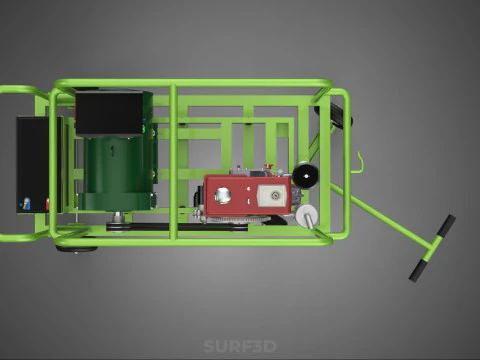

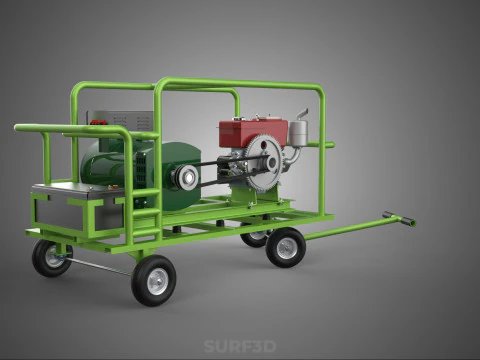

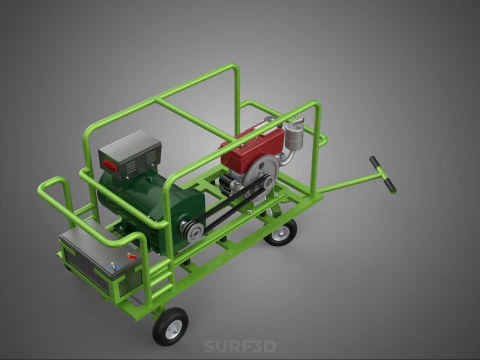

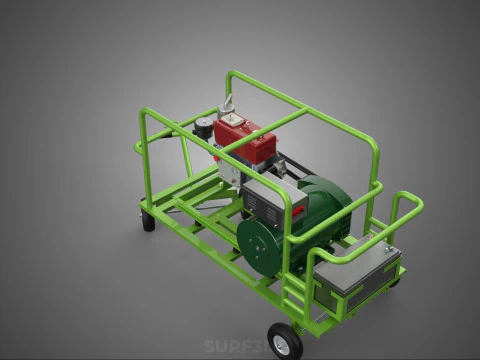

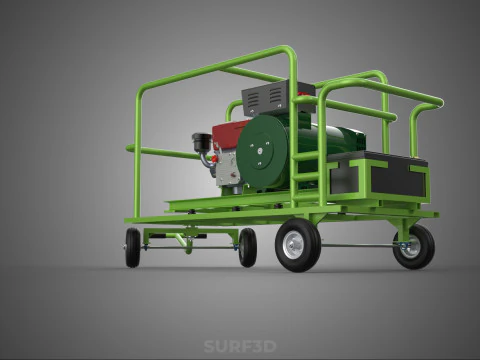

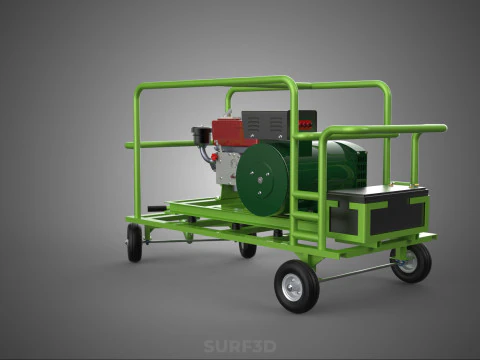

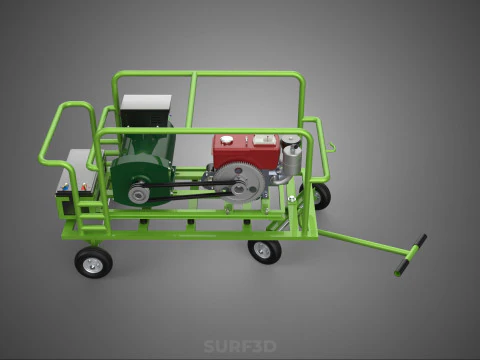

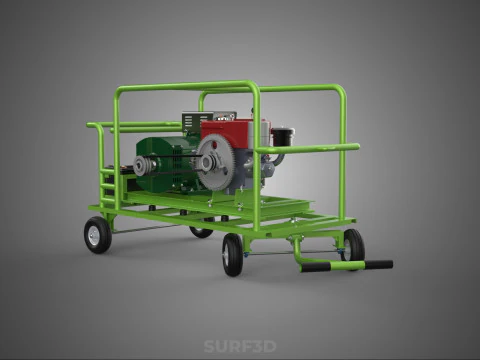

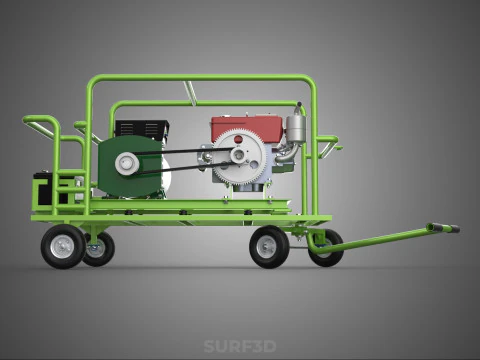

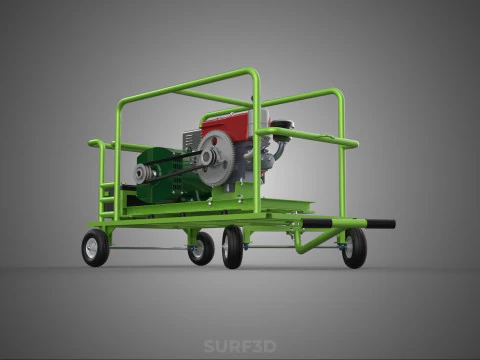

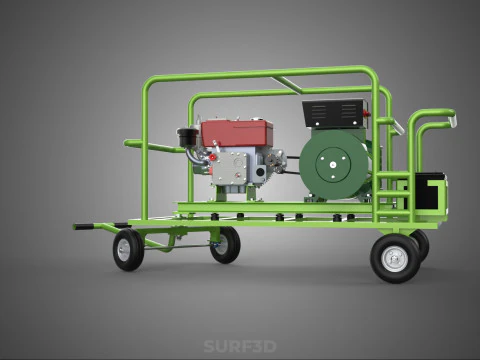

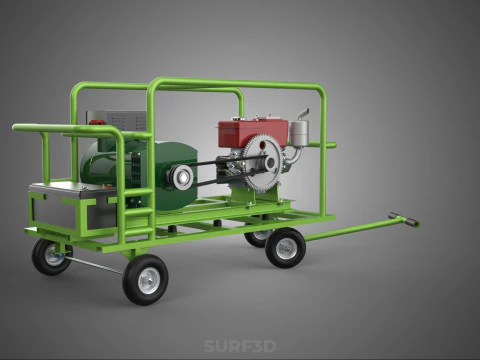

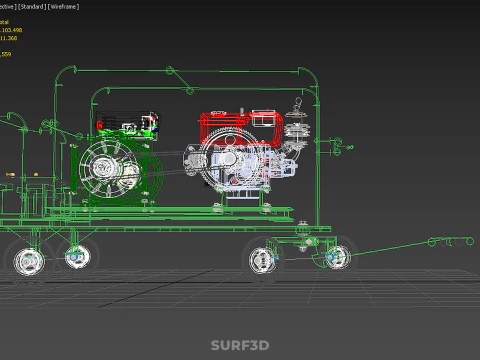

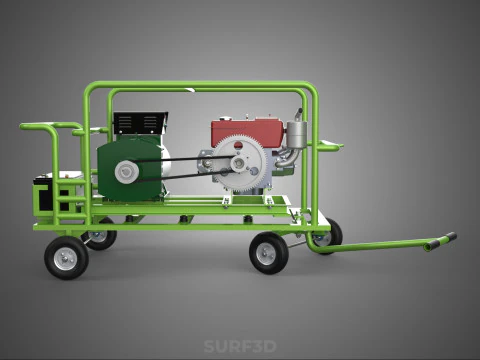

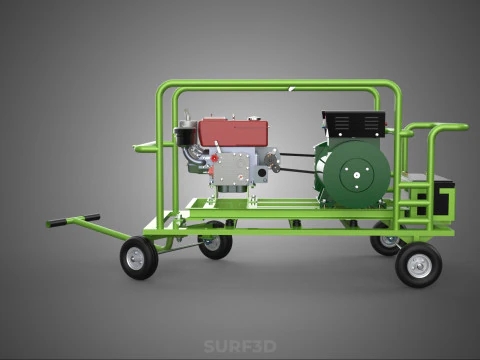

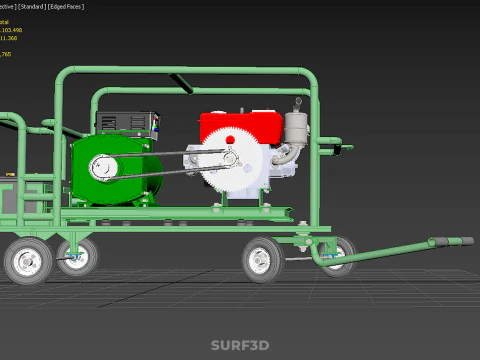

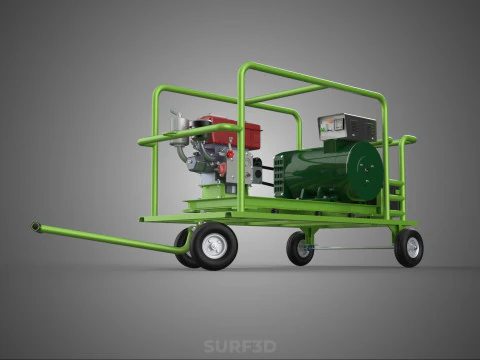

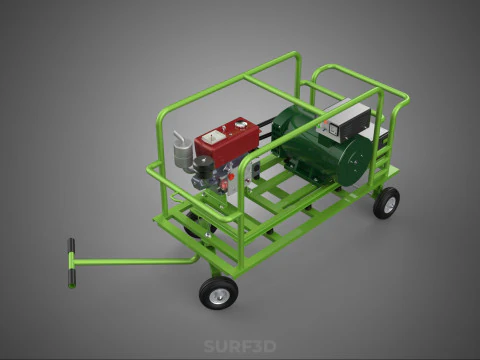

COMPACT DIESEL ENGINE GENERATOR MOUNTED TRANSPORT CARRIAGE DOLLY 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

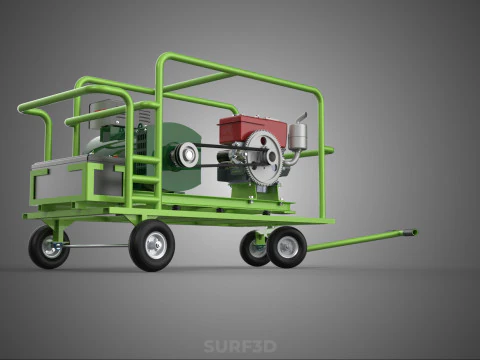

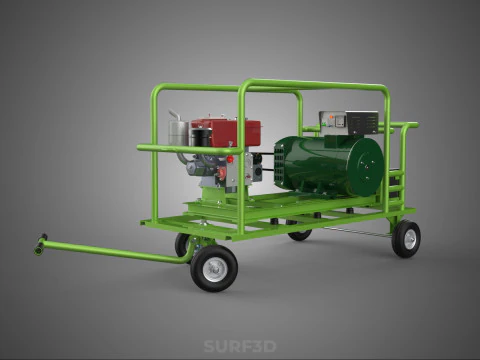

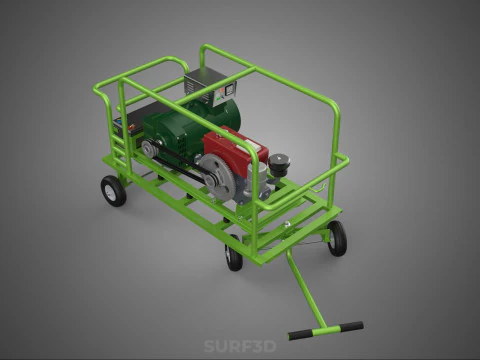

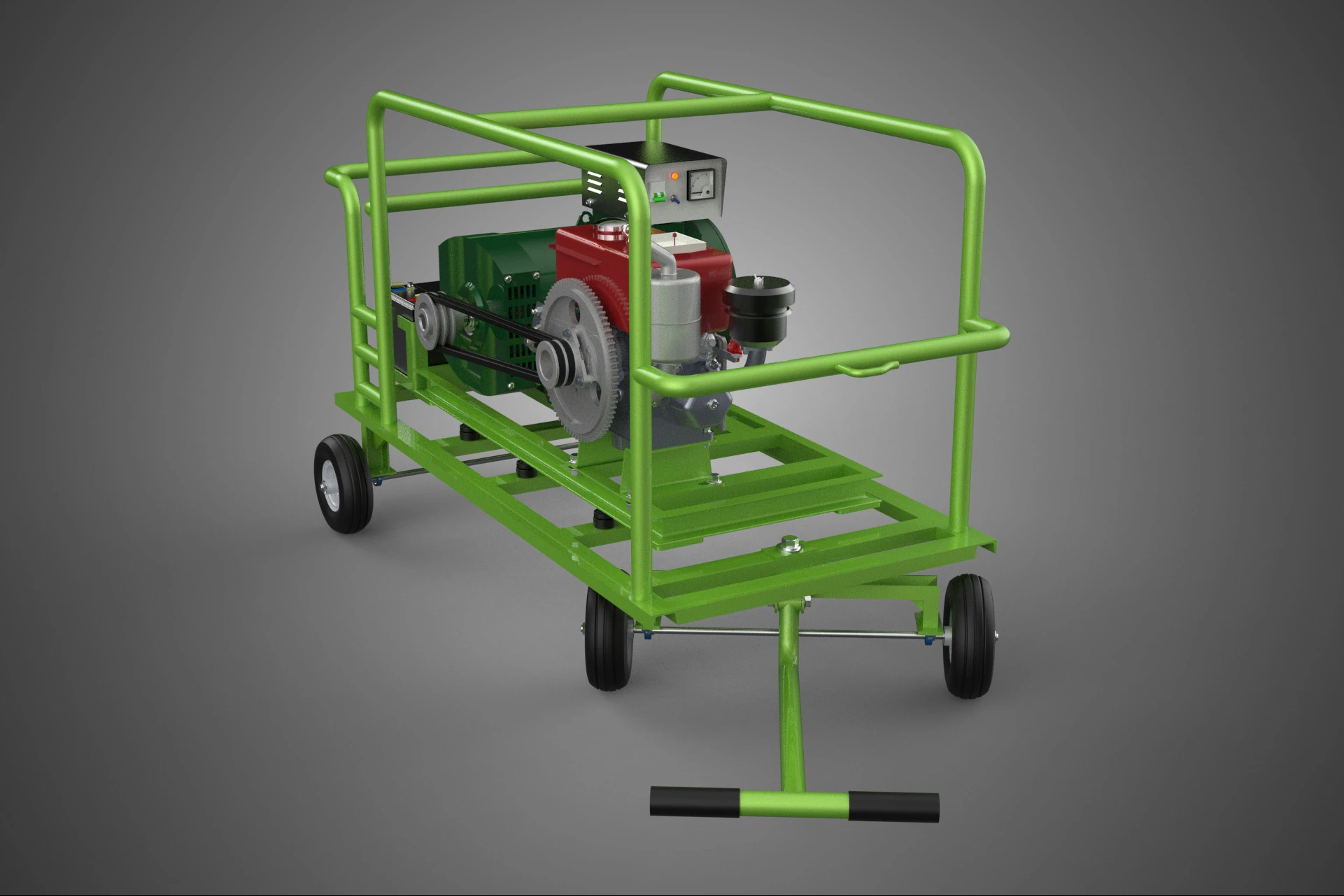

A Compact Diesel Engine Generator Mounted Transport Carriage Dolly, formally designated as a mobile diesel generating set (genset) or power cart, is an integrated electromechanical apparatus specifically engineered for the provision of self-contained, portable electrical power. This system combines a compression-ignition internal combustion engine with an electrical alternator, permanently affixed to a robust, wheeled carriage chassis (dolly) designed solely for site-specific transport and maneuverability.

### I. System Definition and Purpose

The primary function of this apparatus is to convert the chemical energy stored in diesel fuel into usable alternating current (AC) electrical energy. The "compact" designation implies optimization in footprint and mass, typically catering to outputs ranging from 5 kilovolt-amperes (kVA) to approximately 30 kVA, positioning the unit for applications where ease of deployment is paramount. The inclusion of the dedicated transport carriage transforms the stationary power generating unit into a dynamic, semi-portable asset essential for decentralized power needs.

### II. Core Component Integration

The apparatus is defined by three interconnected functional subsystems: the prime mover, the generator head, and the control and protective system, all stabilized by the transport carriage.

#### A. Prime Mover (Diesel Engine)
The engine utilizes the diesel cycle, favored in mobile and compact applications due to its superior fuel efficiency, high torque output, operational longevity, and inherently reduced fire risk compared to spark-ignition gasoline engines. These engines typically feature water or air cooling, direct injection fuel systems, and an integrated starting mechanism (usually electric starter motor) powered by a dedicated auxiliary battery. The engine selection often prioritizes models compliant with relevant environmental emission standards (e.g., EPA Tier standards).

#### B. Generator Head (Alternator)
The alternator is mechanically coupled to the engine's crankshaft, either directly via a flange connection or indirectly via a heavy-duty belt system. It converts the rotational kinetic energy supplied by the prime mover into electrical energy. Most compact units utilize a synchronous alternator, capable of generating electricity at standard industrial frequencies (50 Hz or 60 Hz) and voltages (single-phase 120/240V or three-phase configurations). Integrated voltage regulators maintain stable output quality regardless of load fluctuation.

#### C. Control and Instrumentation
The control panel is the operational interface, housing monitoring equipment and protective relays. Standard instrumentation includes voltmeters, frequency meters, ammeters, and indicators for engine parameters such as oil pressure, coolant temperature, and engine hours. Crucially, the system incorporates safety shutdown mechanisms (e.g., low oil pressure shutdown, high coolant temperature shutdown) and circuit breakers or ground fault interrupters (GFIs) to protect the load equipment and the operators from overcurrent conditions.

### III. The Transport Carriage (Dolly)

The dolly is the structural foundation, essential for the mobility of the heavy genset components. It is typically constructed of high-strength, welded steel or aluminum, designed to withstand operational vibration and environmental exposure.

1. **Chassis Design:** The frame serves as the mounting base, incorporating specialized anti-vibration mounts (isolators, rubber pads) situated between the engine/alternator skid and the carriage frame. This design mitigates the transmission of engine vibration, protecting the chassis and sensitive electronics, and reducing ambient noise.
2. **Wheel Assembly:** The mobility system consists of robust axles and pneumatic or solid-rubber tires, selected to facilitate movement across typical construction or field terrains (e.g., dirt, gravel). The design often incorporates a low center of gravity to enhance stability during transit.
3. **Handling Features:** The carriage includes ergonomically designed handles (often folding) for manual pushing or pulling. Furthermore, integrated lifting eyes, hooks, or designated forklift pockets are incorporated into the chassis to enable mechanical handling and secure lashing during long-distance transportation.

### IV. Applications and Operational Profile

Compact diesel gensets on transport dollies are vital for operations requiring immediate, reliable power supply without permanent installation. Common applications include:

* **Construction:** Powering handheld tools, temporary lighting, welding equipment, and small accommodation units on remote job sites.
* **Emergency Services:** Providing temporary or backup power during natural disasters, utility grid outages, or remote maintenance operations.
* **Commercial Use:** Supporting mobile catering, field events, and outdoor entertainment requiring stable power outside of conventional infrastructure.

The operational profile emphasizes high fuel efficiency, rapid deployment, and rugged durability, ensuring the generator can perform reliably under adverse environmental conditions typical of field use.

KEYWORDS: Diesel Generator, Mobile Power Unit, Genset, Transport Dolly, Compact Engine, Portable Power, Compression Ignition, Alternator, Wheeled Chassis, Construction Site Power, Emergency Backup, Power Cart, Prime Mover, Vibration Isolation, Fuel Efficiency, AC Power, Synchronous Generator, Electrical Output, Industrial Equipment, Off-Grid Power, Utility Support, Remote Operations, Power Generation System, Movable Frame, Ruggedized Design, Diesel Fuel System, Control Panel, Standby Power, Material Handling, Site Mobility
