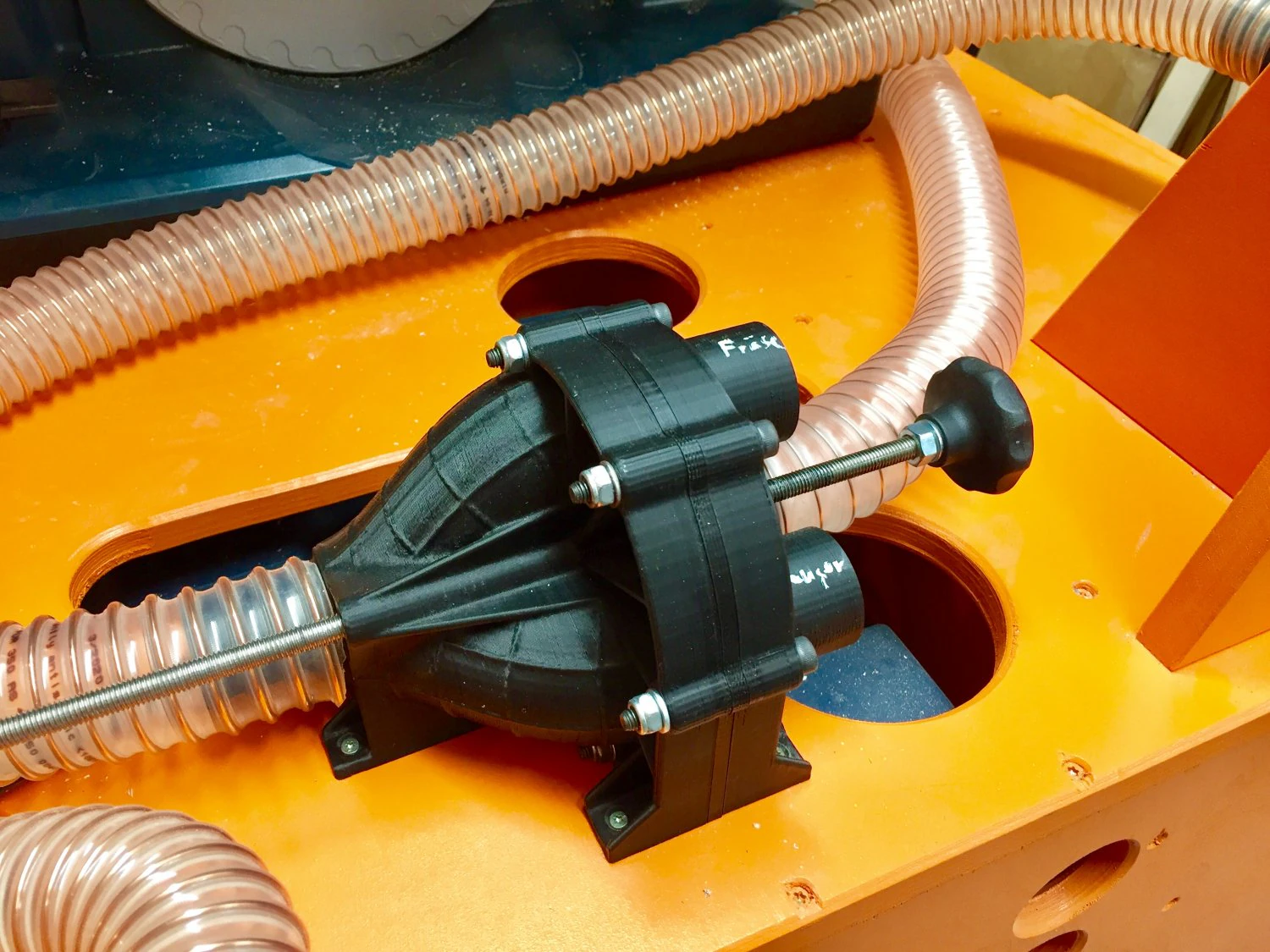

Blastgate dn40 - 3-way 3D Print Model stl, from destagge

switch to be able to vacuum dust alternately on several devices (circular saw, miter saw, band saw, milling machine, ...). no hose has to be repositioned.

the suction switch (blast gate) has 3 locking positions + 1 closed position.
only one entrance is open at a time.
the blastgate is suitable for hoses with a nominal diameter of 40mm.
it consists of 4 parts:
- cover (inlet) for 3 devices (136mm x 127mm x 57mm)
- housing (outlet) for vacuum cleaner (136mm x 127mm x 125mm)
- frame (136mm x 127mm x 5mm)
- locking disc (diam. 113mm x 12mm)

in order to be able to change the respective setting (which device is to be vacuumed), an m8 threaded rod, two self-locking m8 nuts and a screw-on handle are also required (shown in black)!

see the video for more details: https://youtu.be/w0znnvof9l0
