Blastgate DN50 - 5way 3D Print Model
$
14.00 USD
- Request product support by the author
- Collection
$14.00
- Available formats:
- Item ID:388683
- Date: 2022-03-04
- Collection:Yes
- Width in millimeters:178
- Height in millimeters:165
- Depth in millimeters:259
- Print Ready:No
- 3D Scan:No
- Adult content:No
- PBR:No
- Views:6814
Description

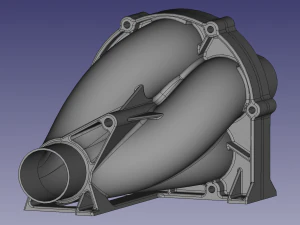

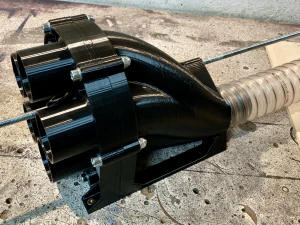

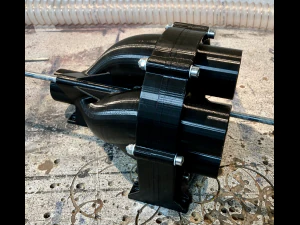

switch to be able to vacuum dust alternately on several devices (circular saw, miter saw, band saw, milling machine, ...). no hose has to be repositioned.the suction switch (blast gate) has 5 locking positions.
only one entrance is open at a time.
the blastgate is suitable for hoses with a nominal diameter of 50mm.
it consists of 4 parts:

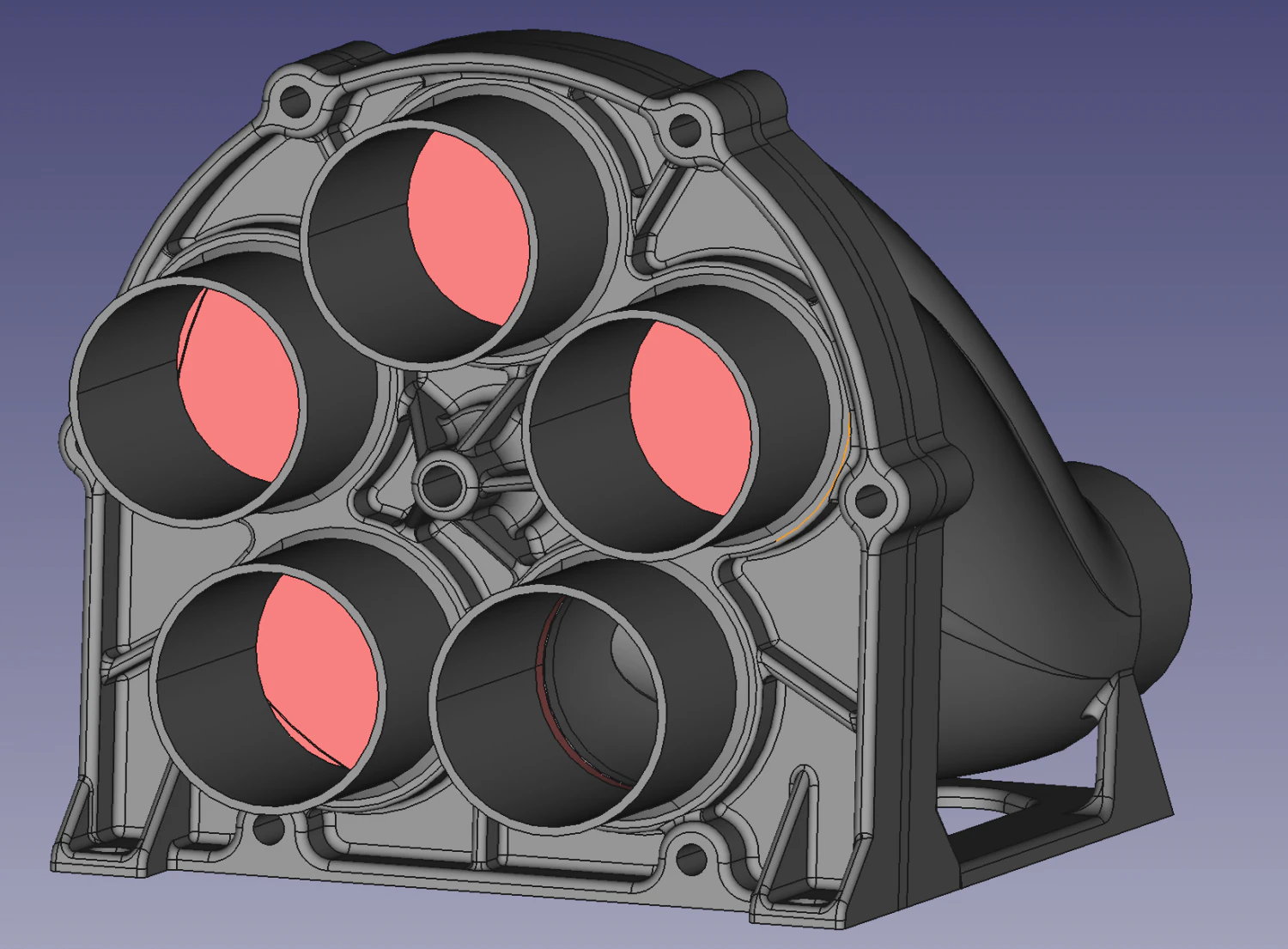

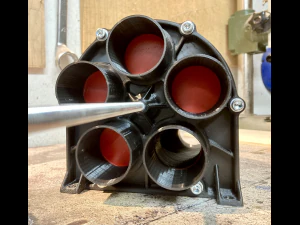

- cover (inlet) for 5 devices (178mm x 165mm x 57mm)

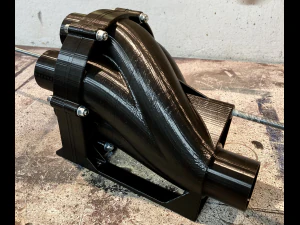

- housing (outlet) for vacuum cleaner (178mm x 165mm x 197mm )
- frame (178mm x 165mm x 5mm)

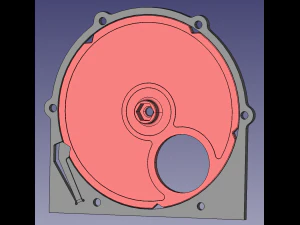

- locking disc (diam. 154mm x 12mm)
there is one optional part included:
- smaller housing (outlet) for vacuum cleaner (178mm x 165mm x 150mm)
-> you can use this housing if your space is limited, but you will need support inside the pipes
in order to be able to change the respective setting (which device is to be vacuumed), an m8 threaded rod, a self-locking m8 nut and two M8 nuts (both locked against each other and glued to the rod) and a screw-on handle are also required (shown in black)!
You also need 6 M6x50 screws with washers ans self locking m6 nuts.
see the video for more details: https://youtu.be/NwNtcVwdMOw
and the video with the older version: https://youtu.be/w0znnvof9l0 Print Ready: No
