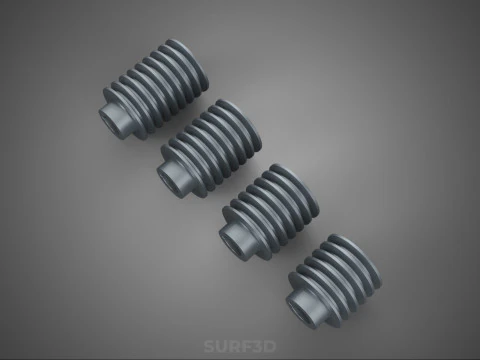

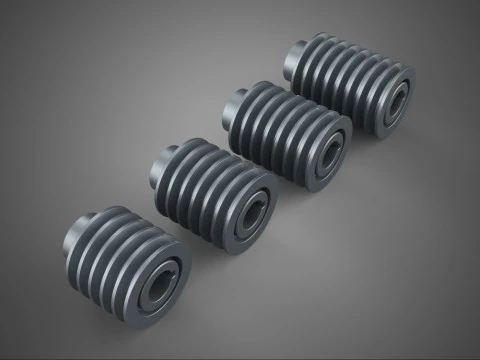

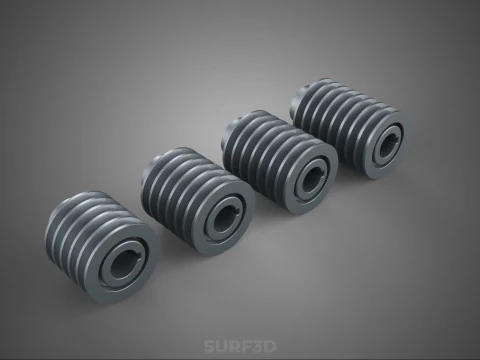

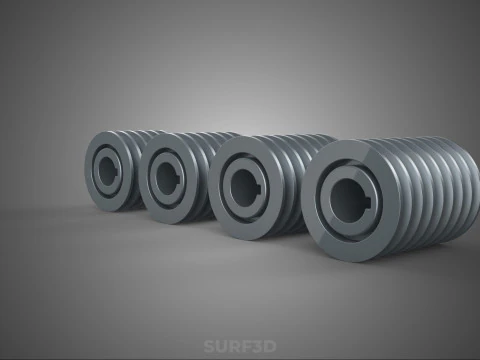

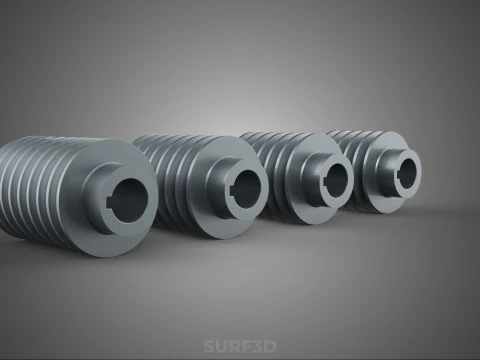

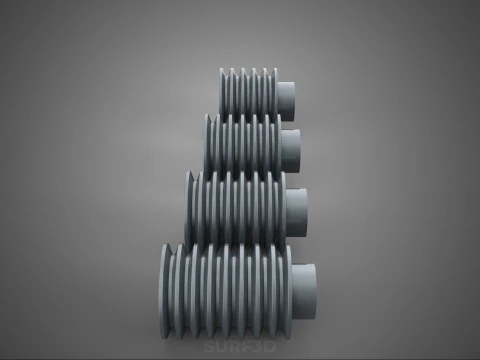

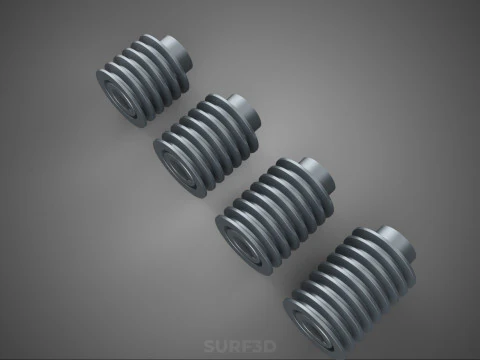

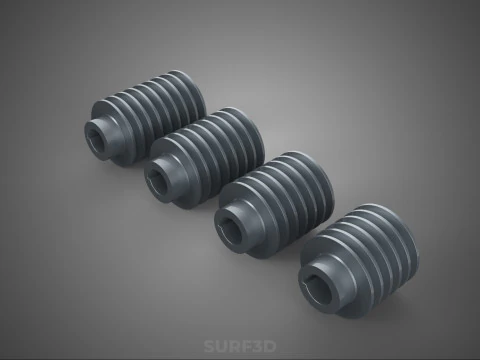

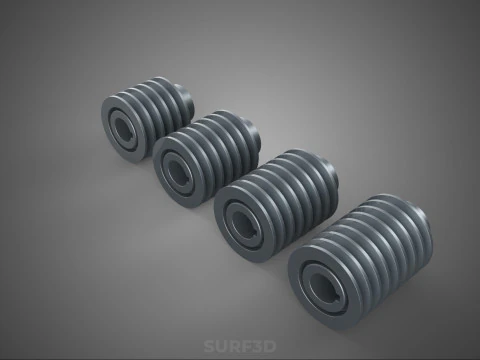

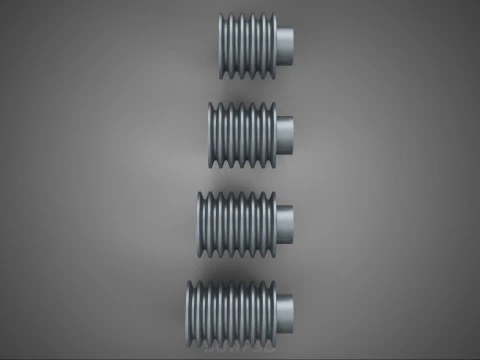

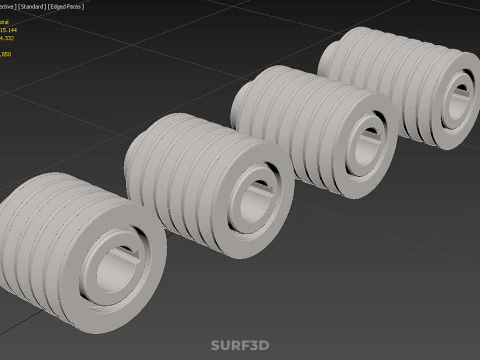

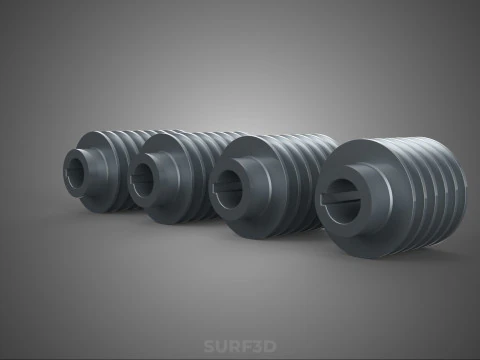

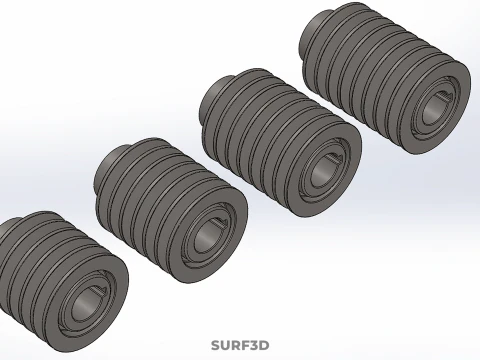

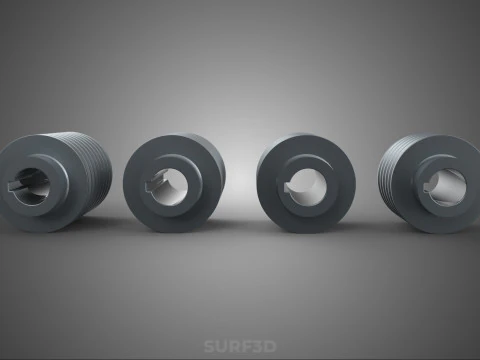

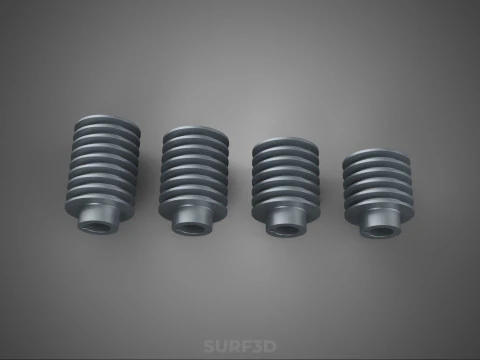

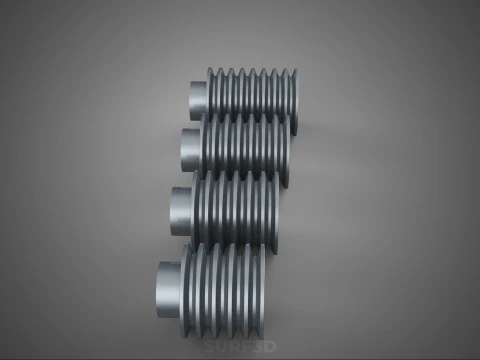

COLLECTION STANDARD ROLLER BELT PULLEY SHEAVE WHEEL GROOVE DRIVE 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The title "COLLECTION STANDARD ROLLER BELT PULLEY SHEAVE WHEEL GROOVE DRIVE" refers to a standardized category of mechanical components utilized for the efficient transmission of power, alteration of rotational direction, or guidance of flexible tension elements, primarily belts, ropes, or cables. This collection encompasses rotating machinery elements designed with specific geometric profiles (grooves) to interface with and drive tensile members, ensuring adherence to established industrial specifications for dimensional interchangeability and load capacity.

### I. Nomenclature and Standardization

The terms Pulley, Sheave, and Wheel are often used interchangeably within this context, though specific industry conventions apply:
* **Pulley:** A general term for a wheel on an axle or shaft that is designed to support movement and change the direction of a taut cable or belt, or to transmit power between two shafts. Pulleys often feature slightly crowned or flat faces for use with flat belts, or specialized tooth profiles for synchronous timing belts.
* **Sheave:** Typically refers to grooved wheels employed within block and tackle systems (for lifting applications) or wheels specifically designed for V-belts or round ropes, where the groove profile utilizes a wedging action to maximize friction and minimize slip.
* **Roller:** While the primary component is the static sheave, the term "roller" emphasizes the component’s rotational function, often applied to guide rollers (idlers) used for tensioning belts or changing their path without actively transmitting drive torque.

The designation "STANDARD COLLECTION" signifies that these components are manufactured according to internationally recognized standards (e.g., ISO, DIN, ANSI, JIS) governing groove dimensions, pitch diameters, tolerances, and material specifications. This adherence ensures system compatibility, reliability, and ease of replacement across different manufacturers.

### II. Design and Grooved Profile

The operational efficiency of the groove drive system is intrinsically linked to the geometry of the groove, which is classified based on the type of flexible element it accommodates:

1. **V-Grooves (V-Belt Drives):** These are the most common for high-power, asynchronous transmission. The groove walls are angled (typically 30° to 40° included angle) such that the V-belt wedges into the groove under load. This wedging action increases the effective friction coefficient significantly compared to a flat surface, enabling greater torque transmission with less required tension. Standard V-belt sections (e.g., Classical A, B, C, D, or Narrow 3V, 5V, 8V) dictate the corresponding sheave groove geometry.
2. **Round/U-Grooves:** Designed specifically for ropes, cables, or round belts. The groove radius generally matches the cable diameter, providing guidance and minimizing wear, particularly in hoisting and conveying systems where the rope may wrap around the sheave multiple times.
3. **Flat or Crowned Surfaces:** Used for flat belt drives. A slightly convex or crowned profile ensures the flat belt self-centers and remains engaged during operation.

These rotating components are typically balanced (statically or dynamically) to prevent destructive vibration at operating speeds, especially those used in high-speed machinery or precision equipment.

### III. Construction and Materials

The selection of materials depends on the required operational speed, load capacity, and environment:

* **Cast Iron (Grey or Ductile):** The prevailing material for standard industrial sheaves and pulleys due to its excellent dampening characteristics, affordability, and machinability. Grey cast iron (e.g., ASTM Class 30) is common for moderate speeds.
* **Steel (Forged or Fabricated):** Used for heavy-duty applications, high shock loads, or where minimum weight combined with maximum strength is necessary.
* **Aluminum Alloys:** Used when lightweight requirements are paramount, such as in automotive applications, often manufactured through casting or billet machining.
* **Engineered Plastics (e.g., Nylon, Polyurethane):** Suitable for low-load, low-speed applications or corrosive environments, valued for their self-lubricating properties.

Manufacturing processes include sand casting, die casting, forging, and precise CNC machining of the groove profiles to ensure strict dimensional tolerances and a smooth surface finish that minimizes belt wear.

### IV. Mechanical Functionality

The grooved pulley system facilitates the transfer of mechanical energy and torque between a driving shaft and a driven shaft. The efficiency ($\eta$) of the drive is determined by the friction mechanism, the angle of wrap, and the rigidity of the components.

* **Speed Ratio:** The relationship between the angular velocities ($\omega$) of the two shafts is inversely proportional to the ratio of their effective sheave diameters ($D$): $\frac{\omega_1}{\omega_2} = \frac{D_2}{D_1}$.
* **Tensioning:** A critical aspect is maintaining the appropriate belt tension ($T$). In V-belt systems, the tension ensures adequate friction for torque transfer while preventing undue stress on bearings. Idler pulleys within the "Roller Belt" collection are often used precisely for tension control and adjustment of the wrap angle.

This standardized collection serves as the backbone for countless mechanical systems, ranging from large-scale industrial machinery (compressors, pumps) to intricate household appliances.

KEYWORDS: Power transmission, Pulley, Sheave, V-Belt Drive, Groove Profile, Mechanical Component, Standardized, Torque Transmission, Angular Velocity, Idler Roller, Tensioning, Cast Iron, Standard Collection, ANSI, ISO, Dynamics, V-Groove, Flat Belt, Synchronous Drive, Asynchronous Drive, Pitch Diameter, Machining, Conveyance System, Mechanical Advantage, Guide Wheel, Belt Wrap, Forging, Material Specification, Bearing Load, Precision.
