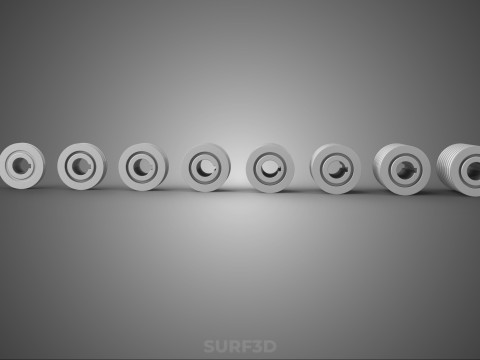

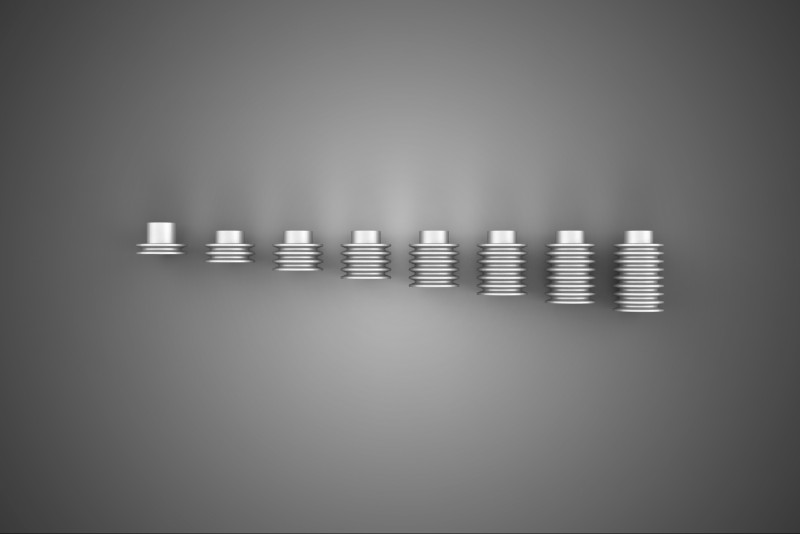

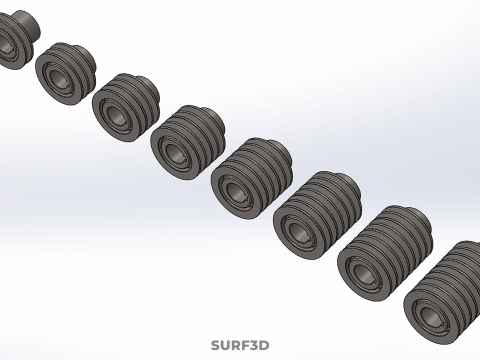

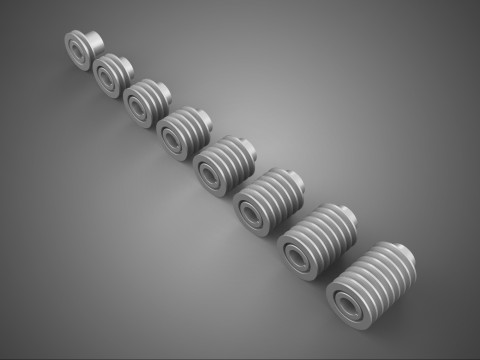

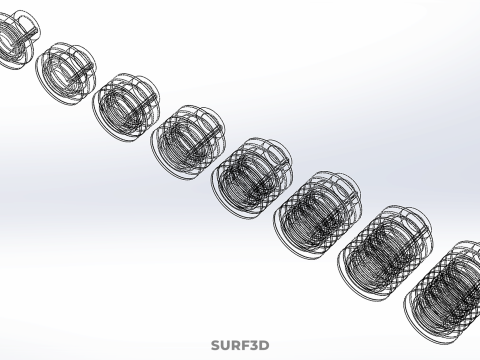

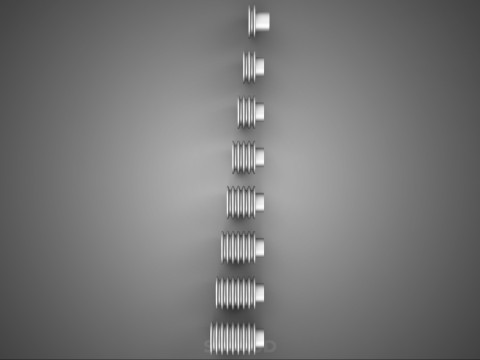

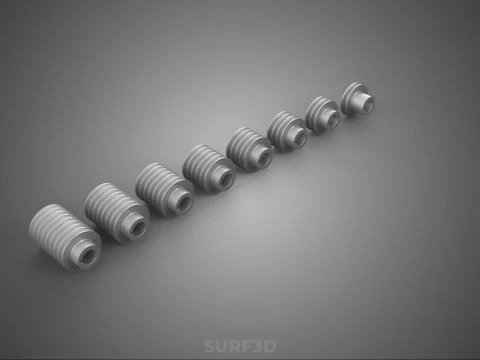

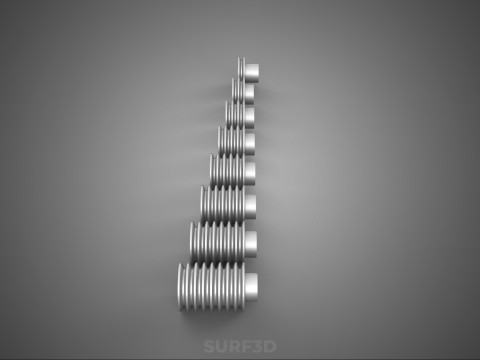

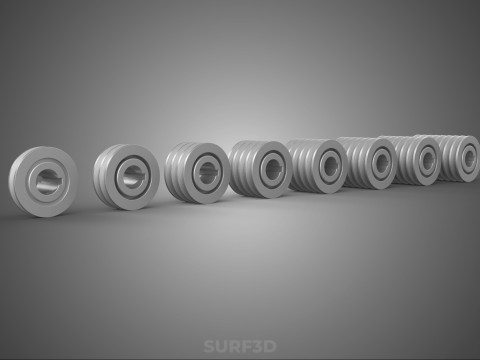

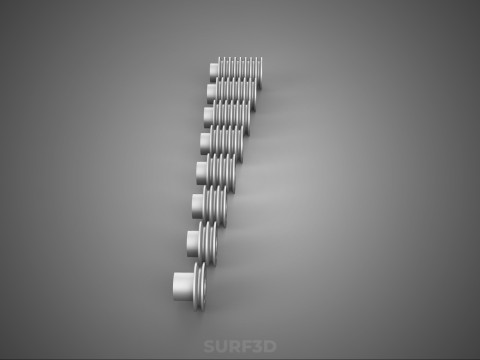

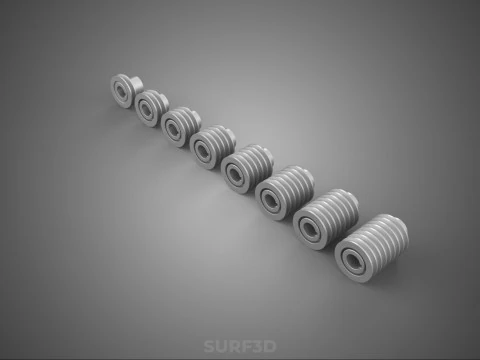

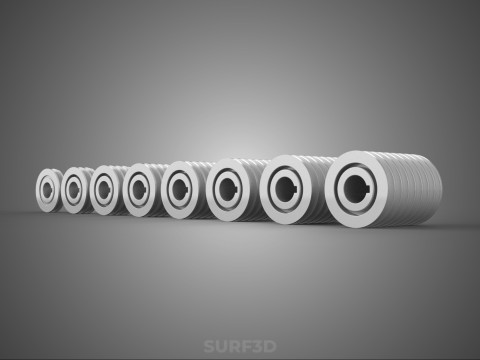

VARIOUS GROOVE PULLEY SHEAVE MULTI TRACK WHEEL DRIVE V BELT GEAR 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The collective term "VARIOUS GROOVE PULLEY SHEAVE MULTI TRACK WHEEL DRIVE V BELT GEAR" refers to a family of critical components within mechanical power transmission systems, specifically those employing the highly efficient trapezoidal V-belt configuration. These devices are rotationally symmetrical, grooved wheels designed to mount onto rotating shafts to facilitate the transfer of torque and velocity between two or more parallel axes.

### Nomenclature and Definition

In engineering contexts, the terms *pulley*, *sheave*, and *wheel* are often used somewhat interchangeably to describe the core component. A **sheave** is typically the preferred term when referencing a grooved wheel used with belts (or cables), whereas a *pulley* often describes the entire assembly or the simple machine principle.

The defining characteristic captured by **“VARIOUS GROOVE”** and **“MULTI TRACK”** is the presence of multiple parallel, circumferential grooves machined into the sheave's outer diameter. Unlike single-belt systems, multi-track sheaves are engineered to accommodate multiple V-belts simultaneously (e.g., 2-groove, 3-groove, 8-groove), drastically increasing the total horsepower (kW) capacity and enhancing system reliability through load distribution and redundancy.

### V-Belt Drive Dynamics

The functionality relies on the **V-belt**, characterized by its trapezoidal cross-section. When tensioned and seated in the groove, the V-belt employs the wedging principle: the side walls of the belt contact the angled sides of the groove, significantly increasing the effective coefficient of friction compared to flat-belt systems. This wedging action prevents slippage under high loads.

Grooves are standardized according to established industry profiles (e.g., ISO, RMA, DIN) such as A, B, C, D, 3V, 5V, and 8V series, ensuring optimal mating between the sheave and the specific belt cross-section. It is critical that all belts used in a multi-track system are matched in length to ensure equitable **load distribution** across all grooves.

### Design and Manufacturing

Multi-groove sheaves are typically manufactured from materials selected for high strength, wear resistance, and vibrational damping, including gray cast iron (standard for most industrial applications), ductile iron (for higher speeds), aluminum alloys (where weight reduction is paramount), or steel (for heavy-duty, high-shock loads). Manufacturing processes often involve casting followed by precision machining and dynamic balancing to minimize eccentric rotation and vibration, particularly critical for sheaves operating at high peripheral speeds.

Key dimensional parameters include:
1. **Pitch Diameter (PD):** The theoretical diameter at which the centerline of the belt operates, crucial for calculating the kinematic **drive ratio**.
2. **Groove Angle:** The precise angle of the groove walls, standardized to match the belt profile.
3. **Bore and Bushing Interface:** The central hole often accommodates tapered or split bushings (e.g., Taper-Lock, QD) for secure, keyless mounting onto the shaft.

### Integration with Gear Systems

The inclusion of the term **"GEAR"** highlights the overarching role of the pulley drive as a mechanism for achieving mechanical advantage. While the sheave itself does not possess teeth like a spur gear, the calculated ratio of the driving sheave’s pitch diameter to the driven sheave’s pitch diameter determines the speed reduction or increase (torque multiplication or division). Multi-track V-belt drives often serve as robust, shock-absorbing input or output stages that connect prime movers (e.g., electric motors) to dedicated **gearboxes** (reduction gears or transmissions), forming a complete power train assembly. The flexibility of the belt drive system provides overload protection and isolates the gear system from minor alignment errors and dynamic shock loads.

KEYWORDS: Power transmission, V-belt drive, Multi-groove sheave, Pulley wheel, Torque transfer, Kinematics, Drive ratio, Mechanical advantage, Load distribution, V-belt profile, Pitch diameter, Taper-Lock, Gray cast iron, Synchronous drive, Frictional drive, Shock absorption, Conveyor systems, Compressor drive, Shaft coupling, V-belt standard, Peripheral speed, Dynamic balancing, Gearbox interface, Reduction gear, Motor output, Sheave metallurgy, Circumferential groove, Wedging action, Belt tension, Power capacity.
