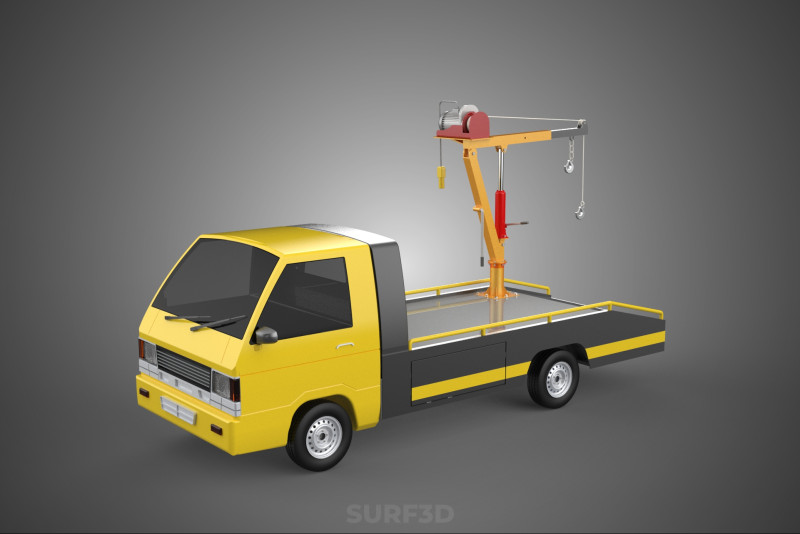

HYDRAULIC CRANE LIFTING ELECTRIC WINCH HOIST TOW TRUCK TOWING 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A hydraulic crane lifting operation, when augmented by an electric winch hoist and mounted upon a tow truck actively engaged in or prepared for towing, represents a highly specialized and versatile configuration for complex recovery, heavy lifting, and material handling tasks. This integrated system leverages the robust lifting capabilities of a hydraulic crane, the precise control of an electric winch, and the inherent mobility and towing capacity of its base vehicle to address challenging scenarios in roadside assistance, incident management, and industrial logistics.

The efficacy of this system stems from the synergistic operation of its primary components:

* **Tow Truck Platform:** Serving as the mobile base, the tow truck provides the necessary stability, power, and transport capabilities. Typically a heavy-duty wrecker or recovery vehicle, it is engineered with a robust chassis, high-capacity axles, and often features integrated outriggers or stabilizers to ensure a secure footprint during lifting operations, counteracting dynamic and static loads. Its primary function as a towing vehicle allows for immediate transport of recovered or manipulated loads.
* **Hydraulic Crane System:** This is the primary lifting mechanism, consisting of a boom (often telescopic), a powerful hydraulic pump, cylinders, and a sophisticated control system. Powered by the truck's engine, the hydraulic system provides the immense force required for lifting and manipulating substantial loads over a considerable radius. The crane's articulation allows for precise positioning of the load, crucial in constrained environments or when negotiating obstacles.
* **Electric Winch Hoist:** Integrated either as the main lifting mechanism on the crane boom or as an auxiliary hoist, the electric winch offers controlled, precise vertical movement. Powered by the truck's electrical system, it utilizes an electric motor to spool a cable or wire rope onto a drum. While hydraulic cranes provide high lifting capacity and reach, the electric winch often excels in applications requiring finer incremental adjustments, sustained lifting for lighter loads, or serving as a secondary recovery line.

**Operational Dynamics:**
In operation, the tow truck is strategically positioned, and its outriggers are deployed to maximize stability. The hydraulic crane then performs the primary lift, utilizing its reach and power to raise or reposition the object. Concurrently, or in conjunction, the electric winch can be employed for fine-tuning the lift, pulling objects, or managing supplementary lines. The ability of the base vehicle to perform towing simultaneously, or in immediate sequence, streamlines recovery processes, allowing for lifting, securement, and subsequent transport of the object with a single, highly capable unit. This integrated approach is particularly valuable in scenarios such as uprighting overturned vehicles, extricating vehicles from ditches, or loading specialized equipment onto trailers for transport.

**Applications and Advantages:**
The unique combination of lifting and towing capabilities makes this setup indispensable across various sectors:
* **Vehicle Recovery:** Essential for accident clear-up, recovering large commercial vehicles (trucks, buses), or off-road vehicles from challenging terrains.
* **Incident Management:** Facilitates rapid removal of obstructions, debris, or damaged structures from roadways.
* **Material Handling:** Used for lifting and placing heavy machinery, generators, or construction components in sites with limited access or where immediate transport is required.
* **Roadside Assistance:** Beyond simple towing, it addresses complex breakdowns involving lifting components or maneuvering vehicles.

Advantages include unparalleled versatility, reducing the need for multiple specialized vehicles; enhanced operational efficiency due to combined functions; and improved safety through robust, purpose-built equipment designed for heavy loads and challenging environments.

**Safety and Considerations:**
Due to the inherent risks associated with heavy lifting and vehicle manipulation, operation requires highly trained and certified personnel. Critical considerations include:
* **Load Capacity and Stability:** Strict adherence to manufacturer's load charts, proper deployment of outriggers, and dynamic stability assessment are paramount to prevent overturning.
* **Environmental Factors:** Weather conditions, ground stability, and overhead obstructions must be meticulously evaluated.
* **Equipment Maintenance:** Regular inspection and maintenance of hydraulic systems, winches, cables, and structural components are vital for operational integrity and safety.

**Conclusion:**
The integration of a hydraulic crane and an electric winch hoist onto a tow truck creates a formidable and indispensable asset for specialized lifting, recovery, and towing operations. This multi-functional system significantly enhances efficiency and safety in demanding scenarios, solidifying its role as a critical component in modern incident management, logistics, and heavy vehicle recovery.

KEYWORDS: Hydraulic Crane, Electric Winch, Tow Truck, Lifting Operations, Vehicle Recovery, Heavy Lifting, Hoisting Equipment, Mobile Crane, Wrecker Truck, Incident Management, Roadside Assistance, Material Handling, Specialized Vehicle, Outriggers, Telescopic Boom, Hydraulic System, Winch Hoist, Vehicle Extrication, Load Manipulation, Recovery Vehicle, Industrial Logistics, Site Operations, Safety Protocols, Load Capacity, Stability Control, Equipment Integration, Multi-functional Vehicle, Emergency Services, Complex Operations, Mobile Recovery
