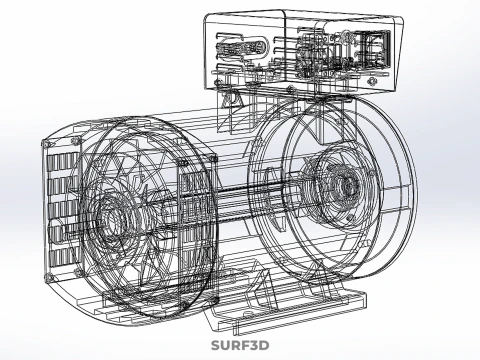

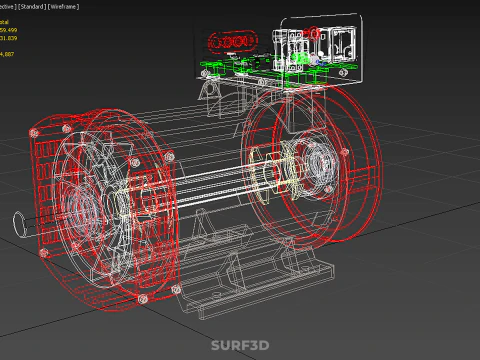

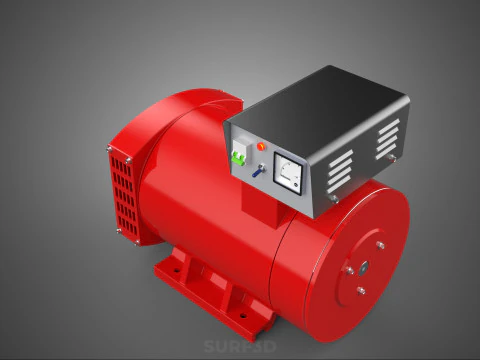

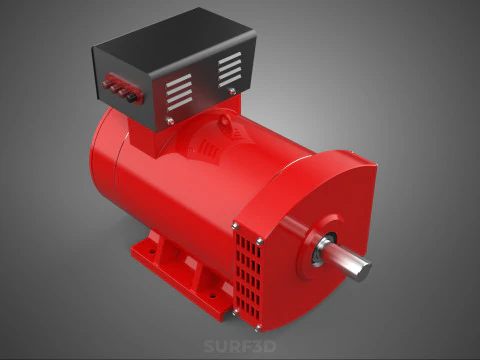

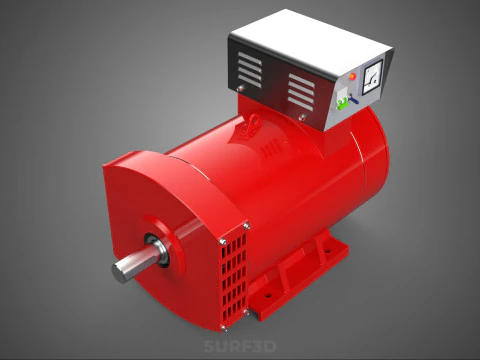

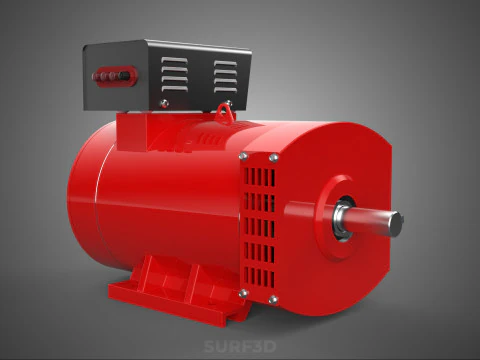

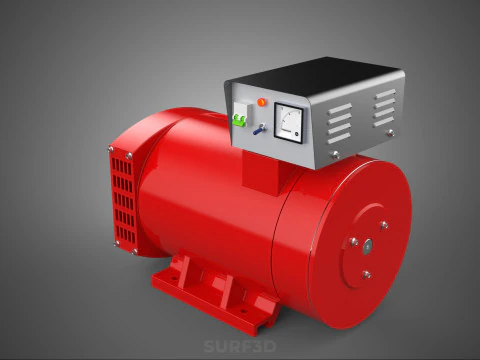

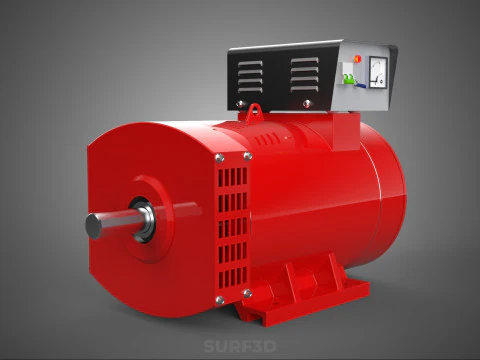

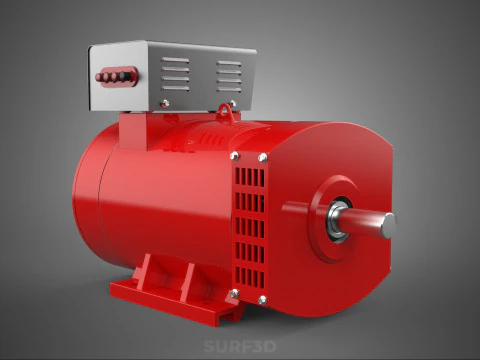

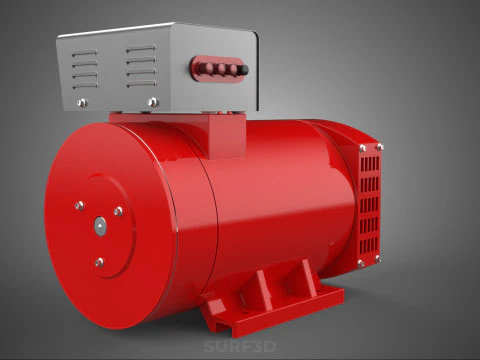

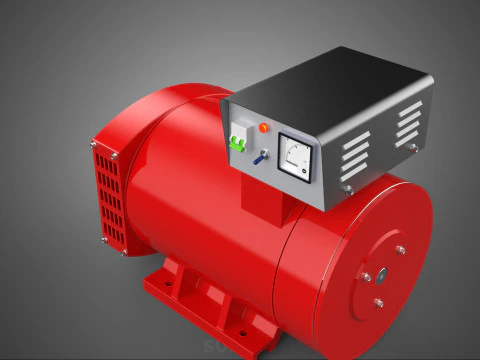

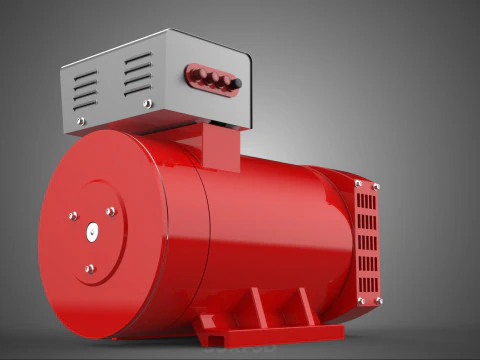

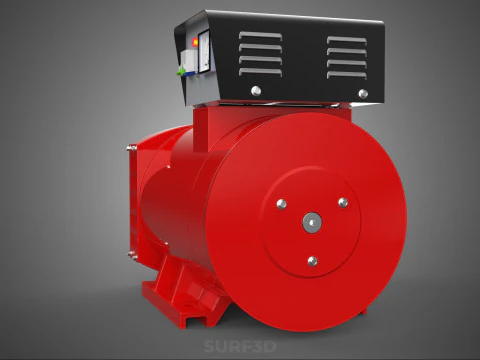

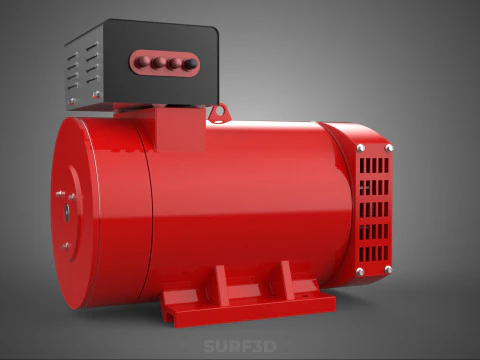

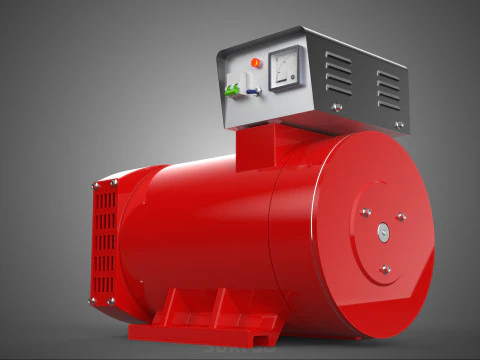

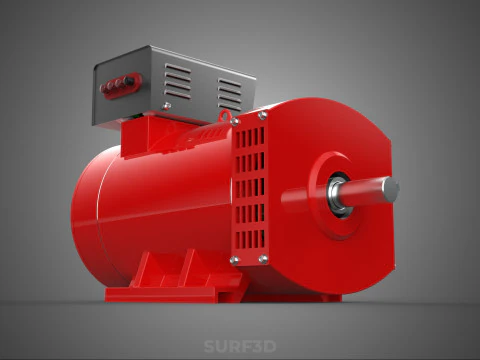

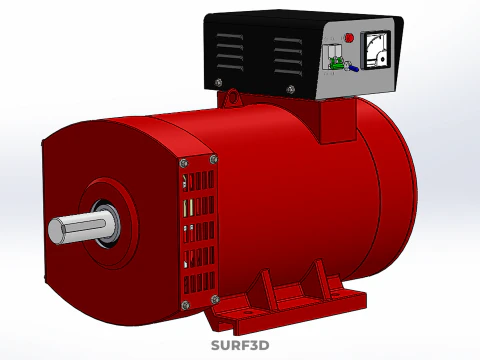

RED INDUSTRIAL AC GENERATOR ALTERNATOR DYNAMO MOTOR CONTROL BOX 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The Red Industrial AC Generator Alternator Dynamo Motor Control Box is a specialized, ruggedized electrical enclosure designed for the integrated management, regulation, protection, and operational interfacing of high-capacity alternating current (AC) rotational machinery within demanding industrial environments. This unified control apparatus facilitates efficient power generation (as an alternator/generator) or precise kinetic drive (as a motor controller).

### Nomenclature and Function

The redundancy in the title—encompassing generator, alternator, dynamo, and motor—reflects the box’s versatile functionality and legacy industrial terminology. An **alternator** is the technically precise term for a machine generating AC power; a **dynamo** is historical slang usually referring to DC generation but is sometimes used generically. The inclusion of **motor** indicates that the control box is often standardized for dual application: managing the output of a prime mover (generator function) and providing sophisticated control (e.g., Variable Frequency Drive, VFD, or soft-start capabilities) for high-horsepower motors.

The primary function of the control box is to centralize crucial electrical and electronic functions:

1. **Voltage Regulation:** Employing an Automatic Voltage Regulator (AVR) to maintain a stable, specified output voltage across varying load conditions by precisely adjusting the excitation current fed to the alternator’s field windings.
2. **Synchronization and Grid Interfacing:** For parallel or grid-**** operations, the box houses synchronization equipment (e.g., sync-check relays, governor control interfaces) to match the generator’s frequency, voltage, and phase angle with the bus before closing the main breaker.
3. **Protection and Isolation:** Providing instantaneous isolation from short circuits, overcurrents, ground faults, and phase anomalies (unbalance or reversal) via advanced protective relays (ANSI codes 50, 51, 27, 59, 81, 87) and high-capacity circuit breakers.

### Physical Characteristics and the Red Designation

The control box enclosure is typically constructed from heavy-gauge steel or corrosion-resistant materials, meeting stringent ingress protection (IP) or NEMA ratings (e.g., NEMA 12 or IP55/66) to withstand dust, moisture, corrosive agents, and high vibration levels typical of powerhouses or manufacturing floors.

The **red coloration** is not purely aesthetic but carries critical functional and safety implications standardized across multiple industrial safety codes (e.g., ISO, NFPA, OSHA). Red designates emergency functionality, high risk, or critical isolation points. Specifically, a red industrial control box frequently signifies that the enclosure:

* Houses the primary emergency stop (E-Stop) circuit or master isolation breaker.
* Controls equipment critical to fire safety systems (pumps, ventilation, dampers).
* Manages high-voltage distribution points requiring heightened operator caution.

### Internal Components and Control Logic

The complexity of the system necessitates several integrated modules:

* **Excitation System:** Includes the AVR, diode rectifiers, and shunt or permanent magnet generators (PMG) used to supply excitation power.
* **Metering and SCADA Interface:** High-accuracy digital and analog meters (voltmeter, ammeter, frequency meter, power factor meter) coupled with a Programmable Logic Controller (PLC). This allows for sequenced start/stop procedures, load shedding, and remote monitoring and control via Supervisory Control and Data Acquisition (SCADA) systems.
* **Governor Interface:** Connectors and logic allowing the control box to communicate with the prime mover’s electronic governor to manage engine speed and stabilize frequency, crucial for sensitive electronic loads.
* **Bus Work and Termination:** High-conductivity copper or aluminum bus bars sized for continuous heavy load currents, designed to minimize resistance and heat generation during operation.

These control boxes are mandatory components in large industrial generator sets (diesel, gas turbine, hydro), continuous operation manufacturing facilities, and co-generation plants, ensuring stable power delivery and comprehensive system protection in compliance with global electrical safety standards (e.g., IEC, UL, CSA).
