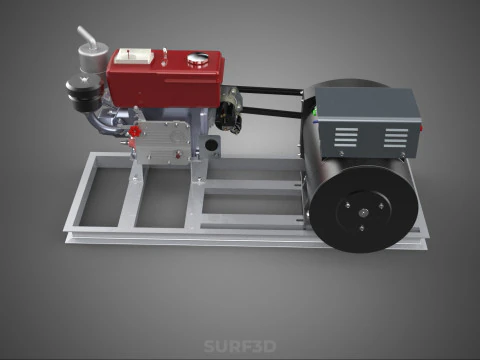

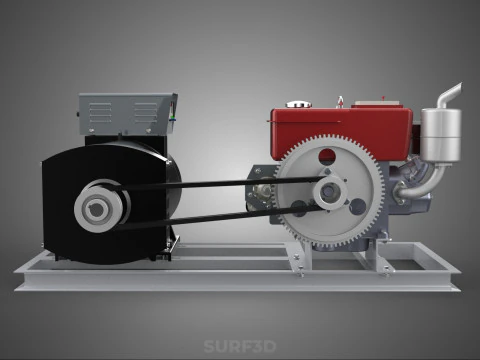

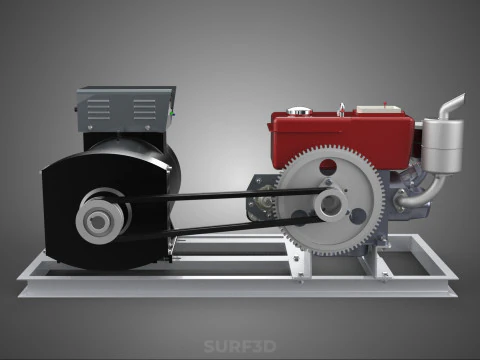

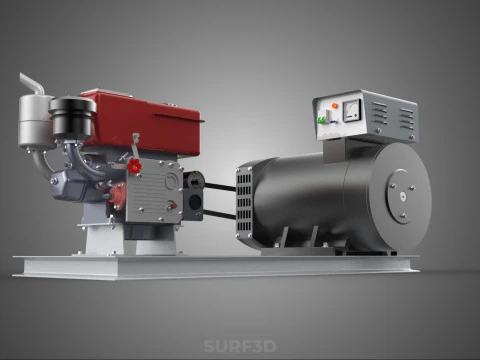

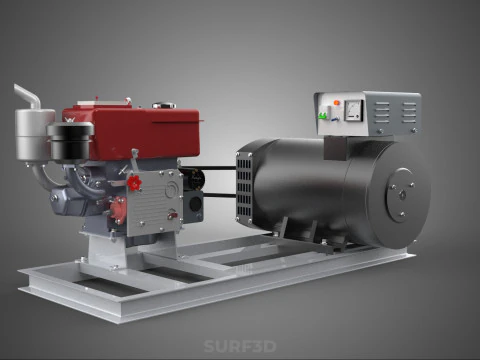

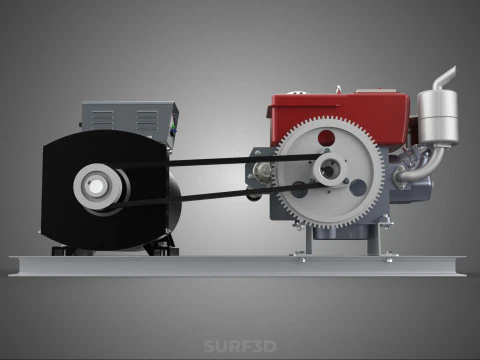

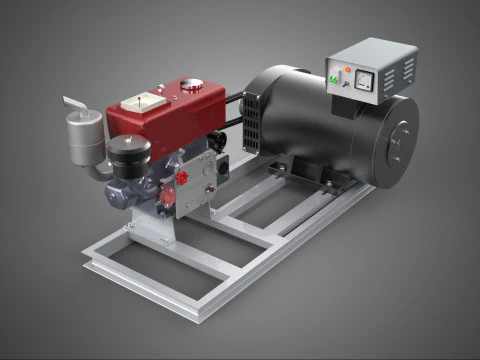

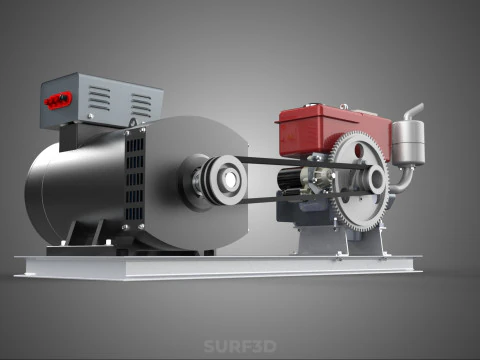

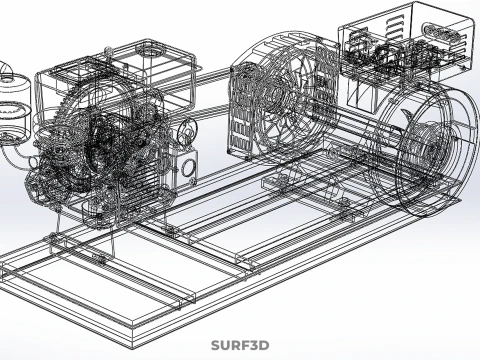

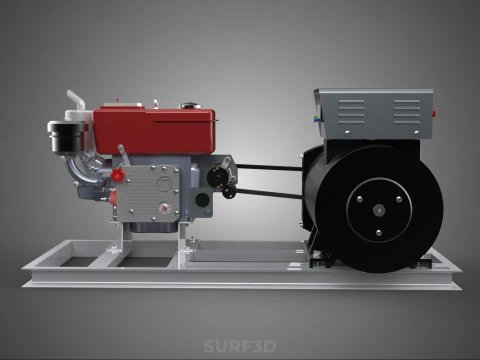

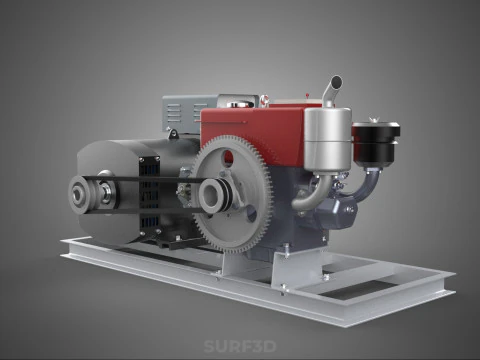

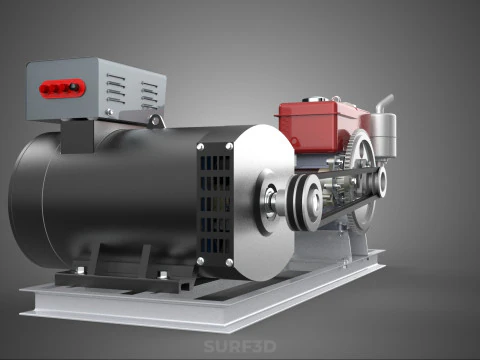

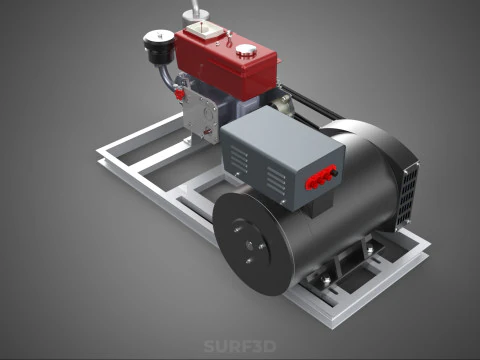

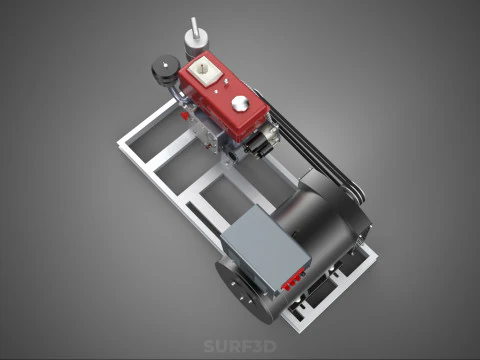

DIESEL STARTER ELECTRIC FLYWHEEL POWER GENERATOR MOTOR SETUP SET 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The **Diesel Starter Electric Flywheel Power Generator Motor Setup Set** refers to a highly integrated, electromechanical system designed for efficient power generation, propulsion assistance, and rapid kinetic energy management. This configuration centralizes multiple traditional functions—prime mover starting, kinetic energy storage, power generation, and auxiliary propulsion—into a unified module, often termed an Integrated Starter Generator (ISG) or Motor-Generator Unit (MGU) combined with a diesel engine.

### Nomenclature and Design Architecture

The system's core function is realized through the direct coupling of a reciprocating internal combustion engine (ICE), specifically a compression-ignition (diesel) engine, to a single, high-efficiency electrical machine. This machine functions interchangeably as a generator (driven by the diesel engine) and a motor (driving the engine or providing torque for propulsion). The setup includes a dedicated power electronics suite, typically comprising a Variable Frequency Drive (VFD) and high-power inverters, necessary for managing the bidirectional flow of energy.

The term "Electric Flywheel" denotes the inherent or enhanced kinetic energy storage capability of the system. The rotor of the MGU, often designed with a large diameter or specialized high-density materials, possesses significant rotational inertia. This inertia is leveraged to stabilize the system's output frequency and voltage during load transients (power generation mode) or to capture and redeploy braking energy (propulsion mode, often referred to as Kinetic Energy Recovery Systems, or KERS).

### Core Components and Functionality

1. **Diesel Engine (Prime Mover):** Provides the chemical-to-mechanical energy conversion. Modern setups utilize engines optimized for specific power curves corresponding to peak electrical efficiency, often employing technologies like common rail injection and turbocharging.
2. **Motor-Generator Unit (MGU):** This is the central electromechanical component. It is typically a brushless machine, often a Permanent Magnet Synchronous Machine (PMSM) or a high-pole-count AC Induction Machine.
* **Starter Function:** When commencing operation, the MGU acts as a high-torque electric starter motor, drawing power from a battery bank or capacitor module to rapidly accelerate the diesel engine past ignition speed. This is significantly faster and more reliable than traditional solenoid starters.
* **Generator Function:** Once the diesel engine reaches operating speed, the MGU transitions into generator mode, converting the rotational energy into AC electricity, which is then conditioned by the inverters for grid or load delivery.
* **Motor Function (Propulsion/Boost):** In applications like hybrid vehicles or marine drives, the MGU draws power to assist the diesel engine, providing instant torque boost or allowing for all-electric operation at low speeds.
3. **Inertia Management (Flywheel):** The mass of the MGU rotor and its rotational velocity store kinetic energy ($E_k = \frac{1}{2} I \omega^2$). This stored energy is utilized for two primary objectives:
* **Transient Response:** During sudden load spikes (e.g., a large motor starting on a microgrid), the MGU instantly delivers stored energy, reducing the immediate draw on the diesel engine and maintaining stable frequency until the engine can respond.
* **Regenerative Braking (KERS):** In vehicular applications, the MGU acts as a generator during deceleration, converting braking forces into electrical energy stored either kinetically (speeding up the flywheel) or electrically (charging battery banks).
4. **Power Electronics and Control System:** The setup relies on a sophisticated Electronic Control Unit (ECU) and power inverters to precisely manage speed, torque, electrical output quality, and the rapid switching between motoring and generating modes. The VFD is essential for controlling the frequency and voltage output regardless of the diesel engine's operating speed (variable speed operation).

### Operational Advantages

The integrated design provides several benefits over traditional, separate starter-generator-flywheel configurations:

* **Improved Efficiency:** Optimizes the diesel engine to run within its most efficient load ranges, using the MGU/flywheel to absorb peaks and valleys.
* **Enhanced Reliability:** Eliminates the need for a separate starter motor and simplifies the mechanical drive train.
* **Superior Transient Stability:** The kinetic energy storage capability ensures extremely fast response times to load changes, critical for applications requiring high power quality.
* **Packaging Density:** The combined system is compact, saving space and weight, which is particularly beneficial in mobile platforms such as rail, marine vessels, and heavy-duty vehicles.

### Applications

This integrated setup is standard in applications demanding high power density, efficiency, and reliability:

* **Hybrid Electric Vehicles (HEV) and Heavy Equipment:** Used for KERS and motor assistance.
* **Marine Propulsion Systems:** Provides boost power and stabilizes shipboard power grids (shaft generators).
* **Rail Locomotives (Hybrid/Diesel-Electric):** Enhances acceleration and fuel economy.
* **Distributed Generation and Microgrids:** Provides instantaneous power quality regulation and peak shaving capabilities for isolated power systems.

KEYWORDS: Integrated Starter Generator, ISG, Kinetic Energy Storage, KERS, Motor Generator Unit, MGU, Diesel Electric, Hybrid Powertrain, Power Quality, Transient Response, Load Leveling, Peak Shaving, Variable Frequency Drive, VFD, Permanent Magnet Synchronous Machine, PMSM, AC Induction Motor, Regenerative Braking, Microgrid Stability, Shipboard Power, Rail Traction, Electrical Machine, Energy Storage, High Inertia Rotor, Flywheel Energy Storage, Engine Starter, Distributed Generation, Power Electronics, Torque Assist, Prime Mover, Mechanical Coupling, High-Density Rotor.
