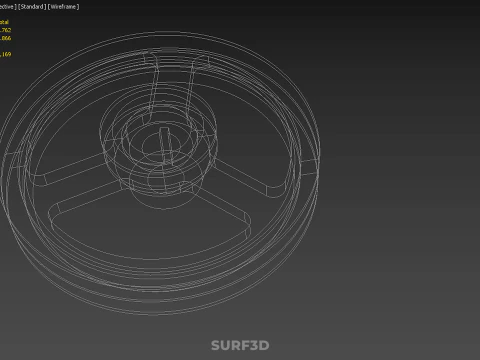

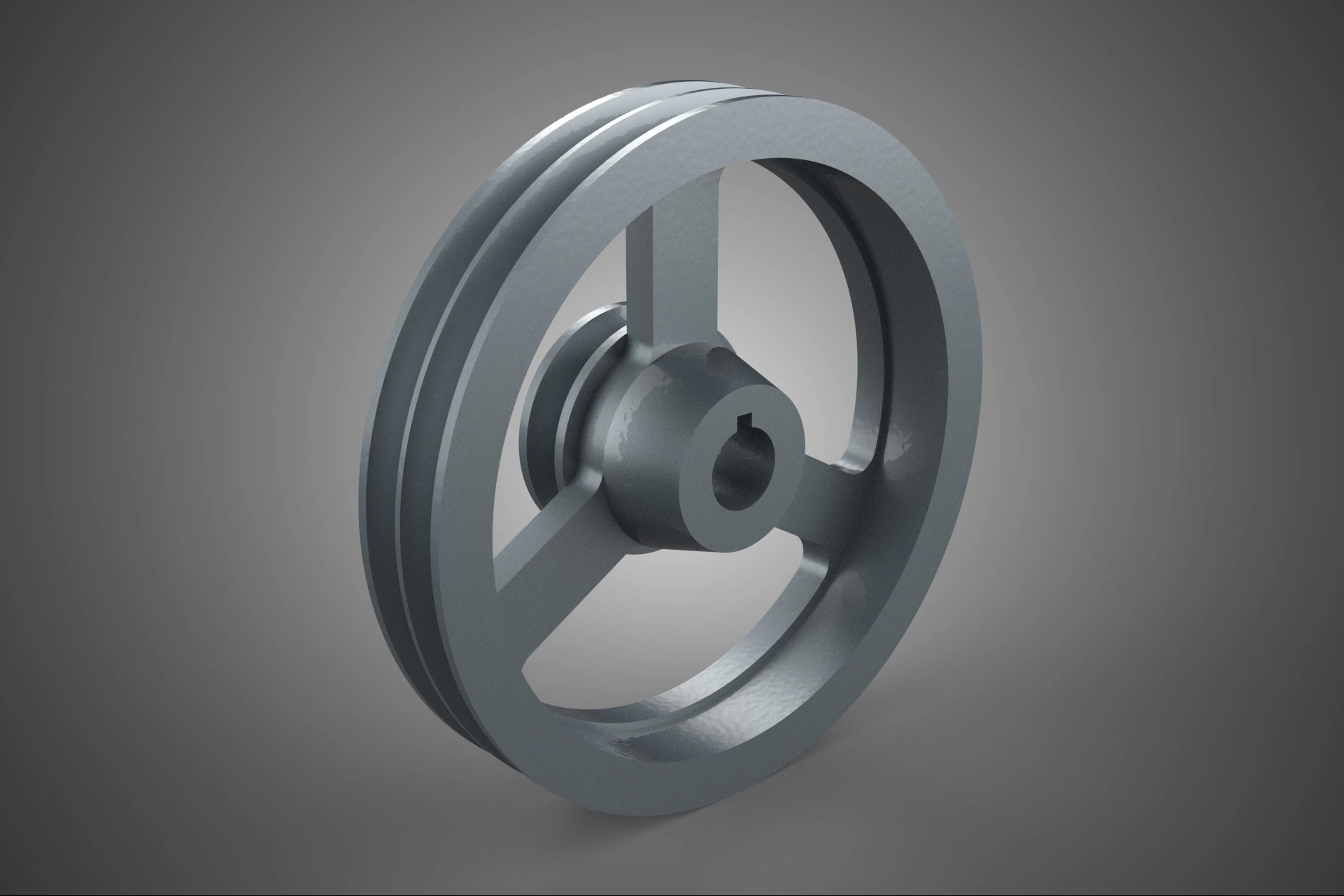

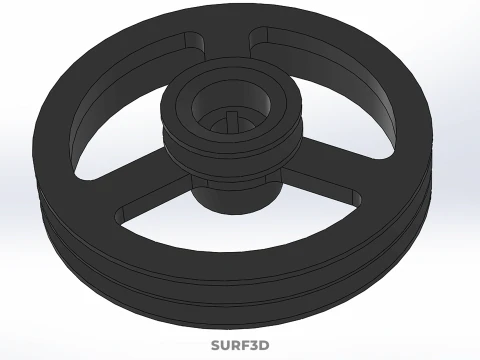

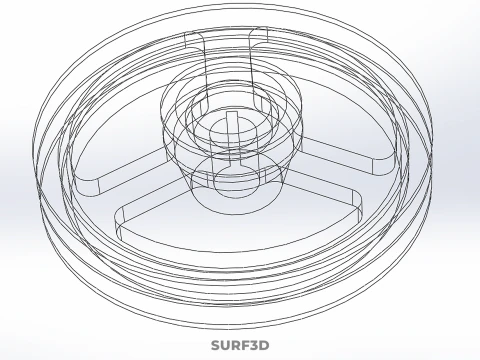

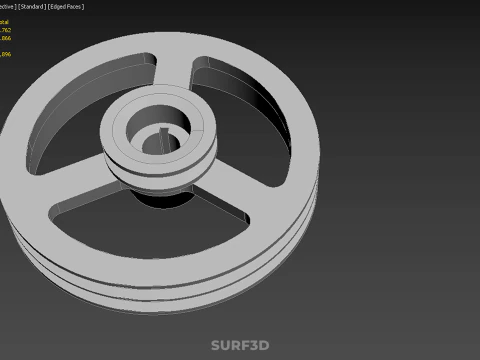

2 STEP STEPPED PULLEY GROOVE SHEAVE V BELT KEY WAY SEAT KEYWAY 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A two-step stepped pulley groove sheave is a specialized mechanical component utilized in variable-speed belt drive systems, designed specifically for the efficient transmission of rotational power and torque between parallel shafts using a V-belt. This configuration is distinguished by the presence of two distinct, co-axial working diameters (steps) machined onto a single body, facilitating manual or automated adjustment of the speed ratio.

### Nomenclature and Functionality

The term "stepped pulley" denotes the variation in diameter, providing two specific and discrete velocity ratios ($i_1$ and $i_2$). By manually shifting the V-belt between the larger and smaller steps, the user can instantaneously change the output speed of the driven shaft relative to the input speed of the driving shaft. This capability is crucial in applications such as machine tooling (e.g., drill presses and lathes) where operational speed must be adapted to material properties or cutting requirements.

The component is frequently referred to as a "sheave" or "groove sheave" to emphasize the geometric profile designed to interface with the belt. The materials utilized are typically cast iron (for high rigidity and damping), steel (for high-stress applications), or aluminum alloy (for lightweight, high-speed applications).

### V-Belt Groove Profile

The circumferential channels machined into the two steps are specifically profiled to accommodate a standard V-belt. Unlike flat pulleys, the V-belt groove features angled sidewalls (typically between 34° and 38°). This trapezoidal geometry induces a wedging action as the belt seats under tension. The wedging effect significantly increases the normal force and consequently the static friction between the belt and the sheave surface, maximizing torque transmission efficiency and virtually eliminating slip, especially under high load conditions. The grooves must adhere strictly to established industry standards (such as ISO or ANSI classifications) corresponding to specific V-belt cross-sections (e.g., A, B, C, or Z profiles).

### Mounting and Keyway Interface

For proper torque transfer, the sheave must be rigidly affixed to the drive shaft to prevent relative rotation. The central bore of the pulley is precision-machined to match the shaft diameter.

Integrated into the bore is the "key way seat" or "keyway." The keyway is a longitudinal, non-rotational slot milled into the internal surface of the bore. It serves as the receptacle for a mechanical key (often a square, rectangular, or Woodruff key). When the key is installed, it spans the gap between the shaft (which also contains a corresponding key seat) and the pulley bore. This configuration establishes a positive mechanical lock, ensuring that 100% of the rotational torque applied to the pulley is transmitted directly to the shaft, or vice versa. The precise dimensions and tolerance of the keyway are critical for maintaining tight angular alignment and preventing fretting corrosion due to minor movements. Keyway standards are dictated by the shaft diameter and the anticipated load requirements.

The two-step stepped pulley sheave, therefore, represents a fundamental and robust solution for simple, discrete variable-speed control in industrial and domestic machinery.
