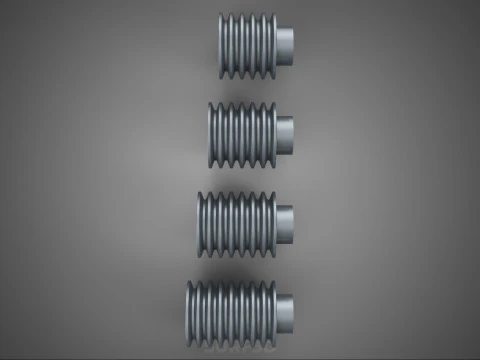

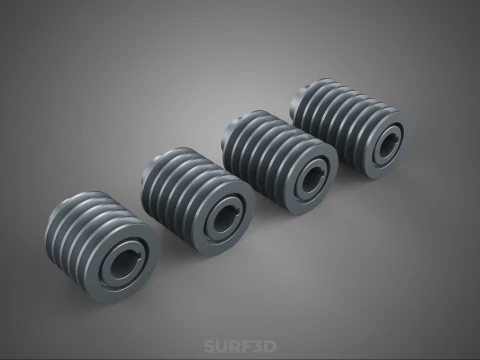

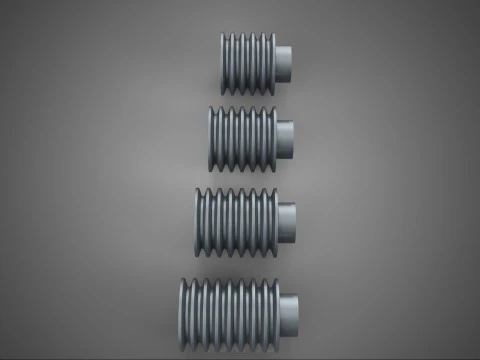

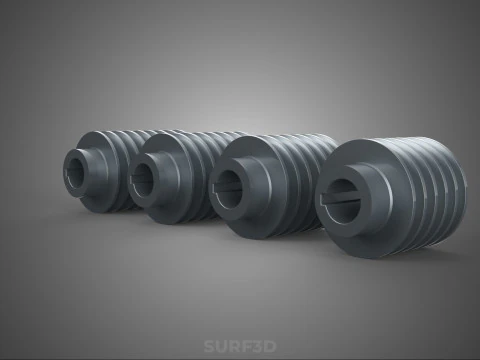

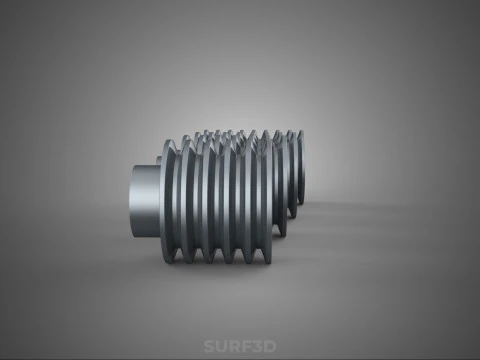

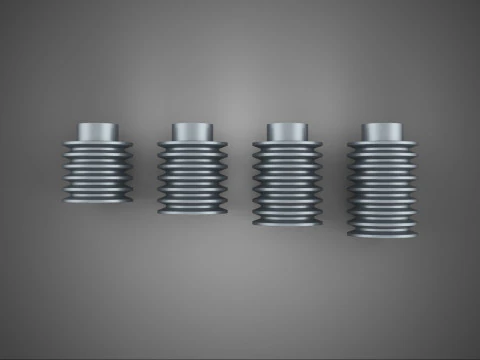

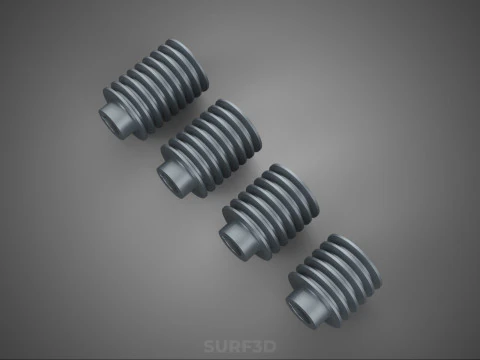

VARIOUS SET 5 6 7 8 GROOVE PULLEY SHEAVE MULTI TRACK WHEEL GEAR 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
# Multi-Groove Pulley and Sheave Assemblies (5, 6, 7, 8 Track Configurations)

## Overview and Definition

A multi-groove pulley, often interchangeably termed a sheave or multi-track wheel, is a specialized mechanical component utilized within belt-driven power transmission systems. Its primary function is to transfer rotational motion, torque, and power between shafts. Unlike standard single-groove V-pulleys, these components feature a contiguous series of circumferential grooves (tracks) designed to accommodate multi-ribbed belts, often referred to as Poly-V belts (ISO 9982) or serpentine belts.

The numerical designator (e.g., 5-groove, 6-groove, 7-groove, 8-groove) strictly defines the capacity and profile of the component, corresponding directly to the number of parallel tracks available for load distribution. These configurations are standardized to meet specific industrial and automotive requirements for high power density and minimized radial tension relative to the transmitted load.

## Nomenclature and Operational Principles

While "pulley" is the general term for a wheel used in belt systems, "sheave" often implies usage in lifting or hoisting apparatuses (rope/cable), though in industrial contexts, the terms are frequently synonymous. The title designation "WHEEL GEAR" is often a colloquial misnomer, as these components facilitate motion through friction or positive engagement (depending on the belt type, though typically friction-based for multi-ribbed), rather than the tooth meshing characteristic of true gears.

### Multi-Track Advantage

The principal engineering advantage of the multi-groove design lies in its ability to distribute the tangential force across numerous contact surfaces simultaneously. This load distribution significantly increases the effective friction area and torque capacity compared to single-belt systems of equivalent diameter. Consequently, multi-groove systems facilitate:

1. **Increased Power Density:** More power transferred in a smaller physical envelope.
2. **Reduced Belt Slip:** Improved kinematic accuracy and efficiency.
3. **Lower Bearing Loads:** The total tension required to maintain adequate friction is often lower than multiple independent V-belts achieving the same aggregate capacity.
4. **Enhanced Durability:** Load sharing reduces localized stress and heat buildup on the belt material.

### Standard Configurations (5, 6, 7, 8)

The specific track counts (5, 6, 7, and 8 grooves) represent standard sizes adopted across various industries, particularly in high-demand automotive auxiliary systems (alternators, compressors, power steering pumps) and specialized industrial machinery (pumps, fans, machine tools). The selection of the groove count is determined by the required maximum torque, the rotational speed (RPM), and the overall physical constraints of the drive system.

## Material Science and Manufacturing

Due to the critical role these components play in high-speed, high-load applications, manufacturing precision and material selection are paramount.

### Materials

1. **Grey Cast Iron (e.g., GG25/ASTM Class 35):** Preferred for industrial applications due to high damping capacity, excellent wear resistance, and cost-effectiveness, particularly for larger diameter, slower-speed industrial drives.
2. **Aluminum Alloys (e.g., 6061 or 7075):** Utilized extensively in automotive and aerospace sectors where low rotational inertia is crucial for rapid acceleration and fuel efficiency. These often require hard-anodizing for surface hardness.
3. **Steel Alloys:** Used when maximum strength and fatigue resistance are required, typically for highly stressed, compact drives.

### Manufacturing Processes

Multi-groove pulleys are typically manufactured via casting or forging, followed by precision machining. Critical manufacturing specifications include:

* **Groove Profile Accuracy:** The inter-groove spacing (pitch) and groove angle must adhere strictly to international standards (e.g., ISO or RMA standards for PK, PJ, or PL profiles) to ensure optimal belt engagement and prevent premature wear.
* **Surface Finish:** The contact surfaces must possess a specific roughness to minimize abrasive wear on the belt while maximizing friction coefficient.
* **Dynamic Balancing:** Essential for all pulleys operating above critical speeds (typically > 3000 RPM) to mitigate vibrational forces, reduce noise, and prevent premature bearing and shaft failure. Balancing is performed according to standards such as ISO 1940.

KEYWORDS: Pulley, Sheave, Multi-Groove, Multi-Track, V-Belt, Poly-V Belt, Serpentine Belt, Power Transmission, Mechanical Drive, Torque Capacity, Kinematic Chain, Industrial Machinery, Automotive Component, Load Distribution, 5-Groove, 6-Groove, 7-Groove, 8-Groove, Dynamic Balancing, Cast Iron, Aluminum Alloy, High-Speed Rotation, Drive System, Pitch Diameter, Belt Drive, Friction Drive, Component Standardization, Sheave Assembly, Auxiliary Drive, Rotating Machinery, Drive Component, ISO 9982.
