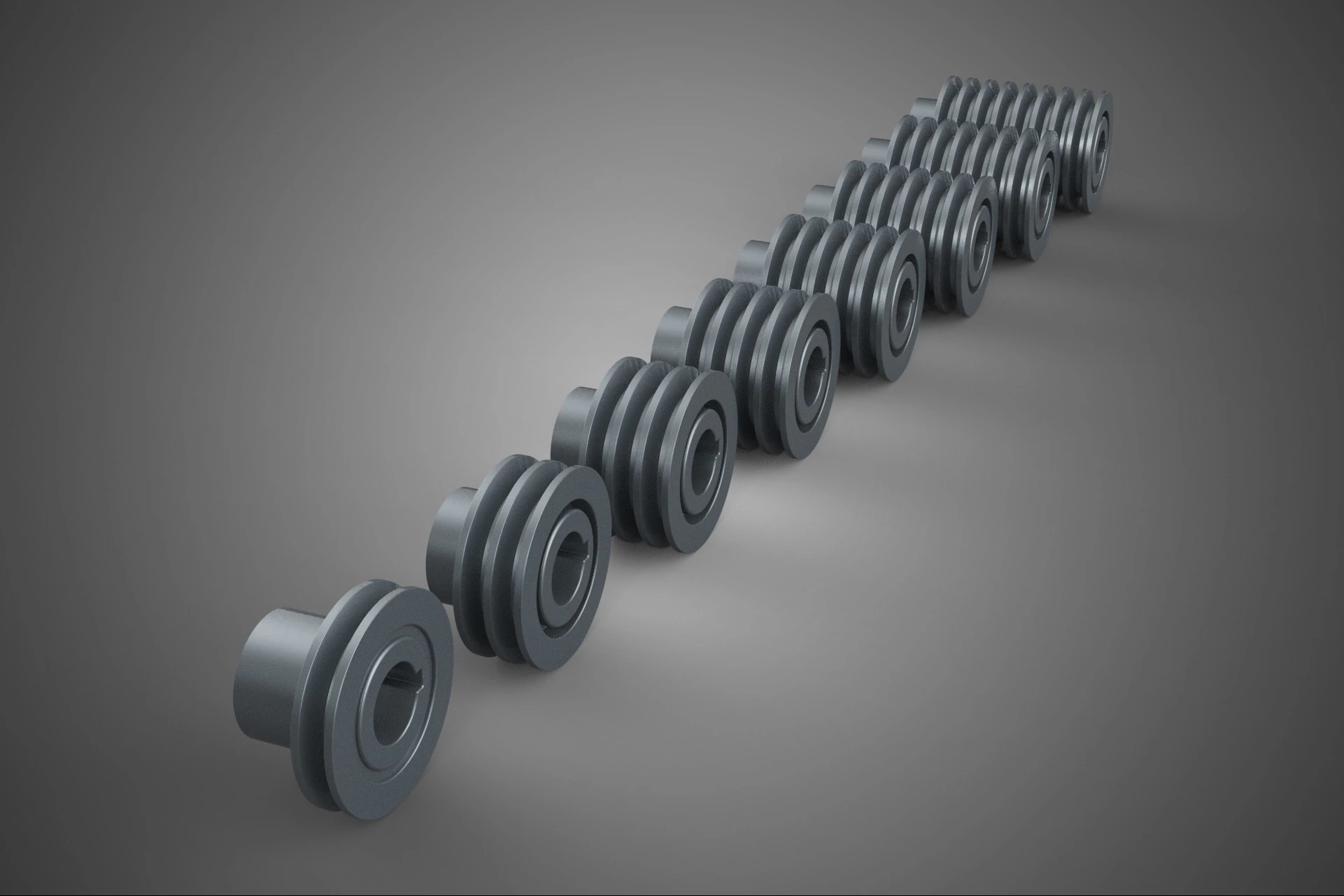

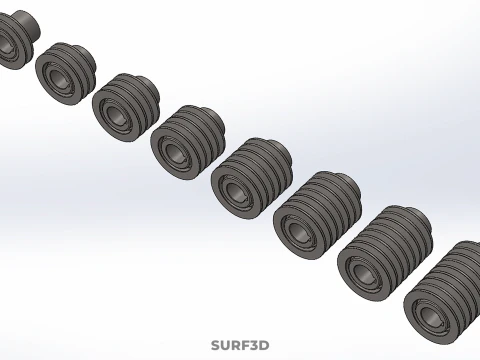

SET STANDARD PULLEY SHEAVE MULTI GROOVE TRACK WHEEL V BELT GEAR 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The descriptive title, "SET STANDARD PULLEY SHEAVE MULTI GROOVE TRACK WHEEL V BELT GEAR," refers to a standardized assembly or collection of integrated mechanical components designed for the efficient transmission of rotational power (torque) and, frequently, for guiding linear motion systems. This system is typically utilized in industrial machinery, conveying applications, and large-scale mechanical drives where reliable, non-synchronous speed reduction or multiplication is required.

### Core Components and Functionality

**Standard Pulley Sheave (Multi-Groove):**
The pulley, often interchangeably referred to as a sheave, is the central element of the V-belt drive. The term "multi-groove" indicates that the sheave features multiple circumferential recesses, designed to seat two or more V-belts concurrently. This configuration, known as a multi-strand drive, is critical for increasing the total power capacity of the system, distributing the load across multiple belts, and mitigating the risk of slippage inherent in high-torque, single-belt applications.

These sheaves adhere strictly to international and national standards (e.g., ISO, DIN, or ANSI), ensuring precise dimensional tolerances regarding the pitch diameter, bore size, and, most importantly, the groove profile (e.g., SPZ, SPA, SPB, SPC profiles). Standardized construction facilitates interchangeability and maintenance. Common materials include grey cast iron (GG20/GG25), steel, or high-strength aluminum alloys, selected based on operational speed and inertia requirements.

**V-Belt:**
The V-belt is the flexible intermediary component responsible for transmitting power between the sheaves. Its trapezoidal cross-section is engineered to wedge itself securely into the angled grooves of the pulley under tension. This wedging action significantly increases the effective coefficient of friction, enabling high-efficiency power transfer with minimal tension requirements compared to flat belts. V-belts are typically constructed from high-tensile cords (e.g., polyester or aramid fibers) encased in elastomer compounds (e.g., neoprene or EPDM), providing durability, resistance to elongation, and dampening capabilities.

**Track Wheel Integration:**
The inclusion of the term "Track Wheel" suggests a dual function or the integration of the drive system into a mechanism that relies on linear guidance. A track wheel is mechanically engineered to travel along a rail or track. In this context, the component may serve one of two roles: (1) a dedicated guide wheel separate from the power transmission components, ensuring the linear trajectory of an attached mechanism (e.g., a conveyor cart); or (2) the pulley assembly itself may function as a traction wheel, driving a specialized tracked system. These wheels are engineered for high radial and axial load capacity and often feature durable running surfaces and sealed bearings.

**Gear (Power Transmission Context):**
While a V-belt drive is distinct from a gear drive (which relies on meshed teeth), "GEAR" in this collective title is generally used as a metonym for the entire power transmission assembly or system, emphasizing its role in speed ratio modification and torque multiplication. Alternatively, it signifies that the V-belt drive system is often coupled to a gearbox or a geared motor assembly that provides the input rotational force.

### Applications and Advantages

The standardized set described is critical in environments requiring robust and maintenance-friendly power delivery. Key advantages include shock absorption, protection against system overload (due to controlled slip), relatively low noise operation, and the ability to achieve precise, non-synchronous speed ratios (angular velocity).

Typical applications encompass:
* Heating, Ventilation, and Air Conditioning (HVAC) systems.
* Pumps and compressors.
* Machine tools and factory automation equipment.
* Material handling systems, including cranes and heavy-duty conveyor belts.

The adherence to "STANDARD" ensures predictable performance characteristics, including specified lifespan and operational envelope, which is vital for compliance in industrial settings.

***

KEYWORDS: Power Transmission, V-Belt Drive, Multi-Groove Sheave, Standardized Components, Pulley System, Track Wheel, Mechanical Set, Torque Transfer, Angular Velocity, Industrial Machinery, Non-Synchronous Drive, V-Belt Profile, Pitch Diameter, Multi-Strand, Conveying Systems, High-Tensile Cord, Elastomer, Standard Pulley, Track Guidance, Shock Absorption, Gear Mechanism, Drive Kit, ISO Standards, Load Distribution, Radial Load, Axial Load, Sheave Material, Drive Ratio, V-Belt Tensioning, Maintenance.
