DROPSIDE FOLDING JIB CRANE HOIST MOTOR CRANK WINCH TRUCK PICKUP 3D Model

DROPSIDE FOLDING JIB CRANE HOIST MOTOR CRANK WINCH TRUCK PICKUP 3D Model dwg, blend, max, iges, fbx, 3ds, 3dm, obj, step, glb, dae, skp, stl, sat, from surf3d

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

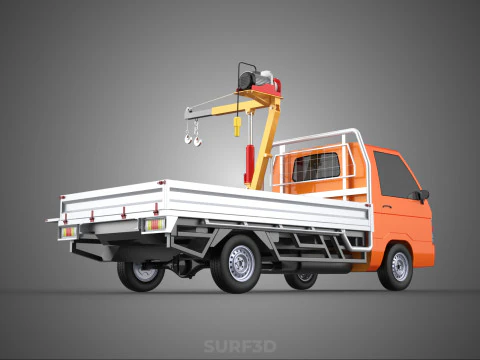

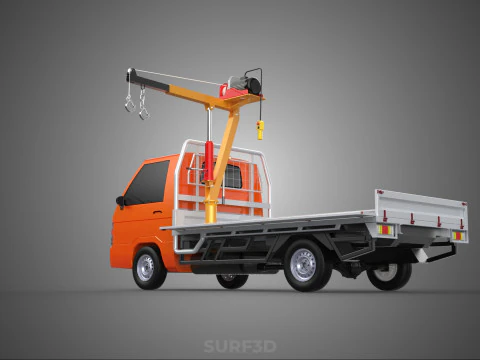

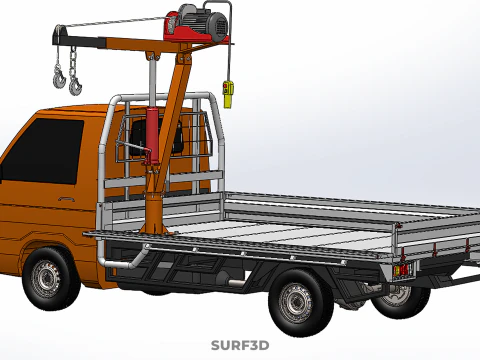

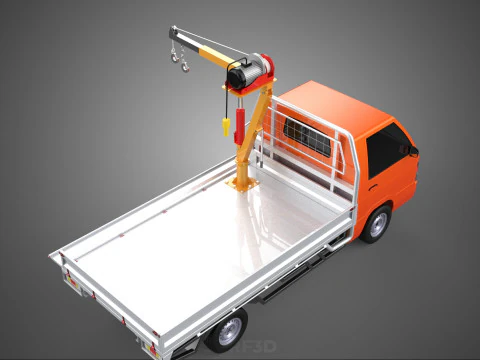

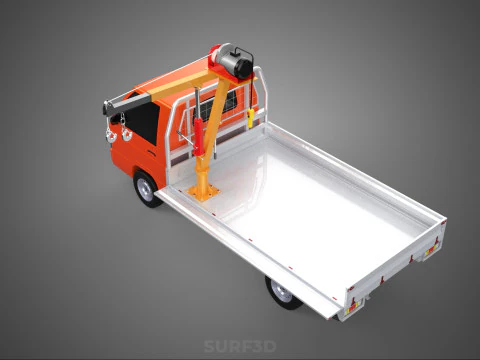

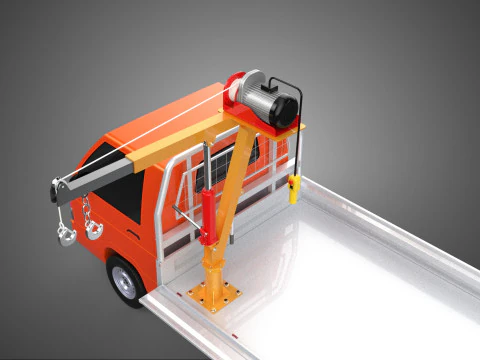

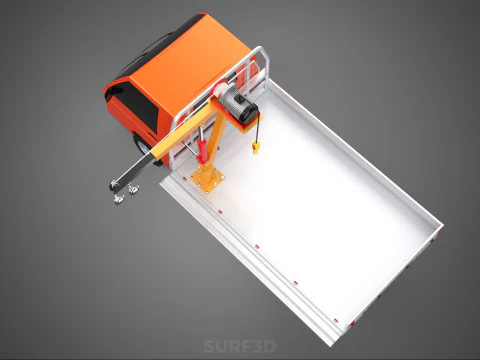

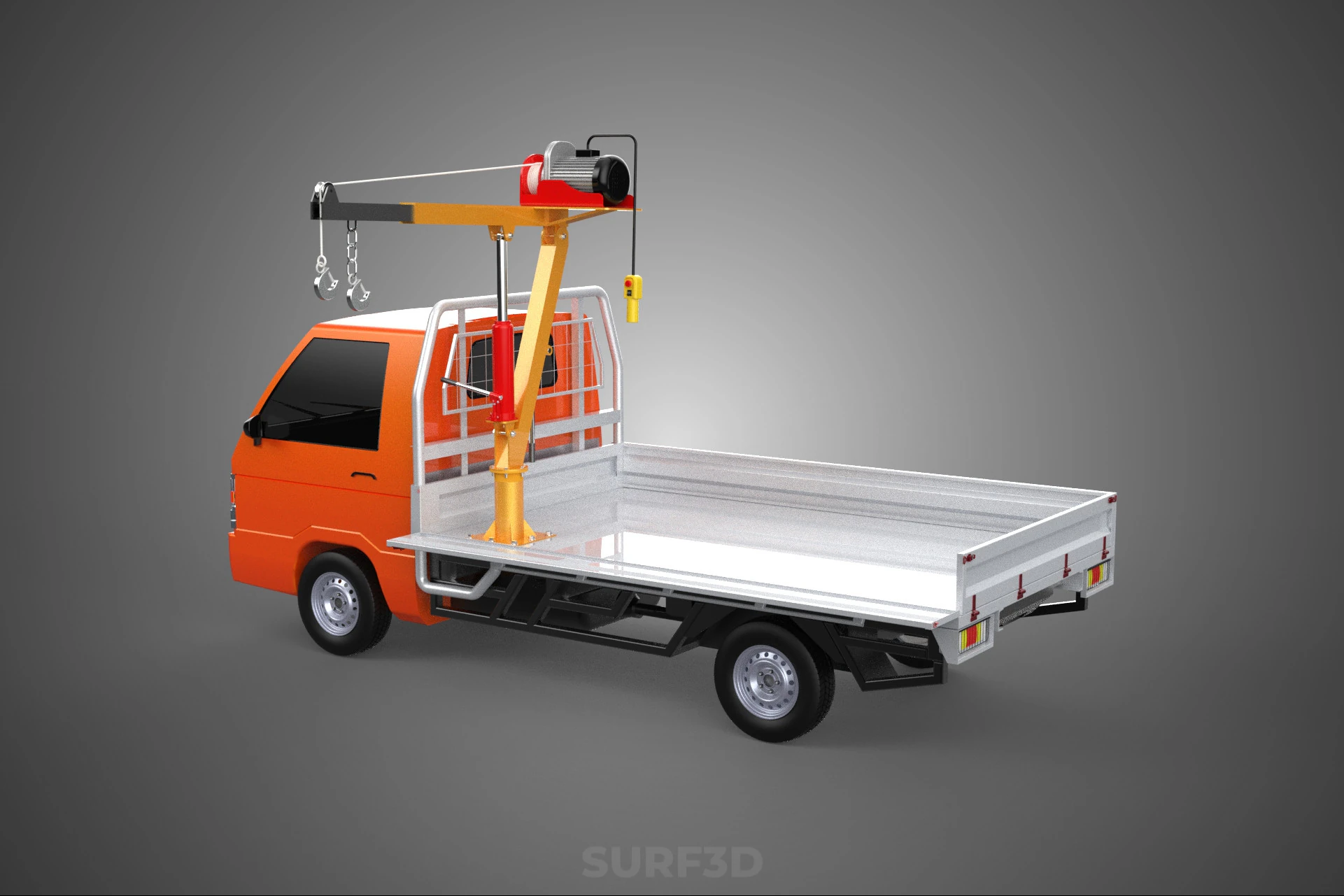

A "Dropside Folding Jib Crane Hoist Motor Crank Winch on a Truck Pickup" denotes a highly functional, integrated mobile lifting system engineered to enhance the cargo handling capabilities of a light- to medium-duty utility vehicle. This configuration leverages the inherent mobility and power of a pickup truck to provide versatile, independent loading and unloading operations across various sectors.

The foundational element is the **Truck Pickup**, serving as the mobile platform for the entire apparatus. These vehicles are selected for their robust chassis, engine power, and existing electrical systems, which are crucial for the crane's operation. The **Dropside** characteristic refers to the design of the truck bed, where the side and rear panels are hinged and can be lowered or entirely removed. This feature significantly enhances accessibility to the cargo area, allowing the crane to place or retrieve loads from the side of the truck bed without obstruction, a critical advantage for managing irregularly shaped or wide items, and for optimizing loading efficiency.

The primary lifting structure is the **Jib Crane**. Typically mounted to the truck's chassis, often at the rear, it comprises a vertical mast and a horizontal or luffing boom (the jib) from which the load is suspended. A defining feature is its **Folding** mechanism. This allows the jib arm to articulate and collapse into a compact, stowed position when not in use. The folding capability is vital for maintaining the vehicle's road legality, improving maneuverability in confined spaces, and reducing the overall footprint for transport and storage. Such mechanisms often incorporate hydraulic assistance for safe and controlled deployment and retraction.

The lifting power is provided by a dual-mode **Hoist** system, offering both powered and manual operation for maximum flexibility and reliability. The primary lifting mechanism is the **Motor**-driven hoist. This electric motor, commonly a DC unit, draws power from the truck's electrical system (e.g., 12V or 24V DC) or a dedicated auxiliary battery. It provides continuous and efficient lifting and lowering of loads via a durable steel cable or synthetic rope. Complementing this, a **Crank Winch** is integrated. This manual winch serves as a backup in case of electrical failure or for scenarios demanding extremely precise load positioning. Operated by a hand-cranked lever, it uses mechanical advantage to raise or lower loads, ensuring operational continuity under diverse conditions.

Operationally, the system transforms the pickup into a self-sufficient material handler. Once the truck is positioned and, if necessary, stabilizing outriggers are deployed to prevent tipping, the jib crane is unfolded. Loads are attached to the hoist's hook, lifted clear, and then slewed (rotated) over the desired location, such as the truck bed or a worksite spot, before being lowered.

This integrated system finds extensive application across various industries, including construction (lifting tools, materials), agriculture (handling feed sacks, machinery components), landscaping (moving heavy plants, stones), utility services (positioning equipment), and general logistics (independent loading and unloading of goods).

**Advantages** of this configuration include enhanced operational independence, increased productivity by obviating the need for external lifting equipment, portability, and significant versatility. **Considerations** are paramount, including strict adherence to the crane's rated load capacity, maintaining vehicle stability through proper outrigger deployment, managing the gross vehicle weight rating (GVWR) to account for both the crane's weight and the lifted load, and ensuring operators are thoroughly trained in safe crane operation and load handling protocols.

This integrated "Dropside Folding Jib Crane Hoist Motor Crank Winch on a Truck Pickup" represents a pragmatic and cost-effective solution for tasks requiring intermittent heavy lifting combined with high mobility, bridging the gap between manual labor and larger, dedicated mobile crane units.

KEYWORDS: Mobile crane, utility crane, pickup truck crane, truck-mounted crane, jib crane, folding crane, hoist system, electric hoist, manual winch, dropside bed, material handling, lifting equipment, portable crane, self-loading, light duty crane, vehicle-mounted, cargo handling, load lifting, logistics equipment, construction equipment, agricultural machinery, compact crane, industrial lifting, vehicle utility, work truck, chassis mount, hydraulic assist, outriggers, payload management, independent loading.
