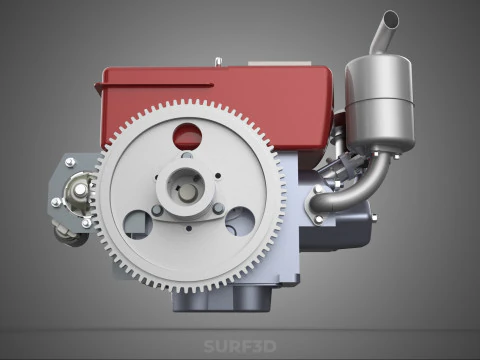

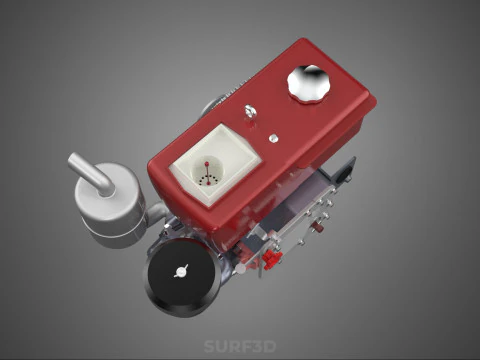

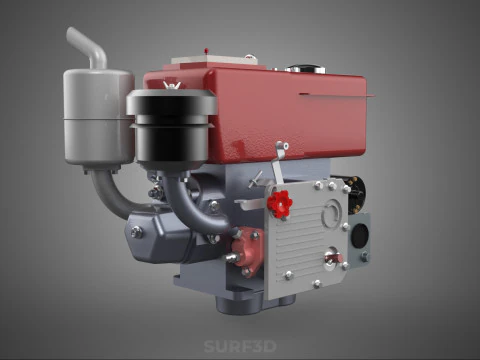

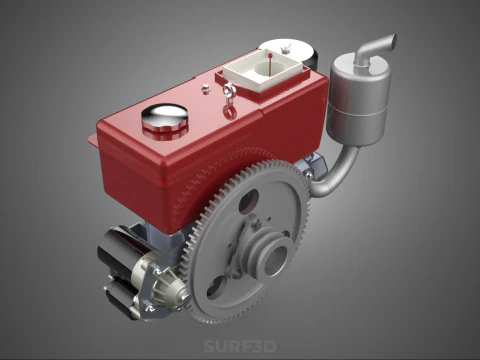

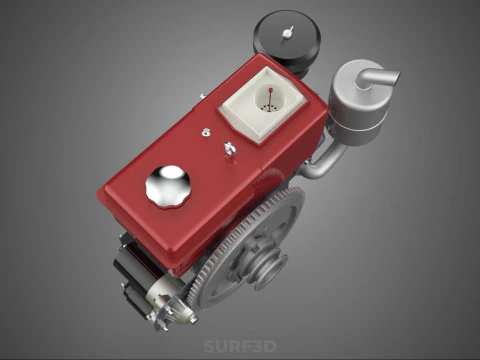

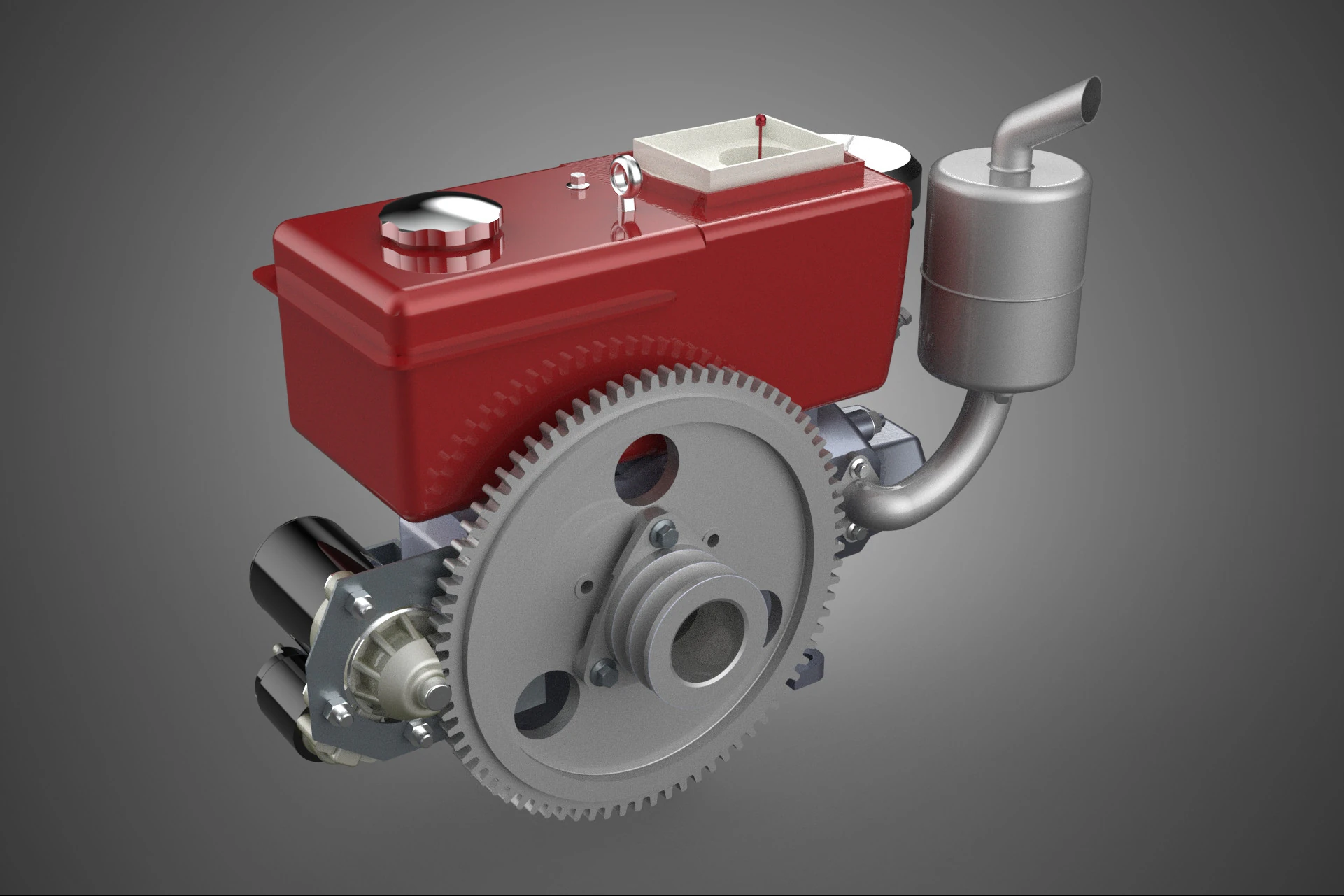

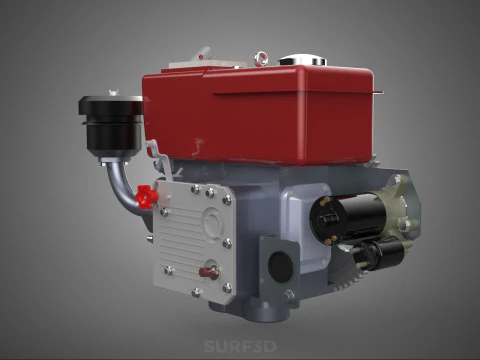

RED SINGLE CYLINDER DIESEL ENGINE MACHINE ELECTRIC STARTER MOTOR 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The apparatus described is a highly standardized utility power unit, formally classified as a single-cylinder, compression-ignition (CI) engine, typically employed as a prime mover in stationary or mobile mechanical systems. The designation "single cylinder" indicates a non-multi-cylinder configuration, wherein all power generation is derived from a singular piston operating within a dedicated bore. This architecture is favored in applications requiring high torque at low rotational speeds, simplicity of maintenance, and maximized fuel efficiency within a compact footprint.

### Technical Configuration and Operation

The vast majority of such engines operate on the four-stroke (Otto or Diesel) cycle, though low-power variants may utilize a two-stroke design. Given the specification as a diesel engine, operation relies exclusively on the heat generated by adiabatic compression to ignite the injected fuel (usually diesel fuel oil). This necessitates significantly higher compression ratios—typically ranging from 15:1 to 22:1—than those found in spark-ignition engines, a critical factor influencing the design requirements for the starting mechanism.

Single-cylinder diesel engines in this utility class often feature displacements ranging from 0.2 to 1.5 liters and nominal power outputs between 3 and 25 brake horsepower (bhp). Cooling is managed either by direct atmospheric air circulation (air-cooled, common in smaller units) or by circulating liquid coolant through a radiator and water jacket (water-cooled, preferred for higher duty cycles or prolonged stationary operation). Fuel injection is typically direct, utilizing a mechanical or electronically controlled fuel pump to deliver precise atomized fuel into the combustion chamber near Top Dead Center (TDC).

### The Electric Starting System

The inclusion of an electric starter motor (ESM) is a primary defining feature of this specific machine type, representing a significant enhancement over manual rope-pull or decompression-lever crank systems. The ESM is a dedicated, high-torque direct current (DC) motor, usually rated at 12-volt or 24-volt, powered by an external storage battery.

The fundamental function of the ESM is to overcome the inherent inertia and substantial resistance generated by the high compression ratio necessary for diesel auto-ignition. The starting sequence involves:
1. **Engagement:** An electromagnetic solenoid is energized, physically shifting a small pinion gear (part of the Bendix drive mechanism) forward.
2. **Meshing:** The pinion gear mates with the significantly larger ring gear permanently affixed to the periphery of the engine flywheel.
3. **Cranking:** The DC motor applies intensive rotational force to the flywheel, rapidly accelerating the piston until the required minimum cranking speed (typically 150–250 RPM) is achieved, allowing for sufficient air compression and subsequent fuel combustion.

This system greatly increases operational convenience, reduces operator fatigue, and is essential for remote or automated starting applications.

### Application and Nomenclature

These red single-cylinder diesel engines are recognized globally as reliable, medium-power prime movers. They are extensively deployed in:
* **Agriculture:** Small tractors, irrigation pumps, threshers, rice hullers.
* **Construction:** Compact portable generator sets, concrete mixers, plate compactors.
* **Industrial:** Hydraulic power packs, auxiliary power units (APUs).

The color descriptor "red" is typically an industrial aesthetic or branding convention. In many manufacturing contexts, red enamel is utilized as a durable, high-visibility protective coating, offering resistance to corrosion and environmental degradation, while simultaneously identifying the product line of a specific Original Equipment Manufacturer (OEM).

KEYWORDS: Single Cylinder, Diesel Engine, Compression Ignition, Electric Starter Motor, Prime Mover, Utility Engine, Monocylinder, Four-Stroke, Small Diesel, Generator Set, Irrigation Pump, Industrial Machinery, High Torque, Air-Cooled, Water-Cooled, Flywheel, Bendix Drive, Solenoid, Direct Injection, Stationary Engine, Agricultural Machinery, Power Unit, Compact Design, High Efficiency, Low RPM, DC Motor, 12V System, Cranking Speed, Engine Block, Red Enamel.
