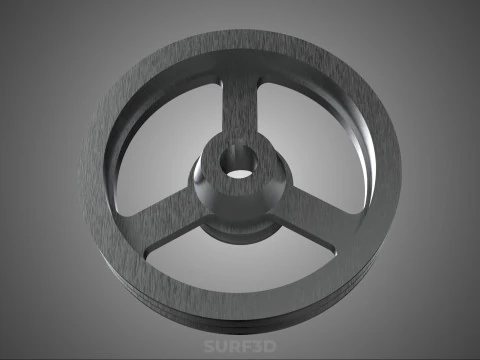

2 STEP STEPPED PULLEY CHANNEL GROOVE SHEAVE V BELT TRACTOR WHEEL 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The device described, "2 STEP STEPPED PULLEY CHANNEL GROOVE SHEAVE V BELT TRACTOR WHEEL," represents a specialized mechanical power transmission component typically employed in agricultural or heavy-duty outdoor equipment, particularly in systems related to tractor operation, auxiliary drives, or hydrostatic control interfaces. This composite title describes a sheave assembly optimized for robust, reliable, and manually adjustable velocity conversion using standardized V-belts.

### Structural and Geometric Characteristics

The fundamental structure is that of a **Stepped Pulley**, a common device in variable-speed drive systems. The "2 STEP" designation confirms the inclusion of two distinct, concentric diameters mounted on a single hub or axle. This arrangement facilitates the alteration of the drive ratio—and thus the output speed and torque—by manually shifting the V-belt from the groove of one step to the groove of the other.

The active surface is a **Channel Groove Sheave**, or pulley wheel, specifically engineered to interface with **V Belts**. V-belts possess a trapezoidal cross-section, which fits securely into the corresponding V-shaped groove cut into the sheave's circumference. This geometry utilizes the "wedging action" principle: as the belt tension increases under load, the belt seats deeper into the groove walls, significantly increasing frictional grip. This superior traction minimizes slippage compared to flat belt drives, making the system highly efficient for high-torque applications common in agricultural machinery.

Materials utilized for such sheaves are typically high-strength cast iron (e.g., gray iron or ductile iron) or machined steel alloys, selected for their resistance to abrasion, shock loading, and fatigue inherent in continuous outdoor operation.

### Functional Operation and Application Context

The application descriptor, **Tractor Wheel**, places this assembly within the demanding operational environment of agricultural tractors or associated implements. While the term might suggest direct mounting on the main traction wheel, it more commonly denotes a component built to the durability standards required for tractor systems, often serving one of the following purposes:

1. **Auxiliary Drive System:** The stepped pulley may drive accessories (e.g., hydraulic pumps, small generators, cooling fans) from the main power train. The two steps allow operators to optimize accessory speed based on the tractor’s engine speed or specific task requirements.
2. **Hydrostatic/Transmission Control:** In sophisticated systems, sheaves may be used to interface with components of a hydrostatic transmission or provide a robust, adjustable drive for low-speed creeper gears or specialized Power Take-Off (PTO) mechanisms that require specific, standardized rotational speeds.
3. **Implement Power Interface:** The sheave may be mounted on an implement (such as a baler or combine header) to receive power via a long V-belt connection from the tractor’s PTO, allowing the implement's required operational speed to be fine-tuned via the step selection.

The **2 STEP** configuration ensures that two distinct, fixed velocity ratios ($R_1$ and $R_2$) are readily available. If the sheave serves as the driver, shifting the belt to the smaller diameter step increases the rotational speed of the driven component, while shifting to the larger diameter step decreases the speed, proportionally increasing the available output torque (mechanical advantage).

In summary, this component combines the simplicity of manual ratio adjustment (stepped pulley) with the efficiency and robust power transmission of V-belt systems (channel groove sheave), engineered specifically for the harsh, high-load requirements of mechanical systems associated with tractor operations.

KEYWORDS: Stepped Pulley, V-Belt, Sheave, Channel Groove, Power Transmission, Velocity Ratio, Torque Conversion, Agricultural Machinery, Tractor Component, Mechanical Drive, Fixed Ratio, Variable Speed, Drive System, Auxiliary Drive, Cast Iron, High Torque, Industrial Pulley, Rotational Speed, PTO Interface, Traction Equipment, Double Step, Grooved Sheave, Wedging Action, Power Transfer, Drive Mechanism, Belt Tension, Farm Equipment, Coaxial Mount, Differential Drive, Heavy Duty
