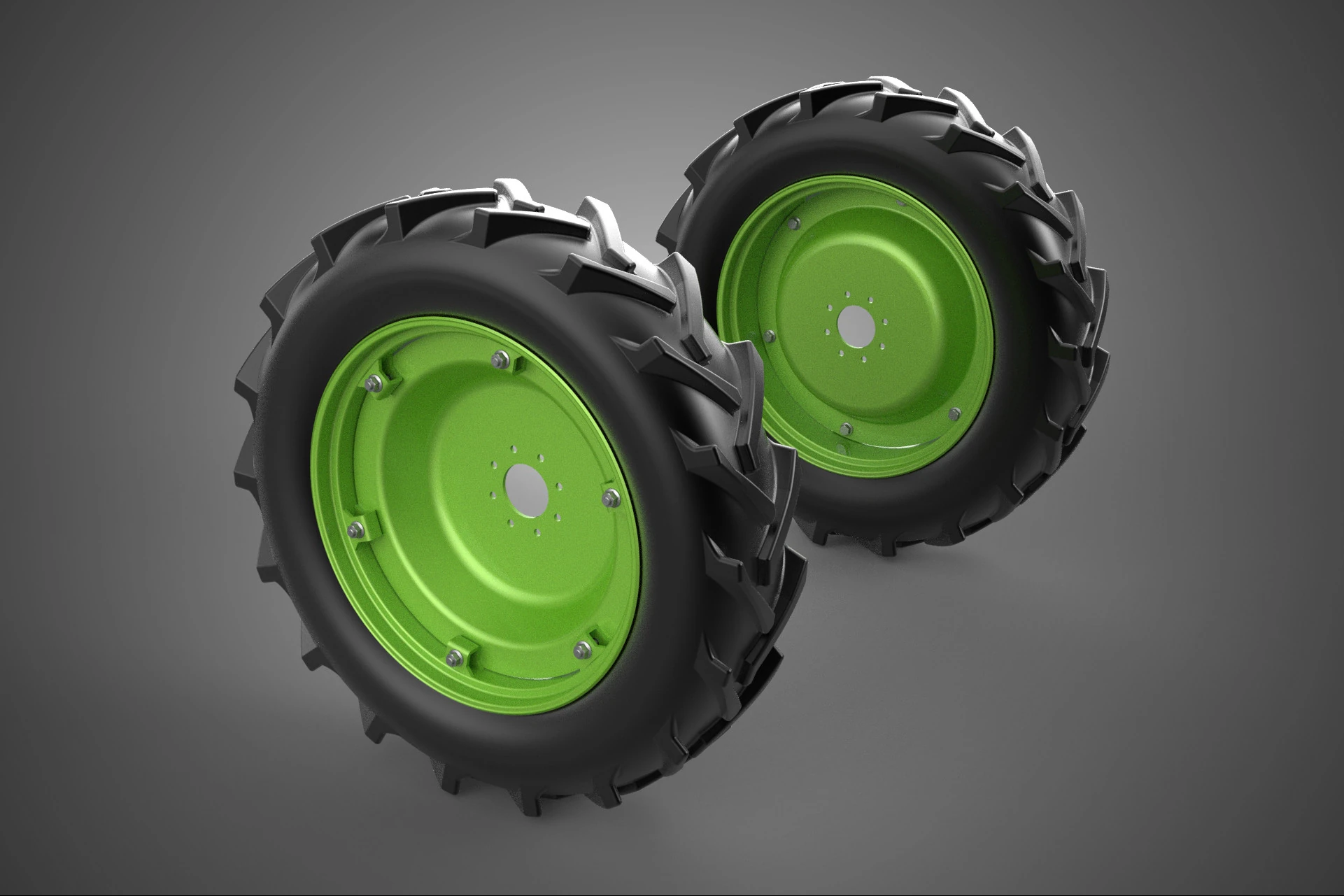

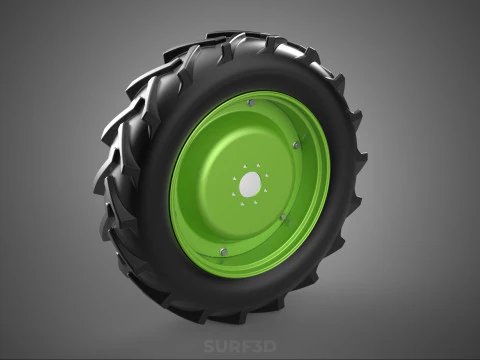

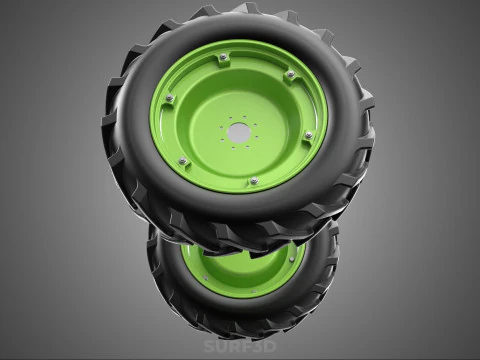

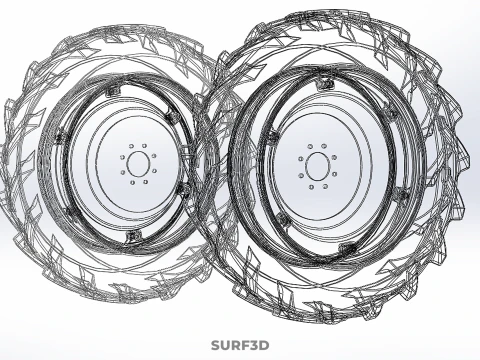

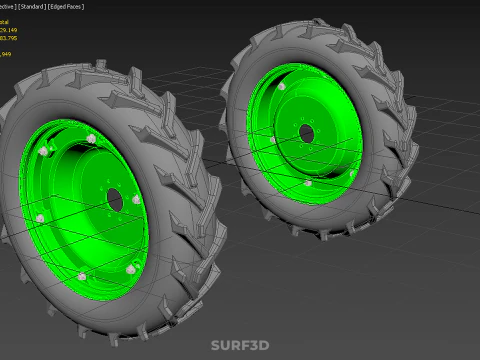

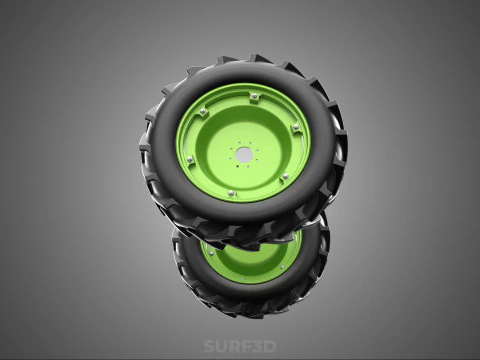

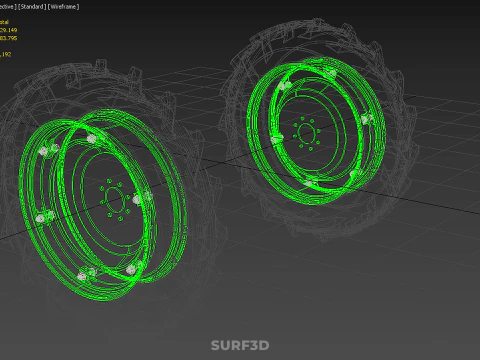

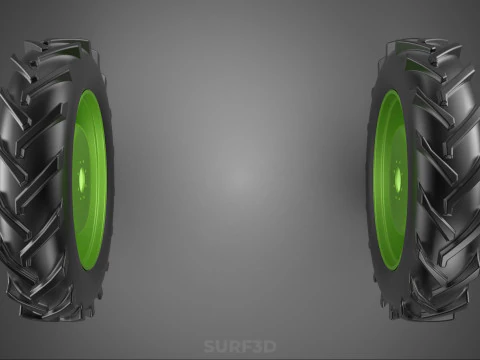

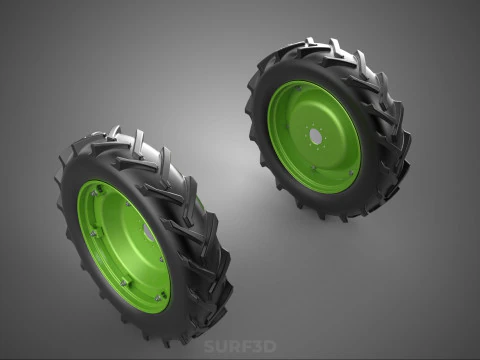

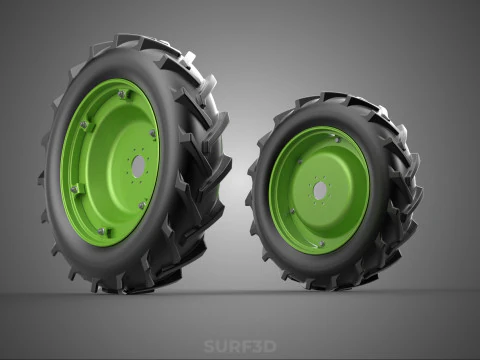

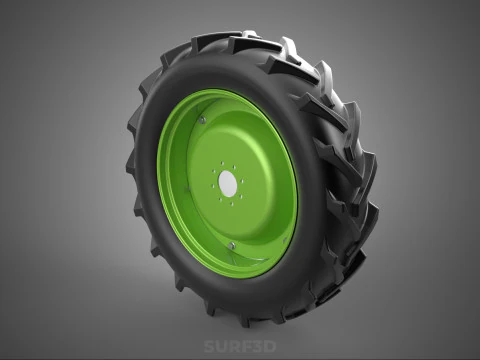

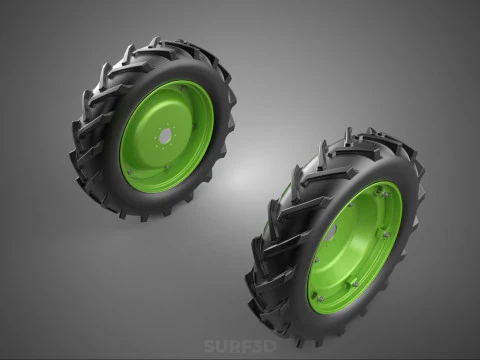

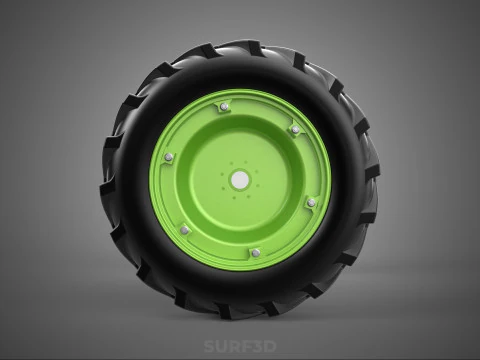

LARGE TRACTOR TIRE TREAD TYRE LUG WHEEL RUBBER RIM GRIP VEHICLE 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The large tractor tire, often interchangeably referred to utilizing both North American (Tire) and Commonwealth (Tyre) nomenclature, is a specialized, heavy-duty pneumatic drive assembly engineered to provide maximum traction, flotation, and load-bearing capacity for agricultural and heavy off-road vehicles. Its defining characteristic is the aggressive, deep-patterned tread, universally recognized as **lugs** or traction bars.

### Design and Functionality

The primary purpose of the large tractor tire is the efficient conversion of engine torque into vehicular motion across deformable surfaces such as cultivated soil, mud, and sand, where conventional highway tires would fail to achieve adequate grip.

**Tread Profile (Lugs):** The lugs are the projecting rubber bars that form the tread pattern. They are engineered to bite deeply into the terrain, creating the necessary shear strength for propulsion. The standard configuration for drive tires (R-1 or ‘Regular Traction’) is an angled, directional chevron pattern. The angle and curvature of these lugs are crucial, as they optimize grip while simultaneously serving a self-cleaning function. As the tire rotates, the flexing action and the angle of the bars actively shed mud and debris, ensuring that the tread remains operational rather than becoming clogged.

**Tire Construction:** Large tractor tires are manufactured using two principal carcass construction methods:
1. **Bias-Ply (Cross-Ply):** Older design where ply layers run diagonally from bead to bead. These tires are robust but suffer from increased heat buildup and offer less flexibility in the contact patch.
2. **Radial-Ply:** The predominant modern design. Ply cords run perpendicular to the direction of travel, with stabilizing steel belts positioned under the tread. Radial construction allows the sidewalls to flex independently of the tread area, leading to a longer, wider footprint (contact patch). This increased contact area distributes the vehicle's weight more broadly, significantly lowering the **ground bearing pressure** and thereby mitigating harmful **soil compaction**, a critical agricultural consideration.

**The Rim and Wheel Assembly:** The tire carcass is mounted onto a robust steel **rim** or wheel. The secure interface between the tire (the bead) and the rim must be engineered to withstand the extreme lateral forces and dynamic loads encountered during plowing, turning, and heavy hauling. The wheel structure itself provides the rigid base necessary for maintaining the integrity of the tire's internal pressure and transferring the driving force from the axle.

### Engineering Specifications

Tractor tires are specified by criteria that differ fundamentally from road tires, focusing on load, speed, and specific field application:

| Feature | Specification Focus |
| :--- | :--- |
| **Flotation** | The tire’s ability to remain on the surface of soft terrain. Maximized by high aspect ratios (large volume) and low inflation pressure. |
| **Load Rating** | Indication of the maximum weight the tire can safely support at a specified inflation pressure and speed (usually expressed by a Load Index). |
| **Tread Depth Classification** | Standardized industry codes (e.g., R-1 for standard agriculture, R-2 for wetland rice tires with 150% tread depth, R-3 for minimal turf damage). |
| **Rubber Compound** | A blend of natural and synthetic rubber engineered for durability, flexibility at low temperatures, and resistance to abrasion, punctures, and ozone deterioration. |

The aggressive lug pattern is essential for maximizing traction (grip) but must be balanced against considerations of overall vehicle stability and the minimization of rolling resistance on hard-packed surfaces. The design of these tires represents a sophisticated compromise between maximizing torque transmission in soft earth and maximizing flotation to protect soil structure.

KEYWORDS: Tractor tire, agricultural machinery, traction lug, chevron tread, radial tire, bias-ply, soil compaction, flotation, ground pressure, torque transfer, rubber compound, rim assembly, wheel grip, R-1 classification, self-cleaning, pneumatic tire, bead, heavy vehicle, farm equipment, load rating, high aspect ratio, sidewall flexibility, carcass construction, agricultural engineering, bar angle, drive tire, off-road mobility, abrasion resistance, synthetic rubber, traction bar.
