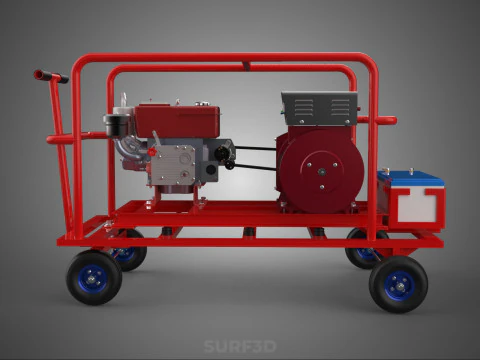

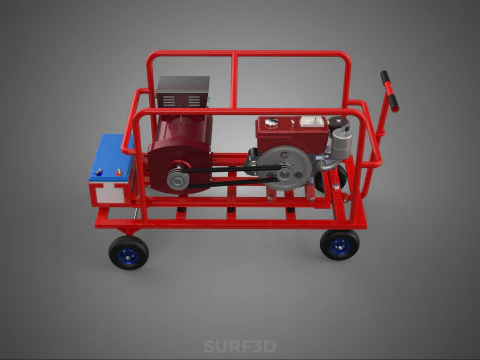

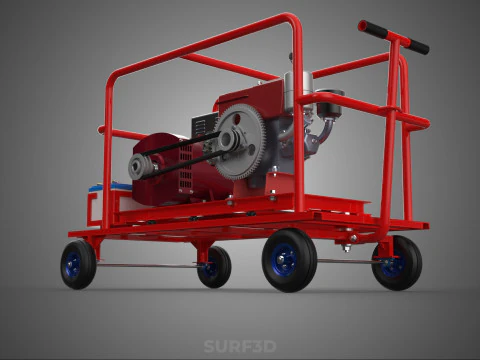

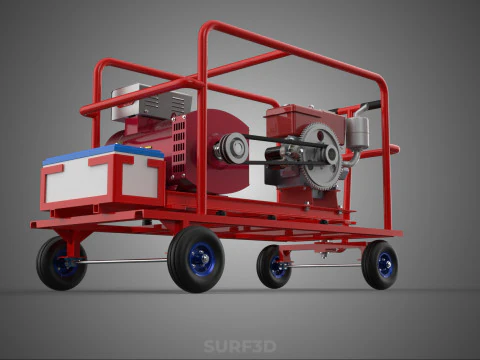

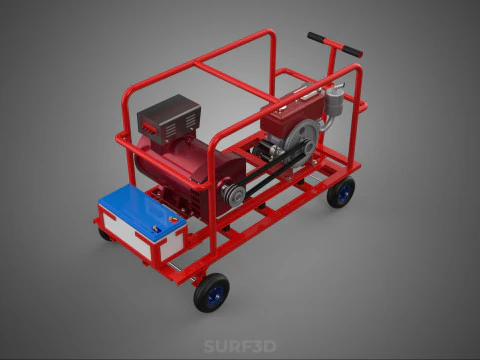

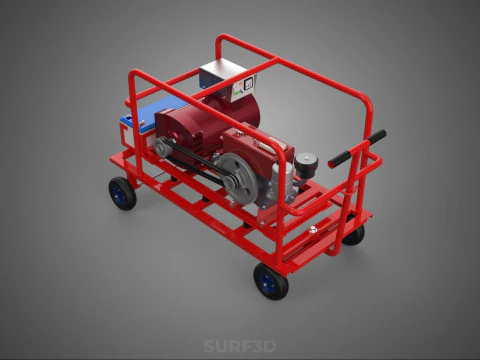

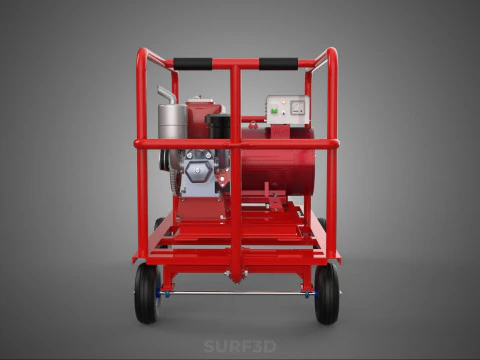

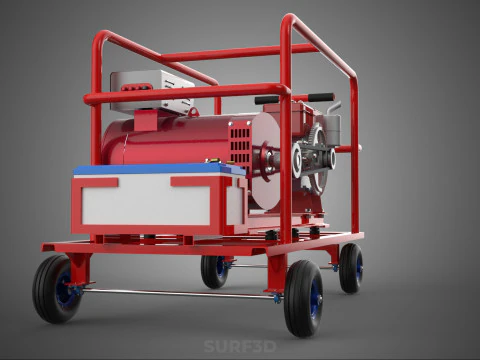

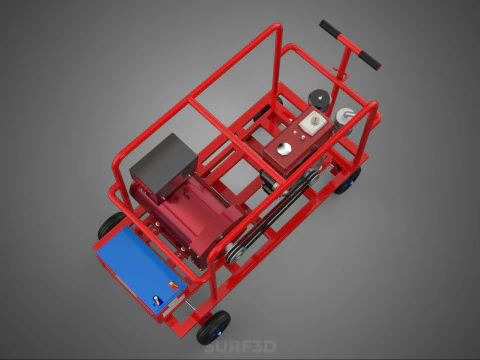

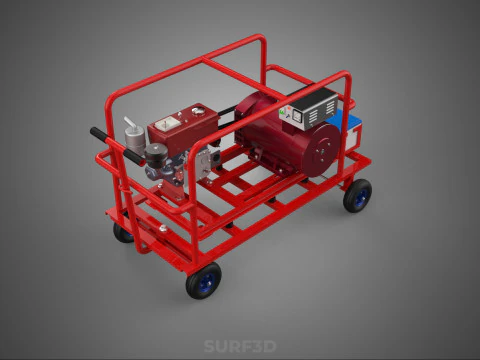

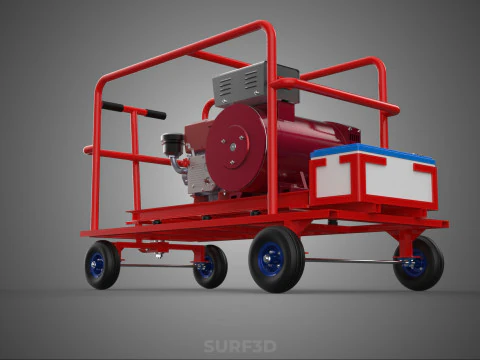

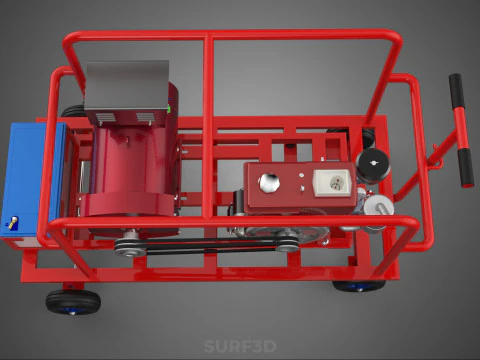

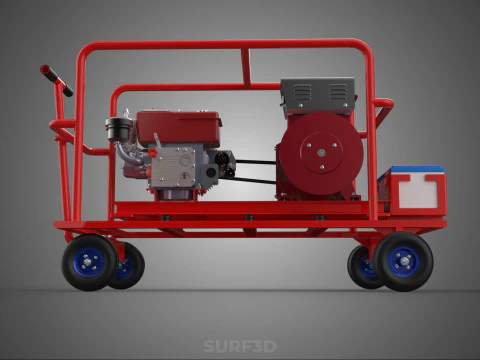

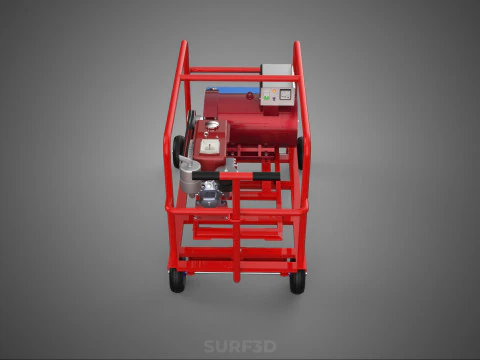

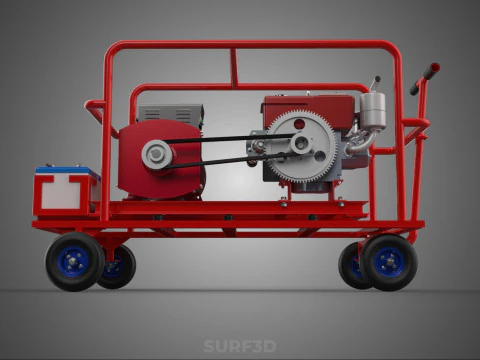

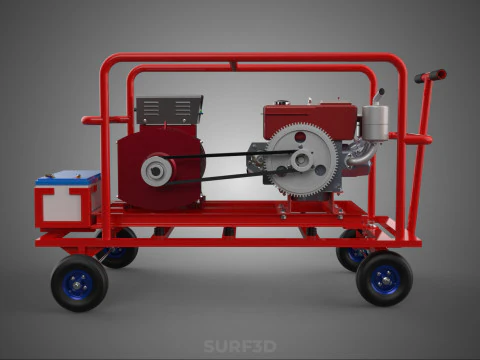

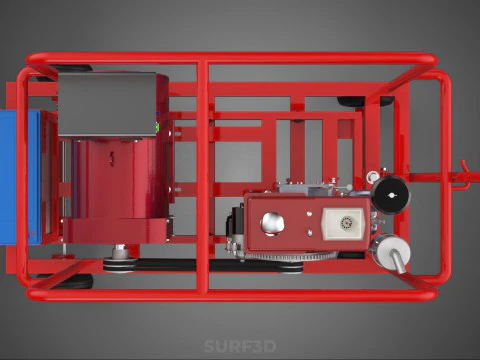

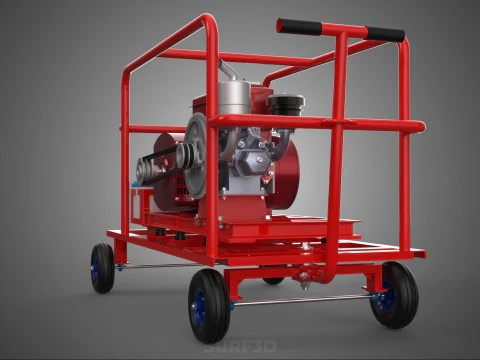

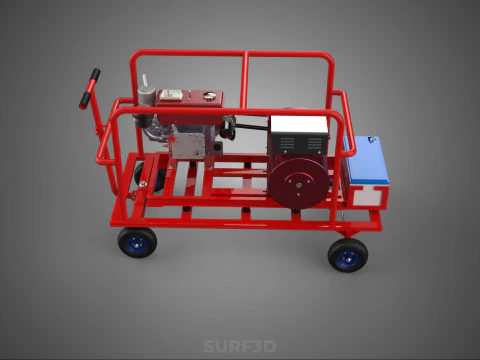

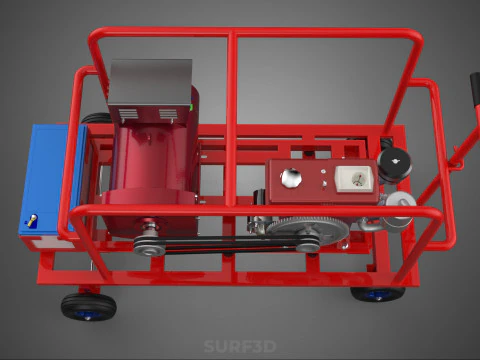

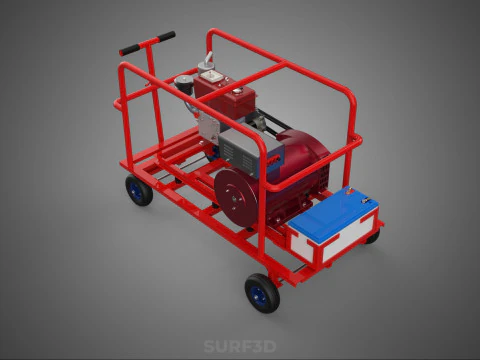

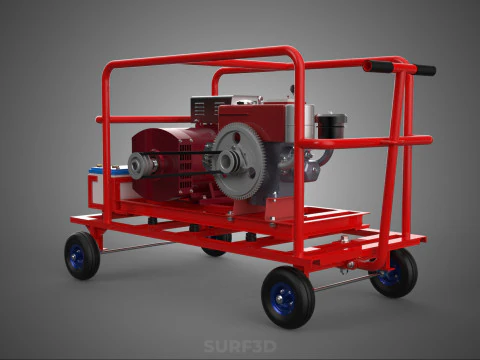

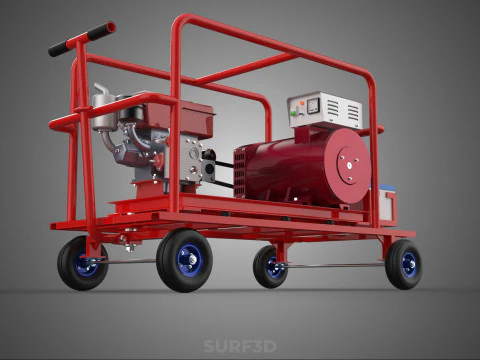

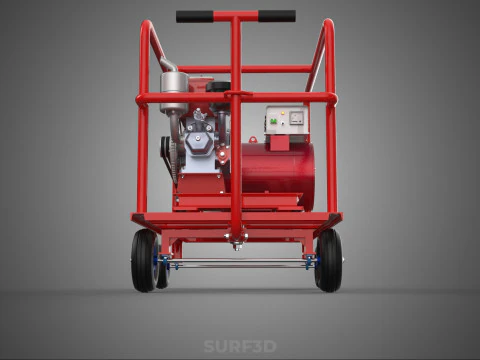

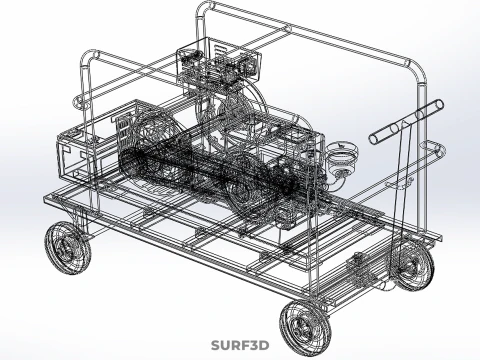

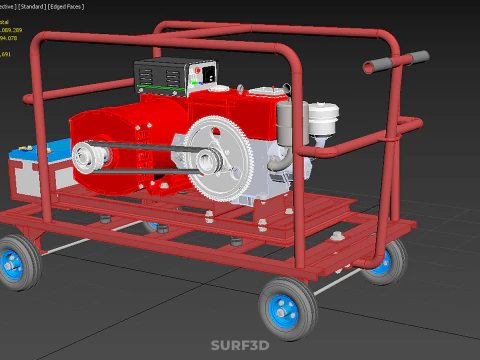

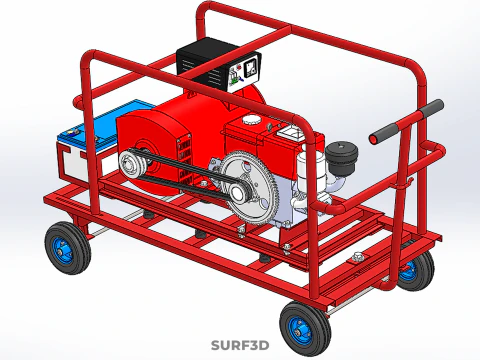

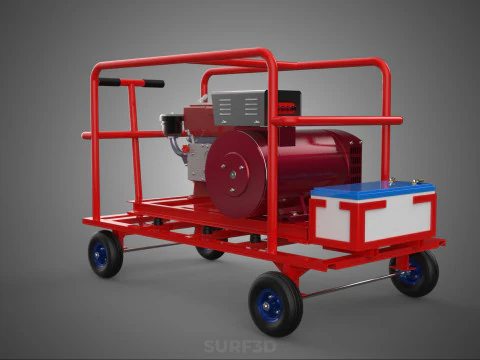

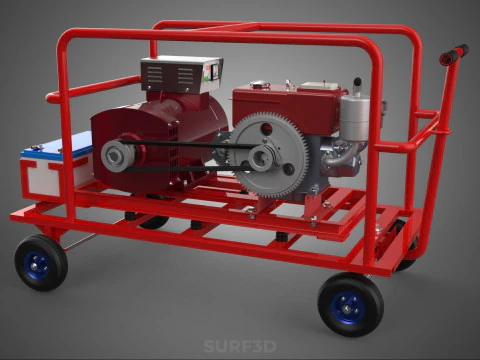

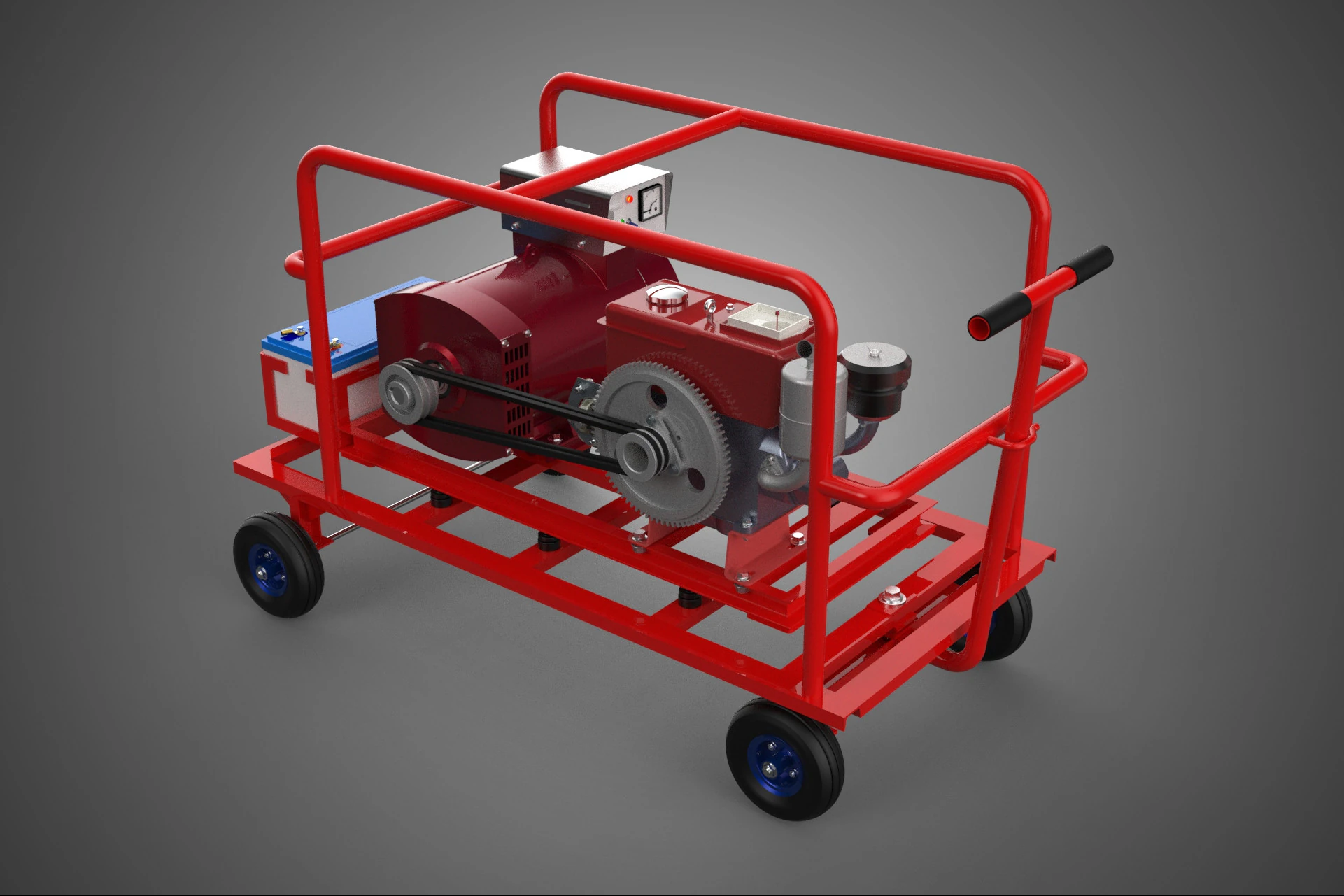

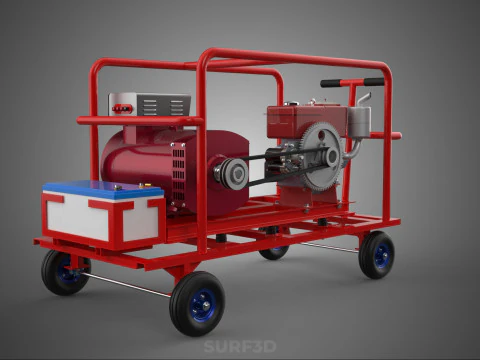

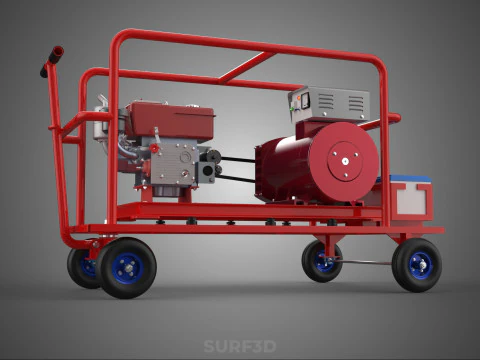

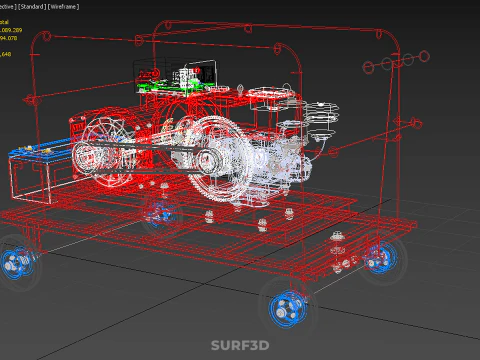

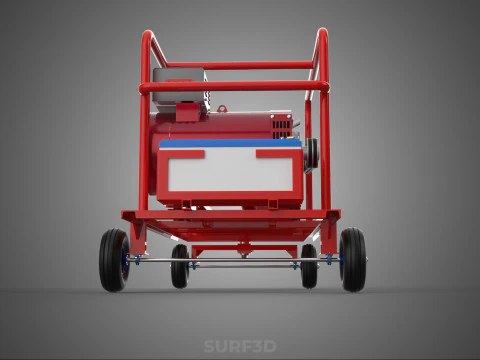

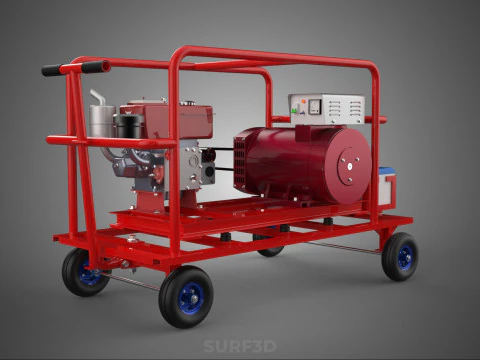

STANDARD DIESEL ENGINE POWER GENERATOR SET MOBILE TROLLEY CART 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
**STANDARD DIESEL ENGINE POWER GENERATOR SET MOBILE TROLLEY CART**

The Standard Diesel Engine Power Generator Set Mobile Trolley Cart, frequently referred to in industrial nomenclature as a Portable Diesel Genset, is a self-contained, wheeled apparatus engineered to produce electrical energy utilizing a compression-ignition internal combustion engine coupled to an electrical alternator. This configuration is specifically designed for high mobility, rapid deployment, and localized power provision, typically ranging from 3 kVA to 20 kVA in output capacity.

### Design and Configuration

The fundamental structure of the unit is a robust, rigid frame, often fabricated from tubular or channel steel, which functions as the primary chassis. This frame supports the combined mass of the engine, alternator, fuel tank, and control panel. The defining characteristic is the inclusion of a specialized trolley or cart base, equipped with solid rubber or pneumatic wheels, and integrated handles or tow points enabling manual maneuvering or light mechanical transport across uneven surfaces within a construction site, maintenance facility, or event location.

A critical design element is the incorporation of advanced vibration isolation mounts, typically heavy-duty elastomeric pads or spring isolators, positioned between the genset skid and the mobile cart frame. These components are essential for mitigating the substantial torque and vibration inherent to diesel engine operation, thereby protecting the frame, reducing noise emissions, and enhancing the longevity of sensitive onboard electronics. The entire assembly is often housed within a sound-attenuated canopy or open frame, depending on noise requirements and intended environment.

### Core Power Generation Components

#### Engine
The power source is a standard four-stroke, liquid-cooled or air-cooled diesel engine. These engines are selected for their high thermal efficiency, durability, and ability to handle high load factors continuously. Essential supporting systems include an integrated fuel tank, a heavy-duty air intake filter system suitable for industrial environments, and a robust cooling system (radiator and fan assembly for liquid-cooled units). Safety mechanisms, such as automatic low oil pressure shutdown and high coolant temperature shutdown systems, are standard features mandated by safety and operational standards (e.g., ISO 8528 compliance).

#### Alternator
The engine drives a synchronous alternator, typically brushless and featuring a four-pole design to produce standard 50 Hz or 60 Hz alternating current (AC). The voltage output is stabilized by an Automatic Voltage Regulator (AVR), which monitors output voltage fluctuations and adjusts the exciter field current to maintain a consistent power factor and stable output required for sensitive electronic equipment. The alternator assembly is generally engineered to possess a high surge capacity, allowing it to manage the transient loads associated with motor starting.

### Control and Monitoring Systems

The mobile trolley cart genset features a comprehensive control panel, typically located for easy operator access and protection against environmental factors. Key features include:

1. **Instrumentation:** Analog or digital meters displaying critical operational parameters, including voltage (V), amperage (A), frequency (Hz), engine hours, fuel level, and oil pressure.
2. **Circuit Protection:** Output power is routed through appropriate circuit breakers (MCCBs or breakers) sized to prevent overload and short-circuit conditions.
3. **Output Receptacles:** Standardized industrial-grade outlets, sockets, or terminal boards (e.g., NEMA, IEC) are provided to facilitate immediate connection to loads.
4. **Emergency Stop:** A prominently placed, illuminated mushroom-head emergency stop button ensures immediate and complete shutdown of the unit in the event of a critical failure or safety hazard.

### Applications and Operational Environment

The inherent mobility of the trolley cart design makes these gensets ideal for applications requiring temporary or decentralized power access. Primary uses include:

* **Construction:** Powering handheld tools, temporary lighting, and small site offices.
* **Maintenance and Utility Work:** Providing power during planned outages or field repairs where fixed power infrastructure is inaccessible.
* **Emergency Backup:** Small-scale industrial or commercial backup power generation.
* **Event and Rental Power:** Short-term provision for remote events or film sets requiring reliable, maneuverable energy sources.

The small footprint and wheeled configuration allow the unit to be moved easily through doorways and into tight spaces, offering superior operational versatility compared to larger, skid-mounted or trailer-based generator sets.
