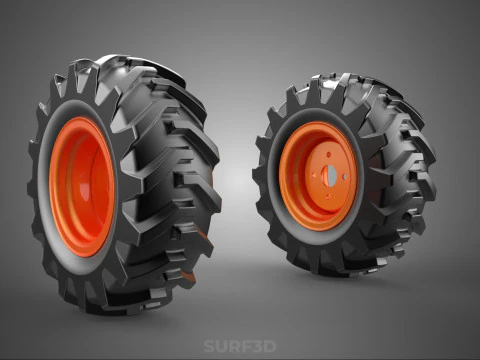

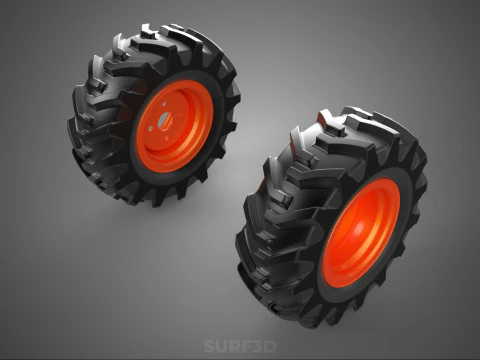

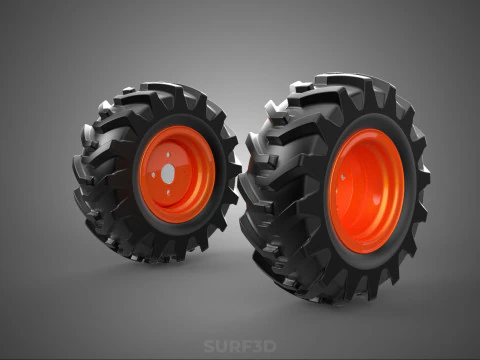

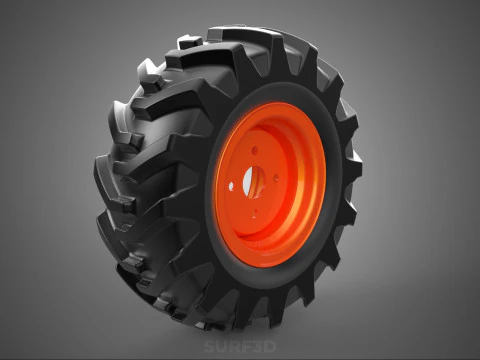

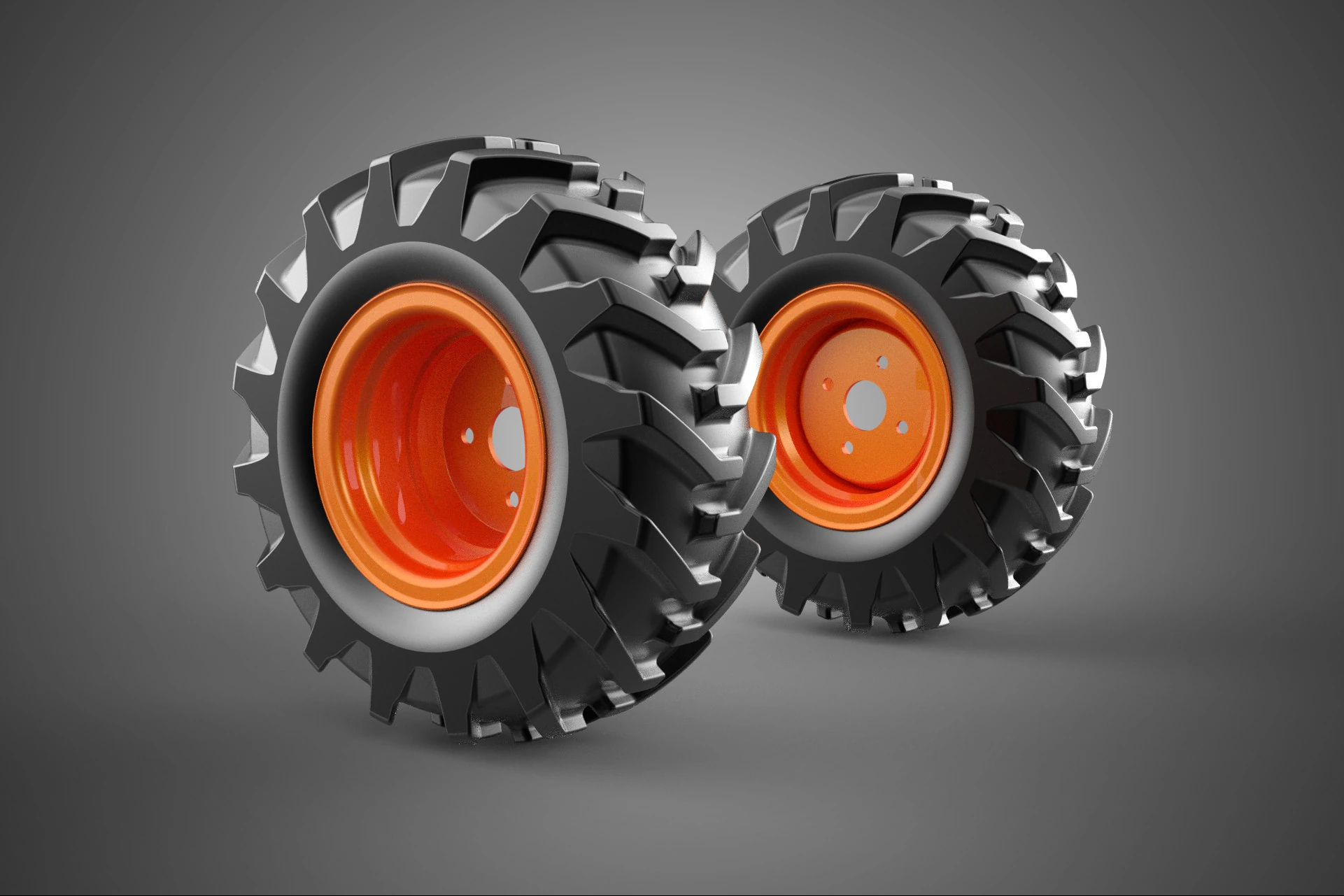

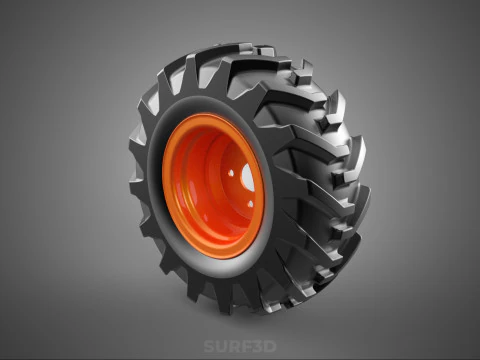

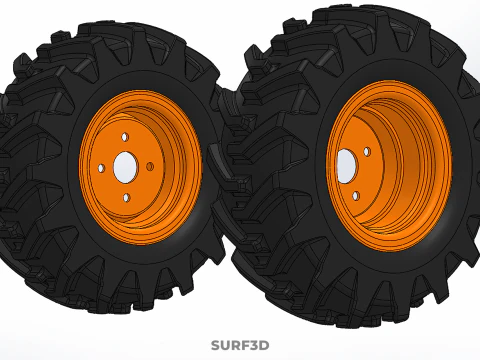

PAIR TRACTOR TIRE TREAD TYRE LUG WHEEL RUBBER RIM GRIP OFF ROAD 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A specialized **PAIR TRACTOR TIRE TREAD TYRE LUG WHEEL RUBBER RIM GRIP OFF ROAD** assembly refers to a set of two drive or steer wheels designed specifically for agricultural machinery, heavy industrial vehicles, or other off-highway applications requiring exceptional traction and durability across challenging terrains. This system is engineered to maximize the frictional interface (grip) between the vehicle and loose, soft, or deformable substrates, such as mud, clay, sand, or tilled soil.

### Design and Components

The assembly consists of three primary elements: the pneumatic tire (tyre), the metal wheel (rim), and the integrated system of tread and lugs.

#### 1. The Tire (Tyre) and Rubber Compound

Tractor tires are characterized by high volume and low inflation pressure, which minimizes ground pressure and prevents the vehicle from sinking—a property known as **flotation**. The tire construction is typically either bias-ply (cross-ply) or radial. Radial tires, which feature belts that run perpendicular to the direction of travel, are generally favored for modern applications due to their improved fuel efficiency, reduced rolling resistance, and larger footprint, which enhances traction.

The **rubber compound** utilized in these tires is specially formulated for resilience, high resistance to abrasion, ozone degradation, and puncture, essential given the severe operating environments (e.g., sharp debris, chemical exposure).

#### 2. The Tread and Lug System

The most distinctive feature is the aggressive, deep-patterned tread, defined by prominent, widely spaced projections called **lugs** or **cleats**. These lugs are primarily directional, typically arranged in a V-pattern that converges toward the center of the tire. This pattern is designed to achieve maximum mechanical interlocking with the soil.

* **Traction Mechanism:** Grip is achieved not merely through adhesion (like road tires) but through mechanical shearing resistance. The lugs penetrate the soft surface, gripping the undisturbed soil below, transmitting torque effectively to propel the vehicle.
* **Self-Cleaning:** The wide spacing between the lugs is critical for the *self-cleaning* action. As the tire rotates and flexes, centrifugal force and the deformation of the rubber expel trapped mud and debris, ensuring that the lugs remain exposed and functional, maintaining optimal grip.
* **Lug Classification:** Agricultural tires are often classified by tread type (e.g., R-1 standard tread, R-2 deep tread for wet/paddy fields, R-4 industrial/construction tread), reflecting variations in lug depth and spacing tailored to specific soil conditions.

#### 3. The Wheel (Rim)

The wheel, or rim, is the structural component, typically constructed from robust, heavy-gauge steel, upon which the tire is mounted. It must withstand extreme radial and lateral loads, high rotational torque, and corrosive environmental factors. Rims for heavy equipment often feature robust bead retention systems to ensure the tire remains seated even at minimal operational pressures.

### Off-Road Performance and Application

This specialized assembly is paramount to the operational effectiveness of vehicles operating Off-Highway (OHV). The primary objective is to maximize the efficiency of power delivery, minimizing **wheel slip**—the difference between the theoretical distance the wheel travels based on rotation and the actual distance traveled. Excessive slip wastes fuel, reduces productivity, and causes unnecessary soil disturbance. The deep lugs are essential for controlling slip within the optimal range (typically 10% to 15% for optimal agricultural efficiency).

Applications include primary tillage, planting, harvesting, earthmoving operations, logging, and heavy-duty construction where standard highway tires would immediately lose mobility. The **PAIR** descriptor emphasizes the necessity of matched tire specifications (diameter, width, load rating, and tread pattern) on a single axle to ensure balanced load distribution and consistent traction characteristics.

***

KEYWORDS: Agricultural, Traction, Cleat, Bias-ply, Radial, Steel rim, Off-highway, Earthmoving, Slip ratio, Carcass, Bead, Sidewall, Resilience, Durability, Flotation, Power hop, Self-cleaning, Pneumatic, Load rating, Torque, Farm equipment, V-tread, Industrial tire, Ground pressure, Shearing resistance, Tillage, Lug depth, Wheel assembly, Mud terrain, Grip.
