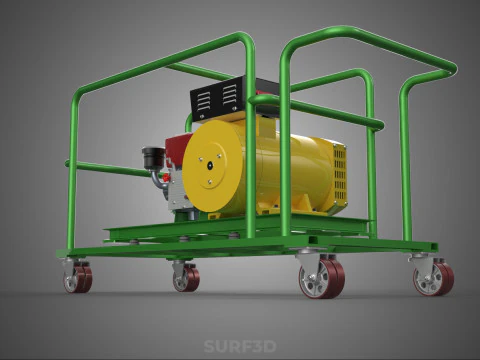

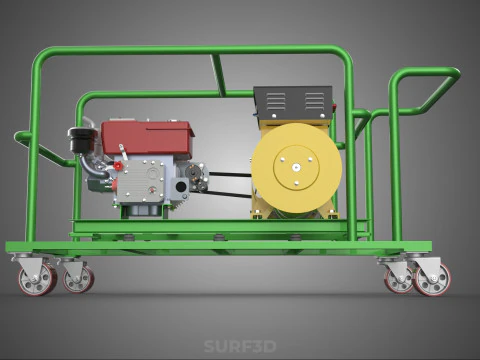

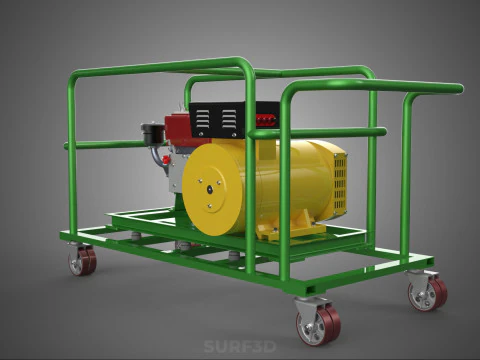

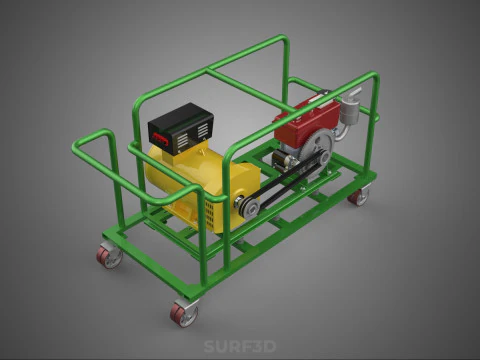

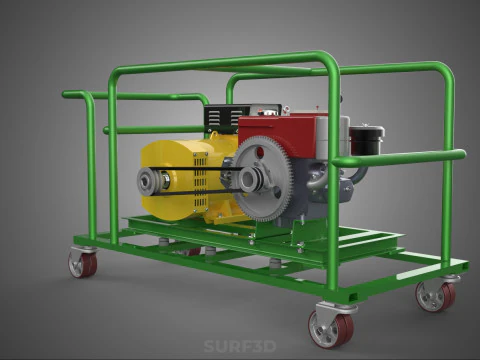

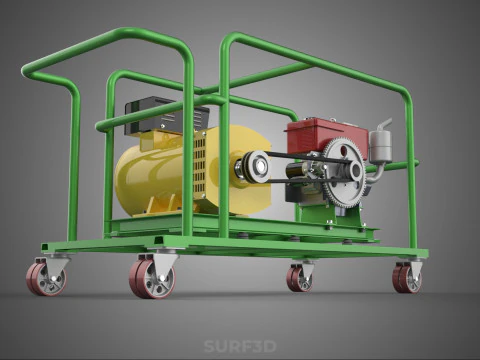

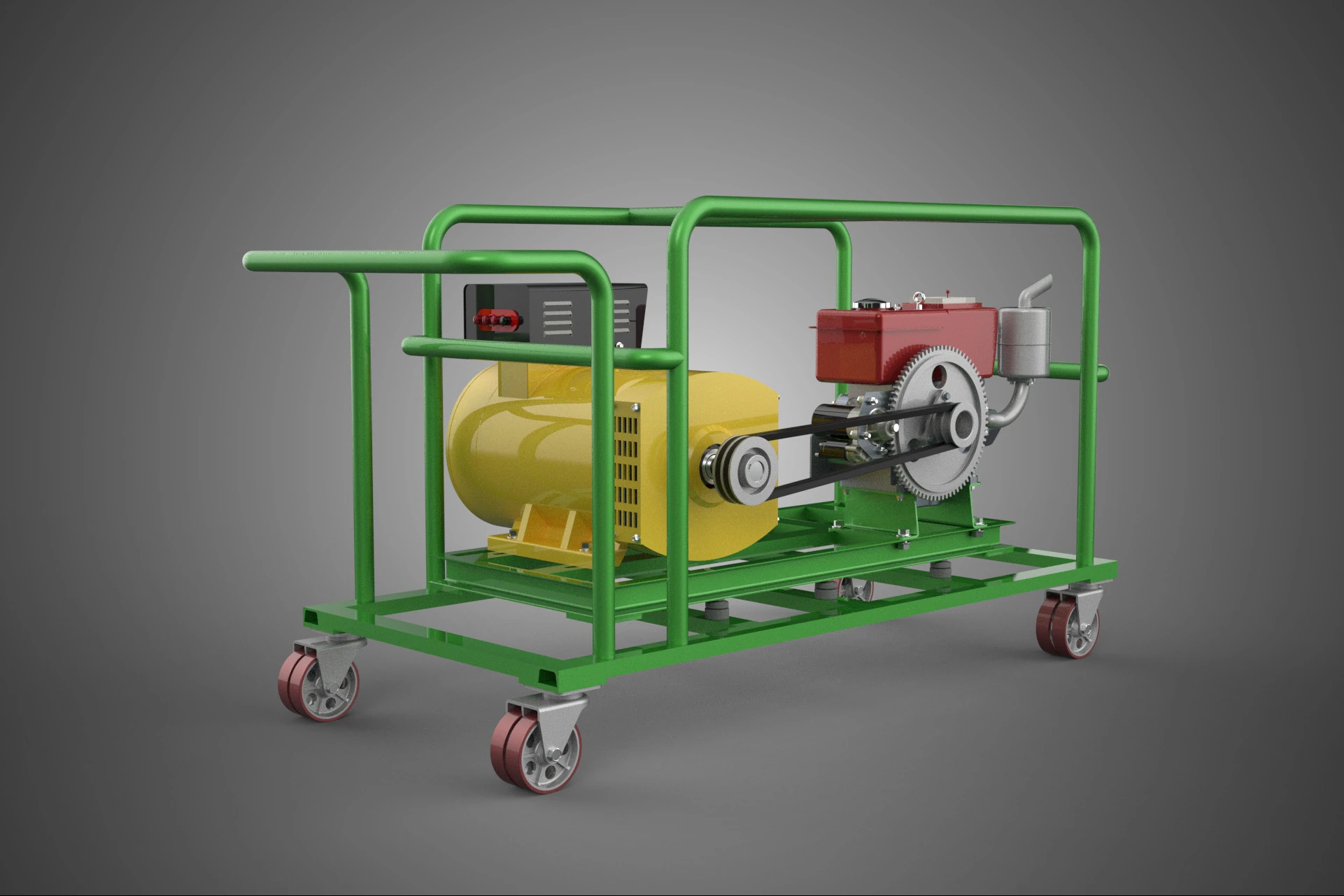

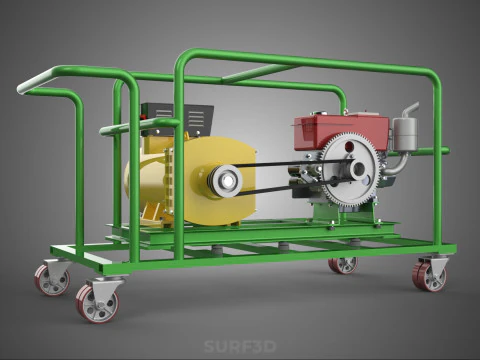

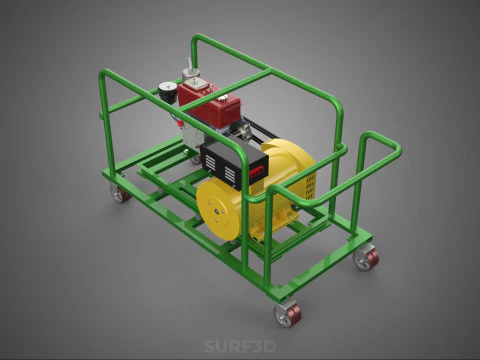

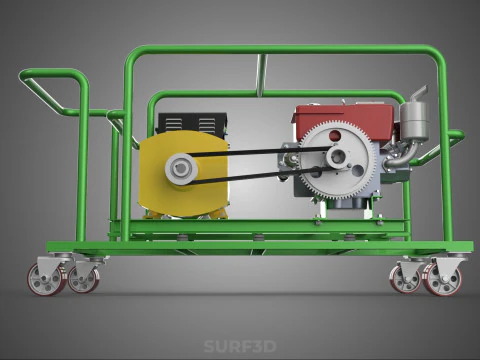

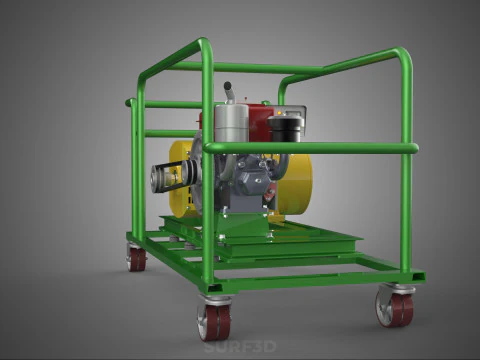

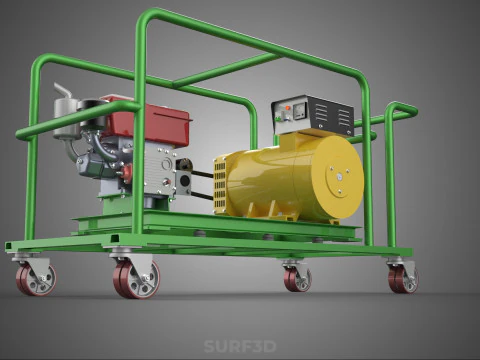

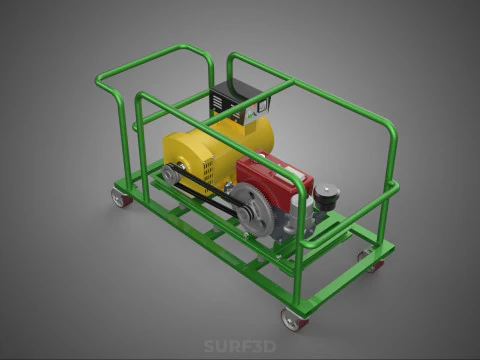

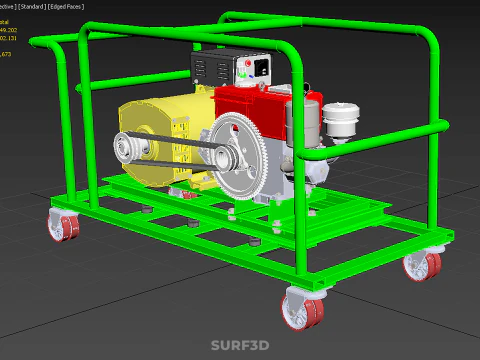

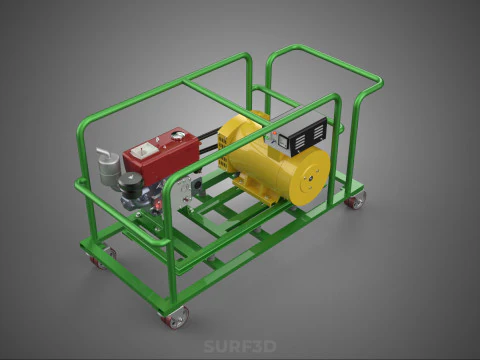

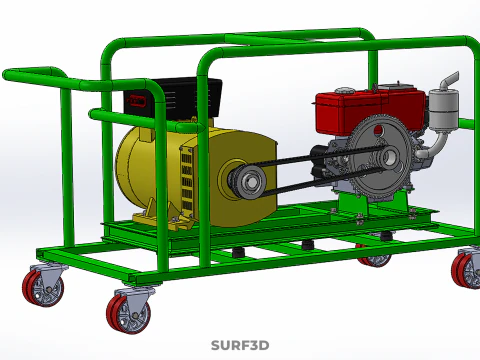

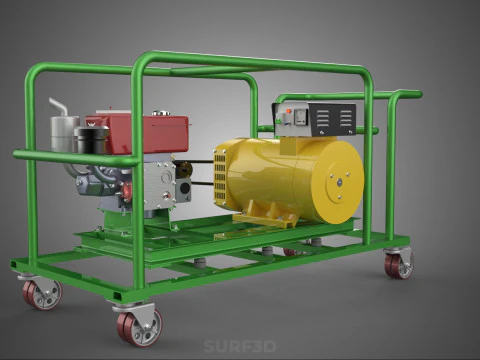

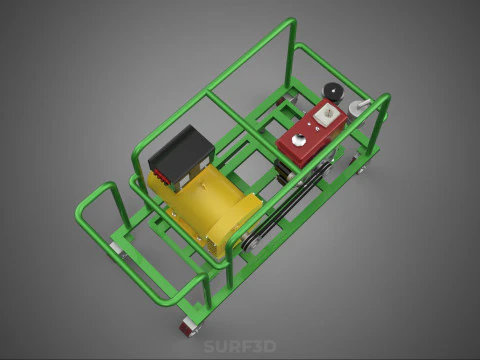

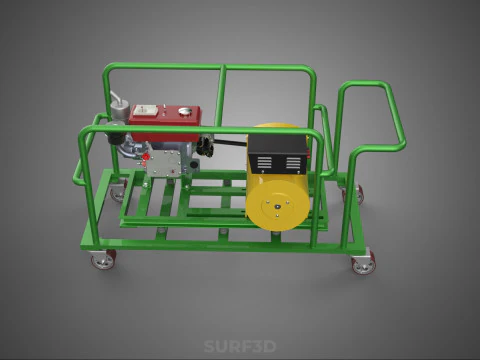

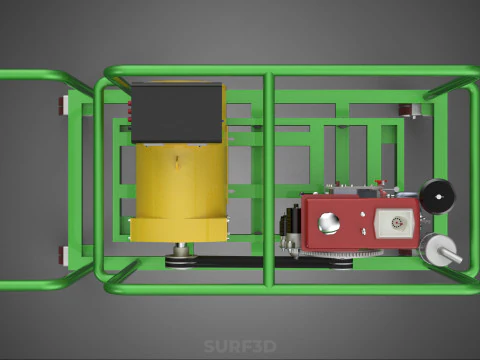

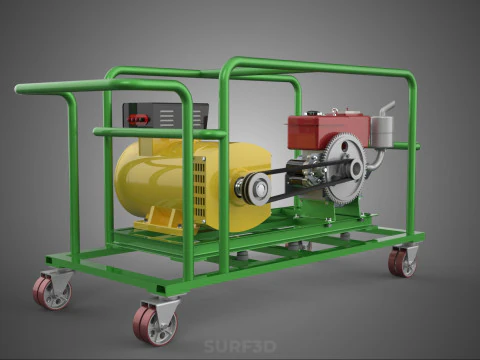

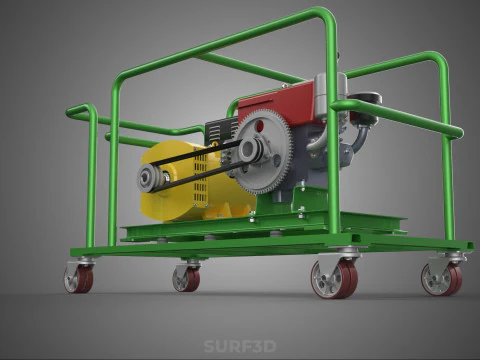

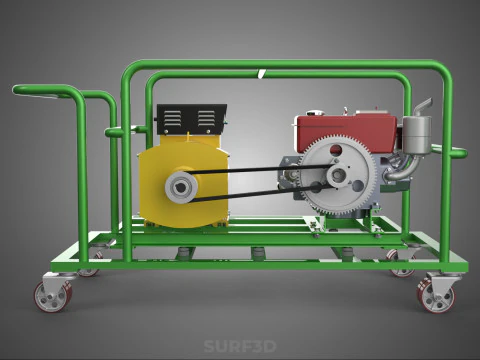

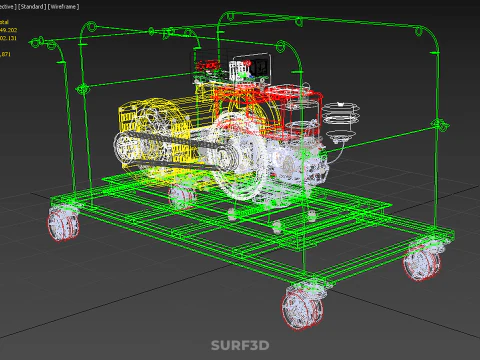

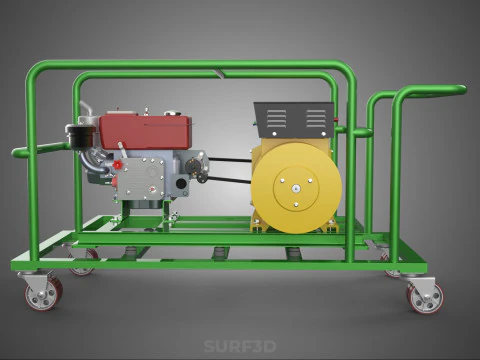

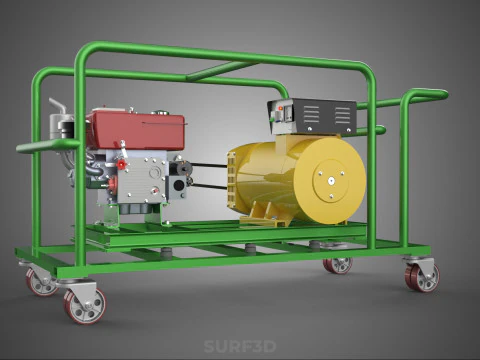

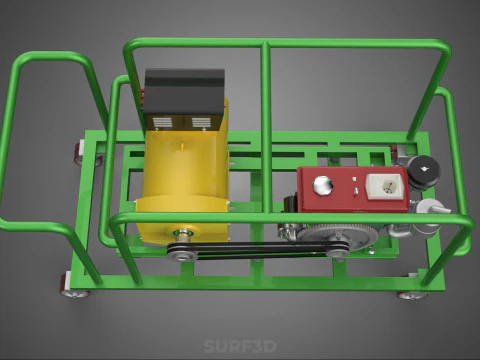

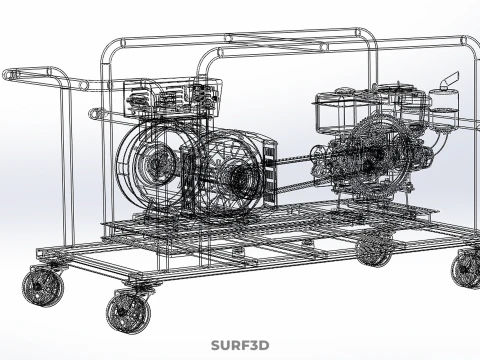

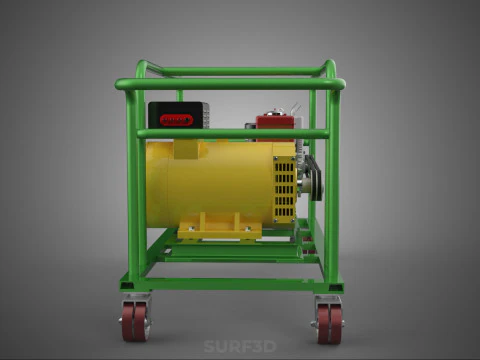

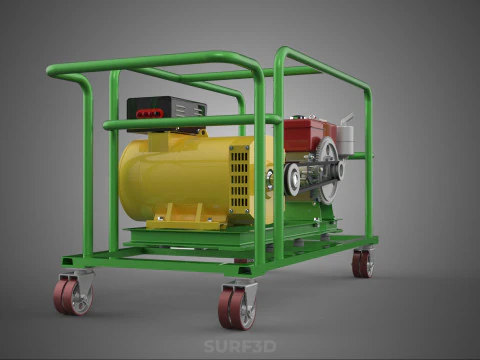

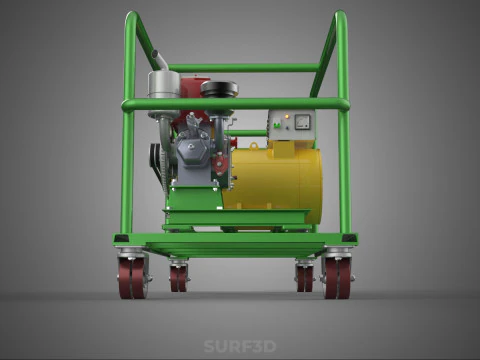

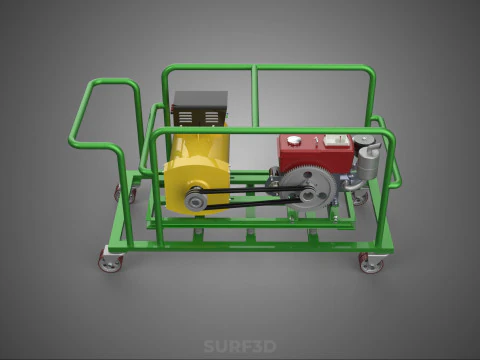

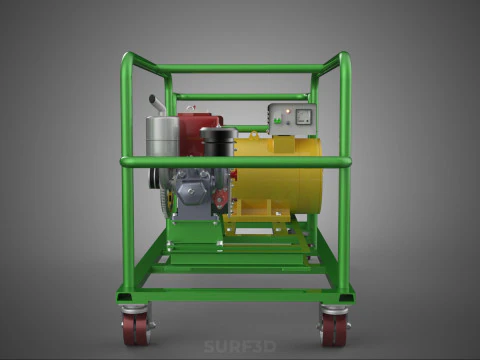

PORTABLE CASTER WHEELED DIESEL ENGINE POWER GENERATOR SET GENSET 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A Portable Caster Wheeled Diesel Engine Power Generator Set (Genset) is an integrated electromechanical system designed to convert the chemical energy stored in diesel fuel into usable electrical energy, characterized primarily by its self-contained structure and enhanced maneuverability via integrated swivel casters.

### Definition and Classification

A generator set is defined by the coupling of a prime mover (in this case, a compression-ignition diesel engine) and an electrical generator (alternator). The designation "Portable Caster Wheeled" classifies the unit within the mobile power category, differentiating it from stationary industrial gensets or large trailer-mounted units designed for highway transport. These sets typically occupy the lower to mid-range power output classes, often ranging from 3 kW (kVA) to approximately 20 kW, making them suitable for light industrial, commercial standby, agricultural, or robust residential applications where the unit must be frequently relocated within a facility or job site.

### Design and Mechanical Structure

The core mechanical architecture of these units is based upon a robust steel frame or skid base, which serves as the foundation for mounting the engine, alternator, fuel tank, and control panel.

**1. Portability System:** The defining feature is the integration of heavy-duty caster wheels. Unlike fixed wheels or dolly wheels, casters allow for 360-degree pivoting, optimizing directional control and low-friction movement, especially over relatively smooth surfaces such as concrete floors, warehouse environments, or leveled ground. High-quality portable units often incorporate locking mechanisms on the casters to ensure stability during operation and to prevent unintended movement, mitigating the risk associated with vibration.

**2. Prime Mover:** The diesel engine is typically a water-cooled or air-cooled, four-stroke, direct-injection engine. Diesel engines are favored in this class for their superior thermal efficiency, lower fuel consumption compared to gasoline equivalents under comparable load, and increased longevity. Standard features include an electric starting system (via 12V or 24V battery), automatic low oil pressure shutdown sensors, and high temperature protection.

**3. Alternator:** The electrical generator component is generally a synchronous, brushless alternator, designed to produce stable alternating current (AC). These units frequently employ Automatic Voltage Regulation (AVR) technology to maintain output voltage stability under varying load conditions, which is crucial for protecting sensitive electronics and motors. Outputs can be configured for single-phase (120/240V) or low-output three-phase requirements.

### Operational Characteristics

**Control System:** Operation is managed via an integrated control panel, which usually includes analog or digital gauges for monitoring critical parameters such as voltage, frequency (Hz), operating hours, oil pressure, and coolant temperature. Modern gensets may also incorporate automatic transfer switch (ATS) capabilities, allowing the unit to start and connect automatically upon detection of a utility power failure, though this is often an optional feature for smaller portable units.

**Acoustic Management and Environmental Integration:** Due to their application in closer proximity to personnel (e.g., workshops, construction sites), portable diesel gensets are increasingly housed within acoustic enclosures or sound-attenuating canopies. These enclosures reduce noise pollution, protect internal components from environmental ingress (dust, moisture), and often serve as the main structural mounting points for the wheel system.

**Fuel System:** The unit includes an integrated fuel tank, designed to provide several hours of autonomous operation at rated load. The fuel system includes filtration components to ensure the longevity and efficiency of the diesel injection system.

### Applications

Portable caster wheeled diesel gensets are utilized where dependable, transient power is required, but without the need for high-speed vehicular transport. Typical applications include: temporary workshop power; backup power for server rooms or retail establishments; mobile medical or testing facilities; and construction site operations where the unit must be frequently moved between different work zones within the site perimeter.

KEYWORDS: Diesel Generator, Genset, Portable Power, Caster Wheels, Mobility, Standby Power, Prime Mover, Alternator, Compression Ignition, AVR, Synchronous Generator, Single-Phase, Three-Phase, Electric Start, Acoustic Enclosure, Fuel Efficiency, Industrial Backup, Construction Power, Transient Power, Low Emission, Skid Base, Control Panel, Automatic Voltage Regulation, Load Stability, Commercial Genset, Auxiliary Power, DG Set, Mobile Power Unit, Utility Interruption, Maneuverability.
