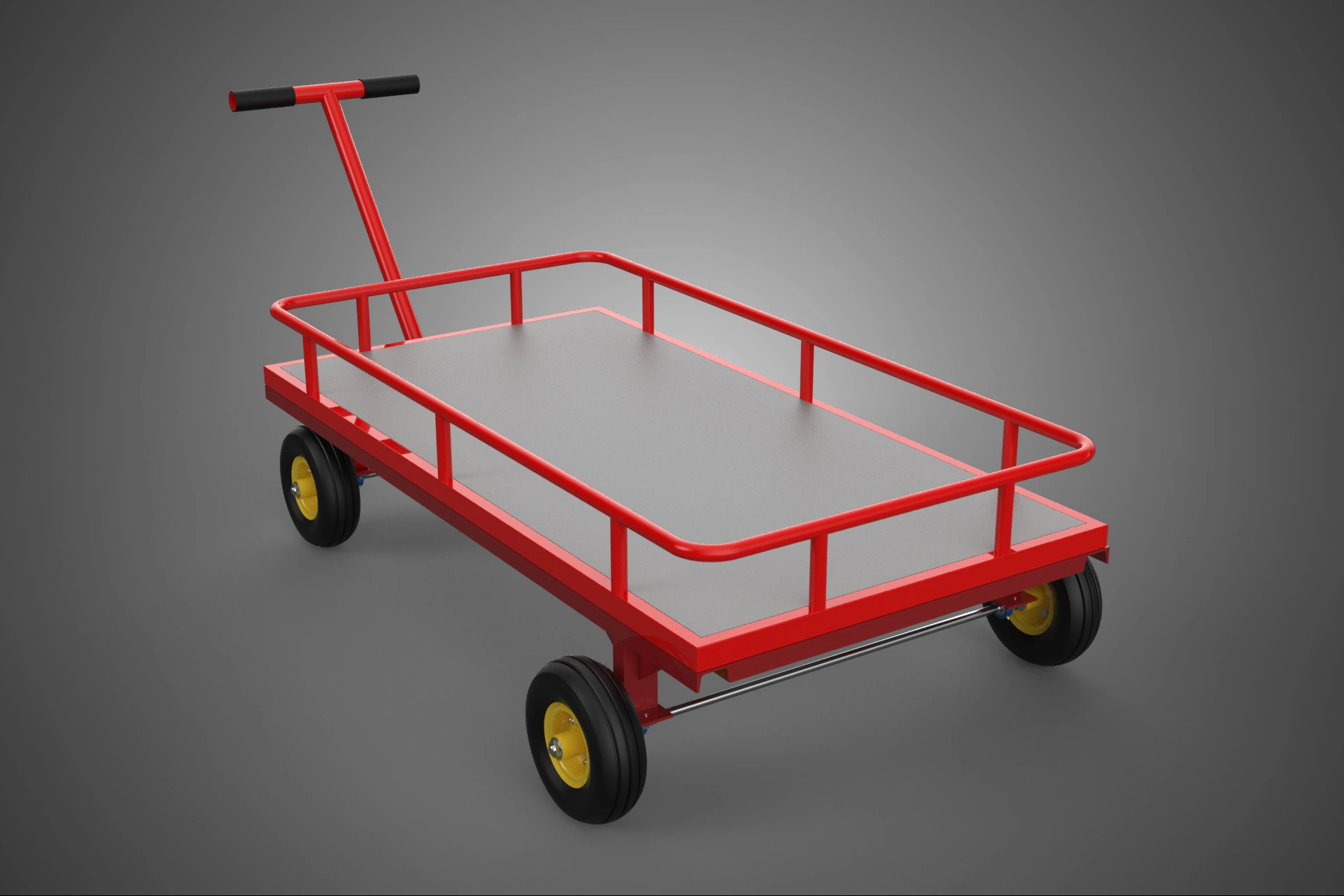

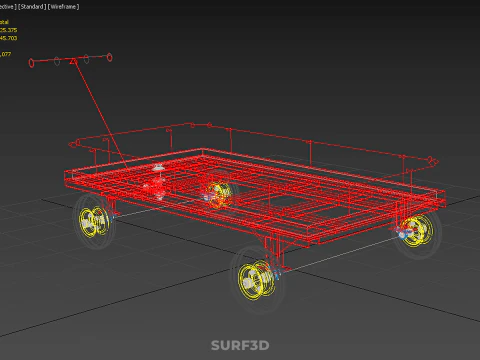

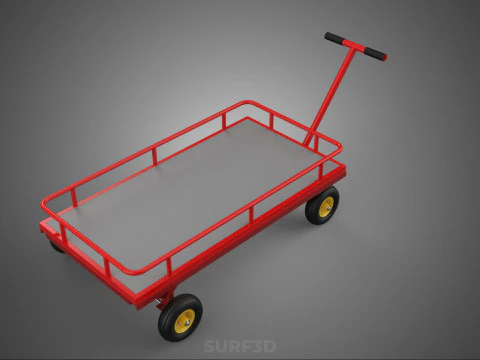

HAND MOVING TRUCK TROLLEY CART WHEEL PALLET DELIVERY LOAD JACK 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The collective terms "HAND MOVING TRUCK TROLLEY CART WHEEL PALLET DELIVERY LOAD JACK" refer to a category of essential non-powered or manually assisted material handling equipment (MMHE) utilized extensively in logistics, warehousing, manufacturing, and retail environments for the short-distance transport and manipulation of goods. These devices are characterized by their manual operation, integrated wheel systems, and ability to manage significant delivery loads with mechanical advantage.

### Nomenclature and Classification

The referenced equipment is generally grouped by function:

1. **Cart and Trolley:** These typically feature an open, flat platform or caged structure resting on four or more caster wheels. They are designed for general utility, movement of smaller loads, inventory staging, and internal retail stocking. Movement relies entirely on manual pushing or pulling (hand moving).
2. **Hand Truck (or Sack Truck):** An L-shaped device with two primary wheels and a small platform (toe plate). It relies on leverage to tilt and move loads stacked vertically, such as boxes or drums. It is engineered for stability when moving loads up or down inclines and minimizes manual lifting effort.
3. **Pallet Truck (or Pallet Jack):** This is the most specialized apparatus within this group, explicitly designed to interface with standardized pallets (e.g., ISO 800 mm × 1200 mm). It utilizes an integrated hydraulic mechanism (the "jack") to lift the pallet load slightly off the ground, facilitating immediate mobility.

### The Pallet Jack Mechanism

The manual pallet jack integrates the lifting and mobility functions critical for pallet handling. It consists of three primary subsystems:

1. **Forks (Tines):** Two structural blades designed to slide beneath the top deck boards of a pallet. Standard models are engineered to handle the typical gap clearance of common wooden or plastic pallets.
2. **Hydraulic Jack System:** Operated by repetitive pumping of the steering handle, this mechanism uses hydraulic fluid displacement to raise the forks. This action provides the necessary clearance to lift the entire palletized load (the delivery load) by a few inches, making the load carriage movable on its wheels. A release lever, typically located near the handle, allows for controlled lowering of the load.
3. **Wheel System:** Comprising the steer wheels and the load wheels.
* **Steer Wheels:** Larger wheels located beneath the handle, articulating 180 to 200 degrees, allowing precise directional control (hand moving).
* **Load Wheels:** Smaller wheels located at the tip of the forks, often configured in tandem (bogie wheels) to distribute the weight and mitigate floor damage, particularly when crossing thresholds or small cracks. Wheel materials—such as polyurethane, nylon, or rubber—are selected based on the required load capacity and the characteristics of the operational floor surface.

### Utility and Operational Context

These devices are essential for optimizing logistical throughput, particularly in facilities without the necessary vertical space or capital expenditure for powered forklifts. They are used for:

* **Loading and Unloading:** Transporting delivery loads from the receiving dock area to staging zones.
* **Staging and Inventory:** Placing pallets into designated inventory locations that are accessible at floor level.
* **Retail Stocking:** Moving small loads efficiently within narrow aisles or customer-facing areas where larger equipment is unsuitable.

Manual moving equipment offers high maneuverability, minimal maintenance requirements, and zero emissions, making them a cornerstone of efficient manual material flow.
